Raymond Mill for Sale – 1620 Grinding Mill Manufacturer in Guilin
Introduction to Raymond Mill Technology
Raymond Mill, also known as pendulum roller mill, has been a cornerstone in grinding technology for over a century. As a leading grinding mill manufacturer based in Guilin, we have continuously evolved this technology to meet modern industrial demands. Our 1620 Raymond Mill represents the pinnacle of this evolution, combining traditional reliability with cutting-edge innovations to deliver exceptional performance across various applications.

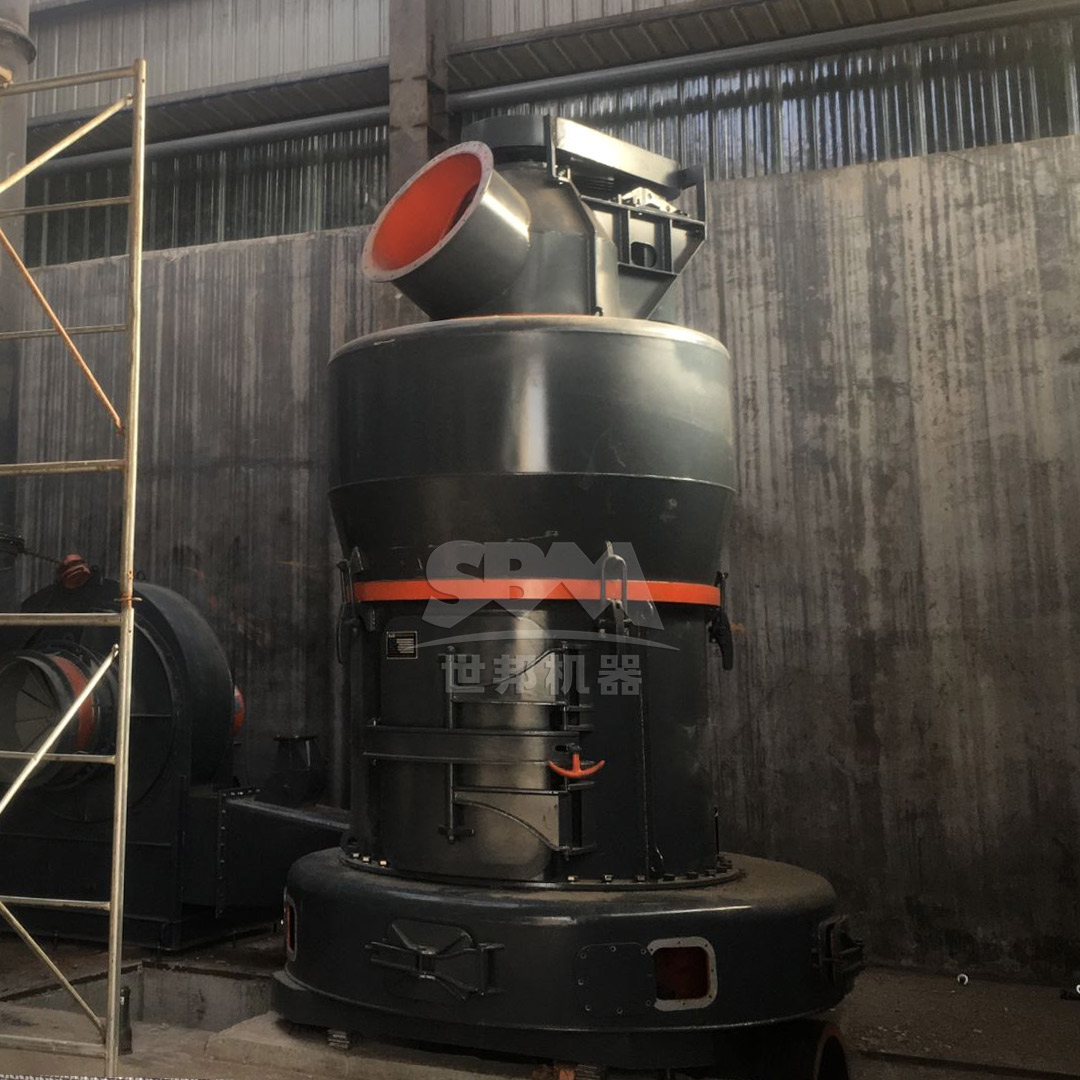

The fundamental principle of Raymond Mill operation involves grinding materials between rotating rollers and a stationary grinding ring. Material is fed into the center of the grinding chamber and is transported by centrifugal force to the periphery, where it undergoes multiple passes between the grinding elements. This creates a highly efficient grinding mechanism that has proven successful for decades.
Technical Specifications of 1620 Raymond Mill
Our 1620 Raymond Mill is engineered for medium to large-scale operations with the following key specifications:
- Max Feed Size: ≤35mm
- Output Fineness: 80-325 mesh (adjustable)
- Capacity: 8-25 tons per hour
- Main Motor Power: 132-160kW
- Classifier Motor: 18.5-22kW
- Overall Dimensions: 15.5m × 7.2m × 8.5m
The mill features a robust construction with high-quality alloy steel grinding rolls and rings, ensuring extended service life even when processing abrasive materials. The automatic lubrication system minimizes maintenance requirements while maximizing component longevity.
Advanced Features and Innovations
Our 1620 Raymond Mill incorporates several technological advancements that set it apart from conventional designs:
Intelligent Control System
The mill is equipped with a PLC-based automation system that monitors and adjusts operational parameters in real-time. This includes automatic feed rate control, grinding pressure adjustment, and fineness regulation. The system can detect abnormal conditions and initiate protective measures, preventing equipment damage and ensuring consistent product quality.
Enhanced Classification Efficiency
We’ve integrated an advanced turbo classifier with variable frequency drive, allowing precise control over product fineness. The classifier’s unique blade design creates optimal airflow patterns that improve separation efficiency while reducing energy consumption. This results in sharper particle size distributions and reduced oversize particles in the final product.
Environmental Compliance
The 1620 Raymond Mill is designed with environmental protection as a priority. The integrated pulse jet baghouse dust collector achieves filtration efficiency exceeding 99.9%, ensuring emissions remain well below international standards. Sound insulation measures maintain operational noise levels below 85dB, creating a safer working environment.
Applications and Material Compatibility
The versatility of our 1620 Raymond Mill makes it suitable for processing a wide range of materials across multiple industries:
Minerals and Ores
The mill effectively processes various non-metallic minerals including limestone, calcite, dolomite, barite, talc, gypsum, and kaolin. Its robust construction allows it to handle materials with Mohs hardness up to 7, making it suitable for most industrial mineral applications.
Chemical Products
For the chemical industry, the mill processes materials such as activated carbon, bentonite, and various pigments. The closed-system design prevents contamination while the corrosion-resistant options extend equipment life when processing aggressive materials.
Construction Materials
In construction applications, the mill processes materials including cement clinker, blast furnace slag, and fly ash. The ability to control fineness precisely makes it ideal for producing materials with specific surface area requirements.
Complementary Grinding Solutions
While our 1620 Raymond Mill excels in medium-fineness grinding applications, we offer complementary technologies for specialized requirements:
SCM Ultrafine Mill for High-Fineness Applications
For applications requiring superior fineness, our SCM Ultrafine Mill represents the cutting edge of grinding technology. Capable of producing powders with fineness ranging from 325 to 2500 mesh (D97≤5μm), this mill incorporates several groundbreaking features. The vertical turbine classifier enables precise particle size control without coarse powder contamination. With capacity reaching 25 tons per hour and energy consumption 30% lower than jet mills, the SCM series delivers exceptional efficiency for high-value fine powder production.
The SCM Ultrafine Mill’s intelligent control system automatically maintains consistent product quality by monitoring and adjusting operational parameters. Special wear-resistant materials for grinding components extend service life significantly, while the pulse dust collection system and sound insulation design ensure environmental compliance with noise levels below 75dB. Available in multiple models from SCM800 to SCM1680, this mill series offers solutions for operations of all scales.
MTW Series Trapezium Mill for High-Capacity Requirements
When processing capacity takes priority, our MTW Series Trapezium Mill provides an optimal solution. With throughput ranging from 3 to 45 tons per hour and output fineness from 30 to 325 mesh, this European-style grinding mill combines high productivity with excellent reliability. The innovative curved air channel design reduces airflow resistance and improves transmission efficiency, while the integrated cone gear transmission system achieves 98% transmission efficiency.
The MTW series features wear-resistant components including combined shovel blades that significantly reduce maintenance costs. The arc-shaped air channel with high-strength protective plates extends service life, and the wear-resistant volute structure improves air classification efficiency. Available in multiple configurations from MTW110 to MRN218, this mill series adapts to various raw material characteristics and production requirements.
Installation and Operational Considerations
Proper installation and operation are crucial for maximizing the performance and longevity of grinding equipment. Our 1620 Raymond Mill is designed for straightforward installation with pre-assembled major components that reduce on-site work. The foundation requirements are clearly specified in our technical documentation, and our engineering team provides comprehensive support throughout the installation process.
Operational training covers all aspects of mill operation, including startup procedures, routine maintenance, troubleshooting, and safety protocols. We emphasize the importance of regular inspection of wear parts, proper lubrication practices, and monitoring of operational parameters to ensure optimal performance.
Maintenance and Service Support
Our commitment to customer satisfaction extends beyond equipment delivery. We provide comprehensive after-sales support including:
- Technical consultation and operational guidance
- Wear parts supply with guaranteed compatibility
- Remote diagnostic services
- On-site technical support when required
- Regular maintenance scheduling and reminders
The modular design of our 1620 Raymond Mill facilitates maintenance activities, with easily accessible components that can be replaced without major disassembly. Our service network ensures prompt response to customer needs, minimizing downtime and maintaining production efficiency.
Conclusion
As a professional grinding mill manufacturer with decades of experience, we understand the critical role that reliable equipment plays in production operations. Our 1620 Raymond Mill embodies our commitment to quality, innovation, and customer satisfaction. By combining proven principles with modern technological advancements, we deliver grinding solutions that meet the evolving demands of various industries.
Whether you require the medium-fineness capabilities of our Raymond Mill, the ultra-fine grinding performance of our SCM series, or the high-capacity processing of our MTW trapezium mills, we offer comprehensive solutions tailored to your specific requirements. Contact our technical team to discuss how our grinding technologies can enhance your operation’s efficiency and profitability.
