Raymond Mill Applications in Artificial Sand Production Lines
Introduction to Raymond Mill Technology in Sand Production
The artificial sand production industry has witnessed significant technological advancements in recent years, with Raymond Mill technology playing a pivotal role in transforming raw materials into high-quality manufactured sand. As natural sand resources become increasingly scarce and environmental regulations tighten, the demand for efficient artificial sand production solutions has never been greater. Raymond Mills, with their versatile grinding capabilities, have emerged as essential equipment in modern sand production lines, offering precise control over particle size distribution and shape characteristics crucial for construction applications.
Artificial sand production involves multiple stages of processing, from initial crushing to final grading, with grinding representing one of the most critical phases. The efficiency of this grinding process directly impacts the quality, cost, and environmental footprint of the final product. Modern Raymond Mill technology has evolved to meet these challenges, incorporating innovations in grinding mechanics, classification systems, and energy efficiency that make them indispensable in contemporary sand manufacturing operations.
Key Technical Requirements for Artificial Sand Grinding
The production of high-quality artificial sand demands specific technical characteristics from grinding equipment. Particle size distribution must be carefully controlled to meet construction standards, typically requiring a well-graded combination of coarse, medium, and fine particles. The shape of sand particles is equally important, as angular, cubical particles provide better mechanical interlock and strength properties compared to rounded or flaky particles.
Modern Raymond Mills address these requirements through advanced grinding mechanisms and precision classification systems. The grinding process in these mills creates particles with optimal shape characteristics through a combination of compression, impact, and attrition forces. Simultaneously, integrated classification systems ensure tight control over particle size distribution, rejecting oversize material for regrinding while allowing properly sized particles to proceed to collection systems.
Production capacity represents another critical consideration, with artificial sand plants typically requiring throughput ranging from several tons to hundreds of tons per hour. The grinding equipment must maintain consistent performance across this capacity range while adapting to variations in feed material characteristics. Modern Raymond Mills achieve this through robust construction, intelligent control systems, and flexible operating parameters that can be adjusted to match specific production requirements.
SCM Ultrafine Mill: Revolutionizing Fine Sand Production

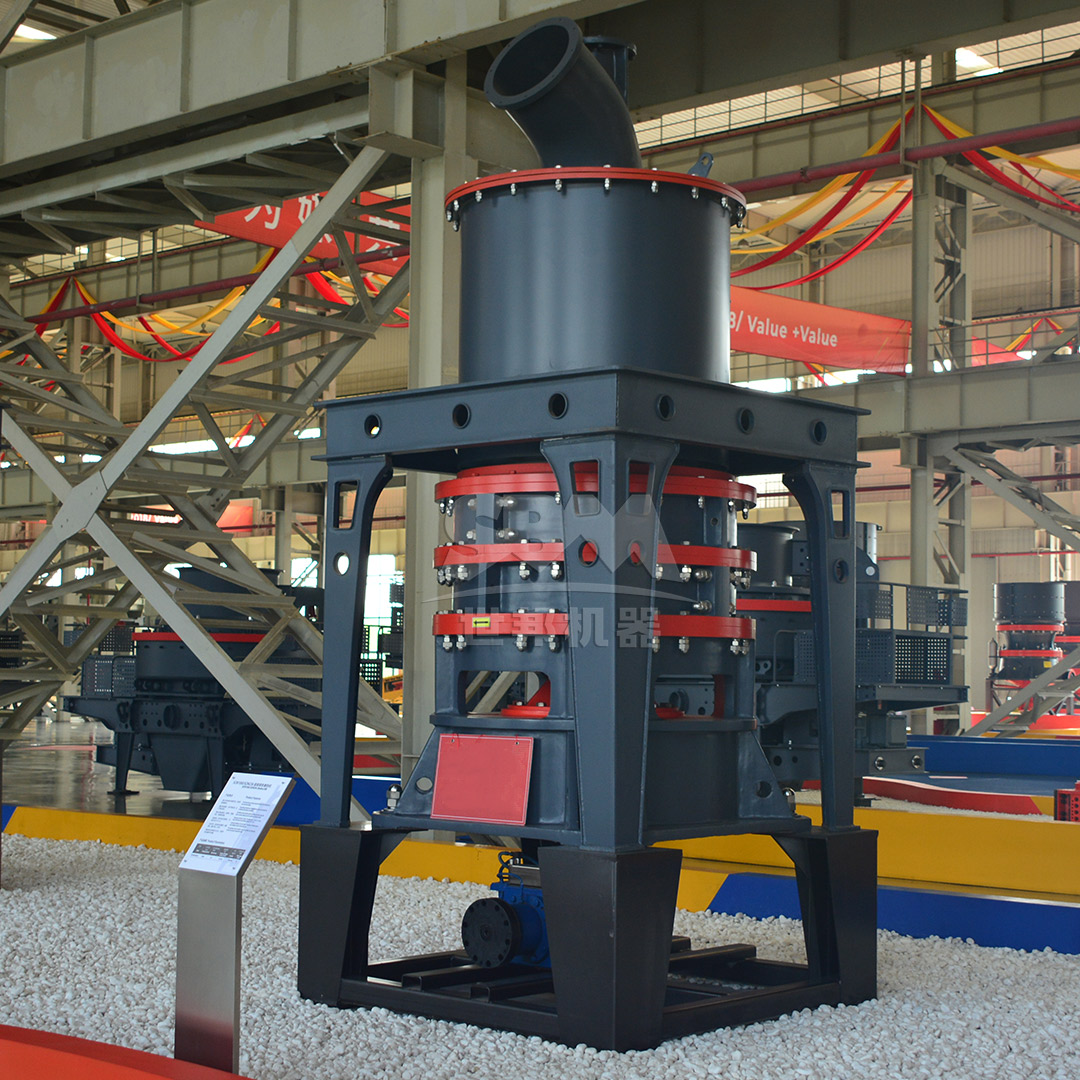

For operations requiring exceptionally fine sand products or those seeking to maximize value from by-products, the SCM Ultrafine Mill represents a technological breakthrough. This advanced grinding system achieves fineness levels up to 2500 mesh (D97 ≤ 5μm), making it ideal for producing high-value fine sand fractions and processing tailings into saleable products.
The SCM Ultrafine Mill incorporates several innovative features that make it particularly suitable for artificial sand production. Its vertical turbine classifier provides precise particle size control, ensuring consistent product quality even with variations in feed material. The mill’s unique grinding mechanism, utilizing multiple grinding rings and rollers, achieves exceptional size reduction efficiency while minimizing energy consumption. With capacity ranging from 0.5 to 25 tons per hour across different models, the SCM series offers solutions for various production scales.
What sets the SCM Ultrafine Mill apart in sand production applications is its ability to handle the abrasive nature of sand feed materials. The use of special wear-resistant materials for grinding components extends service life significantly, reducing maintenance requirements and downtime. The mill’s intelligent control system automatically adjusts operating parameters based on product fineness feedback, maintaining consistent quality while optimizing energy usage. Furthermore, its environmentally friendly design features pulse dust collection efficiency exceeding international standards and noise levels below 75dB, addressing important environmental considerations in sand production facilities.
MTW Series Trapezium Mill for High-Capacity Sand Production

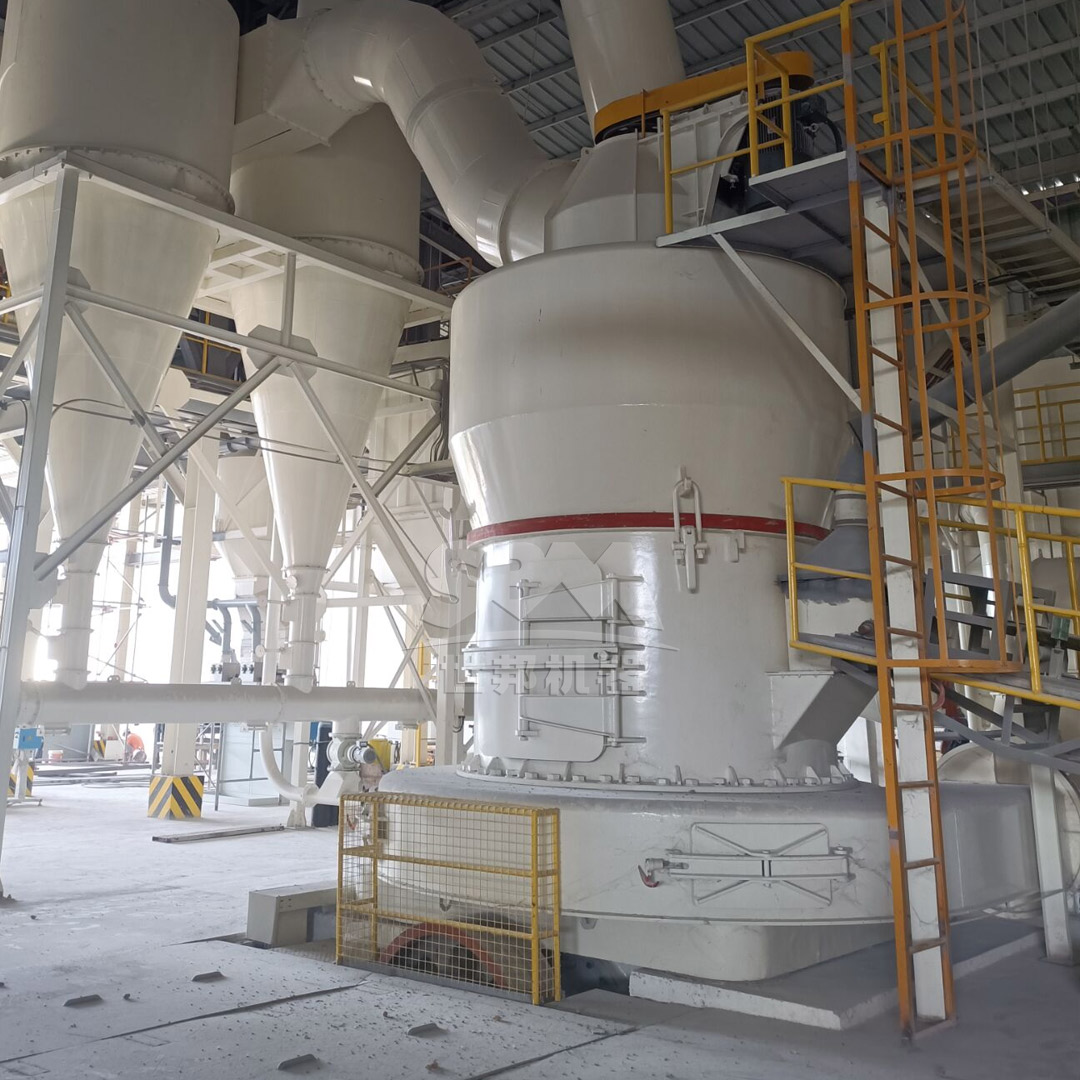

For large-scale artificial sand production operations requiring high throughput rates, the MTW Series Trapezium Mill offers an optimal solution. With capacity ranging from 3 to 45 tons per hour depending on model selection, this robust grinding platform handles the demanding requirements of commercial sand manufacturing while maintaining excellent product quality.
The MTW Series incorporates several design innovations that make it particularly effective for sand production applications. Its curved air channel design reduces air resistance and improves material flow, enhancing overall efficiency. The combined shovel blade design reduces maintenance costs while improving material handling characteristics. The mill’s overall gear drive system achieves 98% transmission efficiency, significantly reducing energy consumption compared to conventional drive systems.
In artificial sand production lines, the MTW Trapezium Mill typically serves as the primary grinding unit, processing pre-crushed material into the desired sand product. Its ability to handle feed sizes up to 50mm reduces the need for extensive pre-crushing, simplifying the overall process flow. The mill’s advanced classification system ensures precise control over product gradation, allowing producers to target specific market requirements. With models ranging from the compact MTW110 to the high-capacity MRN218, the series offers solutions for operations of all sizes.
Integration of Raymond Mills in Complete Sand Production Lines

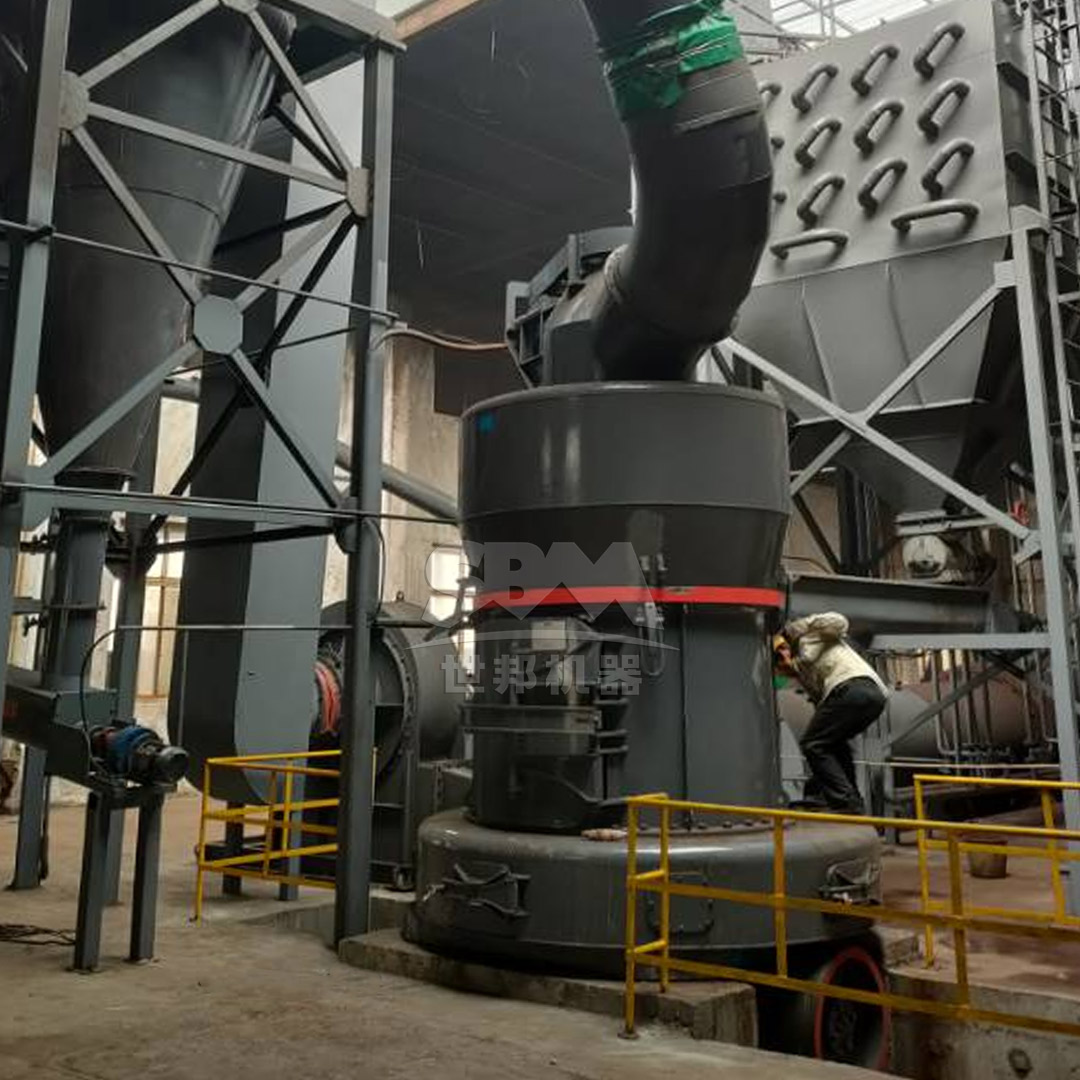

The effective incorporation of Raymond Mills into artificial sand production requires careful consideration of the entire process flow. A typical integrated production line begins with primary crushing of raw material, followed by secondary crushing to reduce material to a size suitable for grinding. The Raymond Mill then processes this material into the final sand product, with subsequent screening and classification stages ensuring compliance with specification requirements.
Modern sand production lines increasingly employ automated control systems that coordinate the operation of all components, from crushers to mills to classifiers. These systems optimize the overall process by adjusting operating parameters in response to feed material characteristics and product requirements. Raymond Mills with advanced control interfaces integrate seamlessly into these automated systems, providing real-time data on operating status and product quality.
Dust collection and environmental control represent critical considerations in sand production facilities. Modern Raymond Mills incorporate comprehensive dust collection systems that capture airborne particles at the source, minimizing environmental impact and recovering valuable product. Water spray systems may be integrated where necessary for dust suppression, particularly in handling and storage operations following the grinding process.
Economic and Environmental Considerations
The adoption of advanced Raymond Mill technology in artificial sand production offers significant economic benefits. The high efficiency of modern grinding systems reduces energy consumption, which typically represents a major portion of operating costs in sand production. Reduced maintenance requirements, achieved through improved wear resistance and reliability, further contribute to economic advantages through decreased downtime and lower spare parts consumption.
From an environmental perspective, modern Raymond Mills address several key concerns associated with sand production. Their efficient operation minimizes energy consumption, reducing the carbon footprint of sand production. Comprehensive dust collection systems prevent particulate emissions, protecting air quality in and around production facilities. Noise reduction features minimize acoustic impact on surrounding communities, facilitating compliance with environmental regulations.
The use of artificial sand produced through advanced grinding technology also offers environmental benefits at the application level. Manufactured sand typically exhibits more consistent properties than natural sand, allowing for optimized mix designs in concrete and other applications that reduce cement consumption and improve durability. This contributes to the sustainability of construction projects while maintaining or enhancing performance characteristics.
Future Trends in Artificial Sand Production Technology
The future of artificial sand production will likely see continued evolution of Raymond Mill technology toward even greater efficiency, flexibility, and automation. Developments in wear-resistant materials will extend component life further, reducing maintenance requirements and improving economic performance. Advances in classification technology will enable even tighter control over product gradation, allowing producers to target specific market segments with precision.
Integration of artificial intelligence and machine learning technologies will transform how Raymond Mills operate within sand production lines. These systems will optimize grinding parameters in real-time based on feed material characteristics and product requirements, maximizing efficiency and consistency. Predictive maintenance capabilities will anticipate component wear and schedule maintenance activities during planned downtime, minimizing disruptions to production.
As sustainability concerns continue to grow, future developments will likely focus on further reducing the environmental impact of sand production. This may include enhanced energy recovery systems, improved dust collection efficiency, and technologies that facilitate the use of alternative raw materials. The ability to process industrial by-products and recycled materials into high-quality sand substitutes will become increasingly important, supporting circular economy principles in the construction materials sector.
