Raymond Mill: A Representative Machine in Ore Grinding Equipment

Introduction to Raymond Mill Technology

The mining and mineral processing industry has witnessed remarkable advancements in grinding technology over the past century. Among the various grinding equipment available, Raymond Mill stands as a pioneering invention that has shaped modern ore processing operations. Originally developed in the early 20th century, this grinding machinery has evolved significantly while maintaining its fundamental operating principles. Today’s Raymond Mills represent sophisticated engineering marvels that combine efficiency, precision, and reliability in mineral processing applications worldwide.

The fundamental concept behind Raymond Mill technology involves the use of grinding rollers that apply centrifugal force against a stationary grinding ring, effectively crushing and pulverizing materials through a combination of impact and compression forces. This mechanical approach to size reduction has proven exceptionally effective for processing various ores and minerals, from limestone and gypsum to more challenging materials like iron ore, copper ore, and phosphate rock.

Technical Evolution and Modern Applications

The journey from the original Raymond Mill designs to contemporary models reflects the industry’s continuous pursuit of improved efficiency and performance. Early versions were relatively simple mechanical systems, but modern iterations incorporate advanced materials, precision engineering, and sophisticated control systems. This evolution has enabled Raymond Mills to maintain their relevance in an increasingly competitive market where energy efficiency, environmental compliance, and operational cost control are paramount concerns.

Contemporary Raymond Mills find applications across diverse industrial sectors. In mining operations, they process metallic and non-metallic ores to the required fineness for subsequent beneficiation processes. In the construction materials industry, they grind limestone, gypsum, and other raw materials for cement production. The chemical industry utilizes these mills for preparing various mineral-based compounds, while the agricultural sector employs them for processing phosphate rocks and other mineral fertilizers.

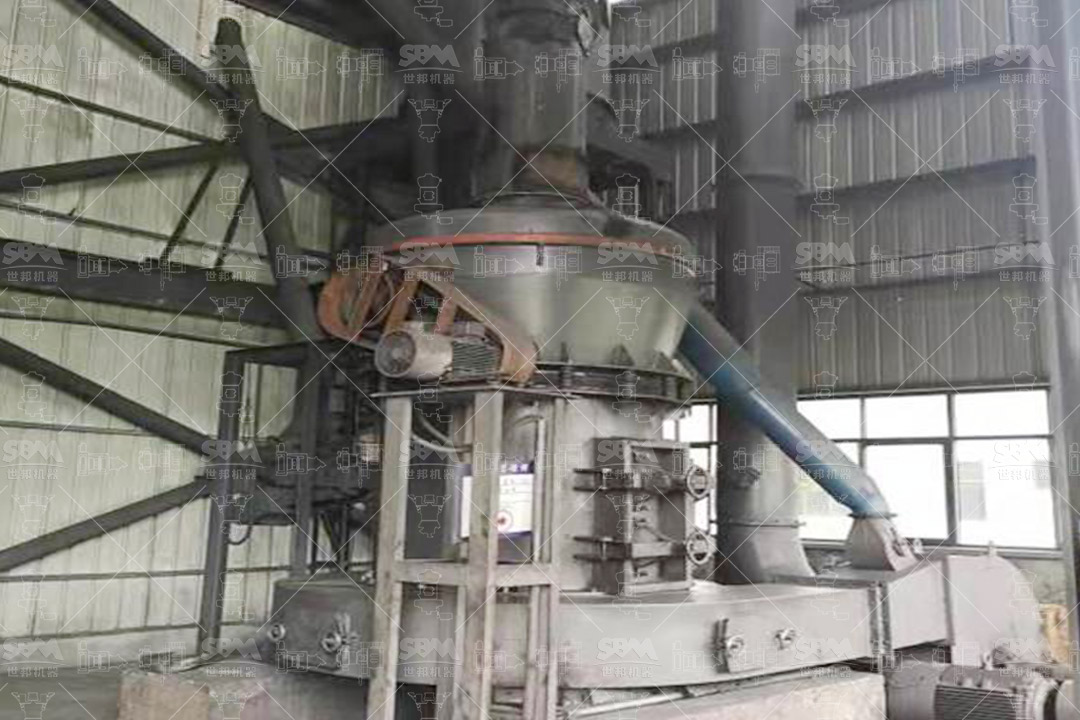

Key Components and Operating Principles

A thorough understanding of Raymond Mill operation requires familiarity with its essential components. The mainframe provides structural integrity and houses the grinding mechanism. The grinding assembly consists of multiple rollers suspended from a spider assembly, which rotate around a central axis while simultaneously rotating on their own axes. These rollers press against a stationary grinding ring due to centrifugal force, creating the grinding action that reduces material size.

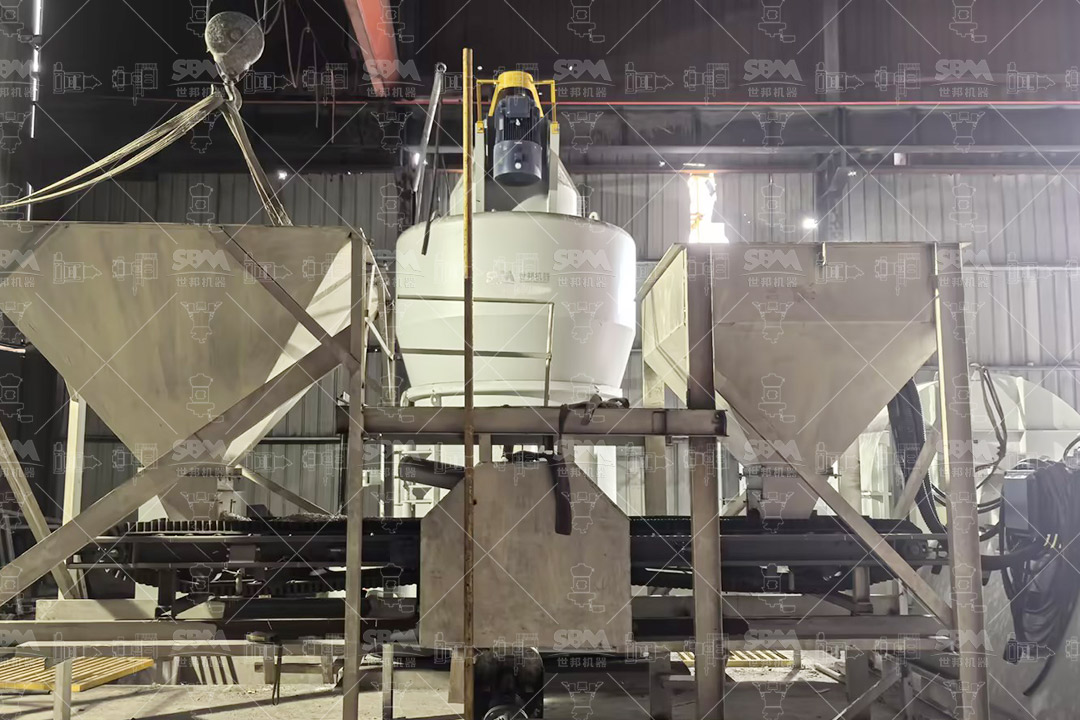

The feeding system introduces raw material into the grinding zone at a controlled rate, typically using vibratory feeders or screw conveyors. After grinding, the powdered material is transported upward by an air stream generated by an induced draft fan. The classifier assembly, positioned above the grinding zone, separates particles based on size, allowing sufficiently fine material to proceed to collection systems while returning oversized particles to the grinding chamber for further processing.

This closed-circuit operation ensures consistent product quality and optimal utilization of grinding energy. The entire process is carefully balanced to maintain appropriate air flows, material loading, and grinding pressure, all of which contribute to the mill’s overall efficiency and performance characteristics.

Performance Characteristics and Advantages

Raymond Mills offer several distinct advantages that explain their enduring popularity in mineral processing. Their relatively simple mechanical design translates to robust operation with minimal downtime. The modular construction facilitates maintenance and replacement of wear components, while the standardized sizing of critical parts reduces inventory requirements for operations maintaining multiple units.

From an operational perspective, Raymond Mills demonstrate excellent energy efficiency compared to alternative grinding technologies, particularly for medium-fineness applications. Their ability to handle moist materials (typically up to 6-8% moisture content) without prior drying represents another significant advantage. The quick adjustment capability for product fineness allows operators to respond rapidly to changing market requirements or process conditions.

Environmental performance has become increasingly important in modern mining operations, and Raymond Mills generally feature effective dust containment systems that minimize particulate emissions. When equipped with appropriate dust collection equipment, these mills can comply with stringent environmental regulations while maintaining operational efficiency.

Modern Innovations in Raymond Mill Technology

The ongoing development of Raymond Mill technology has addressed several historical limitations while enhancing overall performance. Modern designs incorporate improved wear-resistant materials for grinding components, significantly extending service life and reducing maintenance requirements. Advanced lubrication systems ensure reliable operation while minimizing lubricant consumption and environmental impact.

Automation and control systems represent another area of significant advancement. Modern Raymond Mills often feature programmable logic controllers (PLCs) that monitor and adjust operational parameters in real-time, optimizing performance while reducing operator intervention. These systems can detect abnormal conditions and implement corrective actions or shutdown sequences to prevent equipment damage.

Energy efficiency has been enhanced through improved aerodynamic designs that reduce power consumption while maintaining or increasing throughput. Some contemporary models incorporate waste heat recovery systems that capture and reuse thermal energy, further reducing operational costs and environmental impact.

Comparative Analysis with Alternative Grinding Technologies

Understanding the position of Raymond Mills in the broader context of grinding equipment requires comparison with alternative technologies. Ball mills, for instance, offer advantages for wet grinding applications and can achieve finer product sizes but typically consume more energy per ton of product. Vertical roller mills provide excellent energy efficiency for raw material grinding but may involve higher capital investment and more complex maintenance requirements.

For many medium-scale applications requiring product fineness in the range of 80-400 mesh, Raymond Mills often represent the optimal balance between capital cost, operating expense, and product quality. Their ability to handle variations in feed material characteristics without significant process adjustments provides operational flexibility that alternative technologies may lack.

The choice between different grinding technologies ultimately depends on specific application requirements, including feed material characteristics, required product fineness, production capacity, energy costs, and environmental considerations. Raymond Mills continue to occupy an important niche where their particular combination of characteristics delivers superior economic and technical performance.

Advanced Raymond Mill Solutions: SCM Ultrafine Mill

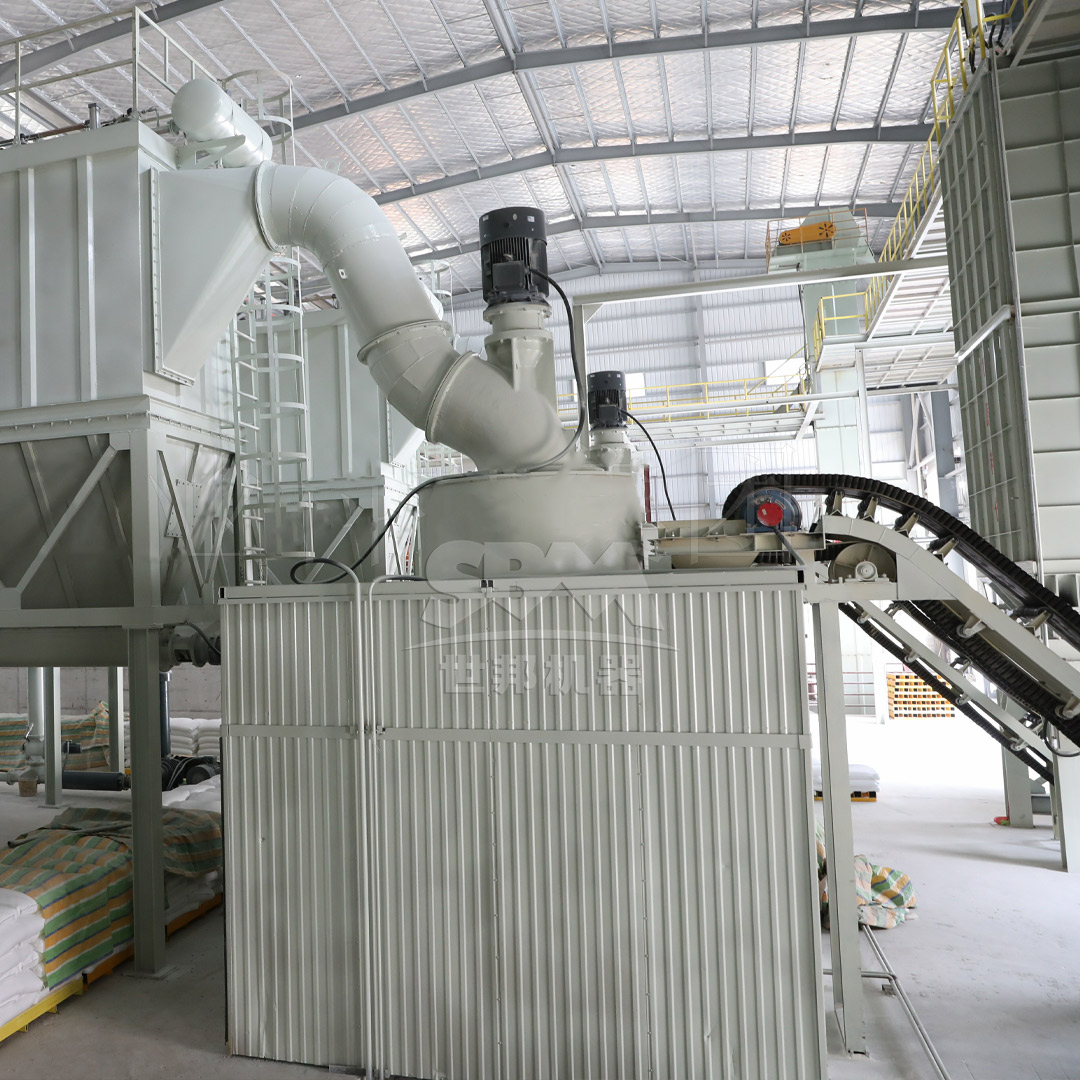

For operations requiring superior fineness and precision grinding, the SCM Ultrafine Mill represents the cutting edge of Raymond Mill technology. This advanced grinding system achieves remarkable fineness levels of 325-2500 mesh (D97≤5μm) while maintaining impressive throughput rates of 0.5-25 tons per hour depending on model specification.

The technological superiority of the SCM Ultrafine Mill begins with its efficient energy utilization, delivering twice the capacity of jet mills while reducing energy consumption by 30%. This remarkable efficiency stems from its intelligent control system that automatically maintains optimal grinding conditions and provides real-time feedback on product particle size. The vertical turbo classifier ensures precise particle size distribution with no coarse powder contamination, guaranteeing uniform product quality batch after batch.

Durability considerations have been comprehensively addressed through specialized material selection for rollers and grinding rings, extending component life multiple times compared to conventional designs. The innovative bearing-free screw grinding chamber enhances operational stability while reducing maintenance requirements. Environmental performance meets the highest international standards with pulse dust collection efficiency exceeding 99.9% and noise levels controlled below 75dB through integrated acoustic enclosures.

The operational principle involves a main motor driving a three-layer grinding ring rotation system. Material enters the grinding chamber where centrifugal force distributes it evenly across the grinding path. Progressive compression and grinding actions reduce particle size through multiple stages before the final product is collected by cyclone separators and pulse dust collection systems. Available in multiple models from SCM800 to SCM1680, this ultrafine grinding solution accommodates processing capacities from 0.5 to 25 tons per hour with corresponding motor power from 75kW to 315kW.

High-Capacity Grinding Solutions: MTW Series Trapezium Mill

For large-scale operations requiring robust performance and high throughput, the MTW Series Trapezium Mill delivers exceptional capabilities with processing capacities ranging from 3 to 45 tons per hour. This advanced grinding system handles feed materials up to 50mm in size and produces finished powders with fineness between 30-325 mesh (down to 0.038mm).

The engineering excellence of the MTW Series begins with its innovative wear-resistant shovel design featuring combined blades that significantly reduce maintenance costs. The curved blade design extends roller service life while optimizing material feeding efficiency. The specially engineered curved air channel minimizes airflow resistance, enhancing transmission efficiency while high-strength protective plates safeguard critical working surfaces.

The integrated bevel gear transmission system achieves remarkable 98% transmission efficiency while saving installation space and reducing overall project costs. The durable volute structure employs obstruction-free design principles to enhance air classification efficiency while reducing maintenance requirements by 30%. Multiple models from MTW110 to MRN218 accommodate various production requirements with motor power ranging from 55kW to 280kW.

Operational principle involves the main motor driving grinding rollers that revolve around the central axis while simultaneously rotating on their own axes, generating centrifugal force. Shovels feed material between the grinding roller and ring where layered compression achieves efficient pulverization. The precision classification system ensures accurate control of final product size distribution. Proprietary technologies including independent intellectual property designs, internal oil lubrication systems, and advanced international pulse dust collection technology distinguish this grinding solution in demanding industrial applications.

Operational Considerations and Best Practices

Successful implementation of Raymond Mill technology requires attention to several operational factors. Proper mill feeding represents a critical aspect, with consistent feed rate and material characteristics essential for stable operation. Variations in feed size, moisture content, or hardness can significantly impact grinding efficiency and product quality, necessitating appropriate feed preparation systems.

Maintenance protocols must address the specific wear patterns of grinding components. Regular inspection and timely replacement of worn rollers, grinding rings, and classifier blades prevent unexpected downtime and maintain product consistency. Modern monitoring systems can track component wear and provide early warning of impending maintenance requirements.

Energy optimization requires careful adjustment of operational parameters including grinding pressure, classifier speed, and system airflow. These inter-related factors must be balanced to achieve target production rates and product quality while minimizing specific energy consumption. Operational data analysis often reveals opportunities for performance improvement through parameter adjustments.

Future Development Trends

The future evolution of Raymond Mill technology will likely focus on several key areas. Digitalization and Industry 4.0 integration will enable more comprehensive monitoring and optimization of grinding operations. Predictive maintenance capabilities, based on analysis of operational data and component condition monitoring, will further reduce unplanned downtime and extend equipment life.

Material science advancements will continue to improve wear component performance, with new alloys and ceramic materials offering extended service life in abrasive applications. These developments will particularly benefit operations processing highly abrasive ores where component wear represents a significant operational cost.

Energy efficiency will remain a primary focus, with innovations in drive systems, aerodynamic optimization, and heat recovery contributing to reduced environmental impact and operating costs. The integration of renewable energy sources and energy storage systems may further enhance the sustainability profile of grinding operations.

Conclusion

Raymond Mill technology continues to play a vital role in mineral processing operations worldwide, combining proven operational principles with continuous technological innovation. The versatility, reliability, and efficiency of these grinding systems ensure their ongoing relevance across diverse industrial applications. As exemplified by advanced solutions like the SCM Ultrafine Mill and MTW Series Trapezium Mill, modern Raymond Mills incorporate sophisticated engineering to meet evolving industry requirements for precision, capacity, and sustainability.

The selection of appropriate grinding technology requires careful consideration of specific operational requirements, with Raymond Mills offering particular advantages for many medium to fine grinding applications. Their continued development, driven by advancements in materials, automation, and energy efficiency, ensures that these workhorses of mineral processing will remain essential components of industrial operations for the foreseeable future.
