Production Process and Equipment for Ground Phosphorus Slag Powder Line
Introduction
Ground Phosphorus Slag (GPS) powder is a valuable industrial by-product obtained from the electric furnace production of elemental phosphorus. Its pozzolanic properties make it an excellent supplementary cementitious material (SCM) in concrete, enhancing durability, workability, and long-term strength. The production of high-quality GPS powder requires a sophisticated and efficient grinding process to achieve the desired fineness and reactivity. This article delves into the production process and highlights the critical role of advanced milling equipment, with a specific recommendation for optimal machinery selection.
The Production Process of Ground Phosphorus Slag Powder
The transformation of granular phosphorus slag into a fine, reactive powder involves a series of carefully controlled steps:
1. Raw Material Handling and Pre-Treatment

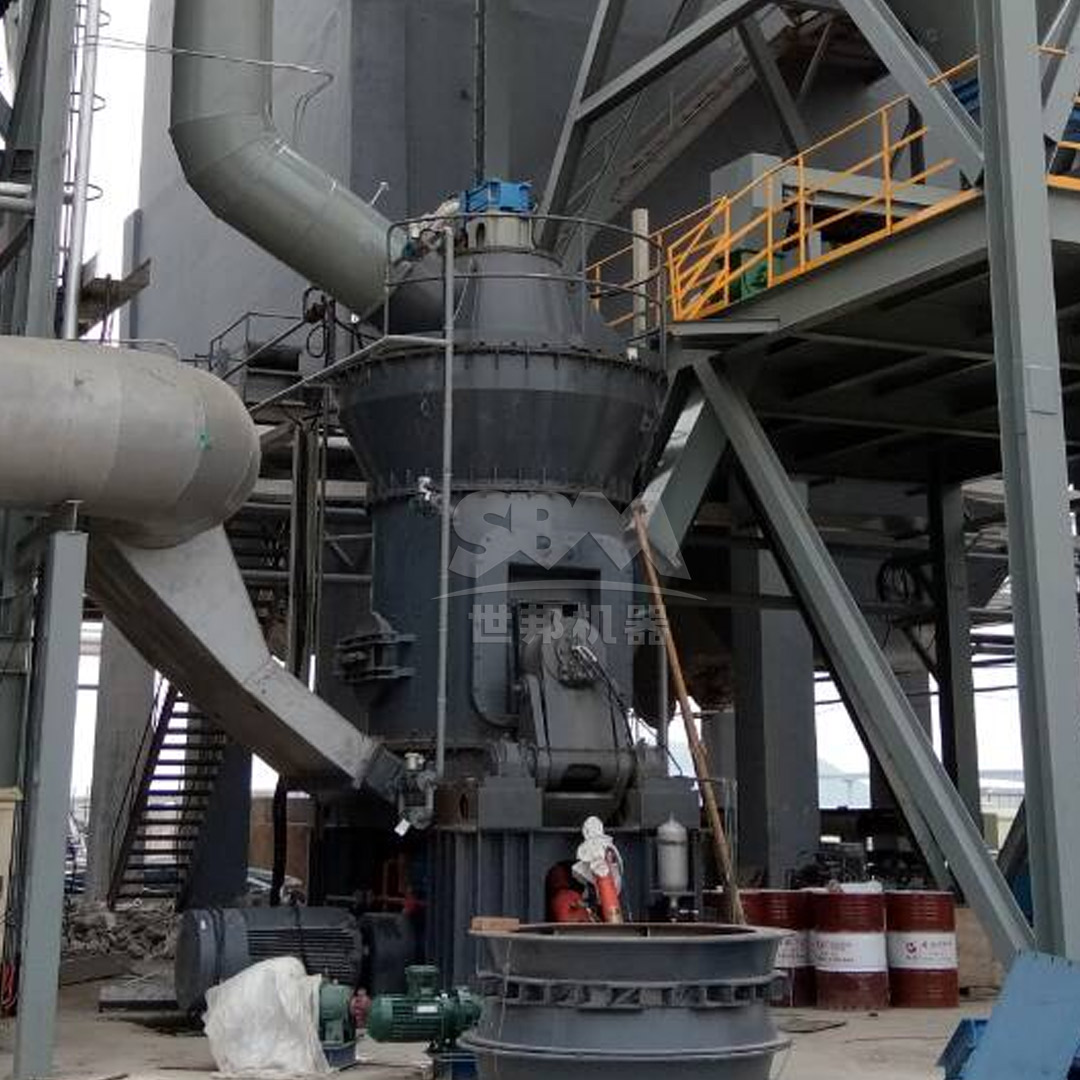

Freshly granulated slag is collected and stored. The initial moisture content can be high, so pre-drying might be necessary to optimize the grinding efficiency. The slag is then fed via a conveyor system to a preliminary crushing stage to reduce the particle size to a suitable feed for the main grinding mill, typically below 20-30mm.
2. Drying and Grinding
This is the core of the production line. The pre-crushed slag is fed into a grinding mill, often integrated with a dryer. Hot gases from a hot air generator are introduced into the mill, simultaneously drying the material and carrying the fine particles to the classification system. The intense mechanical action of the grinding rollers and table reduces the slag to a fine powder.
3. Classification
Post-grinding, the powder-air mixture enters a high-efficiency classifier, typically integrated within the mill housing. This classifier uses centrifugal force to separate particles. Oversized or coarse particles are rejected and returned to the grinding bed for further size reduction, while the correctly sized fine product passes through.
4. Product Collection
The fine powder exiting the classifier is separated from the transport air in a robust baghouse filter or a combination of a cyclone and a bag filter. The collected GPS powder is then conveyed to storage silos. The clean air is either recirculated back into the system to improve thermal efficiency or released into the atmosphere, meeting strict environmental standards.
5. Packaging and Dispatch
The final product is pneumatically transported from storage silos to automated packing machines for bagging or to bulk tanker trucks for large-volume customers.
Critical Equipment for GPS Production: The Grinding Mill
The choice of grinding mill is paramount to the line’s efficiency, product quality, and operational cost. While several mill types exist, Vertical Roller Mills (VRMs) have become the industry standard for grinding granulated blast furnace slag and phosphorus slag due to their superior efficiency.

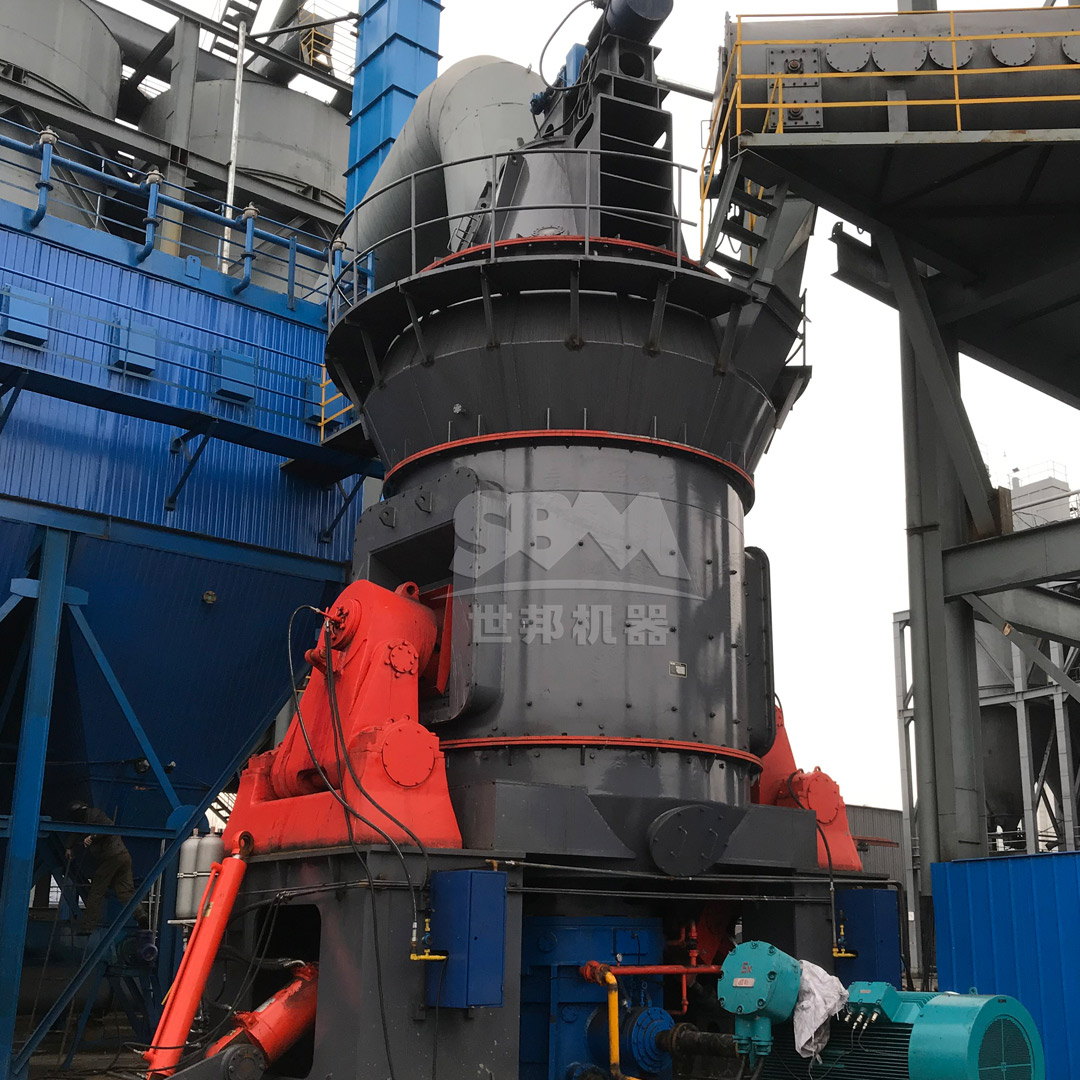

Recommended Solution: LM Series Vertical Roller Mill for Slag
For a high-capacity, energy-efficient, and reliable GPS production line, we highly recommend our LM Series Vertical Roller Mill, specifically the Slag Mill (LM…N) configurations. This technology is engineered to handle the specific challenges of slag grinding, offering unparalleled performance.
Why the LM Vertical Roller Mill is Ideal for Phosphorus Slag:
- Exceptional Energy Efficiency: Utilizing the efficient ‘bed-breaking’ principle, the LM mill consumes 30-40% less energy compared to traditional ball mill systems. This drastically reduces the operating cost per ton of powder produced.
- Integrated Drying and Grinding: The mill can handle feed material with moisture content up to 15%, allowing for simultaneous drying and grinding with hot gas, simplifying the process layout.
- Precise Particle Size Control: Equipped with a high-efficiency dynamic classifier, the mill ensures a consistent and narrow particle size distribution, achieving the high Blaine fineness (≥420 m²/kg) required for optimal pozzolanic activity.
- High Availability and Low Wear: The design features wear-resistant materials for the grinding rollers and table. Furthermore, the modular design of the roller assemblies allows for quick turnaround during maintenance, maximizing operational uptime.
- Compact Design and Low Noise: The vertical layout has a small footprint, reducing civil engineering costs. Its fully enclosed system operates under negative pressure, ensuring dust-free operation and low noise levels (<80dB).
Technical Highlights of the LM Slag Mill Series:
- Input Size: ≤50mm
- Output Fineness: 30-325 mesh (special models to 600 mesh), achieving Blaine values ≥420 m²/kg.
- Handling Capacity: From modest 4-6 t/h lines to very large-scale production exceeding 100 t/h.
- Key Model Example – LM220N: With a grinding table diameter of 2800mm and a main motor power of 900-1000 kW, this model can produce 20-26 tons per hour of high-quality GPS powder, making it suitable for large industrial projects.
Conclusion
Establishing a successful Ground Phosphorus Slag powder production line requires a deep understanding of the process and a strategic selection of equipment. The grinding stage, being the most critical, demands a mill that offers high efficiency, reliability, and precise control. The LM Series Vertical Roller Mill, with its proven technology tailored for slag applications, represents the optimal solution. It not only ensures the production of a premium product that meets market specifications but also does so with significantly lower operating costs and a reduced environmental footprint, delivering a strong return on investment.
