Petroleum Coke Vertical Roller Mill for Efficient Grinding in Production Line
Introduction to Petroleum Coke Grinding
Petroleum coke, a carbonaceous solid derived from oil refinery coker units, has become an essential fuel and raw material in various industrial applications. With its high calorific value and carbon content, petcoke serves as a cost-effective alternative to coal in power generation, cement production, and metallurgical processes. However, the efficient processing of petroleum coke presents unique challenges that require specialized grinding equipment capable of handling its specific physical and chemical properties.
The grinding of petroleum coke demands equipment that can achieve precise particle size distribution while maintaining energy efficiency and operational reliability. Traditional grinding methods often fall short in meeting these requirements, leading to increased operational costs and suboptimal product quality. This is where advanced vertical roller mill technology demonstrates significant advantages over conventional grinding systems.
Challenges in Petroleum Coke Grinding
Petroleum coke grinding presents several technical challenges that must be addressed for optimal processing efficiency. The material’s high hardness, combined with variable moisture content and potential contamination, requires robust grinding solutions. Additionally, the need for precise particle size control in final products demands advanced classification systems capable of maintaining consistent output quality.
One of the primary concerns in petcoke grinding is the material’s abrasive nature, which can cause rapid wear on grinding components. This not only increases maintenance costs but also leads to inconsistent product quality as wear progresses. Furthermore, the generation of heat during grinding can affect both equipment performance and product characteristics, necessitating effective cooling systems and thermal management strategies.
Vertical Roller Mill Technology for Petroleum Coke
Vertical roller mills have emerged as the preferred solution for petroleum coke grinding due to their superior efficiency, reliability, and flexibility. These advanced grinding systems utilize the principle of bed comminution, where material is ground between a rotating table and grinding rollers. This approach offers significant advantages over traditional ball mills, including lower energy consumption, reduced wear rates, and better particle size control.
The fundamental working principle involves material being fed onto the rotating grinding table, where centrifugal force distributes it evenly under the grinding rollers. Hydraulic pressure applied to the rollers creates the necessary grinding force, while an integrated classification system ensures that only properly ground material passes through to the final product collection. This integrated approach to grinding, drying, and classification makes vertical roller mills particularly suitable for petroleum coke processing.
Key Technical Advantages of Vertical Roller Mills
Energy Efficiency and Operational Economy
Vertical roller mills demonstrate remarkable energy efficiency compared to traditional grinding systems. The specific energy consumption for petcoke grinding in VRMs is typically 30-50% lower than in ball mill systems. This significant reduction stems from the more efficient grinding mechanism and the integrated drying capability, which eliminates the need for separate drying equipment in many applications.
The economic benefits extend beyond energy savings to include reduced maintenance costs and higher availability. With fewer moving parts and more durable wear components, vertical roller mills require less frequent maintenance interventions and offer longer operational periods between scheduled shutdowns. This combination of factors results in substantially lower operating costs over the equipment lifecycle.
Precise Particle Size Control
Advanced classification systems integrated into modern vertical roller mills enable precise control over product fineness. Dynamic classifiers with adjustable rotor speeds allow operators to fine-tune the particle size distribution according to specific application requirements. This capability is particularly important for petroleum coke, where optimal combustion characteristics depend on consistent particle size.
The classification efficiency of modern VRMs ensures minimal oversize particles in the final product, contributing to better performance in downstream processes. Additionally, the ability to quickly adjust product fineness provides operational flexibility to accommodate varying feed materials or changing product specifications.
Recommended Solutions for Petroleum Coke Grinding

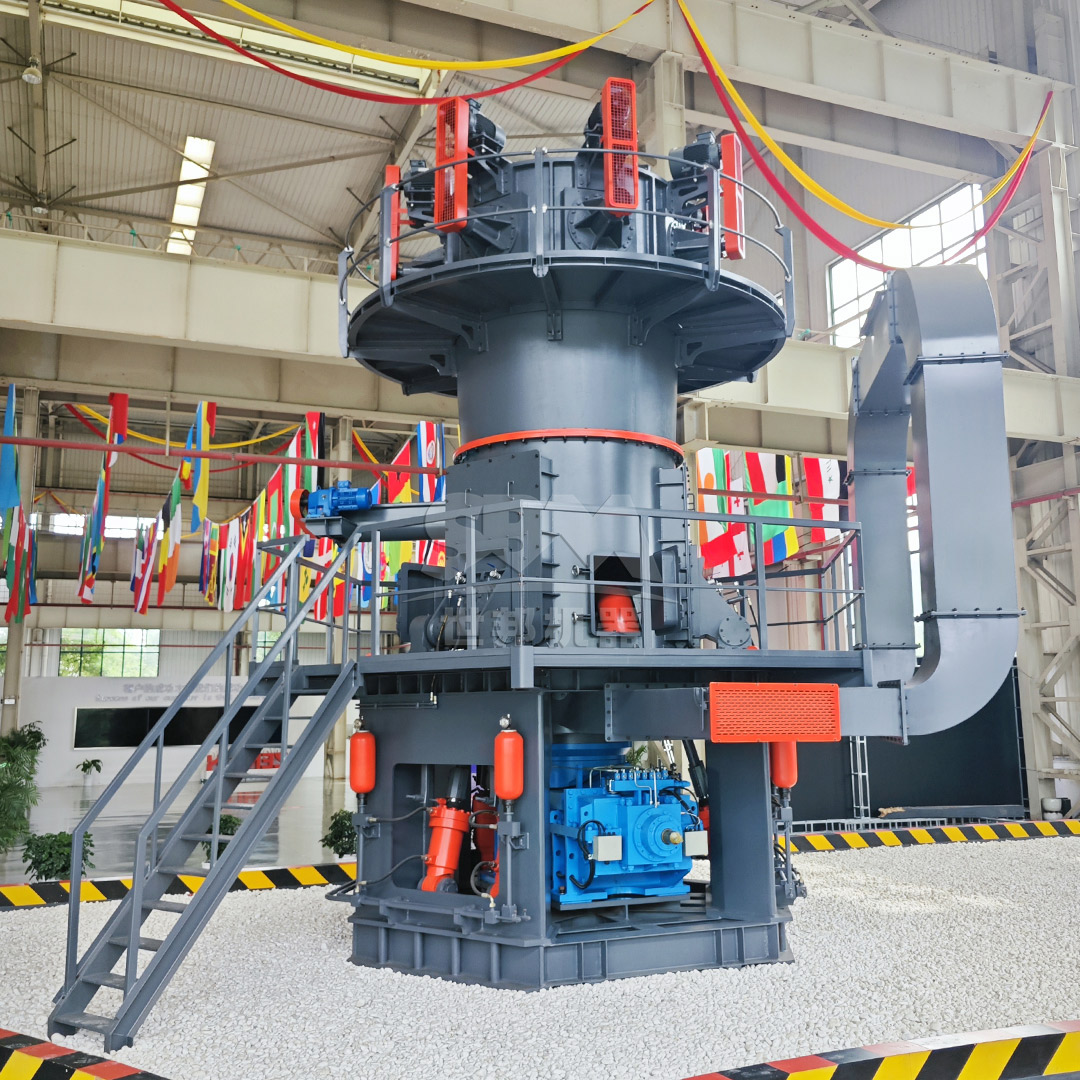

LM Series Vertical Roller Mill
For petroleum coke grinding applications requiring high capacity and operational efficiency, we strongly recommend our LM Series Vertical Roller Mill. This advanced grinding system offers exceptional performance characteristics specifically suited to the challenges of petcoke processing. With input sizes up to 50mm and output fineness ranging from 30-325 mesh (special models achieving 600 mesh), the LM series provides the flexibility needed for various petcoke applications.
The LM Series incorporates several innovative features that make it particularly suitable for petroleum coke grinding. The集约化设计 (intensive design) integrates crushing, grinding, and separation functions in a single unit, reducing footprint requirements by 50% and cutting infrastructure costs by 40%. The磨辊与磨盘非接触设计 (non-contact design between grinding rollers and table) extends wear part life by up to 3 times compared to conventional systems, significantly reducing maintenance requirements and associated costs.
Energy efficiency is another standout feature, with the LM Series consuming 30-40% less energy than ball mill systems. The intelligent control system enables both remote and local operation, with real-time monitoring of operational parameters to minimize manual intervention. Environmental performance meets stringent standards, with full sealed negative pressure operation ensuring dust emissions below 20mg/m³ and operating noise levels not exceeding 80dB(A).
With capacity ranges from 3-250 tons per hour depending on specific model requirements, the LM Series offers scalability to match production needs from moderate to very high volume applications. The robust construction and advanced material selection ensure reliable operation even with the abrasive characteristics of petroleum coke.
SCM Ultrafine Mill for Specialized Applications
For applications requiring ultra-fine petroleum coke powders, our SCM Ultrafine Mill presents an optimal solution. This specialized grinding system achieves remarkable fineness levels of 325-2500 mesh (D97≤5μm) while maintaining excellent energy efficiency. With capacity ranging from 0.5-25 tons per hour across different models, the SCM series accommodates various production requirements.
The technological advantages of the SCM Ultrafine Mill include exceptional energy efficiency, delivering twice the capacity of jet mills while reducing energy consumption by 30%. The high-precision classification system features a vertical turbine classifier that ensures precise particle size cuts with no coarse powder contamination, resulting in exceptionally uniform final products.
Durability is engineered into the design through special material selection for rollers and grinding rings, extending service life multiple times compared to conventional components. The innovative无轴承螺杆研磨腔 (bearingless screw grinding chamber) ensures stable operation with minimal maintenance requirements. Environmental considerations are addressed through pulse dust collection exceeding international standards and sound insulation chambers maintaining noise levels below 75dB.
The working principle involves a main motor driving three-layer grinding rings in rotation. Material is dispersed to the grinding path by centrifugal force, undergoes roller compression crushing, and is progressively ground through multiple layers. Final powder collection is accomplished through a cyclone collector and pulse dust removal system, ensuring comprehensive product recovery.
Operational Considerations for Petroleum Coke Grinding
Successful implementation of vertical roller mill technology for petroleum coke grinding requires attention to several operational factors. Proper material handling and feed preparation are essential for optimal mill performance. The moisture content of feed material should be controlled within appropriate limits, with most VRM systems capable of handling materials with moisture content up to 10-15% without requiring separate drying equipment.
Maintenance planning should account for the abrasive nature of petroleum coke, with particular attention to wear parts such as grinding rollers and table liners. Modern VRMs incorporate features that facilitate maintenance, including hydraulic systems for roller extraction and modular designs that reduce replacement time. Regular inspection and preventive maintenance programs are essential for maximizing equipment availability and service life.
Operational safety must be prioritized, especially considering the combustible nature of fine petroleum coke powders. Modern VRM systems incorporate multiple safety features, including explosion vents, inert gas systems, and comprehensive monitoring of operational parameters to ensure safe operation under all conditions.
Case Study: Implementation in Cement Production
The application of vertical roller mills for petroleum coke grinding in cement production has demonstrated significant benefits in numerous installations worldwide. One notable case involved the replacement of traditional ball mills with LM Series Vertical Roller Mills in a large cement plant, resulting in a 40% reduction in specific energy consumption for fuel preparation. The improved particle size distribution of the ground petcoke contributed to better combustion characteristics in the kiln, leading to additional fuel savings and reduced emissions.
The transition to VRM technology also reduced maintenance costs by approximately 35% compared to the previous ball mill system, primarily due to reduced wear rates and longer intervals between major maintenance events. The compact footprint of the vertical roller mill allowed for better utilization of available space and simplified material handling arrangements.
Future Trends in Petroleum Coke Grinding Technology
The evolution of vertical roller mill technology continues to address the changing needs of petroleum coke processing. Emerging trends include increased digitalization with advanced process control systems leveraging artificial intelligence and machine learning algorithms. These systems optimize grinding parameters in real-time, adapting to variations in feed material characteristics and further improving energy efficiency.
Sustainability considerations are driving development of even more environmentally friendly grinding systems, with focus on reducing carbon footprint through improved energy efficiency and alternative drive systems. The integration of renewable energy sources and energy recovery systems represents another area of ongoing development.
Material science advancements continue to enhance the durability of wear components, with new composite materials and surface treatments extending service life and reducing maintenance requirements. These developments contribute to lower operating costs and improved equipment availability.
Conclusion
Vertical roller mill technology represents the state-of-the-art solution for petroleum coke grinding, offering unparalleled efficiency, reliability, and operational flexibility. The advanced design of modern VRMs addresses the specific challenges of petcoke processing while delivering significant economic and environmental benefits. As industry continues to seek more efficient and sustainable processing methods, vertical roller mills will play an increasingly important role in petroleum coke preparation circuits.
Our recommended LM Series Vertical Roller Mill and SCM Ultrafine Mill provide comprehensive solutions for the full spectrum of petroleum coke grinding requirements, from standard fuel preparation to specialized ultra-fine applications. With continuous innovation and commitment to customer success, these advanced grinding systems deliver exceptional value through reduced operating costs, improved product quality, and enhanced operational reliability.
