Outer Circulation Steel Slag Vertical Roller Mill Process Flow and Advantages
Introduction
Steel slag, a by-product of steelmaking processes, has long been considered an industrial waste with significant environmental implications. However, with advancements in grinding technology, steel slag can be efficiently processed into valuable materials for cement production, construction, and other industrial applications. The Outer Circulation Steel Slag Vertical Roller Mill represents a technological breakthrough in this field, offering superior efficiency, reliability, and environmental performance compared to traditional grinding systems.
This article provides a comprehensive analysis of the outer circulation steel slag vertical roller mill process flow, technical advantages, and operational benefits, with particular focus on how this technology transforms steel slag from waste to valuable resource.

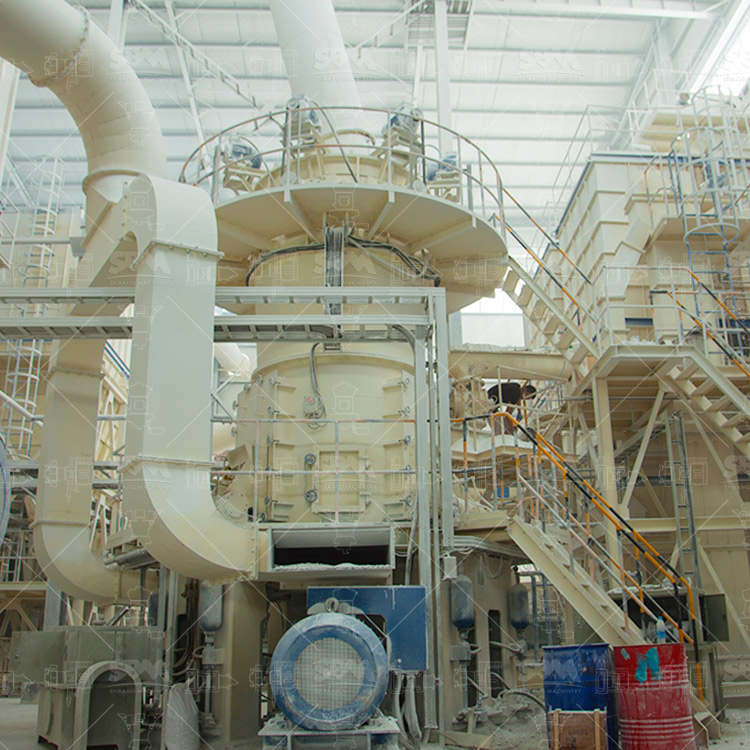

Process Flow of Outer Circulation Steel Slag Vertical Roller Mill
1. Raw Material Preparation and Feeding
The steel slag processing begins with proper material preparation. Raw steel slag with moisture content typically below 15% is first crushed to appropriate size (generally ≤50mm) using primary crushing equipment. The pre-crushed material is then transported via belt conveyor to the mill feed hopper. A weighing feeder accurately controls the feed rate to maintain optimal grinding conditions.
For operations requiring preliminary size reduction, our Hammer Mill (0-3mm) offers an ideal solution with its high crushing ratio and stable operation, capable of handling feed sizes up to 40mm and producing uniform 0-3mm output perfect for vertical mill feeding.
2. Grinding and Classification System
The heart of the system is the vertical roller mill where the actual grinding occurs. The material enters the grinding chamber through the center feed pipe and is distributed evenly on the grinding plate. As the grinding plate rotates, centrifugal force moves the material outward under the grinding rollers, which apply substantial pressure to crush the slag particles.
The unique outer circulation design allows oversized particles to be rejected by the integrated classifier and returned to the grinding bed for further processing. This ensures that only properly ground material proceeds to the next stage, optimizing energy consumption and product quality.
3. Drying and Separation
Simultaneous drying occurs as hot gases (typically at 250-350°C) are introduced into the mill. The moisture in the steel slag evaporates quickly, and the dried fine powder is carried upward by the gas stream to the dynamic classifier. The classifier separates particles based on size, with coarse material returning to the grinding bed while fine product continues to the collection system.
4. Product Collection and Storage
The fine powder, now at the desired fineness (typically achieving a specific surface area of ≥420m²/kg), is transported to the collection system consisting of cyclones and bag filters. The collected steel slag powder is then conveyed to storage silos, ready for use as a cement additive or construction material.
Technical Advantages of Outer Circulation Design
1. Enhanced Grinding Efficiency
The outer circulation system significantly improves grinding efficiency by ensuring that only properly ground material exits the mill. Coarse particles are continuously returned for further grinding, reducing energy waste and increasing overall system productivity. Tests show that this design can improve grinding efficiency by 15-25% compared to conventional vertical mills without external material circulation.
2. Superior Product Quality Control
With the precise classification and material return mechanism, the outer circulation mill produces steel slag powder with exceptional consistency in particle size distribution. The product quality remains stable even with variations in feed material characteristics, making it ideal for applications requiring strict quality specifications.
3. Reduced Energy Consumption
The optimized material flow path and efficient separation system contribute to significant energy savings. The outer circulation design typically reduces specific energy consumption by 30-40% compared to traditional ball mill systems for similar applications. The intelligent control system further optimizes energy usage by adjusting operational parameters in real-time based on feed rate and material characteristics.
4. Operational Reliability and Maintenance Benefits
The separation of grinding and classification functions reduces mechanical stress on individual components. Wear parts such as grinding rollers and plates experience more uniform loading, extending their service life by 2-3 times compared to conventional designs. The modular design of critical components allows for quick replacement and reduced maintenance downtime.
Comparison with Traditional Grinding Systems
| Parameter | Outer Circulation VRM | Ball Mill System | Conventional VRM |
|---|---|---|---|
| Specific Power Consumption (kWh/t) | 38-42 | 55-65 | 45-52 |
| Product Specific Surface (m²/kg) | 420-480 | 380-420 | 400-450 |
| Noise Level (dB) | ≤80 | 100-110 | 85-90 |
| Dust Emission (mg/m³) | <20 | 30-50 | 25-40 |
| Maintenance Interval (hours) | 8000-10000 | 4000-6000 | 6000-8000 |
Recommended Equipment for Steel Slag Processing

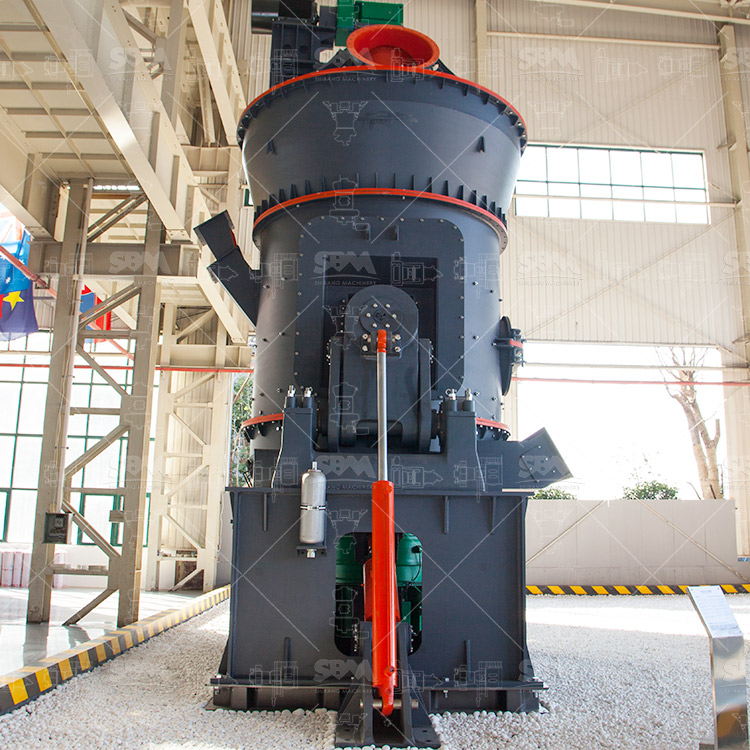

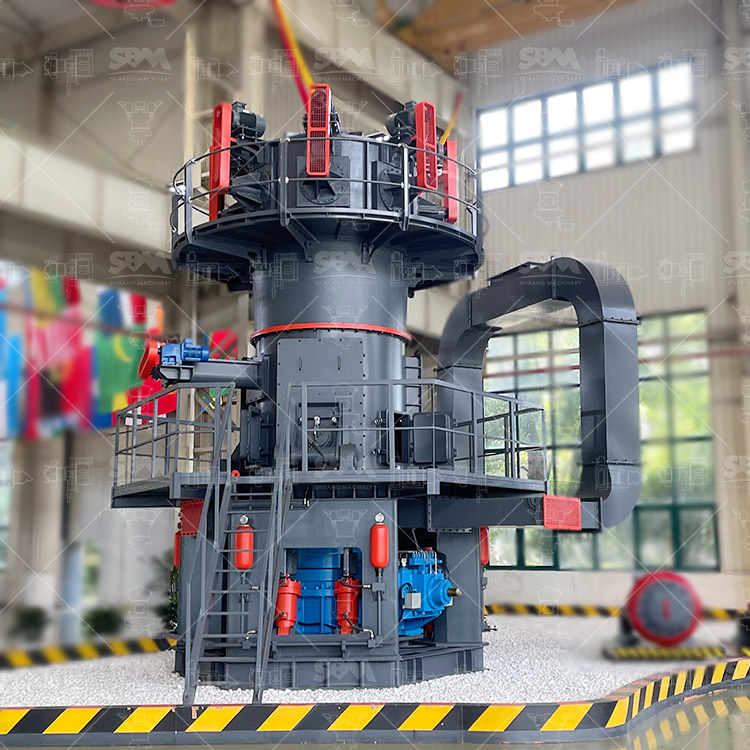

LM Series Vertical Roller Mill for Slag Applications
For steel slag grinding applications, we highly recommend our LM Series Vertical Slag Mill, specifically designed to handle the abrasive nature of steel slag. The LM series incorporates several proprietary technologies that make it particularly suitable for this challenging application:
Key Features:
- Enhanced Wear Resistance: Special alloy materials for grinding rollers and table segments provide exceptional durability against the highly abrasive steel slag particles.
- Optimized Grinding Geometry: The unique curvature design of grinding elements ensures maximum contact efficiency and reduced specific pressure on wear parts.
- Intelligent Control System: Advanced PLC-based control system automatically adjusts grinding pressure, feed rate, and classifier speed to maintain optimal operating conditions.
- High Efficiency Classifier: The dynamic classifier with adjustable rotor speed ensures precise cut points and consistent product quality.
Model Recommendations for Steel Slag:
- LM190N: Suitable for medium-capacity plants with output of 10-12 t/h, ideal for steel plants producing 500,000-800,000 tons of slag annually.
- LM220N: For larger operations requiring 20-26 t/h capacity, perfect for integrated steel plants with annual slag production exceeding 1 million tons.
- LM280N: High-capacity model delivering 50-60 t/h, designed for major steel producers with significant slag processing requirements.
The LM series vertical slag mills consistently achieve product fineness of ≥420m²/kg with moisture content below 1%, meeting the strictest quality requirements for cement additive applications.
MTW Series Trapezium Mill for Alternative Applications
For operations requiring flexibility in processing various materials including steel slag, limestone, and other industrial minerals, our MTW Series Trapezium Mill offers an excellent alternative. While specifically optimized for steel slag, the MTW series provides versatility for plants that process multiple material types.
Notable Advantages:
- Flexible Operation: Capable of handling feed sizes up to 50mm with output fineness adjustable from 30-325 mesh.
- Advanced Transmission System: The bevel gear integral transmission achieves 98% transmission efficiency with compact design.
- Wear-Resistant Components: Curved shovel blade design and wear-resistant volute structure significantly reduce maintenance requirements.
Environmental and Economic Benefits
1. Waste Utilization and Circular Economy
The outer circulation steel slag vertical roller mill enables complete utilization of steel slag, transforming what was previously considered waste into valuable products. This contributes significantly to the circular economy model in the steel industry, reducing landfill requirements and associated environmental impacts.
2. Energy Efficiency and Carbon Reduction
With 30-40% lower energy consumption compared to traditional systems, these mills contribute substantially to reducing the carbon footprint of steel slag processing. For a typical plant processing 500,000 tons of slag annually, this translates to approximately 8,000-10,000 MWh of electricity savings per year.
3. Space Optimization
The compact design of vertical roller mills requires significantly less space than equivalent ball mill systems. The outer circulation design further optimizes the layout by integrating multiple functions into a single unit, reducing the overall footprint by up to 50% compared to conventional grinding systems.
Operational Considerations and Best Practices
1. Material Preparation
Proper preparation of steel slag is critical for optimal mill performance. The material should be pre-crushed to the recommended feed size and magnetic separation should be employed to remove metallic iron content, which should ideally be below 1% to minimize wear on grinding components.
2. Moisture Control
While the mill incorporates drying capability, maintaining feed moisture below 15% ensures stable operation and maximizes throughput. For higher moisture content, pre-drying systems may be necessary to maintain efficiency.
3. Maintenance Planning
Although designed for extended service intervals, a proactive maintenance program is essential for maximizing equipment life. Regular inspection of wear parts, lubrication systems, and classifiers should be conducted according to the manufacturer’s recommendations.
Future Developments and Trends
The technology for steel slag processing continues to evolve, with several promising developments on the horizon:
- Digitalization and IoT Integration: Advanced sensors and data analytics enabling predictive maintenance and optimized operation.
- Hybrid Energy Systems: Integration with renewable energy sources to further reduce carbon footprint.
- Advanced Material Science: Development of even more wear-resistant materials for extended component life.
- Process Integration: Closer integration with steel production processes for enhanced efficiency and resource utilization.
Conclusion
The outer circulation steel slag vertical roller mill represents a significant advancement in mineral processing technology, offering unparalleled efficiency, reliability, and environmental performance. By transforming steel slag from an industrial waste into a valuable resource, this technology contributes to sustainable development in the steel industry while providing economic benefits through reduced operating costs and additional revenue streams.
With continuous improvements in design, materials, and control systems, these mills are set to become even more efficient and versatile, further enhancing their value proposition for steel producers worldwide. The combination of technical excellence and environmental benefits makes the outer circulation vertical roller mill the preferred choice for modern steel slag processing operations.
