Optimizing Ultra-Fine Vertical Mill Powder Collection Systems for Enhanced Efficiency
Introduction
In the mineral processing industry, achieving optimal powder collection efficiency is critical for both operational performance and environmental compliance. Ultra-fine vertical mills, with their advanced grinding mechanisms, require equally sophisticated powder collection systems to maximize yield and minimize waste. This article explores key optimization strategies for vertical mill powder collection systems, with a focus on technological innovations that enhance efficiency.
The Importance of Efficient Powder Collection
Modern vertical mills produce ultra-fine powders with particle sizes as small as 5μm (D97). At this scale, traditional collection methods often prove inadequate, leading to:
- Product loss through incomplete capture
- Increased energy consumption from recirculation
- Potential environmental contamination
System Optimization Strategies
1. Advanced Cyclone-Pulse Jet Hybrid Design
The most effective powder collection systems combine multiple technologies:
- Primary collection: High-efficiency cyclones capture 80-90% of product
- Secondary filtration: Pulse-jet baghouses with PTFE membranes achieve >99.9% efficiency
- Intelligent controls: Pressure differential monitoring optimizes cleaning cycles
2. Material-Specific Configuration
Different materials require tailored approaches:
| Material | Optimal Collection Method | Special Considerations |
|---|---|---|
| Calcium Carbonate | Two-stage cyclone + wet scrubber | Moisture control critical |
| Quartz | High-temperature baghouse | Abrasion-resistant linings |
| Titanium Dioxide | Explosion-proof pulse jet | Conductive filter media |
ZENITH’s Innovative Solutions

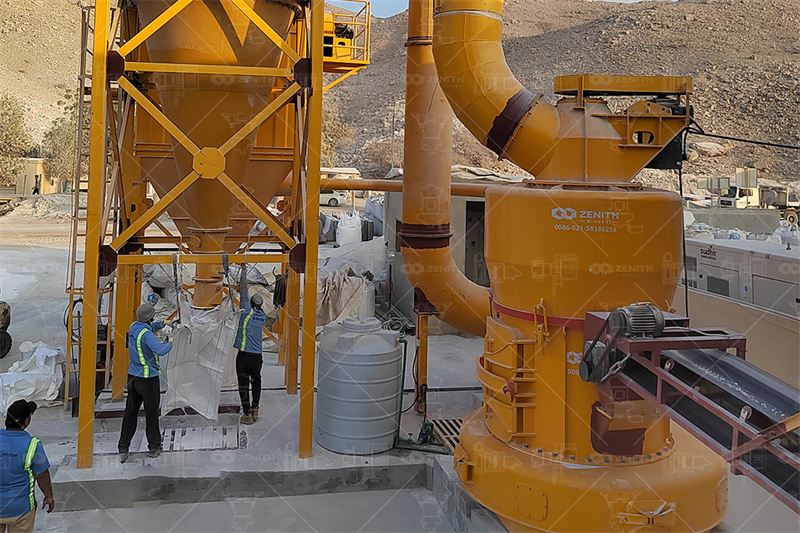

As a leader in grinding technology with 30+ years of experience, ZENITH offers cutting-edge vertical mills with integrated powder collection systems. Our XZM Ultrafine Mill series exemplifies this integration:
XZM Ultrafine Mill Key Features
- Precision Classification: Vertical turbine classifier achieves D97≤5μm
- Energy Efficient: 30% lower power consumption vs conventional mills

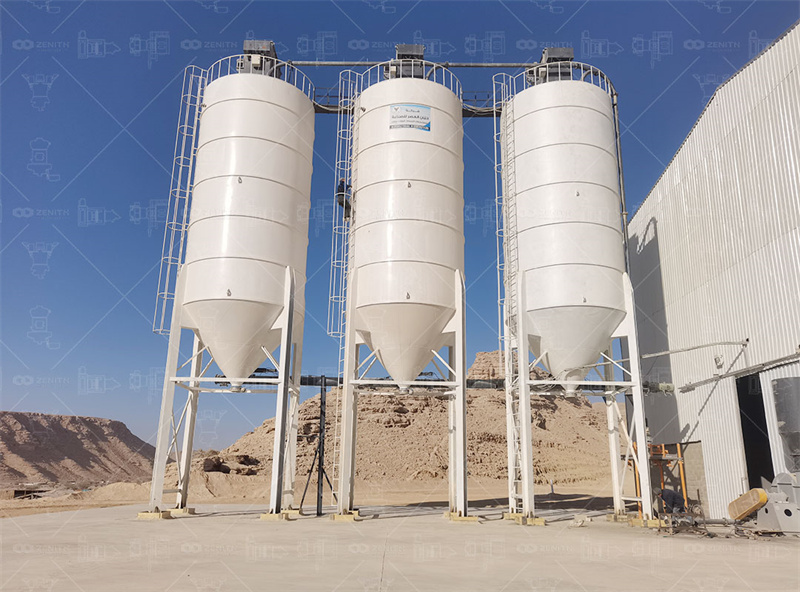

- Integrated Collection: Pulse dust collector with >99.9% efficiency
- Smart Operation: Automatic feedback control maintains optimal fineness
For larger scale operations, our LM Vertical Roller Mill series offers:
- Capacity up to 250t/h
- Integrated pre-grinding and classification
- Dust emissions <20mg/m³
Case Study: Kaolin Processing Plant
A recent installation of ZENITH’s XZM236 mill with optimized collection system demonstrated:
- Product recovery increased from 92% to 98.5%
- Energy consumption reduced by 22%
- Maintenance intervals extended by 40%
Future Trends
Emerging technologies are shaping the next generation of powder collection:
- AI-powered optimization: Machine learning algorithms adjusting parameters in real-time
- Nanofiber filter media: Higher efficiency with lower pressure drop
- Modular designs: Quick-change components minimizing downtime
Conclusion
Optimizing powder collection systems for ultra-fine vertical mills requires a holistic approach combining mechanical design, material science, and intelligent controls. ZENITH’s proven solutions, backed by extensive R&D and global installations, provide reliable pathways to enhanced efficiency. Our XZM and LM series mills represent the current state-of-the-art, delivering both performance and sustainability benefits for modern mineral processing operations.
