Optimizing Multi-Stage Classifier Configuration for Efficient Grinding Mill Operations
Optimizing Multi-Stage Classifier Configuration for Efficient Grinding Mill Operations
In modern mineral processing, achieving optimal particle size distribution while maintaining energy efficiency remains a critical challenge. This article explores advanced strategies for multi-stage classifier configuration in grinding mills, with particular emphasis on ZENITH’s innovative solutions that combine precision engineering with intelligent automation.
The Importance of Multi-Stage Classification
Traditional single-stage classification systems often struggle with:
- Inconsistent product fineness (D50-D97 spread >15%)
- Energy losses from over-grinding (up to 30% power waste)
- Limited adaptability to varying feed characteristics
ZENITH’s Technological Breakthroughs
With over 30 years of R&D experience and a team led by State Council-subsidized engineers, ZENITH has developed proprietary classification technologies that address these challenges:
1. Dynamic Vertical Turbine Classifier
Featured in our XZM Ultrafine Mill series, this innovation delivers:
- Precision particle cut points (D97≤5μm achievable)
- 30% energy reduction compared to conventional systems
- Automatic feedback adjustment via integrated sensors
2. Hybrid Airflow Optimization

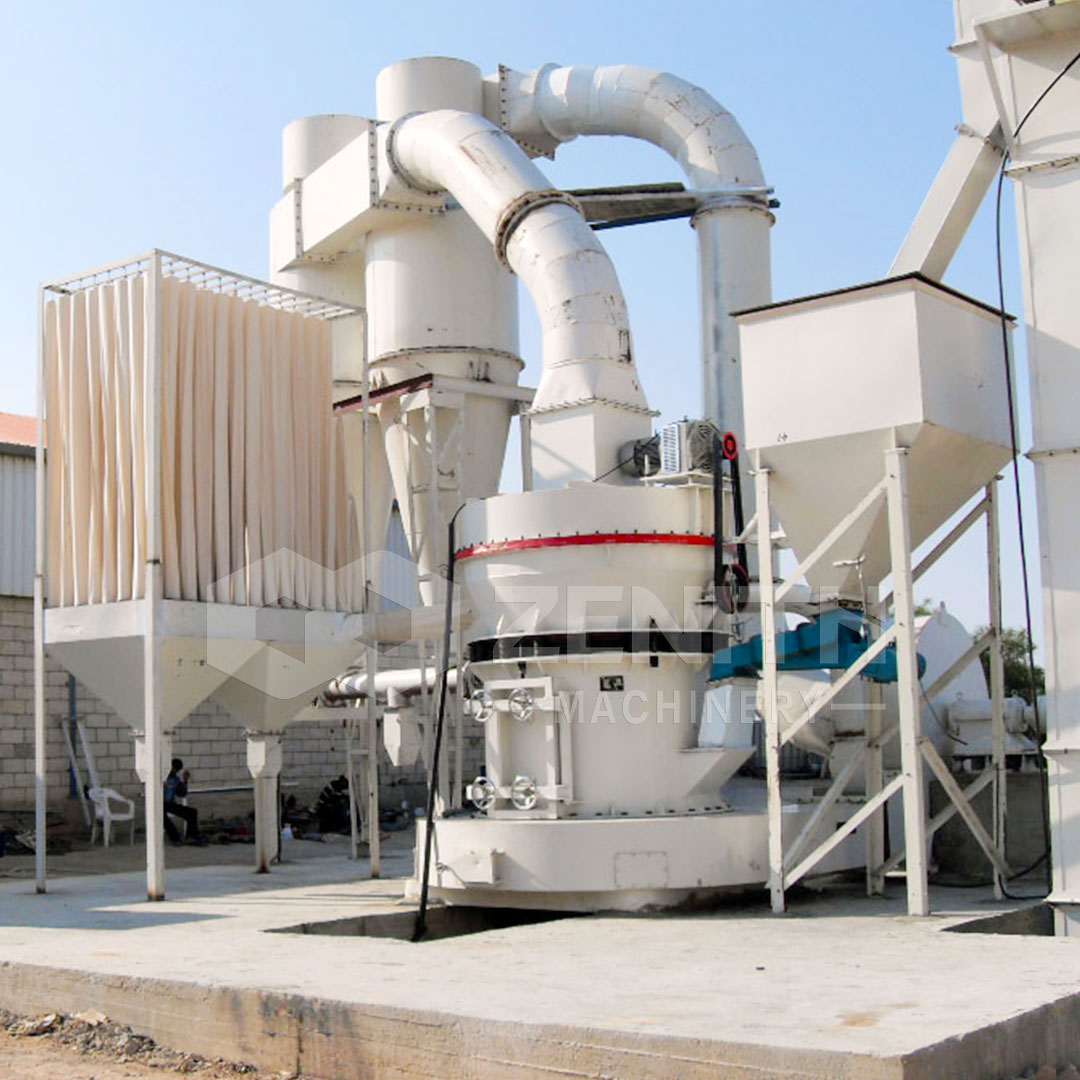

Our MTW Series Trapezium Mill incorporates:
- Curved air duct design reducing pressure loss by 18%
- 98% efficient bevel gear transmission system
- Modular wear parts for quick maintenance
Case Study: Two-Stage Configuration Benefits

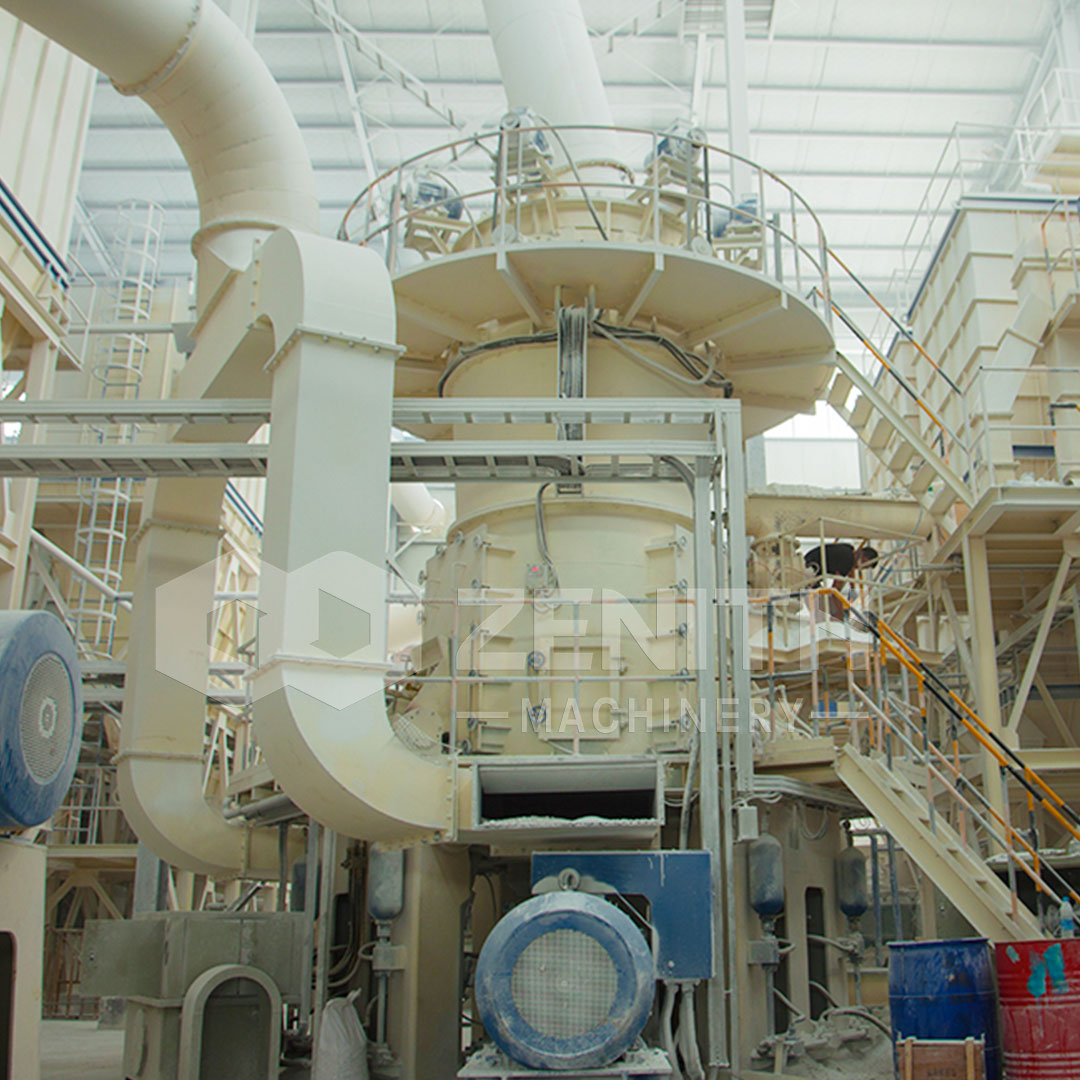

A recent installation combining ZENITH’s LM Vertical Mill (primary grinding) with XZM Ultrafine Mill (final classification) demonstrated:
| Metric | Before Optimization | After Optimization |
|---|---|---|
| Energy Consumption | 48 kWh/t | 32 kWh/t (33% reduction) |
| Product Consistency (D90 variation) | ±12% | ±3.5% |
| Throughput Capacity | 8.5 t/h | 11.2 t/h (+32%) |
Smart Control Integration
ZENITH’s mills now feature AI-powered predictive adjustment:
- Real-time monitoring of 12+ operational parameters
- Self-learning algorithms optimizing classifier speed
- Remote diagnostics via ZENITH’s global service network
Conclusion
The integration of multi-stage classifiers with ZENITH’s advanced grinding systems represents a quantum leap in mineral processing efficiency. Our XZM Ultrafine Mill (45-5μm) and MTW Series Trapezium Mill (600-45μm) exemplify how intelligent mechanical design, combined with precision classification, can deliver both superior product quality and operational economy.
With service centers in 30+ countries and participation in drafting national industry standards, ZENITH remains committed to pushing the boundaries of grinding technology while ensuring reliable support throughout equipment lifecycle.
