Optimizing Asphalt Concrete Production: Matching Raymond Mill for Mineral Powder with Asphalt Mixing Plants

Introduction

The production of high-quality asphalt concrete relies heavily on the precise preparation of mineral fillers, which significantly influence the mixture’s stability, durability, and performance. Mineral powder, typically derived from limestone, basalt, or other aggregates, must meet strict fineness and uniformity standards to ensure optimal binding with bitumen. This article explores the critical role of grinding mills in producing mineral powder for asphalt mixing plants and highlights advanced solutions for achieving efficiency, sustainability, and cost-effectiveness.

The Importance of Mineral Powder in Asphalt Production

Mineral fillers, with particle sizes often below 0.075 mm, enhance the density and cohesion of asphalt mixtures. They fill voids between larger aggregates, improve stiffness, and reduce aging of the binder. However, inconsistent powder quality—such as uneven fineness or contamination—can lead to premature pavement failure. Thus, integrating a reliable grinding system is paramount for asphalt plants aiming to produce superior-quality mixes.

Key Requirements for Mineral Powder Grinding

To match the output of an asphalt mixing plant, the grinding equipment must deliver:

Consistent Fineness: Powder ranging from 200 to 325 mesh (45–75 μm) is typical, but some applications demand even finer grades.
High Throughput: Capacity should align with the asphalt plant’s production rate, often between 5–50 tons per hour.
Energy Efficiency: Reducing operational costs while maintaining output is crucial for profitability.
Low Maintenance: Durable components minimize downtime in continuous operations.
Environmental Compliance: Dust emissions and noise must meet regulatory standards.

Introducing the SCM Ultrafine Mill: Precision for High-Performance Fillers

For applications requiring ultra-fine mineral powder (e.g., 325–2500 mesh), the SCM Ultrafine Mill stands out as an ideal solution. This mill combines high efficiency with exceptional precision, making it suitable for advanced asphalt production lines.

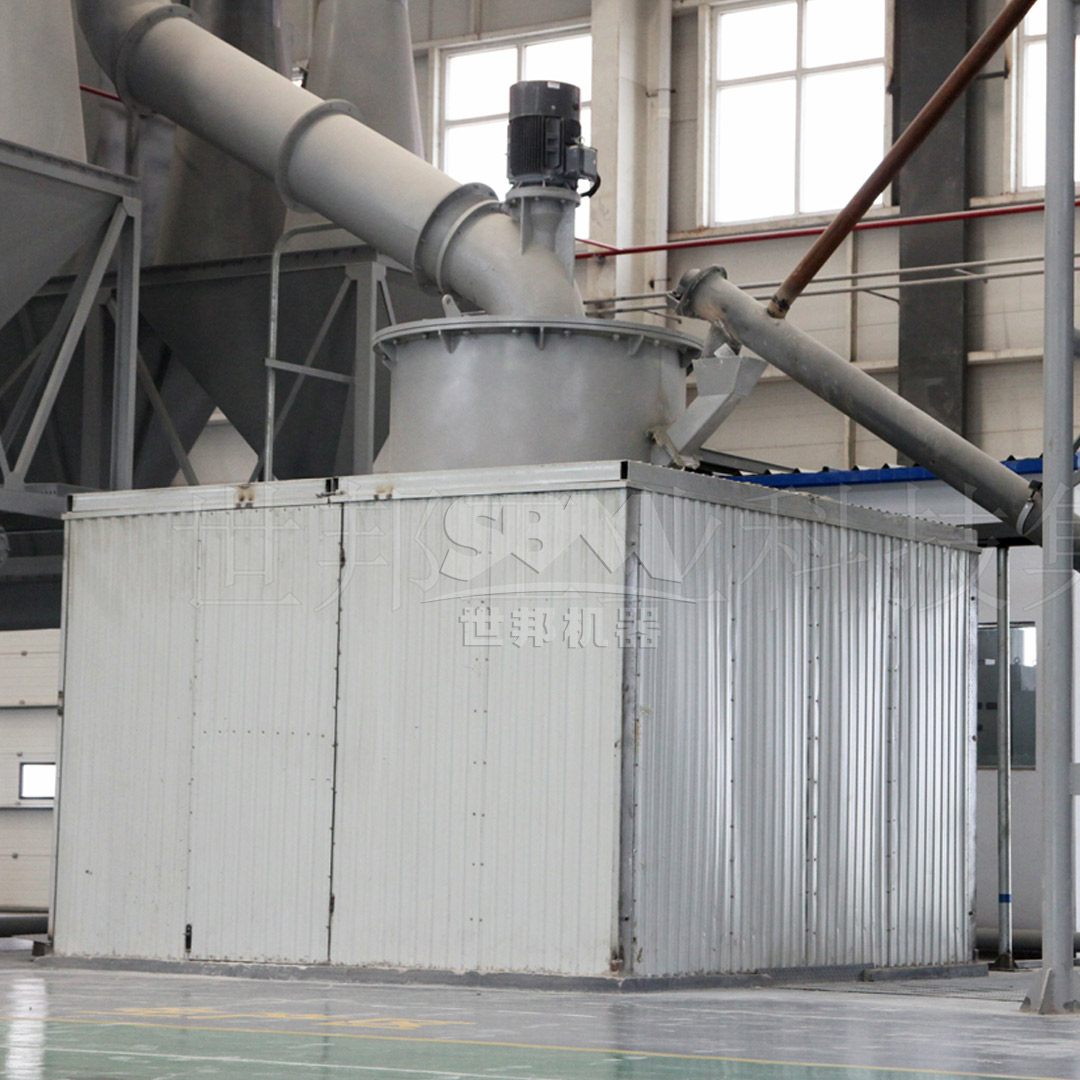

SCM Ultrafine Mill in operation, showcasing its compact design and integrated dust collection system

Technical Advantages:

Efficient Grinding: With a capacity of 0.5–25 TPH (depending on model), it produces powder as fine as 5 μm (D97) while consuming 30% less energy than conventional mills.
Intelligent Control: Automated feedback systems adjust grinding parameters in real-time to maintain consistent fineness.
Durability: Specialized roller and ring materials extend service life, reducing replacement frequency.
Eco-Friendly Operation: Pulse dust collectors achieve >99% efficiency, and noise levels are kept below 75 dB.

For asphalt plants targeting superior mixture quality, the SCM series ensures that mineral fillers enhance rather than compromise performance. Models like the SCM1250 (2.5–14 TPH) and SCM1680 (5–25 TPH) can be matched to medium- to large-scale asphalt production needs.

The Role of Raymond Mills in Mineral Processing

Raymond mills (or pendulum mills) have long been the workhorses of mineral powder production. Their ability to handle moderately hard materials with consistent output makes them a popular choice. Modern versions, however, incorporate advancements that boost efficiency and sustainability.

MTW Series Trapezium Mill: Balancing Capacity and Precision

For broader fineness ranges (30–325 mesh) and higher throughputs (3–45 TPH), the MTW Series Trapezium Mill offers a robust solution. Its design focuses on reducing operational costs while maintaining high output quality.

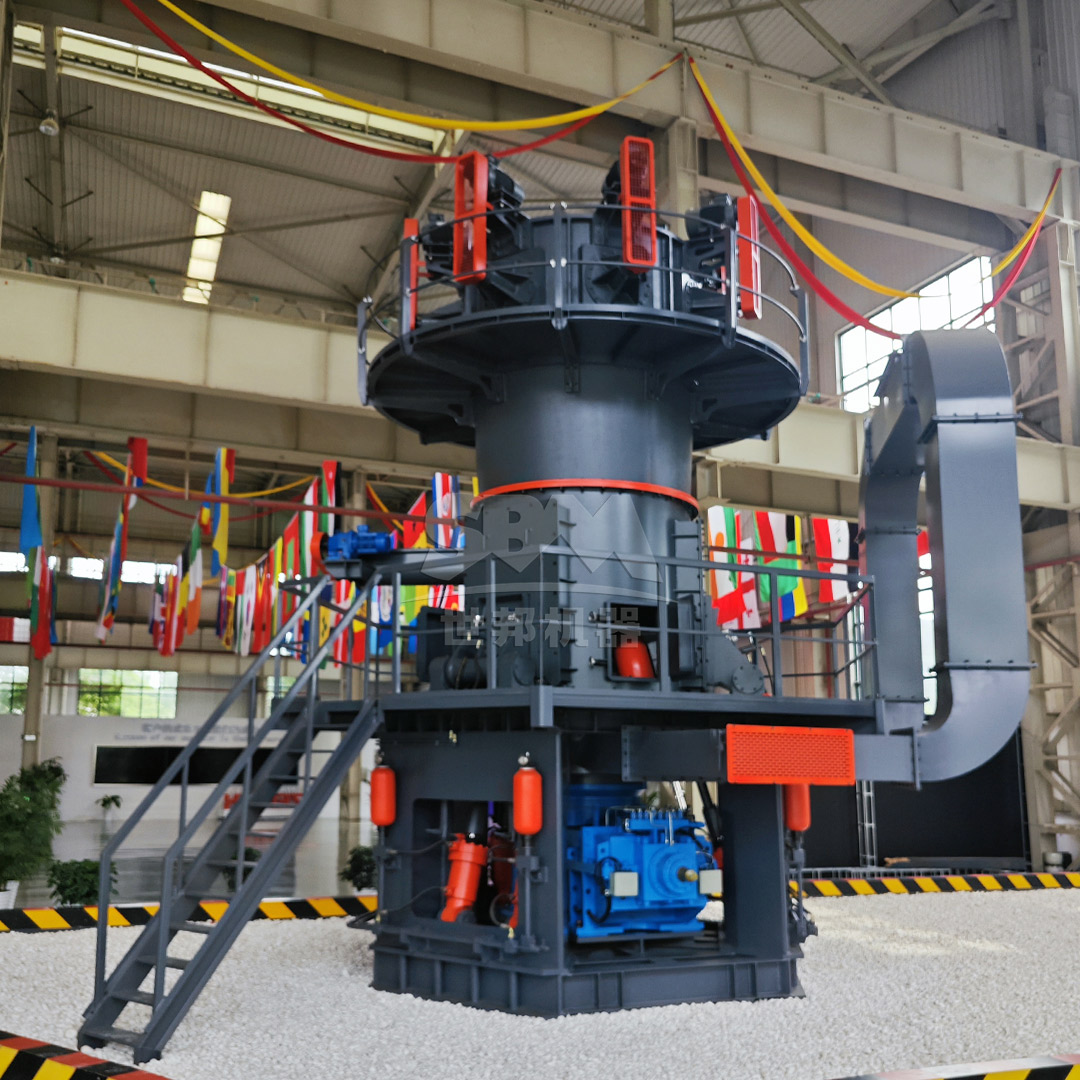

MTW Trapezium Mill with highlighted curved air duct and integrated classifier system

Key Features:

Wear-Resistant Components: Combined shovel blades and curved grinding paths minimize maintenance needs.
Optimized Airflow: A curved air duct reduces energy loss, improving powder transmission efficiency.
High Transmission Efficiency: Cone gear transmission achieves 98% efficiency, saving space and power.
Adaptability: Handles input sizes up to 50 mm, making it suitable for preliminary crushing and grinding stages.

Models like the MTW215G (15–45 TPH) are particularly well-suited for large asphalt mixing plants, providing a steady supply of mineral powder without bottlenecks.

Integration with Asphalt Mixing Plants

Seamless integration between the grinding mill and asphalt plant is essential for continuous production. Key considerations include:

Automated Material Handling: Conveyors and feeders should synchronize with the mill’s output to avoid interruptions.
Dust Management: Closed-loop systems with pulse dust collectors prevent environmental contamination.
Scalability: Mills should be selected based on current and future production targets.

Diagram showing mineral powder flow from grinding mill to asphalt mixing plant silo

Case Study: Enhancing Performance with Advanced Grinding

A leading asphalt producer in Europe integrated an SCM Ultrafine Mill into their existing setup. By switching to finer mineral powder (500 mesh), they achieved:

15% improvement in mixture stability.
10% reduction in bitumen usage due to better filler dispersion.
Lower energy costs per ton of powder produced.

This case underscores the value of selecting the right grinding technology for specific asphalt grades.

Conclusion

Optimizing mineral powder production is not just about grinding—it’s about choosing equipment that aligns with the asphalt plant’s goals for quality, efficiency, and sustainability. The SCM Ultrafine Mill and MTW Series Trapezium Mill represent cutting-edge solutions that cater to diverse needs, from ultra-fine fillers to high-capacity operations. By investing in advanced grinding technology, asphalt producers can ensure longer-lasting pavements and lower lifecycle costs.

For detailed specifications or custom solutions, consult our technical team to match the perfect mill to your asphalt production line.
