Optimized Process Flow of Desulfurization Stone Grinding with Vertical Roller Mill
Introduction
Desulfurization stone grinding is a critical process in industries such as power generation, cement production, and metallurgy, where the removal of sulfur compounds is essential for environmental compliance and product quality. Vertical roller mills (VRMs) have emerged as the preferred equipment for this task due to their high efficiency, low energy consumption, and ability to produce finely ground materials with consistent quality. This article explores the optimized process flow for desulfurization stone grinding using VRMs, highlighting key operational parameters, technological advancements, and the benefits of integrating modern grinding solutions.
Process Overview
The grinding process for desulfurization stone typically involves several stages: raw material preparation, grinding, classification, and collection. VRMs excel in integrating these stages into a compact and efficient system. The raw material, usually limestone or gypsum with a feed size of ≤50mm, is fed into the mill through a central inlet. The grinding mechanism involves the application of pressure and shear forces between the grinding rollers and the rotating grinding table, resulting in the comminution of the material to the desired fineness.
One of the key advantages of VRMs is their ability to handle moist materials and operate under negative pressure, minimizing dust emissions. The ground material is transported by the airflow to a classifier, where particles of the desired fineness are separated and collected, while coarse particles are returned to the grinding zone for further processing. This closed-loop system ensures high efficiency and consistent product quality.
Key Operational Parameters
Optimizing the process flow requires careful attention to several operational parameters. The feed rate must be controlled to maintain a stable grinding bed, which is crucial for efficient comminution and wear reduction. The grinding pressure, typically exerted hydraulically, should be adjusted based on the material properties and desired fineness. For desulfurization stone, the target fineness is often in the range of 30-325 mesh (45-600μm), which can be achieved by tuning the classifier speed and the airflow rate.
Energy consumption is a major consideration, and VRMs offer significant savings compared to traditional ball mills. The specific energy consumption for grinding desulfurization stone in a VRM can be as low as 30-40% of that required by a ball mill, thanks to the efficient grinding mechanism and integrated classification. Additionally, the wear rates of grinding components are reduced due to the non-contact design between the rollers and the grinding table in some advanced models.
Technological Advancements
Modern VRMs incorporate several technological advancements that enhance their performance and reliability. Intelligent control systems allow for real-time monitoring and adjustment of operational parameters, ensuring optimal performance and reducing the need for manual intervention. These systems can automatically compensate for wear and variations in material properties, maintaining consistent product quality.
Another significant advancement is the use of durable materials for grinding components. For instance, our LM Series Vertical Roller Mill features specially designed rollers and grinding tables made from high-chromium alloys or similar wear-resistant materials, extending their service life and reducing maintenance downtime. The mill’s modular design allows for quick replacement of wear parts, further enhancing operational efficiency.
Environmental considerations are also addressed through advanced dust collection and noise reduction technologies. VRMs are equipped with high-efficiency pulse jet bag filters that achieve dust emissions below 20mg/m³, complying with stringent environmental standards. Noise levels are kept below 80dB(A) through sound insulation and vibration damping measures.

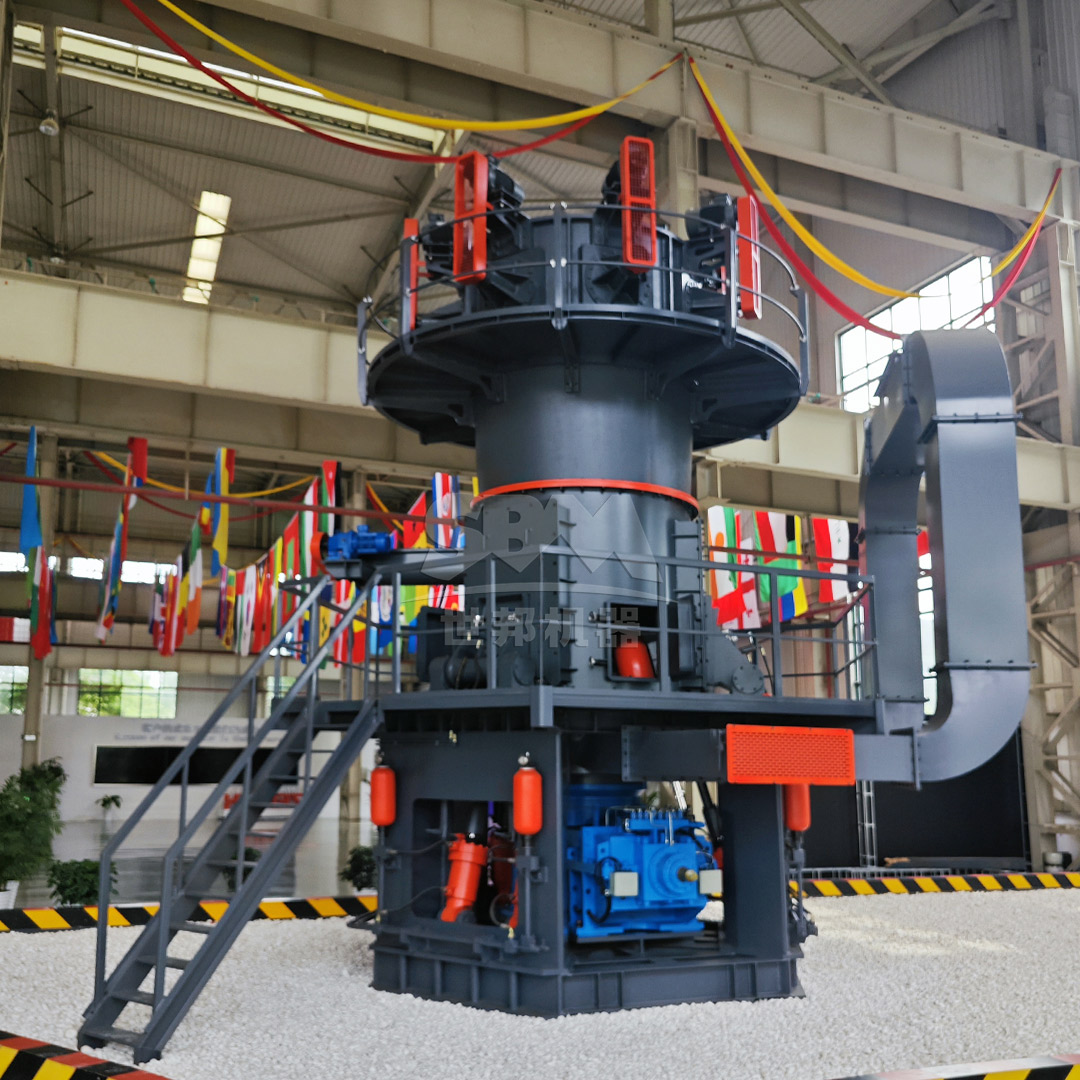

Product Recommendation: LM Series Vertical Roller Mill
For desulfurization stone grinding, we highly recommend our LM Series Vertical Roller Mill. This mill is designed to handle feed sizes up to 50mm and produce powders with fineness ranging from 30 to 325 mesh (special models can achieve up to 600 mesh). With capacities ranging from 3 to 250 tons per hour depending on the model, it offers exceptional flexibility for various production scales.
The LM Series boasts several technical advantages, including a compact design that integrates crushing, grinding, and classification functions, reducing the footprint by 50% and cutting infrastructure costs by 40%. Its energy-efficient operation lowers power consumption by 30-40% compared to ball mill systems. The mill is also equipped with an expert automatic control system for remote or local operation, ensuring stable and efficient performance.

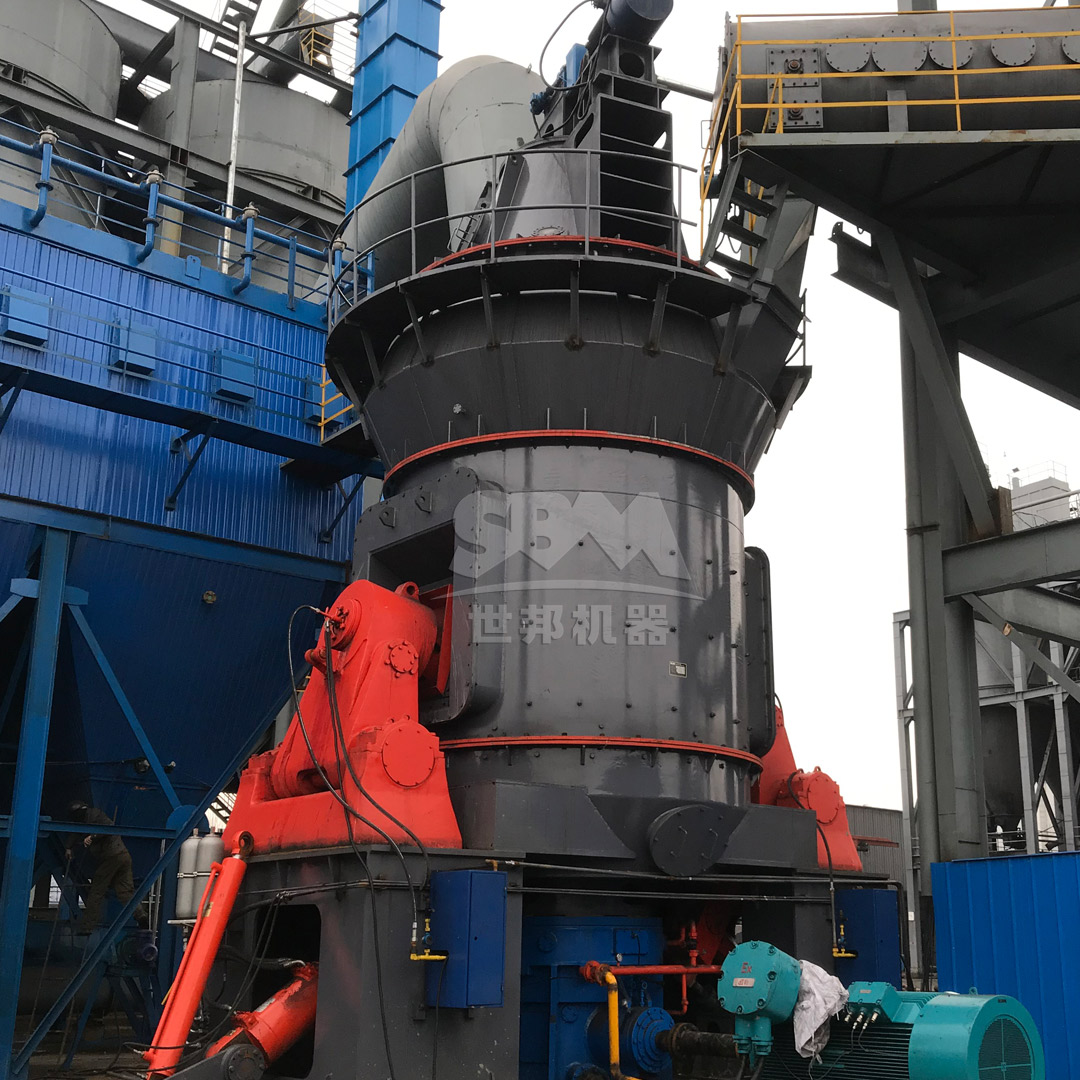

Optimized Process Flow
To achieve the best results in desulfurization stone grinding, the process flow should be optimized as follows:
- Material Preparation: Ensure the raw material is pre-crushed to a size of ≤50mm and has a moisture content below a certain threshold (e.g., <15% for slag grinding). This facilitates efficient feeding and grinding.
- Grinding Operation: Adjust the grinding pressure and classifier speed based on the desired product fineness. Maintain a stable grinding bed by controlling the feed rate and the recirculation of coarse material.
- Classification and Collection: Use a high-efficiency dynamic classifier to achieve precise particle size control. The collected fine powder should be promptly transported to storage silos to prevent re-agglomeration.
- System Monitoring: Utilize the mill’s intelligent control system to monitor key parameters such as power consumption, pressure differentials, and product fineness. Implement predictive maintenance schedules based on operational data.
By following this optimized flow, operators can maximize throughput, minimize energy consumption, and ensure consistent product quality. The integration of advanced VRMs like our LM Series further enhances these benefits, providing a reliable and efficient solution for desulfurization applications.
Conclusion
Vertical roller mills represent the state of the art in desulfurization stone grinding, offering unparalleled efficiency, flexibility, and environmental performance. The optimized process flow outlined in this article, supported by advanced equipment such as the LM Series Vertical Roller Mill, enables industries to meet their desulfurization goals while reducing operational costs and environmental impact. As technology continues to evolve, we can expect further improvements in grinding efficiency and sustainability, solidifying the role of VRMs in modern industrial processes.
