Optimized Grinding Process for Construction Waste in Milling Systems

Introduction

The construction industry generates vast amounts of waste materials annually, including concrete, bricks, ceramics, and asphalt. Efficiently processing this waste into reusable fine powders is crucial for sustainable development and resource conservation. Milling systems play a pivotal role in transforming construction debris into valuable secondary raw materials for applications in cement production, road base, and new construction materials. This article explores the optimized grinding processes for construction waste, focusing on technological advancements and equipment selection to achieve high efficiency, precise particle size distribution, and operational economy.

Characteristics of Construction Waste

Construction and demolition (C&D) waste is highly heterogeneous, comprising materials with varying hardness, abrasiveness, and moisture content. Concrete fragments often have high compressive strength, while bricks and ceramics may be more brittle but abrasive. Asphalt chunks can be tacky and temperature-sensitive. This variability demands milling equipment with robust construction, adaptability to feed fluctuations, and the ability to handle abrasive materials without rapid wear. Pre-processing through crushing and screening is essential to achieve a consistent feed size suitable for fine grinding mills, typically below 20-50mm depending on the mill type.

Key Considerations for Grinding System Optimization

Optimizing a grinding circuit for construction waste involves several critical factors. Energy consumption is paramount; selecting mills with high grinding efficiency directly reduces operational costs. Particle size distribution control is vital for the end-use application, requiring precise classification systems. Wear resistance of grinding components determines maintenance intervals and overall operating costs. Furthermore, dust collection and noise suppression are non-negotiable for meeting environmental regulations and ensuring worker safety. A systems approach—integrating feeding, grinding, classification, and collection—is necessary for peak performance.

Recommended Technology: SCM Ultrafine Mill

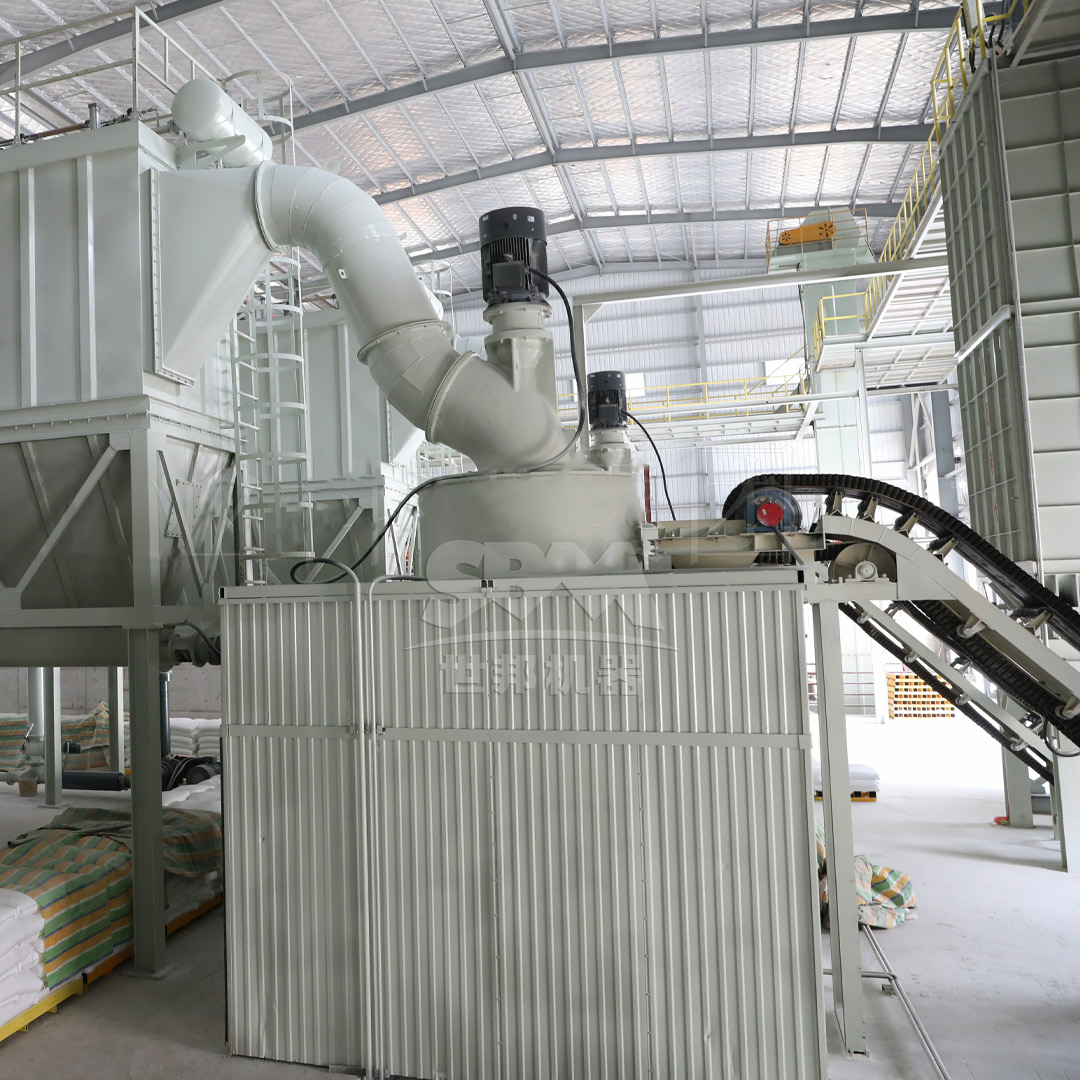

For applications requiring very fine powders from construction waste, such as high-value pozzolanic additives or fillers, the SCM Ultrafine Mill is an exemplary solution. This mill is engineered to handle hard and abrasive materials with a maximum feed size of ≤20mm and produce powders ranging from 325 to 2500 mesh (D97 ≤5μm). Its capacity spans from 0.5 to 25 tons per hour across different models.

The technological advantages of the SCM Ultrafine Mill make it particularly suitable for this demanding task. Its high-efficiency and energy-saving design offers twice the capacity of jet mills while reducing energy consumption by 30%. An intelligent control system provides automatic feedback on product fineness. The integrated high-precision vertical turbo classifier ensures accurate particle size cuts with no coarse powder contamination, guaranteeing a uniform final product. Durability is addressed through special material roller and ring sets, multiplying their service life, and a stable, bearingless screw grinding chamber. From an environmental standpoint, its pulse dust collector exceeds international standards, and the soundproof room design maintains noise levels at or below 75dB.

Grinding Process Workflow

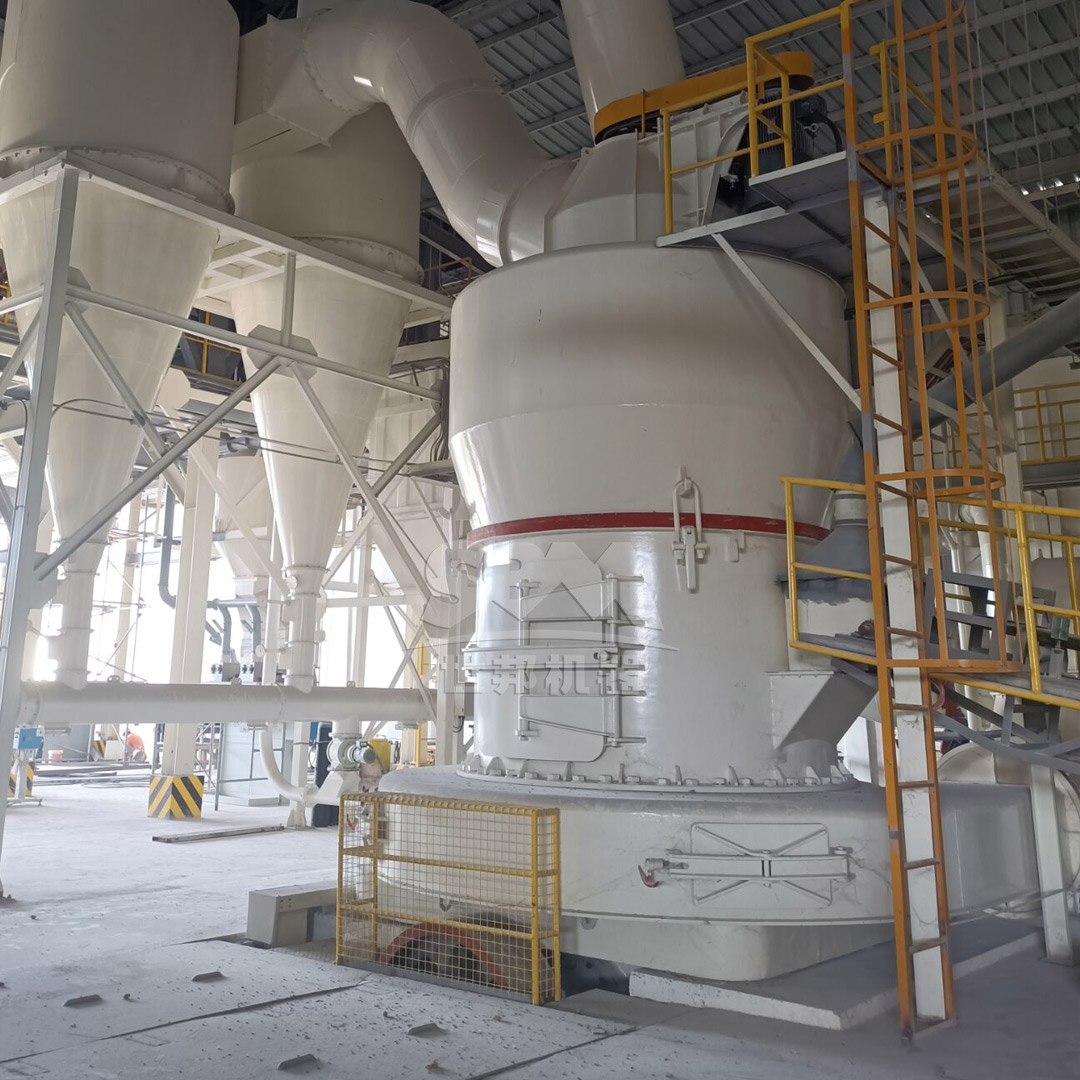

The optimized grinding process begins with pre-sorted and primarily crushed construction waste. The material is conveyed to the mill’s feed hopper. Inside the SCM Ultrafine Mill, the main motor drives a multi-layer grinding ring to rotate. Material is fed into the grinding chamber and dispersed by centrifugal force onto the grinding track. It is then compressed and crushed by rollers, undergoing progressive refinement through multiple layers. The finely ground powder is carried by the airflow to the integrated classification system. Oversized particles are rejected and returned for further grinding, while the in-spec powder is conveyed to a high-efficiency cyclone collector and a pulse jet baghouse for final product separation and dust-free emission.

Case for High-Capacity Processing: MTW Series Trapezium Mill

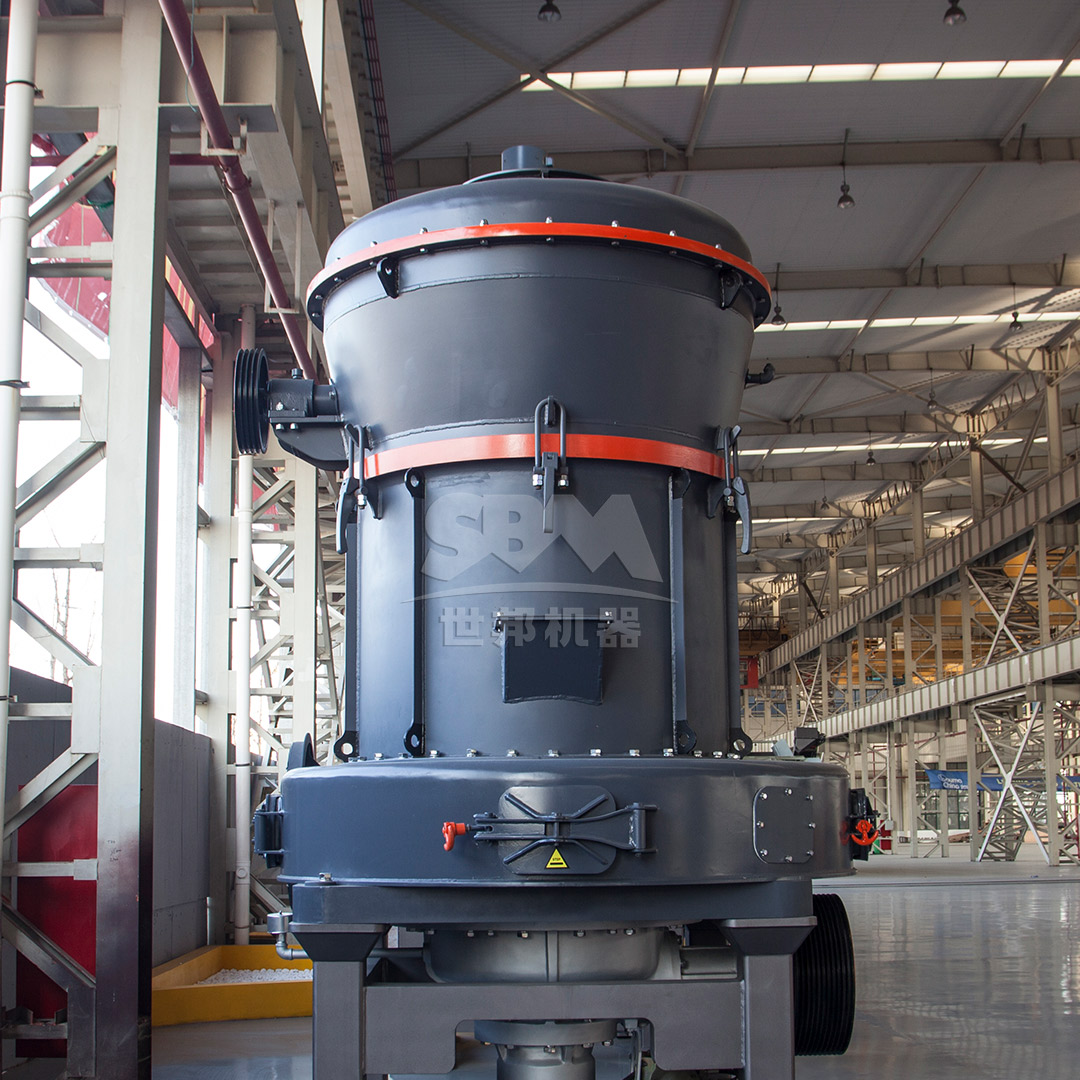

For large-scale recycling operations focused on producing medium-fine powders for aggregates or cement raw meal, the MTW Series Trapezium Mill presents a robust and economical choice. This mill accepts larger feed sizes up to ≤50mm and delivers outputs from 30 to 325 mesh (up to 0.038mm), with capacities ranging from 3 to 45 tons per hour.

Its design incorporates several features that optimize it for construction waste. The anti-abrasion shovel blade design with combined replaceable tips significantly lowers maintenance costs. The curved air duct minimizes air resistance and energy loss, enhancing transmission efficiency. Its integral conical gear transmission achieves a remarkable 98% drive efficiency, saving space and installation costs. The wear-resistant volute structure further reduces maintenance costs by approximately 30%. This combination of features ensures high throughput, consistent product quality, and lower cost-per-ton in demanding recycling environments.

System Integration and Automation

Beyond the core grinding unit, a truly optimized system requires seamless integration of auxiliary components. This includes vibrating feeders for consistent material flow, bucket elevators or screw conveyors for transport, and automated packaging systems. Modern mills are increasingly equipped with Programmable Logic Controller (PLC) systems. These allow for central control of the entire grinding process, monitoring key parameters like motor load, bearing temperature, and classifier speed. Automation enables real-time adjustments to maintain optimal grinding conditions, provides early warning of potential issues, and ensures consistent product quality with minimal human intervention, thereby maximizing overall system efficiency and reliability.

Conclusion

The transformation of construction waste into a valuable resource through milling is a cornerstone of the circular economy in the construction sector. Achieving an optimized grinding process requires careful selection of technology based on the specific waste stream and desired final product. Mills like the SCM Ultrafine Mill for high-value ultra-fine applications and the MTW Series Trapezium Mill for high-capacity medium-fine grinding offer the necessary combination of efficiency, durability, precision, and environmental compliance. By leveraging these advanced technologies and adopting a holistic system approach, recyclers can significantly enhance profitability while contributing positively to environmental sustainability.
