Natural Graphite Ultrafine Grinding Mill Manufacturer – Professional Supplier

Introduction to Natural Graphite Ultrafine Grinding

Natural graphite has become an indispensable material in numerous high-tech industries, including lithium-ion batteries, fuel cells, thermal management systems, and advanced composites. The performance of graphite in these applications is critically dependent on its particle size distribution, purity, and morphological characteristics. Ultrafine grinding technology plays a pivotal role in transforming raw graphite into high-value products with precisely controlled properties.

As a professional manufacturer with decades of experience in mineral processing equipment, we understand the unique challenges of graphite comminution. The flaky structure and lubricating properties of graphite require specialized grinding solutions that can achieve ultra-fine particle sizes while maintaining crystal integrity and minimizing contamination.

Technical Challenges in Graphite Ultrafine Processing

Material Characteristics and Processing Requirements

Natural graphite presents several processing challenges that conventional grinding equipment cannot adequately address. The material’s perfect basal cleavage, low hardness (1-2 on Mohs scale), and high lubricity make it difficult to achieve fine particle sizes through standard crushing methods. Furthermore, the preservation of graphite’s crystalline structure is essential for maintaining its electrical and thermal conductivity properties.

The transition from micron to sub-micron grinding introduces additional complexities, including increased energy consumption, heat generation, and potential contamination from grinding media. Effective graphite processing requires equipment that can overcome these challenges while delivering consistent product quality and operational efficiency.

Industry Standards and Quality Parameters

Modern applications demand graphite powders with specific characteristics:

• Particle size distribution: D50 values typically ranging from 1-20μm with tight distribution curves
• Purity levels: Often exceeding 99.9% for battery applications
• Morphology control: Preservation of flaky structure for enhanced conductivity
• Surface chemistry: Minimal oxidation and controlled surface functional groups

Advanced Grinding Solutions for Natural Graphite

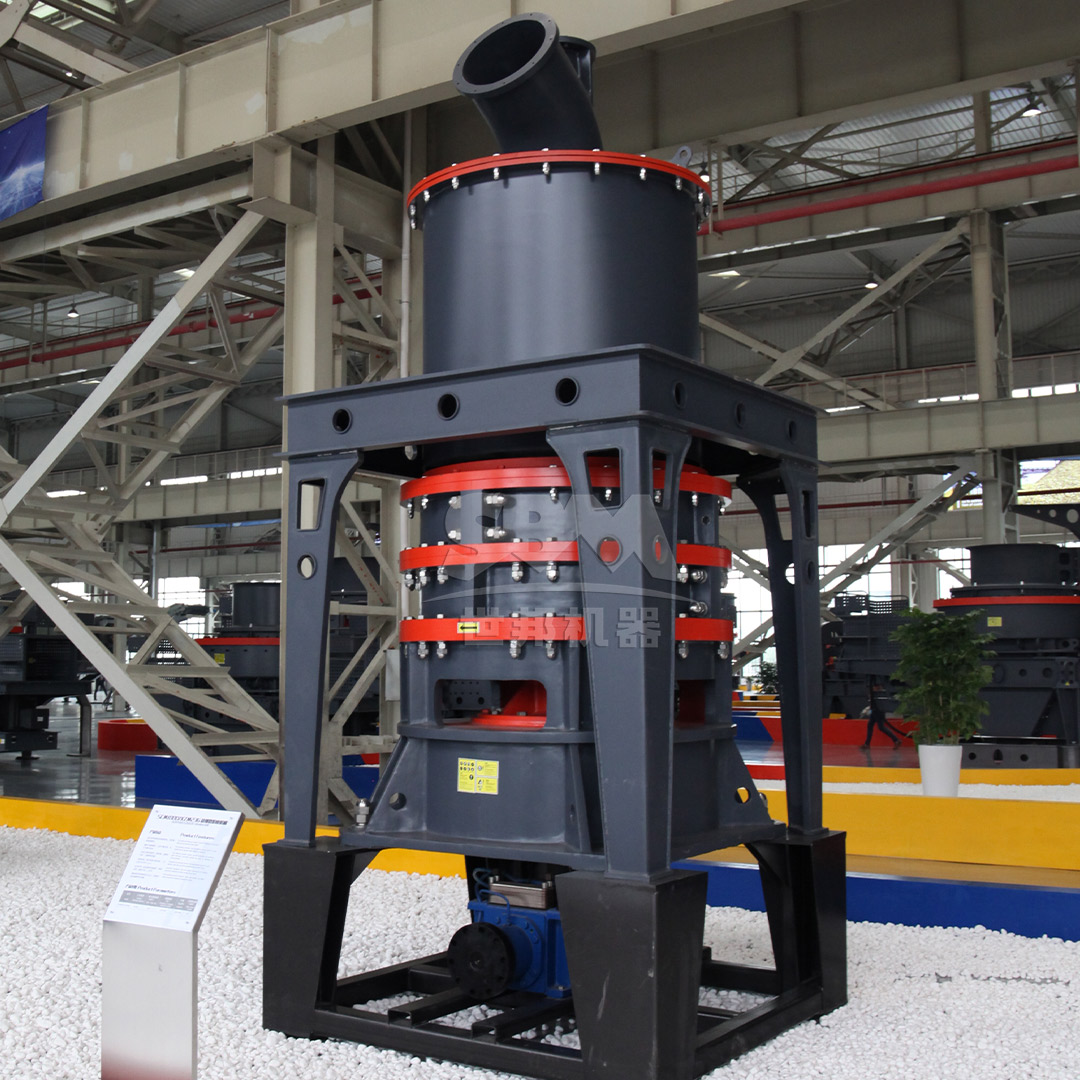

SCM Ultrafine Mill: Precision Grinding for High-Value Applications

Our SCM Ultrafine Mill represents the pinnacle of graphite grinding technology, specifically engineered to handle the unique characteristics of natural graphite. This system achieves remarkable fineness levels of 325-2500 mesh (D97 ≤ 5μm) while maintaining the structural integrity of graphite flakes.

The SCM series incorporates several proprietary technologies that make it ideal for graphite processing:

• High-Efficiency Grinding Mechanism: The multi-layer grinding ring and roller design creates optimal pressure and shear forces for efficient size reduction without excessive heat generation
• Precision Classification System: Vertical turbine classifiers provide exact particle size control, ensuring consistent product quality and eliminating coarse particle contamination
• Intelligent Control System: Automated feedback mechanisms continuously monitor and adjust operational parameters to maintain target particle size distribution

With capacity ranging from 0.5 to 25 tons per hour across different models, the SCM series offers scalability from laboratory research to full-scale production. The system’s energy efficiency is particularly noteworthy, consuming 30% less power compared to conventional jet mills while delivering twice the production capacity.

LUM Ultra-Fine Vertical Mill: Integrated Grinding and Classification

For applications requiring the highest levels of fineness and purity, our LUM Ultra-Fine Vertical Mill provides an integrated solution that combines grinding, classification, and collection in a single compact unit. This system is particularly suited for battery-grade graphite production where contamination control is critical.

Key advantages of the LUM series for graphite processing include:

• Multi-Rotor Classification Technology: Ensures precise cut points and eliminates coarse particles from the final product
• Specialized Grinding Geometry: Unique roller and liner profiles optimized for flaky materials like graphite
• Fully Enclosed Design: Prevents contamination and maintains product purity throughout the process
• PLC Automation: Provides stable operation and reproducible results batch after batch

The LUM series achieves fineness levels up to 2500 mesh (5μm) with production capacities ranging from 1.6 to 15 tons per hour, depending on the specific model and product requirements.

Technical Comparison: Selecting the Right Equipment

Performance Characteristics

When selecting grinding equipment for natural graphite, several factors must be considered:

Application-Specific Recommendations

Different graphite applications benefit from specific equipment configurations:

• Battery Anode Materials: SCM series with inert gas protection for oxidation-sensitive materials
• Conductive Composites: LUM series for high-purity requirements and narrow particle distribution
• Lubricants and Coatings: SCM series with specialized classifiers for precise top-size control
• Expanded Graphite Precursors: Customized systems with integrated purification stages

Case Study: SCM1000 Implementation for Battery Graphite

A recent installation of our SCM1000 Ultrafine Mill for a major battery materials producer demonstrates the capabilities of our technology in real-world applications. The customer required production of spherical graphite for lithium-ion battery anodes with the following specifications:

• Particle size: D50 = 15±2μm, D100 < 30μm
• Sphericity: >0.85
• Purity: >99.95%
• Production rate: 6-8 tons per day

The SCM1000 system achieved all target parameters while reducing energy consumption by 35% compared to their previous jet milling process. The integrated classification system provided exceptional control over particle size distribution, with a steepness coefficient (D90/D10) of less than 3.5. The system’s robust construction and wear-resistant components maintained consistent performance over extended operation, with maintenance intervals exceeding 4,000 hours.

Future Trends in Graphite Processing Technology

Emerging Requirements and Technological Developments

The evolving demands of advanced applications continue to drive innovation in graphite processing technology. Key trends include:

• Integrated Purification and Grinding: Combined processes that reduce handling and improve overall efficiency
• Digitalization and Industry 4.0: Advanced process control using AI and machine learning for optimization
• Sustainable Operations: Equipment designs focused on energy recovery and minimal environmental impact
• Modular Systems: Scalable configurations that allow for capacity expansion with minimal capital investment

Our ongoing research and development program focuses on addressing these trends while maintaining our commitment to reliability, efficiency, and product quality. Recent innovations include advanced classifier designs for even sharper separations, wear-resistant materials that extend maintenance intervals, and control systems that provide unprecedented process visibility.

Conclusion

The production of high-quality natural graphite powders requires specialized grinding equipment capable of delivering precise particle size control, maintaining material purity, and operating efficiently at industrial scales. Our SCM Ultrafine Mill and LUM Vertical Mill series represent state-of-the-art solutions developed specifically for these challenging applications.

With capacities ranging from laboratory to full production scales, energy-efficient operation, and robust construction, these systems provide graphite processors with the technological foundation needed to compete in demanding global markets. As a professional supplier with comprehensive technical support capabilities, we partner with our customers to optimize their processes and maximize the value of their graphite resources.

For specific application requirements or to discuss how our grinding solutions can enhance your graphite processing operations, please contact our technical team for detailed recommendations and equipment selection guidance.
