Methods for Preparing Slag Micro Powder
Introduction to Slag Micro Powder
Slag micro powder, a byproduct of the metallurgical industry, has gained significant importance as a high-performance supplementary cementitious material (SCM) in modern construction. The process of converting granulated blast furnace slag into fine powder with high surface area involves sophisticated grinding technologies that determine the final product’s reactivity and performance characteristics. This article explores the primary methods for preparing slag micro powder, focusing on technological advancements, operational principles, and equipment selection criteria that ensure optimal production efficiency and product quality.
Fundamental Principles of Slag Grinding
The transformation of granular slag into micro powder requires precise mechanical forces applied through various grinding mechanisms. The fundamental objective is to reduce particle size while increasing specific surface area, typically measured in m²/kg, to enhance the material’s pozzolanic properties. The grinding process must achieve a balance between energy consumption, production rate, and product quality, with particular attention to particle size distribution which significantly influences the final application performance.
Effective slag grinding involves multiple physical phenomena including impact, compression, shear, and attrition forces. The hardness and abrasiveness of slag materials demand robust equipment designed to withstand prolonged operational stresses while maintaining consistent output quality. Modern grinding systems incorporate classification mechanisms that separate particles based on size during the process, ensuring that only properly ground material proceeds to the final collection stage.
Primary Grinding Technologies
Ball Mill Systems
Traditional ball mills have been widely used for slag grinding operations, utilizing steel balls as grinding media inside a rotating cylinder. While capable of producing satisfactory results, conventional ball mills suffer from high energy consumption and relatively limited efficiency in achieving ultra-fine particle sizes. The technology operates on the principle of impact and attrition as the balls cascade within the rotating chamber, gradually reducing particle size through repeated collisions.
Modern ball mill designs have incorporated improvements such as high-efficiency separators, improved liner designs, and optimized grinding media distribution. However, even with these enhancements, ball mills typically achieve specific surface areas of 400-450 m²/kg at energy consumption levels of 40-50 kWh/t, making them less competitive compared to more advanced grinding technologies for high-volume production of slag micro powder.
Vertical Roller Mills (VRM)
Vertical roller mills represent a significant advancement in slag grinding technology, offering substantially improved energy efficiency and production capacity. VRM systems operate on the principle of bed comminution, where material is ground between a rotating table and rollers pressed against it. This configuration provides more efficient energy transfer compared to impact-based systems, with reduced wear parts consumption and lower overall operating costs.
Our company’s LM Series Vertical Roller Mill exemplifies modern VRM technology specifically engineered for slag grinding applications. The system features integrated drying, grinding, and classification functions within a single compact unit, significantly reducing space requirements and installation complexity. With capacity ranging from 3-250 tons per hour depending on model specifications, these mills achieve exceptional energy efficiency while producing slag powder with specific surface areas exceeding 420 m²/kg.
The LM Series incorporates several proprietary technologies including modular roller assemblies for quick maintenance, dynamic classifiers for precise particle size control, and heat recovery systems that further enhance energy efficiency. The mill’s ability to handle moist materials (up to 15% moisture content) without pre-drying represents another significant advantage, reducing overall processing steps and energy requirements.
Roller Press Systems
High-pressure grinding rolls (HPGR) or roller presses have emerged as efficient solutions for slag comminution, particularly in pre-grinding or hybrid grinding circuits. These systems utilize two counter-rotating rolls that apply extreme pressure to the material bed, causing particle fracture through compression rather than impact. This mechanism proves highly efficient for brittle materials like slag, with significantly reduced energy consumption compared to traditional grinding methods.
Roller press systems typically operate in closed circuit with dynamic separators, allowing precise control over product fineness. When configured for finish grinding, modern roller presses can achieve specific surface areas of 400-500 m²/kg with energy consumption below 30 kWh/t, representing approximately 30-40% savings compared to ball mill systems. The technology also offers advantages in terms of particle morphology, producing more angular particles that enhance the mechanical properties of cementitious composites.
Advanced Ultrafine Grinding Technologies
Ultrafine Mill Systems
For applications requiring extremely fine slag powders (D97 ≤ 5μm), specialized ultrafine grinding equipment becomes necessary. These systems employ unique grinding mechanisms that combine multiple forces to achieve sub-micron particle sizes while maintaining reasonable energy efficiency. Ultrafine mills typically incorporate precision classification systems that ensure tight particle size distribution, critical for high-performance applications where consistent material properties are essential.

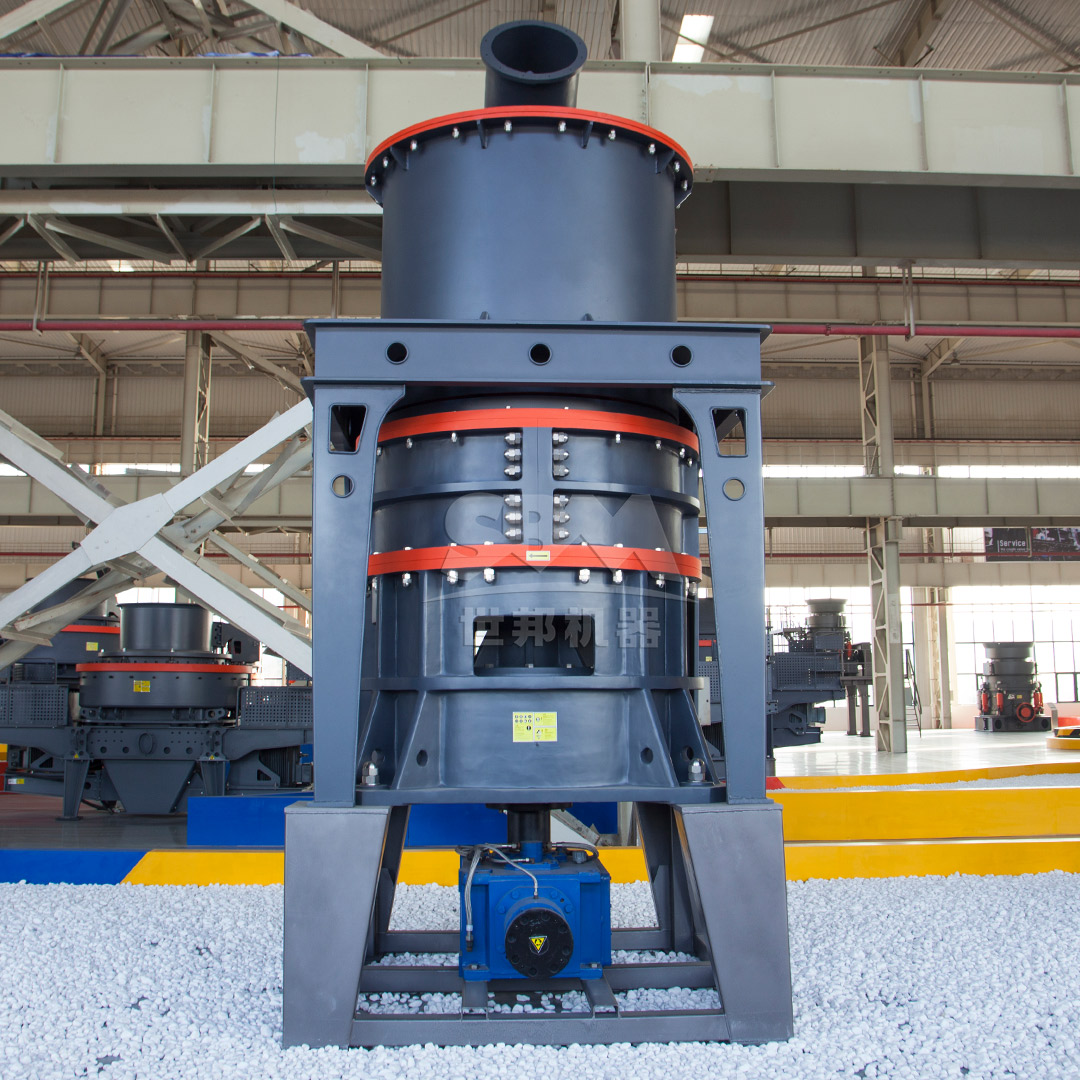

Our SCM Series Ultrafine Mill represents the cutting edge in ultrafine slag powder production technology. Engineered specifically for producing high-value slag powders with fineness ranging from 325-2500 mesh (D97 ≤ 5μm), this system delivers exceptional performance with energy consumption 30% lower than conventional jet mills. The mill’s vertical turbine classification system ensures precise particle size control without coarse powder contamination, while its special material roller and grinding ring design extends service life significantly.
The SCM Series features intelligent control systems that automatically monitor and adjust operational parameters to maintain consistent product quality. With capacity ranging from 0.5-25 tons per hour across different models, these mills offer scalability for various production requirements. The environmental performance exceeds international standards, with pulse dust collection efficiency above 99.9% and noise levels below 75dB, making them suitable for installation in environmentally sensitive areas.
Hybrid Grinding Systems
Increasingly, manufacturers are implementing hybrid grinding systems that combine multiple technologies to optimize performance characteristics. These configurations typically pair a pre-grinding unit (such as a roller press) with a finishing ball mill or vertical mill, leveraging the strengths of each technology to achieve superior overall efficiency. Hybrid systems can reduce energy consumption by 15-25% compared to single-technology solutions while maintaining product quality consistency.
The design of hybrid systems requires careful consideration of material characteristics, production targets, and quality requirements. Proper integration of pre-grinding and finishing stages ensures optimal utilization of each component’s capabilities, with sophisticated control systems coordinating operations across the entire circuit. These systems represent the future of industrial-scale slag grinding, offering flexibility to adapt to varying raw material properties and product specifications.
Classification and Separation Technologies
Effective classification constitutes a critical component of modern slag grinding systems, directly influencing product quality and system efficiency. Advanced classifiers separate particles based on size and density, returning oversize material for further grinding while allowing properly sized particles to proceed to collection. Modern high-efficiency classifiers employ rotating blades or turbines that create precise cut points, enabling production of slag powders with narrow particle size distributions.
Dynamic classifiers, increasingly integrated into vertical mills and roller press systems, offer adjustable separation characteristics that can be modified during operation to accommodate changing requirements. These systems typically achieve separation efficiencies exceeding 85%, significantly reducing energy waste associated with overgrinding. The latest classifier designs incorporate predictive maintenance features and wear-resistant materials that extend service intervals and reduce operational downtime.
Energy Efficiency Considerations
Energy consumption represents the most significant operational cost in slag grinding operations, typically accounting for 50-70% of total production expenses. Modern grinding technologies have made substantial progress in reducing specific energy consumption, with advanced vertical mills and roller press systems achieving 30-50% improvements compared to traditional ball mills. These savings result from more efficient energy transfer mechanisms, reduced fan power requirements, and improved system integration.
Beyond equipment selection, operational practices significantly influence energy efficiency. Optimized grinding circuit design, proper maintenance of grinding elements, and implementation of advanced process control systems all contribute to reduced energy consumption. Many modern installations incorporate heat recovery systems that capture and reuse thermal energy from process gases, further enhancing overall energy efficiency. The economic and environmental benefits of these improvements make energy efficiency a primary consideration in selecting slag grinding technologies.
Quality Control and Product Characterization
Consistent product quality requires comprehensive quality control measures throughout the grinding process. Modern slag powder production facilities implement automated sampling and analysis systems that monitor key parameters including specific surface area, particle size distribution, moisture content, and chemical composition. These systems provide real-time feedback to process control computers, enabling automatic adjustments to maintain product specifications within tight tolerances.
Advanced characterization techniques including laser diffraction particle size analysis, BET surface area measurement, and scanning electron microscopy provide detailed understanding of product properties. This information guides process optimization and ensures that the produced slag micro powder meets the requirements of specific applications. The implementation of statistical process control methods further enhances quality consistency, reducing variability and improving customer satisfaction.
Environmental Considerations and Sustainability
The production of slag micro powder contributes significantly to sustainable construction practices by utilizing industrial byproducts that would otherwise require disposal. Modern grinding facilities incorporate comprehensive environmental protection measures including advanced dust collection systems, noise reduction technologies, and water conservation practices. These measures ensure that slag processing operations meet stringent environmental regulations while minimizing their ecological footprint.
Energy-efficient grinding technologies further enhance sustainability by reducing greenhouse gas emissions associated with power generation. Many facilities implement carbon footprint monitoring and reduction programs, aligning with global sustainability initiatives. The use of slag micro powder in cement and concrete production itself reduces the carbon footprint of construction materials, as it displaces energy-intensive Portland cement clinker while improving durability and performance characteristics.
Conclusion
The preparation of high-quality slag micro powder requires sophisticated grinding technologies that balance production efficiency, product quality, and operational costs. Modern vertical roller mills, roller press systems, and specialized ultrafine grinding equipment offer significant advantages over traditional technologies, particularly in terms of energy efficiency and product consistency. The selection of appropriate grinding technology depends on specific production requirements, raw material characteristics, and desired product properties.
As the construction industry continues to embrace sustainable materials, the demand for high-performance slag micro powder will continue to grow. Technological advancements in grinding equipment will further improve efficiency and product quality, supporting the wider adoption of this valuable supplementary cementitious material. Companies investing in modern grinding technologies position themselves to capitalize on this growing market while contributing to more sustainable construction practices.
