Lithium Slag Powder and Grinding Equipment for Cement and Concrete Applications
Introduction
Lithium slag, a byproduct generated during lithium carbonate production from spodumene ore, has emerged as a valuable supplementary cementitious material in recent years. With the rapid growth of the lithium-ion battery industry, substantial quantities of lithium slag are being produced, creating both disposal challenges and utilization opportunities. When properly processed through advanced grinding technologies, lithium slag powder demonstrates excellent pozzolanic properties that significantly enhance the performance characteristics of cement and concrete. This article examines the properties of lithium slag powder, its effects on cementitious systems, and the specialized grinding equipment required for its optimal processing.
Characteristics of Lithium Slag
Lithium slag typically contains amorphous aluminosilicate phases that contribute to its pozzolanic reactivity. The chemical composition varies depending on the source ore and extraction process, but generally includes SiO₂ (40-60%), Al₂O₃ (15-30%), CaO (5-15%), and residual lithium compounds (1-3%). The presence of lithium ions has been found to influence the hydration kinetics of cement, potentially accelerating early strength development while reducing long-term drying shrinkage.
The physical characteristics of raw lithium slag include irregular particle morphology, broad size distribution, and relatively high porosity. These properties necessitate specialized comminution approaches to achieve the optimal particle size distribution for maximum pozzolanic activity. Research indicates that the highest reactivity occurs when at least 80% of particles are below 20 micrometers, with a Blaine fineness exceeding 400 m²/kg.
Benefits of Lithium Slag in Cement and Concrete
Mechanical Properties Enhancement
The incorporation of finely ground lithium slag powder in cementitious systems produces several notable improvements in mechanical properties. Studies have demonstrated compressive strength increases of 10-20% at 28 days when replacing 15-25% of Portland cement with properly processed lithium slag powder. The enhanced strength development is attributed to both the filler effect, where fine particles improve packing density, and the pozzolanic reaction, where reactive silica and alumina combine with calcium hydroxide to form additional calcium silicate hydrate phases.
Flexural strength and modulus of elasticity also show significant improvements, with reported increases of 15-25% compared to plain cement concrete. The unique chemical composition of lithium slag, particularly the presence of lithium compounds, appears to modify the crystallization of hydration products, resulting in a more homogeneous and denser microstructure with reduced capillary porosity.
Durability Improvements
Concrete mixtures containing lithium slag powder exhibit superior durability characteristics, including enhanced resistance to sulfate attack, reduced chloride ion penetration, and decreased alkali-silica reaction expansion. The refined pore structure resulting from the pozzolanic reaction creates a less permeable matrix that impedes the ingress of aggressive ions. Laboratory tests show that the charge passed in rapid chloride permeability tests can be reduced by 40-60% with 20% lithium slag replacement.
Additionally, the lithium compounds in the slag have been found to inhibit alkali-silica reaction by modifying the gel composition and reducing its expansive potential. This makes lithium slag particularly valuable in applications where reactive aggregates must be used. Freeze-thaw resistance is also improved due to the reduced connectivity of capillary pores, with durability factors typically exceeding 90% even after 300 cycles.
Sustainability Advantages
The utilization of lithium slag in cement and concrete contributes significantly to sustainability objectives through multiple pathways. First, it reduces the carbon footprint of concrete production by decreasing the clinker factor—each ton of Portland cement replaced avoids approximately 0.8 tons of CO₂ emissions. Second, it provides a productive outlet for an industrial byproduct that would otherwise require landfilling, thus conserving natural resources and reducing waste management burdens.
Life cycle assessment studies indicate that concrete mixtures with 25% lithium slag replacement can reduce global warming potential by 15-20% compared to conventional concrete. Furthermore, the grinding process for lithium slag typically consumes less energy than clinker production, adding to the overall environmental benefits. With increasing regulatory pressure on industrial waste management and carbon emissions, lithium slag utilization represents an economically and environmentally sound approach for the construction materials industry.
Grinding Technology Requirements for Lithium Slag
The transformation of raw lithium slag into a high-performance supplementary cementitious material requires precise control over particle size distribution, particle morphology, and amorphicity preservation. Unlike conventional cement grinding, lithium slag processing must address several unique challenges, including the material’s variable hardness, moderate abrasiveness, and tendency toward agglomeration when finely ground.
Optimal grinding systems for lithium slag must achieve several critical objectives: produce a steep particle size distribution with minimal ultrafines (below 1μm) to avoid water demand increases; maintain the amorphous structure of the aluminosilicate phases to preserve reactivity; and operate with high energy efficiency to ensure economic viability. Additionally, the equipment must handle the slightly corrosive nature of lithium compounds and provide consistent product quality despite variations in feed material characteristics.
Recommended Grinding Equipment for Lithium Slag Processing

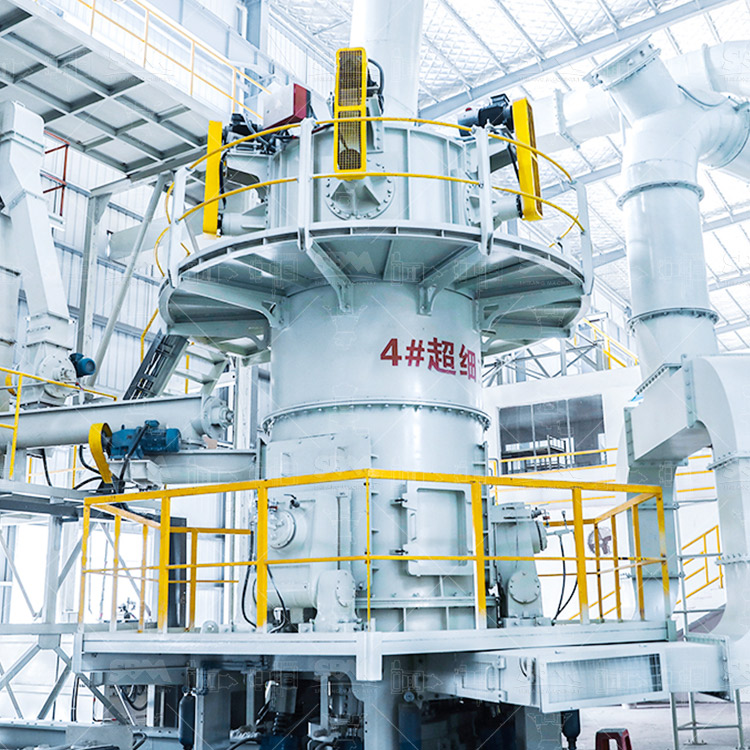

SCM Series Ultrafine Mill for High-Quality Lithium Slag Powder
For applications requiring the highest performance lithium slag powder with controlled particle size distribution and preserved reactivity, the SCM Series Ultrafine Mill represents an ideal solution. This advanced grinding system operates on the principle of material bed comminution, where particles are crushed between rotating grinding elements and a stationary liner. The specific design features of the SCM mill address the unique challenges of lithium slag processing through several innovative technologies.
The SCM Ultrafine Mill achieves output fineness ranging from 325 to 2500 mesh (D97≤5μm), making it particularly suitable for producing the ultrafine lithium slag powders that demonstrate the highest pozzolanic reactivity. With input size capability of ≤20mm and processing capacity from 0.5 to 25 tons per hour (depending on model), the equipment can be matched to various production requirements. The integrated vertical turbine classifier enables precise particle size control, ensuring consistent product quality and eliminating coarse particle contamination.
Key advantages for lithium slag processing include the system’s high efficiency, achieving twice the capacity of jet mills with 30% lower energy consumption. The intelligent control system with automatic feedback for product fineness ensures stable operation despite variations in feed material characteristics. The specially designed grinding roller and ring, manufactured from wear-resistant materials, provide extended service life when processing the moderately abrasive lithium slag. Environmental performance is enhanced through pulse dust collection exceeding international standards and noise levels below 75dB through integrated acoustic enclosures.
The operational principle involves main motor-driven rotation of multiple grinding rings, with material dispersed into the grinding path by centrifugal force. Progressive grinding occurs through roller compression across multiple layers, with final powder collection accomplished through a cyclone separator and pulse dust collection system. Available models range from the SCM800 with 0.5-4.5 ton/hour capacity and 75kW main motor to the SCM1680 with 5.0-25 ton/hour capacity and 315kW main motor, providing scalability for different production requirements.

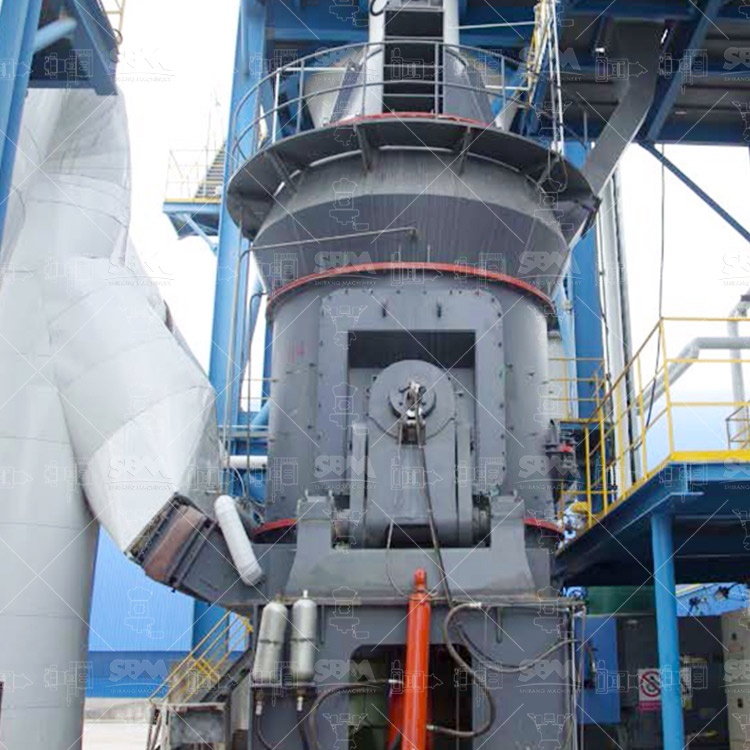

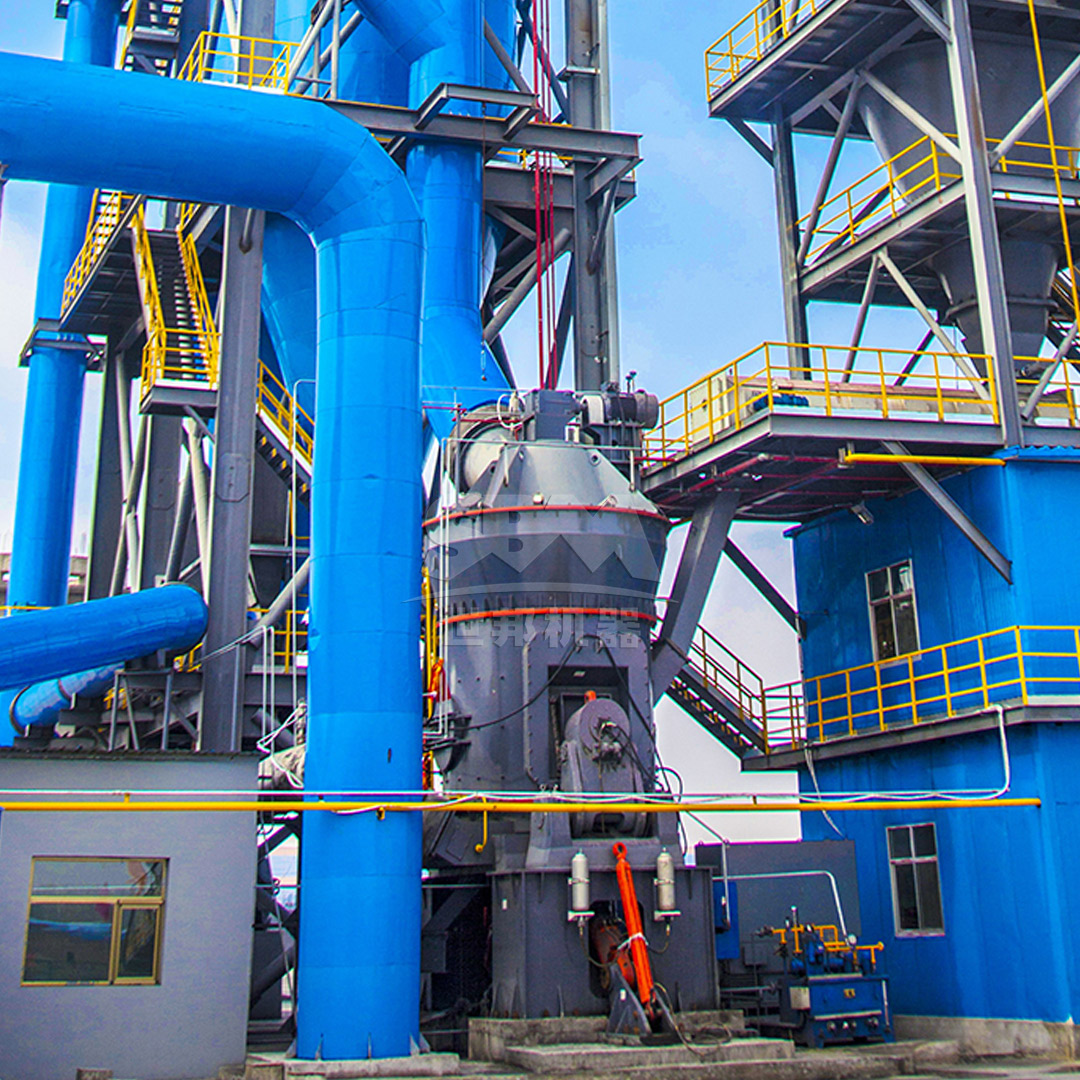

LM Series Vertical Roller Mill for Large-Scale Production
For high-volume production facilities requiring integrated drying and grinding capabilities, the LM Series Vertical Roller Mill offers an efficient and compact solution. This equipment is particularly advantageous when processing lithium slag with elevated moisture content, as it integrates grinding and drying operations in a single unit. The vertical roller mill design provides several benefits specifically relevant to lithium slag processing, including lower specific energy consumption, reduced space requirements, and simplified material handling.
The LM Series Vertical Roller Mill accepts feed material up to 50mm in size and produces product fineness from 30 to 325 mesh, with special models capable of achieving 600 mesh. Capacity ranges from 3 to 250 tons per hour depending on the specific model and application requirements. The compact design integrates crushing, grinding, and classification functions, reducing footprint requirements by approximately 50% compared to ball mill systems. For lithium slag applications, the non-contact design between grinding rollers and the table extends wear part life up to three times, significantly reducing operating costs.
Key technological advantages include the intelligent control system with expert automation, supporting remote and local operation modes with real-time monitoring of critical parameters. Environmental performance meets stringent standards with fully sealed negative pressure operation ensuring dust emissions below 20mg/m³ and operating noise levels not exceeding 80dB(A). The operational principle involves main motor-driven rotation of the grinding table through a reducer, with material fed through the center inlet and distributed uniformly by centrifugal force. Grinding rollers apply compressive force to achieve bed comminution, with qualified fine powder transported by hot air to the classifier and coarse material returned to the grinding table for further processing.
For lithium slag applications, specific models from the Vertical Slag Mill series are particularly relevant, including the LM130N with 4-6 ton/hour capacity and the LM370N with 90-110 ton/hour capacity. These specialized models are engineered to handle the specific characteristics of granulated slags, with requirements including Bond work index ≤23kWh/t and iron content ≤1%. The integrated design allows for direct processing of moist materials without separate drying equipment, simplifying the overall process flow.
Processing Considerations and Best Practices
Successful implementation of lithium slag in cement and concrete requires attention to several processing parameters beyond particle size reduction. Moisture control is critical, as lithium slag typically contains 10-20% moisture as received, which can affect handling and grinding efficiency. For the SCM Ultrafine Mill, pre-drying to below 5% moisture is recommended to optimize grinding performance, while the LM Vertical Roller Mill can handle materials with up to 15% moisture content through integrated drying.
Chemical composition variations in lithium slag, particularly in residual lithium content, may necessitate adjustments to grinding parameters and potential blending strategies to ensure consistent product quality. The slightly corrosive nature of lithium compounds requires appropriate material selection for equipment components exposed to the fine powder, particularly in collection and storage systems.
Quality control should include regular monitoring of particle size distribution, specific surface area, amorphous content, and pozzolanic activity index. The grinding system should be operated to maximize the proportion of particles in the 1-20μm range, which provides the optimal balance between reactivity and water demand. Process optimization typically involves adjusting classifier speed, grinding pressure, and feed rate to achieve the target product characteristics while maximizing energy efficiency.
Economic and Environmental Impact Assessment
The implementation of specialized grinding equipment for lithium slag processing represents a significant investment that must be justified through both economic and environmental benefits. Economic analysis should consider the reduced clinker factor in cement production, with lithium slag typically replacing 15-30% of Portland cement without compromising performance. At current cement prices, this substitution provides substantial raw material cost savings, with payback periods for grinding equipment typically ranging from 1.5 to 3 years depending on production scale and local market conditions.
Environmental benefits extend beyond waste utilization to include reduced carbon emissions, with each ton of cement replaced avoiding approximately 0.8 tons of CO₂ emissions. Additional environmental advantages include reduced quarrying for natural raw materials, decreased landfilling requirements, and lower energy consumption compared to clinker production. Life cycle assessment studies demonstrate that the environmental impact of lithium slag grinding is substantially lower than the avoided impacts of cement production, resulting in net positive environmental outcomes.
Future Trends and Developments
The utilization of lithium slag in cement and concrete is expected to grow significantly as the lithium industry expands and sustainability regulations become more stringent. Future developments in grinding technology will likely focus on further energy reduction through advanced classification systems, improved wear materials to extend maintenance intervals, and enhanced process control through artificial intelligence and machine learning.
Research is ongoing to optimize the synergistic effects between lithium slag and other supplementary cementitious materials, potentially enabling higher replacement rates without performance compromises. The unique properties of lithium compounds in modifying cement hydration may lead to specialized applications where lithium slag provides specific functional benefits beyond general pozzolanic behavior.
As circular economy principles become more deeply embedded in industrial practice, the integration of lithium slag processing into lithium production facilities may become standard practice, creating closed-loop systems that maximize resource efficiency. The grinding equipment industry will continue to develop solutions specifically tailored to the characteristics of lithium slag, further improving the economic and environmental profile of this valuable supplementary cementitious material.
Conclusion
Lithium slag represents a promising supplementary cementitious material that can significantly enhance the performance and sustainability of cement and concrete products. The transformation of raw lithium slag into a high-quality powder requires specialized grinding equipment capable of producing precisely controlled particle size distributions while preserving the material’s reactive amorphous phases. The SCM Series Ultrafine Mill and LM Series Vertical Roller Mill provide complementary solutions for different production scales and requirements, offering high efficiency, precise control, and robust operation.
As the construction industry continues to seek sustainable alternatives to conventional materials, the utilization of industrial byproducts like lithium slag will play an increasingly important role. With proper processing through advanced grinding technologies, lithium slag can deliver substantial technical, economic, and environmental benefits, contributing to the development of high-performance, sustainable construction materials for the future.
