Limestone Processing Plant: From Crushing to Grinding Production Line

Introduction to Limestone Processing

Limestone, a fundamental raw material in numerous industries including construction, agriculture, and chemical manufacturing, requires sophisticated processing to transform quarried stone into valuable powdered products. A modern limestone processing plant integrates multiple stages of size reduction and classification to achieve desired product specifications efficiently and economically. This comprehensive article explores the complete production line from primary crushing to fine grinding, highlighting critical equipment selection and technological advancements that optimize performance and profitability.

Primary Crushing: The First Reduction Stage

The journey of limestone processing begins with primary crushing, where large quarried stones, typically ranging from 500mm to 1500mm in size, are reduced to manageable dimensions. Jaw crushers and gyratory crushers serve as the workhorses in this initial stage, employing compressive force to break down the material to approximately 150-250mm. The selection of primary crushers depends on factors including feed size, required capacity, and moisture content of the raw limestone.

Modern primary crushing stations incorporate advanced features such as hydraulic adjustment systems for quick setting changes, automated lubrication for reduced maintenance downtime, and robust construction to withstand the abrasive nature of limestone. Proper primary crushing establishes the foundation for efficient downstream processing by ensuring consistent feed size to secondary crushing equipment.

Secondary and Tertiary Crushing: Refining Particle Size

Following primary crushing, limestone undergoes further size reduction through secondary and tertiary crushing circuits. Cone crushers and impact crushers are commonly employed in these stages to produce material ranging from 20mm to 50mm, suitable for feed to grinding mills. Secondary crushers operate at higher reduction ratios than primary units, focusing on producing cubical product shapes with minimal flaky particles.

Tertiary crushing, when required, further refines the material to specific size distributions optimal for subsequent grinding operations. Modern crushing circuits often incorporate closed-circuit configurations with vibrating screens to ensure oversize material is recirculated for additional crushing. This approach maximizes production efficiency while maintaining tight control over product sizing.

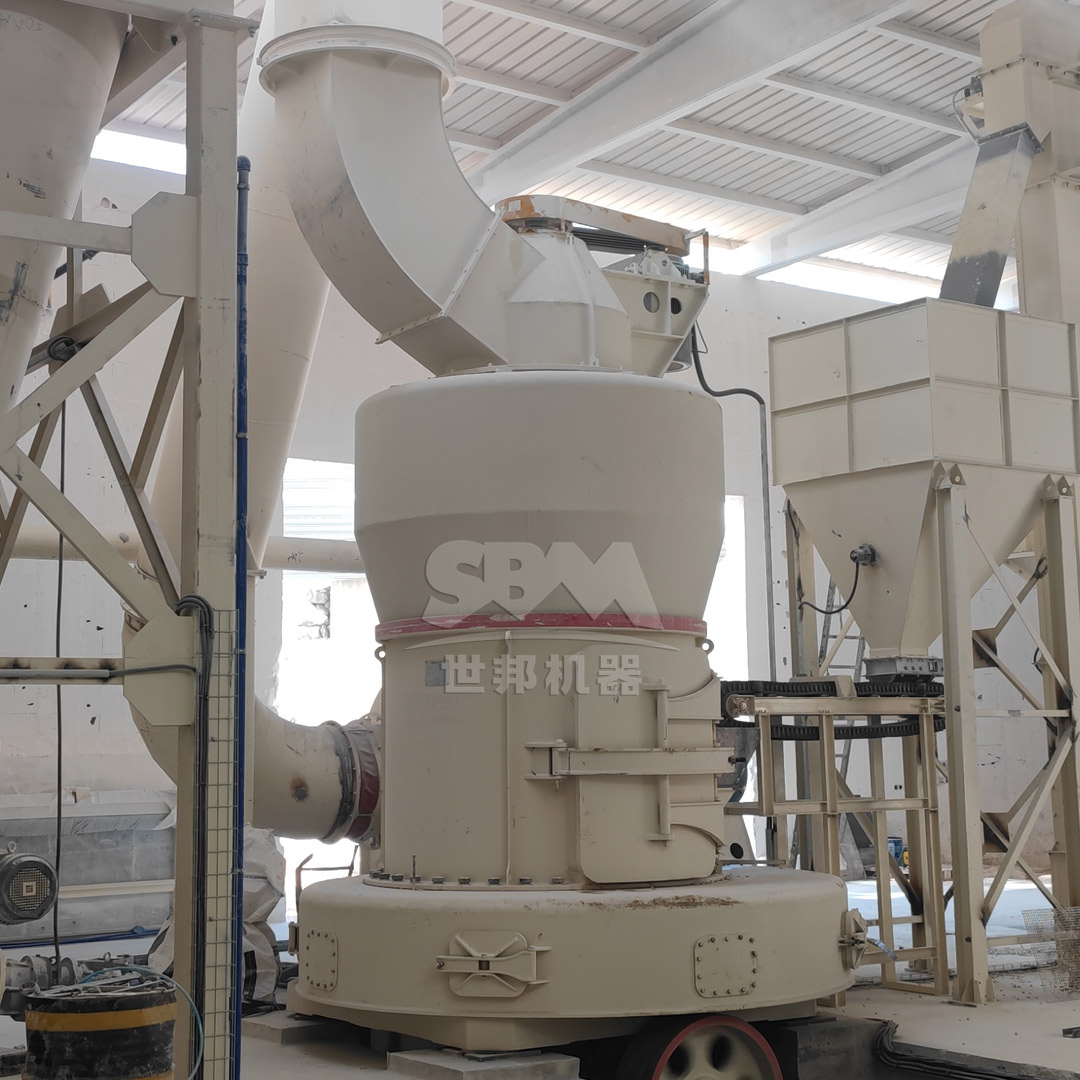

Grinding Technology: Transforming Crushed Stone to Powder

The grinding stage represents the heart of limestone processing, where crushed material is transformed into fine and ultra-fine powders meeting specific particle size distribution requirements. Various grinding technologies are available, each offering distinct advantages depending on production capacity, energy efficiency targets, and final product specifications.

Ball Mills: Traditional Workhorses

Ball mills have long served as reliable grinding equipment in limestone processing, utilizing steel balls as grinding media to reduce particle size through impact and attrition. These robust machines handle feed sizes up to 25mm and produce powders ranging from 0.074mm to 0.8mm (200-20 mesh). Modern ball mills feature advanced control systems, high-efficiency separators, and improved liner designs that enhance grinding efficiency and reduce energy consumption.

While ball mills offer proven reliability and simple operation, their relatively high energy consumption and limited ability to produce ultra-fine powders has led many operations to consider more efficient grinding technologies for specific applications.

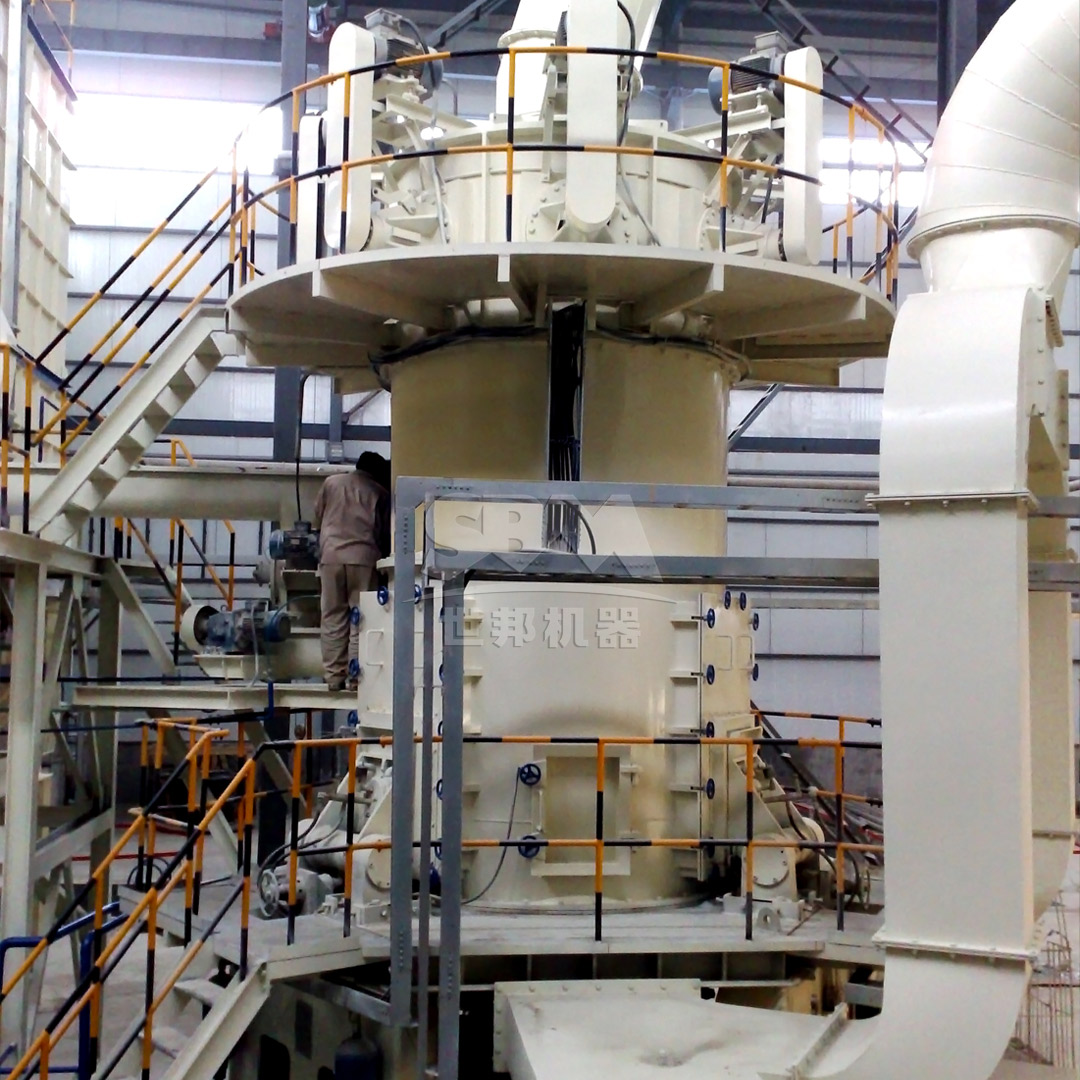

Vertical Roller Mills: Efficiency and Versatility

Vertical roller mills (VRMs) have revolutionized limestone grinding with their superior energy efficiency and ability to dry, grind, and classify within a single unit. Our LM Series Vertical Roller Mill represents the pinnacle of this technology, handling feed sizes up to 50mm and producing powders from 30-325 mesh (600-45μm), with special configurations achieving fineness up to 600 mesh.

The LM Series incorporates several technological advantages including集约化设计 that integrates crushing, grinding, and separation functions while reducing footprint by 50%. Its low operating costs stem from non-contact grinding roller and table design that extends wear part life up to three times, coupled with energy savings of 30-40% compared to ball mill systems. Intelligent control systems enable expert-level automation with remote/local switching capabilities, while full sealed negative pressure operation ensures dust emissions remain below 20mg/m³.

With capacity ranging from 3-250 tons per hour across various models, the LM Series Vertical Roller Mill adapts to operations of all scales while maintaining consistent product quality and operational reliability.

Ultra-Fine Grinding Solutions

For applications requiring exceptionally fine limestone powders, specialized grinding equipment delivers products with particle sizes down to 5μm. Our SCM Ultrafine Mill stands as an industry leader in this segment, processing feed material up to 20mm and producing powders from 325-2500 mesh (D97≤5μm) with capacity ranging from 0.5-25 tons per hour depending on model selection.

The SCM Ultrafine Mill achieves remarkable efficiency through its innovative design, delivering twice the capacity of jet mills while reducing energy consumption by 30%. Its high-precision classification system employs a vertical turbine classifier that ensures accurate particle size cuts without coarse powder contamination. Durability features include special material rollers and grinding rings that extend service life several times, coupled with bearingless screw grinding chambers that ensure stable operation.

Environmental performance exceeds international standards with pulse dust collection efficiency and soundproof chamber design maintaining noise levels below 75dB. The SCM Series includes five models from SCM800 to SCM1680, with power requirements ranging from 75kW to 315kW to match specific production requirements.

Classification and Separation: Precision in Particle Size Control

Following the grinding process, efficient classification ensures precise control over product particle size distribution. Air classifiers integrated within grinding mills or operating as standalone units separate fine particles from coarse material using centrifugal forces and air currents. Modern classifier designs feature adjustable rotor speeds and innovative vane configurations that enable tight cuts at various micron ranges.

High-efficiency classifiers significantly impact overall system performance by reducing overgrinding of finished product, thereby optimizing energy consumption and increasing production capacity. The integration of real-time particle size monitoring systems allows for automatic adjustment of classifier parameters to maintain consistent product quality despite variations in feed material characteristics.

Dust Collection and Environmental Considerations

Comprehensive dust collection systems are essential throughout limestone processing plants to protect equipment, ensure operator safety, and meet environmental regulations. Baghouse filters with pulse-jet cleaning mechanisms provide efficient capture of fine limestone dust, with collection efficiencies exceeding 99.9%. Proper system design considers dust loading, particle size distribution, and moisture content to select appropriate filter media and cleaning cycles.

Modern plants incorporate fully enclosed conveying systems, transfer point dust extraction, and centralized collection to minimize fugitive emissions. Advanced control systems monitor pressure differentials across filter elements, initiating cleaning cycles only when necessary to optimize compressed air consumption and filter life.

Process Control and Automation

Modern limestone processing plants employ sophisticated process control systems that integrate crushing, grinding, classification, and material handling operations. Programmable logic controllers (PLCs) coupled with human-machine interface (HMI) stations enable centralized monitoring and control of all process parameters. Advanced control strategies including model predictive control (MPC) optimize mill operation by automatically adjusting feed rates, classifier speeds, and grinding pressure based on real-time product quality measurements.

These automation systems not only ensure consistent product quality but also maximize energy efficiency by operating equipment at optimal setpoints. Remote connectivity enables technical support and troubleshooting without requiring physical presence at the plant, reducing downtime and maintenance costs.

Selecting the Optimal Grinding Solution

Choosing the appropriate grinding technology for a specific limestone processing application requires careful consideration of multiple factors:

• Production Capacity: Required throughput ranging from small-scale specialty production to high-volume industrial operations
• Product Fineness: Target particle size distribution and top-size control requirements
• Moisture Content: Need for simultaneous drying during grinding
• Energy Efficiency: Power consumption per ton of finished product
• Capital and Operating Costs: Total cost of ownership including maintenance and wear part replacement
• Space Constraints: Physical footprint limitations within existing facilities

For operations prioritizing energy efficiency, space optimization, and product flexibility, our LM Series Vertical Roller Mill delivers exceptional performance across a wide range of limestone grinding applications. Where ultra-fine products with precise particle size control are required, the SCM Ultrafine Mill provides unmatched capabilities in the sub-10μm range.

Conclusion

A well-designed limestone processing plant seamlessly integrates crushing, grinding, classification, and material handling systems to efficiently transform raw stone into high-value powdered products. Technological advancements in grinding equipment, particularly vertical roller mills and ultra-fine grinding systems, have dramatically improved energy efficiency, product quality, and environmental performance. By selecting appropriate technologies matched to specific production requirements and implementing comprehensive process control strategies, operators can optimize their limestone processing operations for maximum profitability and sustainability.

The evolution of limestone processing continues with ongoing developments in equipment design, control systems, and energy management, ensuring this essential industry meets the growing demands for high-quality limestone products across diverse applications while minimizing environmental impact.
