Latest Technological Advancements in Fly Ash Grinding Mill Equipment

Introduction

The fly ash grinding industry has witnessed significant technological advancements in recent years, driven by the need for higher efficiency, lower energy consumption, and stricter environmental standards. As a leading Chinese mining machinery manufacturer with over 30 years of experience, ZENITH has been at the forefront of these innovations, developing cutting-edge grinding solutions for fly ash processing.

Current Challenges in Fly Ash Processing

Fly ash, a byproduct of coal combustion, presents unique challenges in grinding due to its variable composition and abrasive nature. Traditional grinding methods often struggle with:

• High energy consumption per ton of processed material
• Inconsistent particle size distribution
• Excessive wear on grinding components
• Environmental concerns regarding dust emissions

Breakthrough Technologies in Fly Ash Grinding

1. Advanced Classification Systems

Modern grinding mills now incorporate precision air classifiers that can achieve particle size distributions as fine as 5μm (D97) with remarkable consistency. Our XZM Ultrafine Mill features a vertical turbine classifier that ensures no coarse particles contaminate the final product.

2. Energy-Efficient Grinding Mechanisms

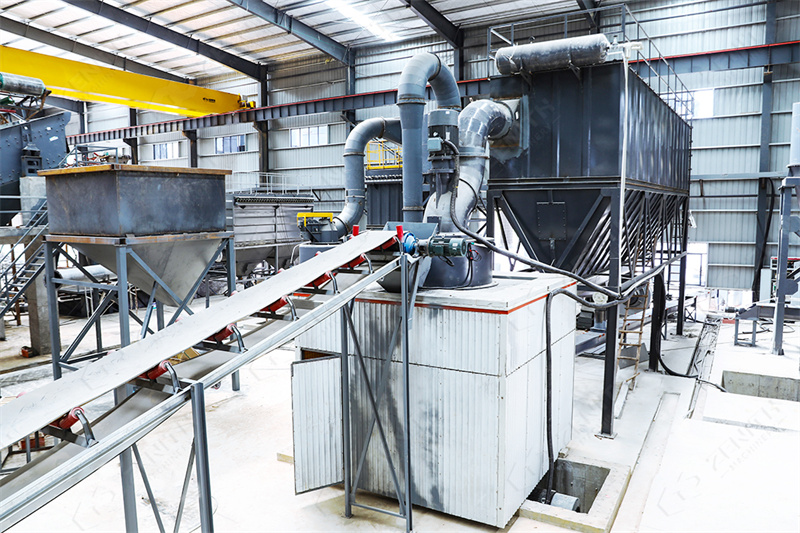

The latest generation of grinding mills utilizes optimized roller and ring designs that reduce specific energy consumption by up to 30% compared to conventional systems. ZENITH’s proprietary grinding chamber design in our MTW Series Trapezium Mill achieves this through:

• Curved air duct design minimizing pressure loss
• Integrated cone gear transmission with 98% efficiency
• Wear-resistant components requiring less frequent replacement

3. Intelligent Control Systems

Modern mills now feature PLC-based automation that continuously monitors and adjusts:

• Grinding pressure
• Feed rate
• Classifier speed
• System temperature

This ensures optimal performance under varying material conditions while reducing operator intervention.

ZENITH’s Innovative Solutions

With our team of State Council-subsidized engineers and participation in national standard formulation, we’ve developed several industry-leading solutions:

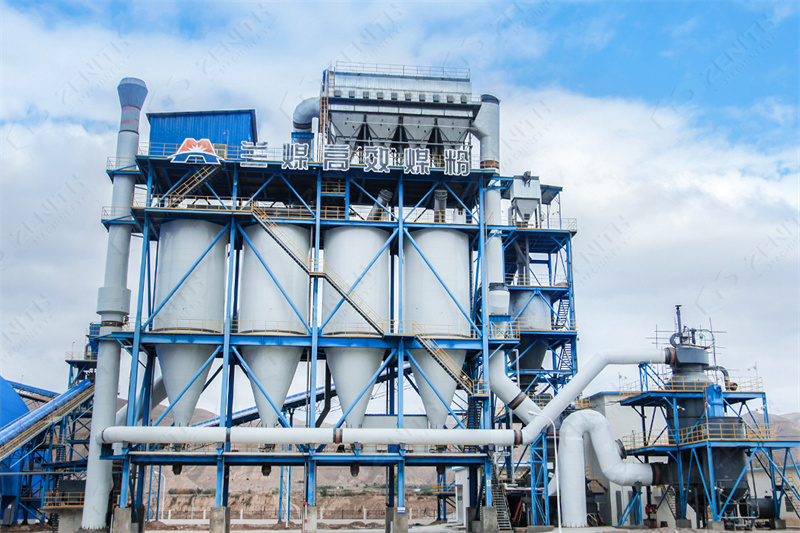

XZM Ultrafine Mill (45-5μm)

Our flagship product for fine fly ash grinding offers:

• Output fineness: 325-2500 mesh (D97≤5μm)
• Capacity: 0.5-25 ton/h depending on model
• 30% lower energy consumption than jet mills
• Noise levels below 75dB with soundproof housing

The XZM series is particularly suitable for producing high-value fly ash products for concrete admixtures and cement replacement applications.

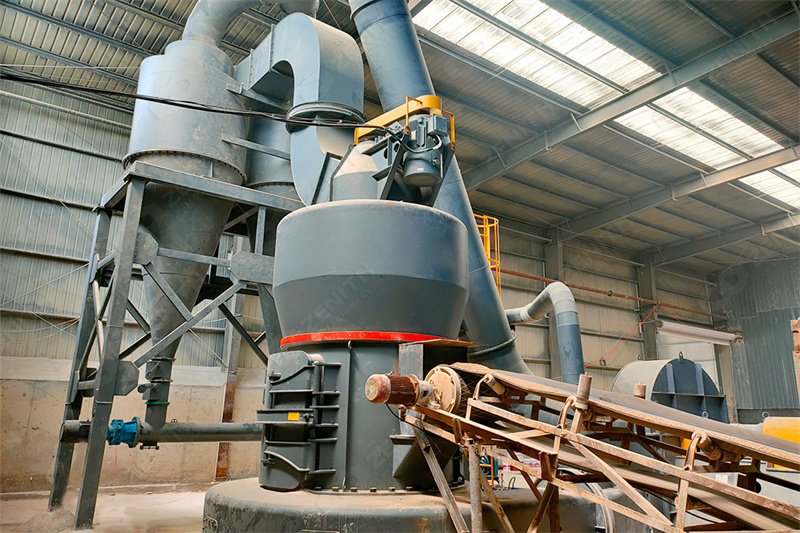

MTW Series Trapezium Mill (600-45μm)

For larger capacity requirements, our MTW series offers:

• Input size up to 50mm
• Output fineness: 30-325 mesh
• Capacity: 3-45 ton/h
• Patented wear-resistant shovel design

This mill is ideal for processing raw fly ash directly from hoppers without pre-crushing in many cases.

Environmental Considerations

Modern fly ash grinding equipment must meet stringent environmental standards. ZENITH mills incorporate:

• Pulse jet dust collectors with 99.9% efficiency
• Fully enclosed negative pressure systems
• Dust emissions below 20mg/m³
• Heat recovery options for drying applications

Future Trends

The industry is moving toward:

• Fully automated smart mills with remote monitoring
• Integration with Industry 4.0 systems
• Further reductions in specific energy consumption
• Modular designs for easier maintenance

Conclusion

The latest generation of fly ash grinding equipment represents a quantum leap in efficiency, precision, and environmental performance. ZENITH’s innovative solutions, backed by our global service network spanning 170 countries, provide reliable, high-performance options for fly ash processors worldwide. Our XZM and MTW series mills in particular demonstrate how advanced engineering can transform industrial byproducts into valuable resources while minimizing environmental impact.
