Key Features of Petroleum Coke Crushing and Grinding Processes

Introduction to Petroleum Coke Processing

Petroleum coke (petcoke) is a carbonaceous solid derived from oil refinery coker units or other cracking processes. As a valuable industrial fuel and raw material for various applications, petcoke requires specialized crushing and grinding equipment to achieve the desired particle size distribution for optimal utilization. The processing of petroleum coke presents unique challenges due to its abrasive nature, variable hardness, and specific combustion requirements.

Effective petcoke size reduction involves multiple stages, from primary crushing to fine grinding, each requiring carefully selected equipment to maximize efficiency, minimize energy consumption, and ensure consistent product quality. This article explores the key features and technological considerations in petroleum coke crushing and grinding processes, with particular emphasis on equipment selection criteria and operational best practices.

Primary Crushing of Petroleum Coke

The initial size reduction stage for petroleum coke typically involves primary crushing equipment capable of handling large feed materials with high compressive strength. Jaw crushers and gyratory crushers are commonly employed for this purpose, reducing raw petcoke from large lumps (often up to 1-2 meters in size) to manageable fragments of 100-200 mm.

Key considerations in primary crushing include:

• Feed Size and Capacity Requirements: Proper crusher selection depends on the maximum feed size and required throughput capacity.
• Material Characteristics: The hardness, moisture content, and abrasiveness of the petcoke influence crusher type selection and wear part specifications.
• Downstream Process Compatibility: The output from primary crushing must be suitable for subsequent processing stages.

Modern primary crushers for petcoke applications feature advanced hydraulic adjustment systems, improved chamber designs for better nip angles, and wear protection systems to extend component life when processing abrasive materials.

Secondary Crushing and Pre-Grinding

Following primary crushing, petroleum coke undergoes secondary crushing to further reduce particle size before fine grinding. This stage typically produces material in the 10-50 mm range, optimizing the feed for grinding mills. Cone crushers and impact crushers are commonly used for secondary petcoke crushing.

For applications requiring intermediate fineness or when preparing feed for vertical mills, pre-grinding systems offer significant advantages. Our LM-Y Series Vertical Pre-grinding Roller Mill represents an innovative solution for this application stage. This equipment integrates crushing and grinding functions in a single unit, reducing overall system footprint by up to 50% while lowering energy consumption by 30-50% compared to traditional approaches.

The LM-Y series features a unique hydraulic adjustment system that enables quick replacement of wear parts, minimizing downtime during maintenance. With capacity ranging from 6 to 330 TPH depending on model specifications, these pre-grinding mills can handle feed sizes up to 20mm, producing material with controlled particle size distribution ideal for subsequent processing or direct application in certain industries.

Fine Grinding Technologies for Petroleum Coke

Fine grinding represents the most energy-intensive stage in petcoke processing, with equipment selection critically impacting product quality, operational costs, and system reliability. The target fineness for petroleum coke varies significantly based on end-use applications, ranging from coarse grinding for fuel applications (80-90% passing 200 mesh) to ultra-fine grinding for specialized industrial uses (D90 < 10μm).

Several grinding technologies are employed for petroleum coke processing:

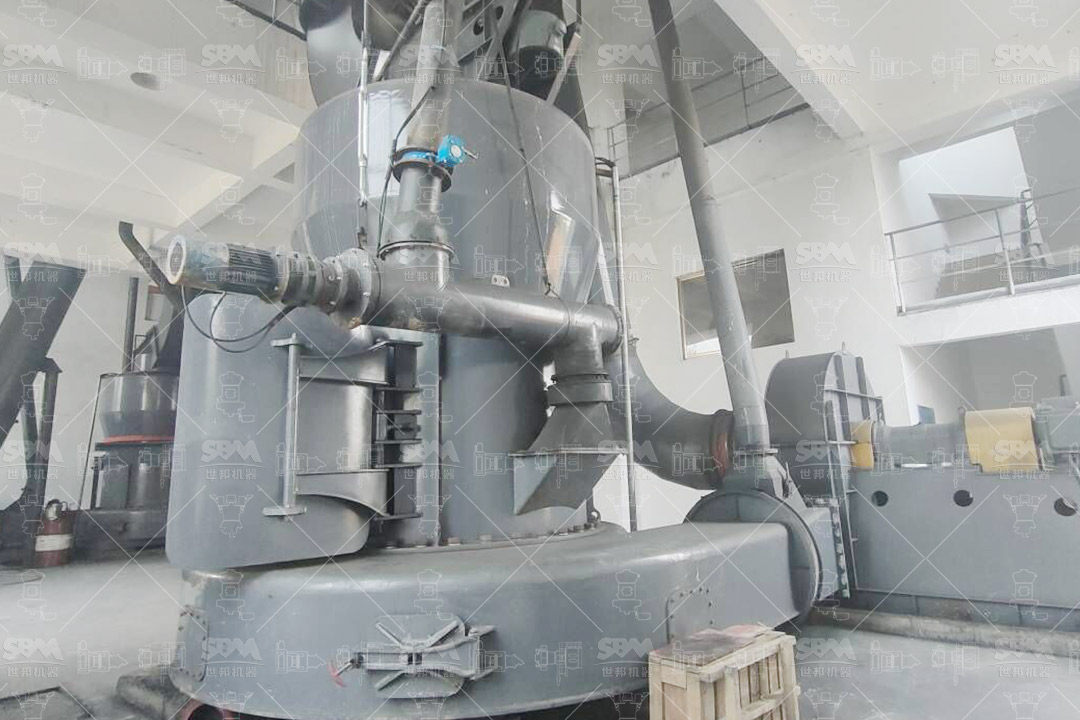

Vertical Roller Mills (VRM)

Vertical roller mills have gained prominence in petcoke grinding due to their energy efficiency, drying capability, and ability to handle materials with varying grindability. The fundamental operating principle involves bed comminution between grinding rollers and a rotating table, with integrated classification separating fine product from coarse material that returns for further grinding.

Key advantages of VRM systems for petcoke include:

• Simultaneous grinding and drying capability, handling moisture contents up to 15-20%
• Lower specific energy consumption compared to ball mills (typically 30-40% less)
• Compact design with smaller footprint than alternative systems
• Quick response to changes in operating parameters and product requirements

Ball Mills and Tube Mills

Despite higher energy consumption compared to vertical mills, ball mills remain widely used for petcoke grinding, particularly in applications requiring very fine products or when processing high-moisture materials with limited pre-drying capability. The tumbling action of grinding media (steel balls) provides reliable operation with relatively low sensitivity to feed variations.

Modern ball mills for petcoke applications feature:

• High-efficiency separators for improved classification and reduced overgrinding
• Advanced liner designs to optimize grinding media trajectory and wear life
• Drive systems with variable speed control for process optimization
• Instrumentation for monitoring mill filling level and optimizing performance

Ultra-Fine Grinding of Petroleum Coke

Specialized applications, including advanced carbon products, lithium-ion battery anodes, and high-purity graphite materials, require petroleum coke with particle sizes in the micron and sub-micron range. Achieving these fineness levels demands specialized grinding equipment capable of efficient size reduction while minimizing contamination and heat generation.

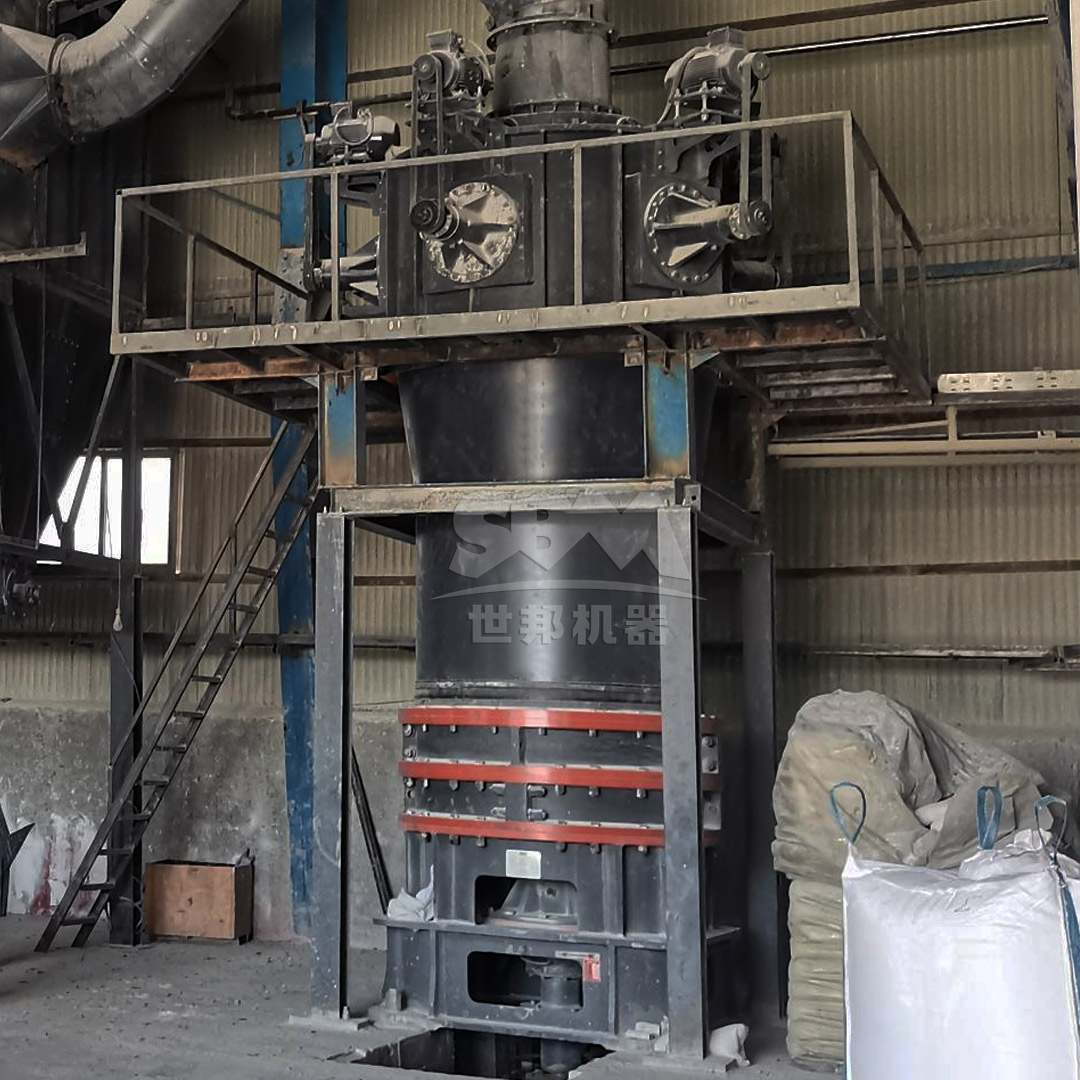

For ultra-fine petroleum coke grinding applications, our SCM Series Ultrafine Mill offers exceptional performance with output fineness ranging from 325 to 2500 mesh (D97 ≤ 5μm). This advanced grinding system delivers twice the production capacity of jet mills while reducing energy consumption by 30%, addressing the high operating costs typically associated with ultra-fine grinding processes.

The SCM Ultrafine Mill incorporates several technological innovations specifically beneficial for petroleum coke processing:

• High-Precision Classification: A vertical turbine classifier provides precise particle size切割, ensuring consistent product quality without coarse particle contamination.
• Enhanced Durability: Specially formulated materials for rollers and grinding rings extend service life several times compared to conventional designs, particularly important when processing abrasive materials like petcoke.
• Advanced Grinding Chamber Design: The bearingless screw grinding chamber ensures stable operation and prevents contamination from lubricants.
• Environmental Compliance: Integrated pulse dust collection exceeds international standards with noise levels below 75dB, addressing key environmental considerations.

With models ranging from the SCM800 (0.5-4.5 TPH capacity) to the SCM1680 (5.0-25 TPH capacity), this equipment series can be matched to specific production requirements while maintaining consistent product quality across the capacity range.

Classification and Particle Size Control

Effective classification represents a critical component in petroleum coke grinding circuits, directly impacting product quality, system efficiency, and energy consumption. Modern classification systems for petcoke applications include:

Dynamic Air Classifiers

Dynamic classifiers utilize rotating blades or cages to generate centrifugal forces that separate particles based on size and mass. These systems offer several advantages for petcoke processing:

• Precise cut-point control through adjustment of rotor speed
• High classification efficiency with minimal coarse particle contamination in fine product
• Compatibility with high-temperature applications when processing dried petcoke
• Adaptability to changes in feed characteristics and product requirements

Static Classifiers

Static classifiers, including cyclones and louver separators, provide robust classification with minimal moving parts and lower maintenance requirements. While generally offering less precise separation compared to dynamic classifiers, they represent a cost-effective solution for applications with less stringent particle size distribution requirements.

Drying Considerations in Petroleum Coke Processing

Petroleum coke often contains significant moisture (typically 6-12% as shipped, sometimes higher), requiring efficient drying before or during grinding to achieve optimal processing conditions. The selection of drying technology depends on multiple factors, including:

• Initial and target moisture content
• Throughput requirements
• Heat source availability and cost
• Environmental regulations regarding emissions

Common drying approaches in petcoke processing include:

Integrated Grinding and Drying

Vertical roller mills and some ball mill systems permit simultaneous grinding and drying by introducing hot gases into the grinding chamber. This integrated approach offers significant advantages in capital cost, footprint, and overall system efficiency.

Standalone Dryers

Rotary dryers and flash dryers provide dedicated drying capacity before grinding, offering operational flexibility and the ability to optimize drying conditions independently from grinding parameters. While requiring additional equipment and space, standalone dryers can be advantageous when processing high-moisture feeds or when specific drying profiles are required.

Energy Efficiency and Operational Optimization

With grinding representing one of the most energy-intensive unit operations in mineral processing, optimizing energy efficiency provides significant economic and environmental benefits. Key strategies for reducing energy consumption in petcoke grinding include:

• Equipment Selection: Choosing appropriately sized and configured grinding systems matched to specific application requirements
• Process Control Optimization: Implementing advanced control strategies to maintain optimal operating conditions
• Circuit Configuration: Selecting the most efficient grinding circuit layout (open vs. closed circuit, pre-grinding stages, etc.)
• Wear Management: Implementing comprehensive wear monitoring and replacement programs to maintain grinding efficiency

Modern grinding systems incorporate sophisticated instrumentation and control systems that continuously monitor key operating parameters, including power draw, material flow rates, particle size distribution, and equipment condition. This data enables real-time optimization and early detection of potential issues before they impact product quality or equipment reliability.

Environmental Considerations and Emission Control

Petroleum coke processing presents several environmental challenges that must be addressed through appropriate equipment selection and system design:

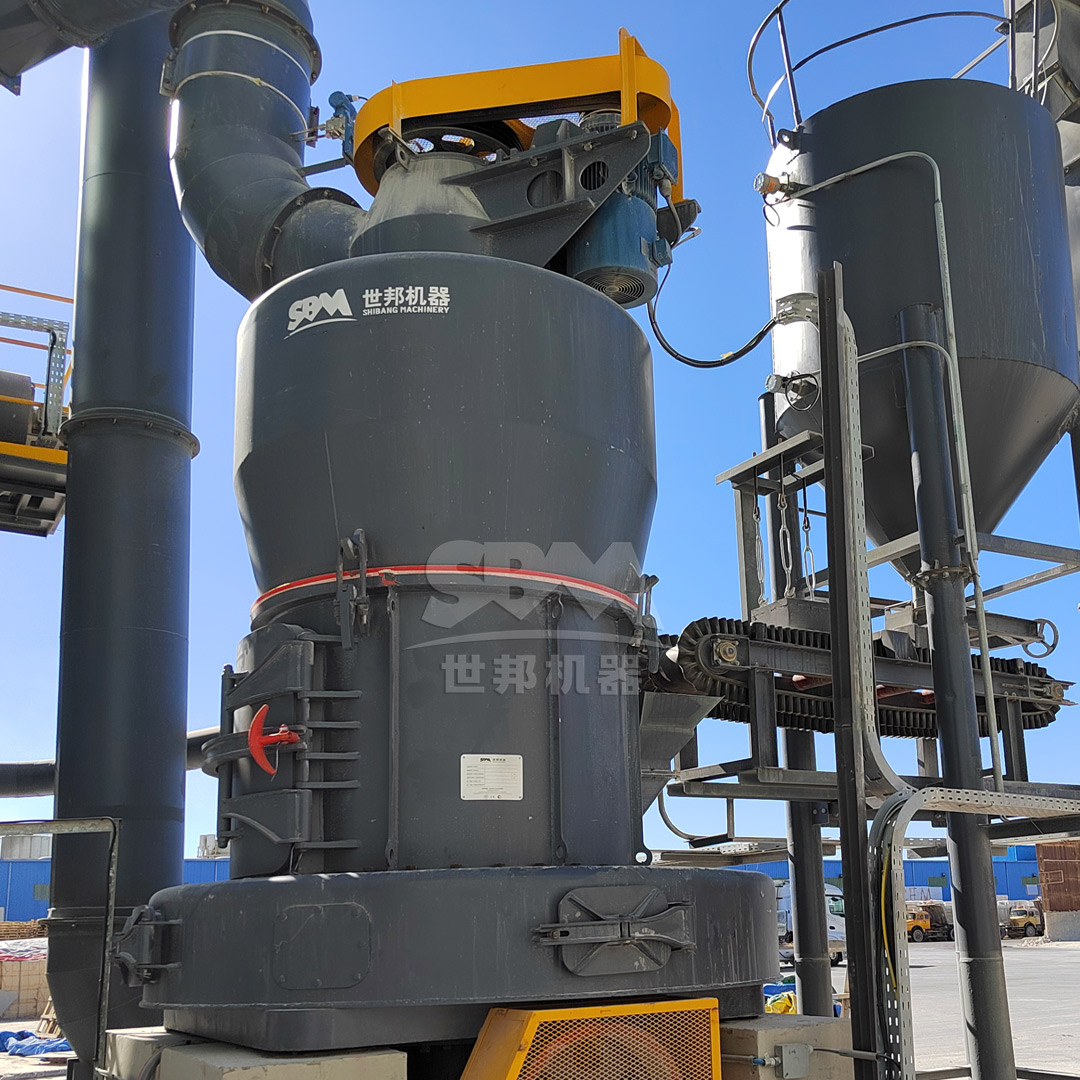

Dust Control

Effective dust control represents a critical consideration throughout petcoke handling and processing operations. Modern dust collection systems typically incorporate baghouse filters with pulse-jet cleaning mechanisms, designed to achieve emission levels below 20 mg/m³. Key design considerations include appropriate air-to-cloth ratios, filter media selection compatible with petcoke characteristics, and explosion protection measures where required.

Noise Control

Grinding operations generate significant noise, requiring appropriate mitigation measures to protect workers and comply with regulatory requirements. Modern grinding equipment incorporates numerous noise reduction features, including acoustic enclosures, vibration isolation systems, and optimized mechanical designs to minimize noise generation at source.

Maintenance and Reliability Considerations

Maximizing equipment availability and reliability represents a key economic factor in petcoke grinding operations. Effective maintenance strategies include:

• Preventive Maintenance Programs: Systematic inspection and component replacement based on operating hours or specific wear indicators
• Condition Monitoring: Implementation of vibration analysis, lubricant analysis, and thermal monitoring to detect developing issues before failure occurs
• Wear Part Management: Strategic stocking of critical wear components to minimize downtime when replacement is required
• Training and Documentation: Comprehensive operator and maintenance training combined with detailed equipment documentation

Modern grinding equipment incorporates design features specifically intended to enhance maintainability, including modular component designs, hydraulic adjustment systems for quick setting changes, and integrated access platforms for safe inspection and maintenance activities.

Future Trends in Petroleum Coke Grinding Technology

The evolution of petroleum coke grinding technology continues to focus on several key areas:

• Digitalization and IoT Integration: Implementation of smart sensors, data analytics, and predictive maintenance algorithms to optimize performance and reliability
• Advanced Materials: Development of improved wear-resistant materials to extend component life in abrasive applications
• Energy Recovery Systems: Integration of waste heat recovery and other energy optimization technologies to reduce overall operating costs
• Hybrid Grinding Systems: Combinations of different grinding technologies to optimize specific energy consumption for particular product requirements

As environmental regulations become increasingly stringent and economic pressures continue to mount, the development of more efficient, reliable, and sustainable grinding technologies will remain a priority for equipment manufacturers and processors alike.

Conclusion

Petroleum coke crushing and grinding processes encompass a range of technologies and approaches, each with specific advantages for different applications and product requirements. The selection of appropriate equipment, from primary crushers to ultra-fine grinding systems, requires careful consideration of multiple factors, including feed characteristics, capacity requirements, product specifications, and economic considerations.

Modern grinding systems, such as our SCM Series Ultrafine Mill and LM-Y Series Vertical Pre-grinding Roller Mill, incorporate advanced technologies that deliver improved efficiency, enhanced product quality, and reduced environmental impact compared to traditional approaches. As petcoke applications continue to evolve and expand, ongoing innovation in crushing and grinding technology will play a crucial role in enabling processors to meet changing market demands while optimizing operational economics.

By understanding the key features and considerations outlined in this article, processors can make informed decisions regarding equipment selection and process design, ensuring optimal performance across the entire petroleum coke size reduction circuit.
