Key Equipment for Grinding Heavy Calcium Carbonate: An In-depth Guide

Introduction

Heavy Calcium Carbonate (HCC), a crucial industrial mineral derived from natural calcite, limestone, or marble, requires precise and efficient grinding to achieve its target fineness for various applications. The selection of appropriate grinding equipment is paramount, as it directly impacts product quality, operational costs, and overall production efficiency. This guide delves into the key types of grinding machinery suitable for processing HCC, highlighting their working principles, advantages, and ideal use cases to help you make an informed decision for your operation.

Understanding Grinding Requirements for Heavy Calcium Carbonate

The primary goal in grinding HCC is to reduce the particle size to a specific fineness, typically measured in mesh size or micrometers (μm). Different industries demand different specifications:

• Plastics & Polymers: Often require 600-2500 mesh (D97 ≤ 20-5μm) for improved dispersion and mechanical properties.
• Paints & Coatings: Require ultra-fine products (800-2500 mesh) for high gloss and suspension stability.
• Paper: Utilizes both coarse (400-800 mesh) and fine grades as fillers.
• Adhesives & Sealants: Need controlled top-cut and specific surface area.

The grinding process must be energy-efficient, produce a narrow particle size distribution, and maintain the chemical purity of the calcium carbonate.

Key Selection Criteria

• Desired Output Fineness: The equipment must be capable of achieving your target particle size.
• Required Production Capacity: The machine’s throughput must match your plant’s hourly or annual production goals.
• Energy Consumption: A major operational cost driver; high-efficiency mills can offer significant savings.
• System Integration & Footprint: Consider the space required and how the mill integrates with crushers, classifiers, and dust collectors.
• Operating & Maintenance Costs: Evaluate the longevity of wear parts and the complexity of routine maintenance.

Types of Grinding Equipment for Heavy Calcium Carbonate

1. Ultrafine Grinding Mills

For applications demanding the finest powders (2500 mesh / 5μm and beyond), ultrafine mills are the industry standard. These mills combine mechanical grinding with integrated air classification to produce powders with a very tight particle size distribution.

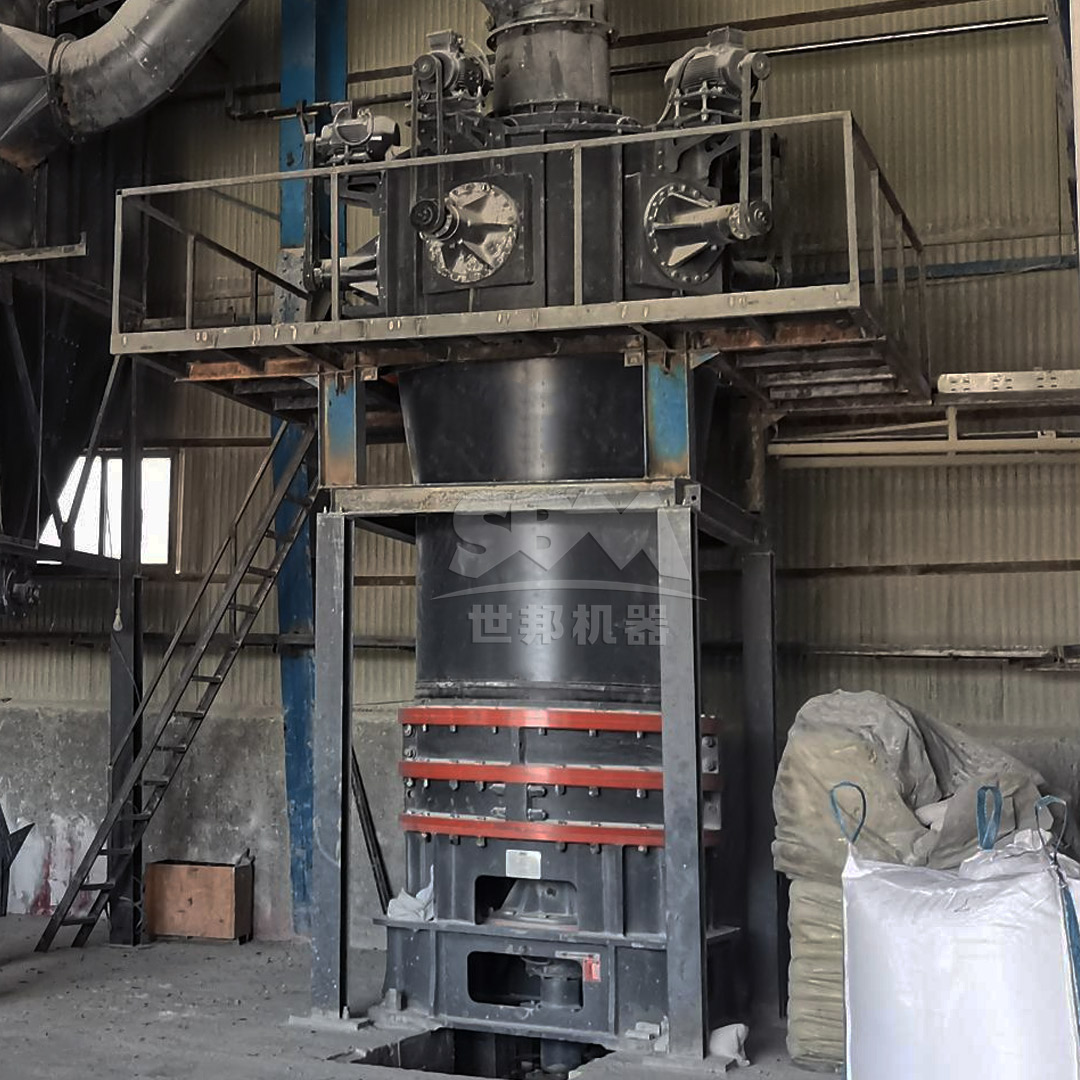

A premier example in this category is our SCM Series Ultrafine Mill. Engineered for high efficiency and precision, it is an ideal solution for producing top-quality HCC powder.

Why Choose the SCM Ultrafine Mill?

• Superior Fineness: Achieves output between 325-2500 mesh (D97 ≤ 5μm), meeting the most stringent requirements for high-end applications.
• High Efficiency & Energy Savings: Its innovative design offers twice the capacity of traditional jet mills while reducing energy consumption by up to 30%. An intelligent control system automatically adjusts parameters to maintain consistent product fineness.
• Precise Classification: Equipped with a vertical turbine classifier, it ensures accurate particle size切割 (cutting) with no coarse powder contamination, guaranteeing a uniform product.
• Durability & Stability: Key wear parts like rollers and grinding rings are made from special abrasion-resistant materials, extending service life multiple times. Its bearingless screw grinding chamber ensures stable, vibration-free operation.
• Environmental Compliance: Features a high-efficiency pulse dust collector that exceeds international standards and a soundproof room design, keeping operational noise below 75dB.

Model Recommendation: For a medium to large-scale production line targeting high-value HCC products, the SCM1250 model is an excellent choice. With a handling capacity of 2.5-14 tons per hour and a main motor power of 185kW, it balances high output with exceptional product quality.

2. European-Type Trapezium Grinding Mills

For producing fine to medium-fine HCC powders (30-325 mesh), European-Type Trapezium Mills offer a robust and reliable solution. They are known for their large capacity, durability, and lower capital investment compared to ultrafine systems.

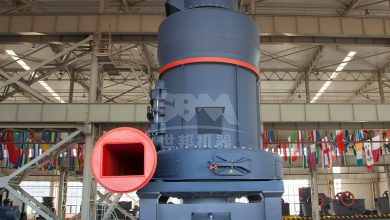

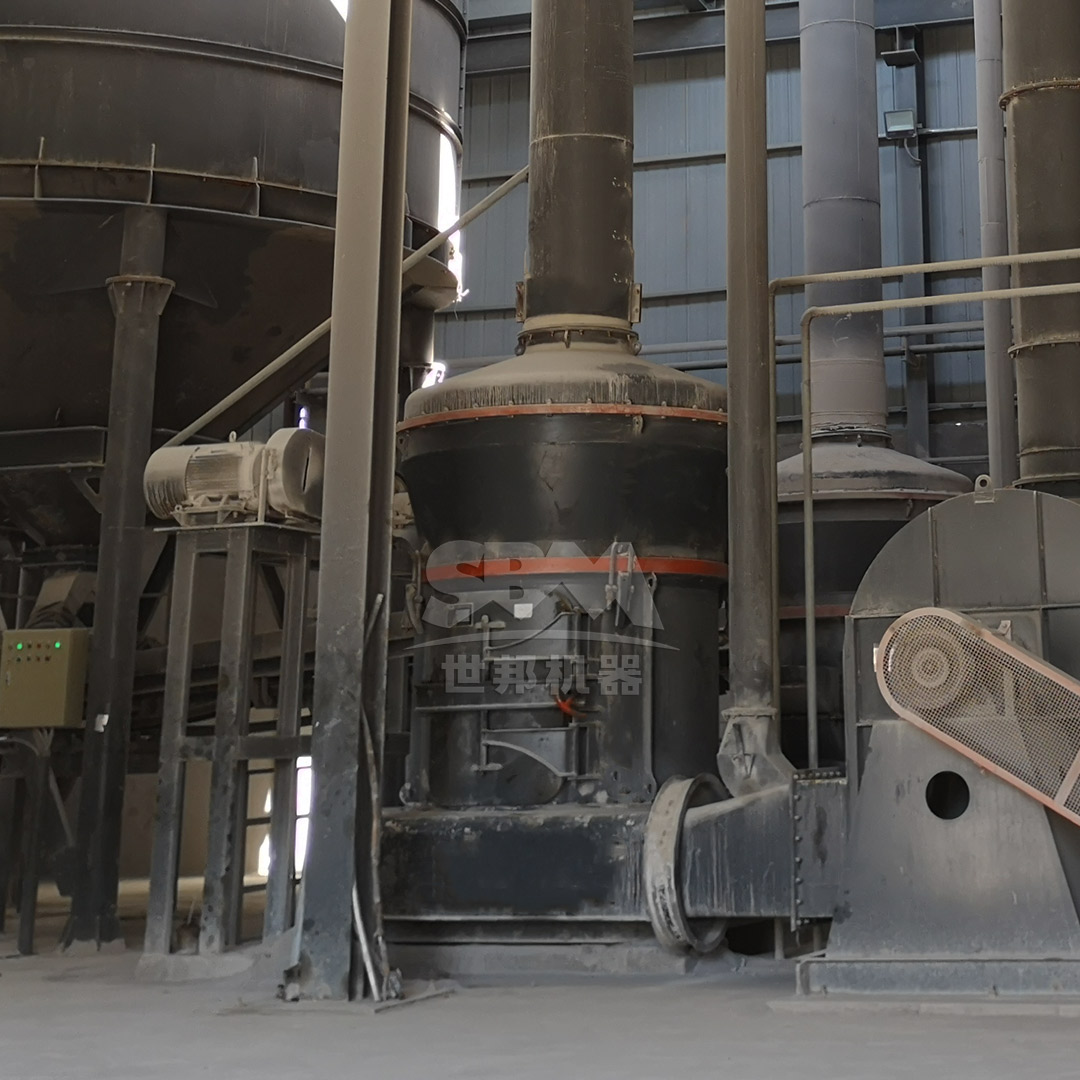

Our MTW Series Trapezium Mill incorporates advanced European technology and is perfectly suited for high-volume production of quality calcium carbonate.

Advantages of the MTW Series Mill:

• Advanced Grinding Mechanism: The patented curved air duct reduces flow resistance and improves transmission efficiency, leading to higher output.
• Durable Wear Parts: Its modular shovel design and wear-resistant grinding roller and ring assembly significantly lower maintenance costs and extend intervals between part changes.
• High Transmission Efficiency: The use of an integral conical gear transmission system achieves a remarkable 98% transmission ratio, saving space and energy.
• Intelligent Operation: The mill can be equipped with PLC control systems for automated, stable operation with minimal human intervention.

3. Vertical Roller Mills (VRM)

Vertical Roller Mills are highly efficient, integrated systems that perform grinding, drying, classification, and conveyance in a single unit. They are excellent for large-scale projects where footprint and energy efficiency are critical.

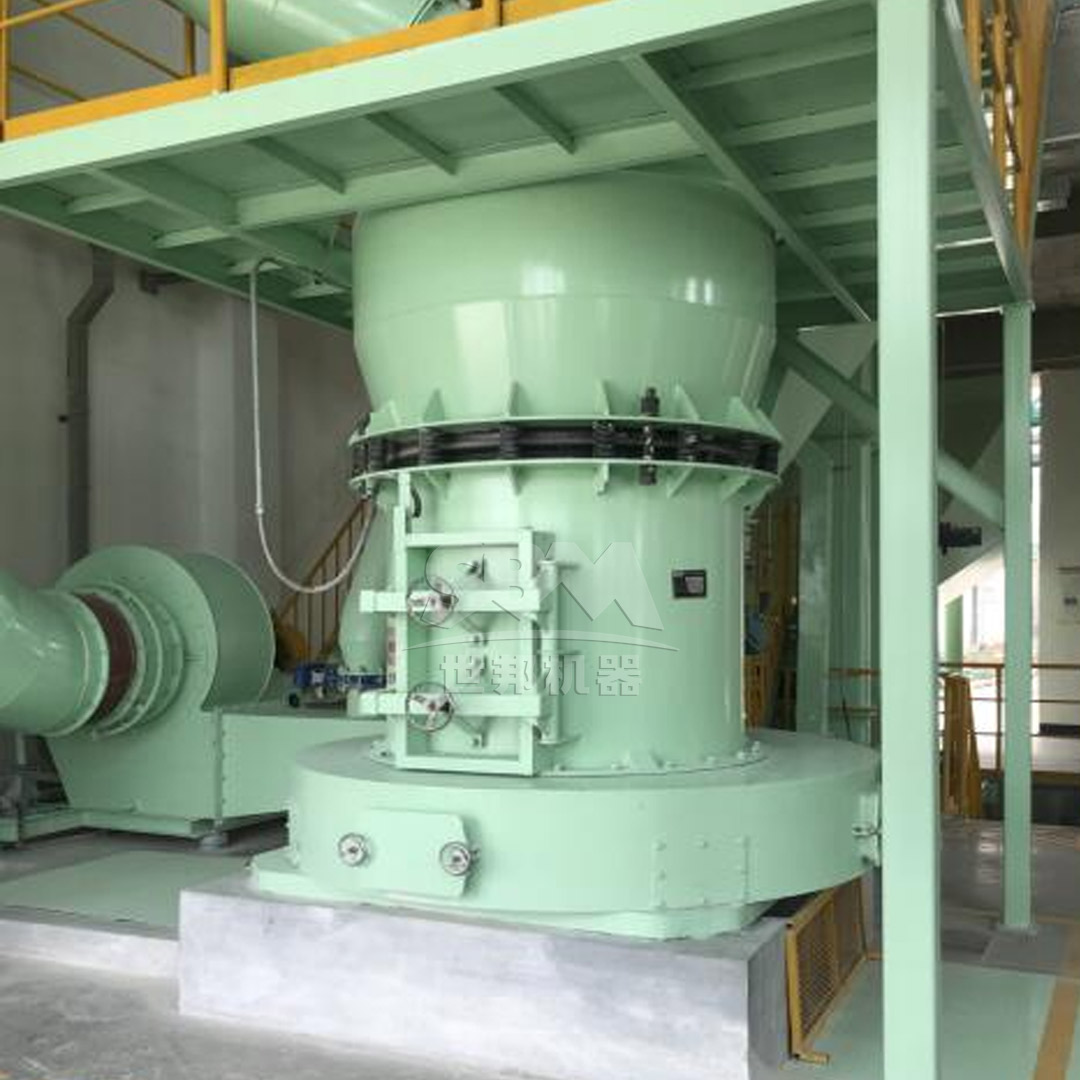

Our LM Series Vertical Roller Mill is a standout choice for large-capacity production of HCC, offering significant advantages in energy savings and space utilization.

Key Benefits of the LM Vertical Mill:

• Exceptional Energy Efficiency: VRMs can reduce specific energy consumption by 30-40% compared to traditional ball mill systems.
• Compact Design: By integrating multiple functions, the system footprint is reduced by up to 50%, and it can even be installed outdoors, slashing civil engineering costs.
• Low Operating Costs: Features like non-contact grinding roller design and easily replaceable modular rollers triple the life of wear parts.
• Environmental Performance: Operates under full negative pressure, ensuring dust emissions remain below 20mg/m³.

4. Ball Mills

A traditional and well-proven technology, ball mills are versatile workhorses capable of both dry and wet grinding. They are suitable for a wide range of fineness (0.074-0.8mm) and are known for their reliability and high crushing ratio. However, they are generally less energy-efficient than vertical roller mills or ultrafine mills for achieving very fine powders.

Conclusion: Selecting the Right Partner

Choosing the correct grinding equipment is a strategic decision that impacts your product quality, profitability, and market competitiveness. For producers of Heavy Calcium Carbonate, investing in modern, efficient technology is no longer an option but a necessity.

Our range of grinding solutions, from the high-precision SCM Ultrafine Mill to the high-capacity MTW Trapezium Mill and the integrated LM Vertical Roller Mill, is designed to meet every production need. We encourage you to consult with our technical experts to analyze your specific requirements and identify the optimal equipment to empower your business and elevate your HCC products to the highest standard.
