Is Anthracite Coal Easy to Grind in a Grinding Mill?

Introduction

Anthracite coal, known for its high carbon content, low volatile matter, and high energy density, presents unique challenges in grinding operations. As the hardest and most metamorphosed form of coal, its grinding characteristics differ significantly from bituminous coal and lignite. This comprehensive analysis explores the grindability of anthracite coal and recommends optimal milling solutions for various production requirements.

The Nature of Anthracite Coal

Anthracite coal possesses a distinctive molecular structure that directly impacts its grinding behavior. With carbon content typically exceeding 86% and volatile matter below 14%, anthracite exhibits exceptional hardness (Mohs hardness 2.5-3.0) and low moisture content. These properties contribute to its high energy value but simultaneously create grinding difficulties.

The dense, compact structure of anthracite results from extensive metamorphism under high pressure and temperature conditions. This geological history creates strong molecular bonds that resist fracture during grinding operations. Additionally, anthracite’s low volatile content means it generates less gas during combustion but requires more energy to achieve desired fineness in milling processes.

Grindability Assessment: Hardgrove Grindability Index (HGI)

The grindability of anthracite coal is quantitatively measured using the Hardgrove Grindability Index (HGI). While bituminous coal typically ranges between 45-80 HGI, anthracite generally falls in the 30-50 HGI range, indicating poorer grindability. This lower HGI value translates to higher energy consumption and reduced throughput in conventional grinding systems.

Several factors influence anthracite’s HGI:

• Carbon content: Higher carbon percentages correlate with increased hardness
• Mineral composition: Inorganic inclusions affect fracture patterns
• Structural anisotropy: Directional properties influence breakage mechanics
• Moisture content: Lower moisture reduces plasticity during grinding

Challenges in Anthracite Coal Grinding

High Energy Consumption

The dense structure of anthracite requires substantial energy input to achieve particle size reduction. Conventional ball mills may consume 30-50% more power processing anthracite compared to bituminous coals of similar feed size. This energy penalty directly impacts operational costs and carbon footprint.

Wear and Maintenance Issues

Anthracite’s abrasive nature accelerates wear on grinding components. Mill liners, grinding media, and classifier blades experience reduced service life, increasing maintenance frequency and replacement costs. The high silica content often found in anthracite further exacerbates wear problems.

Thermal Management

Despite anthracite’s low volatile content, the significant mechanical energy input during grinding generates substantial heat. Without proper temperature control, this can lead to:

• Thermal degradation of coal quality
• Increased fire risk
• Reduced classifier efficiency
• Potential ignition hazards

Optimal Grinding Solutions for Anthracite Coal

Vertical Roller Mills: The Preferred Choice

For anthracite grinding applications, vertical roller mills offer significant advantages over traditional ball mills. The bed compression grinding principle employed in vertical mills is particularly effective for hard, abrasive materials like anthracite.

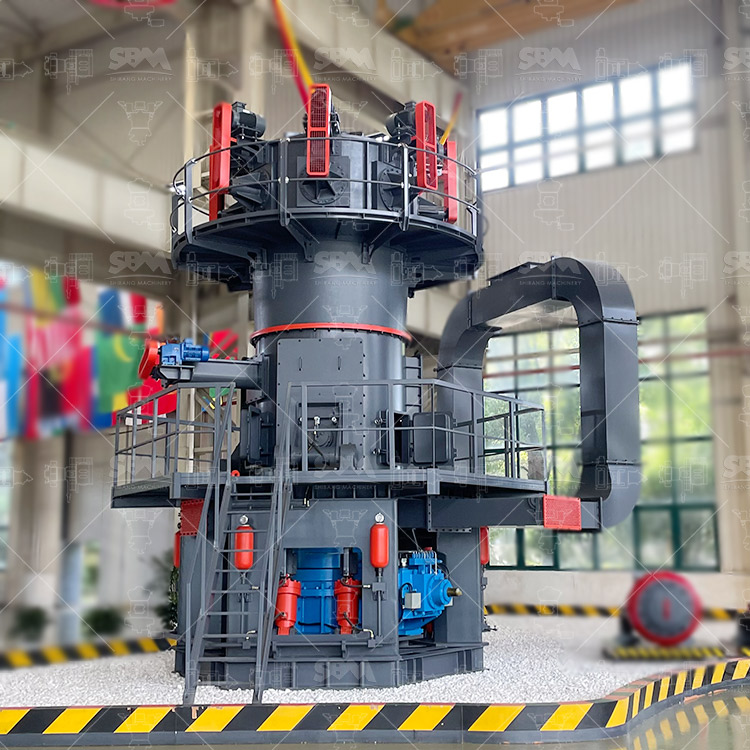

Our LM Series Vertical Roller Mill represents an ideal solution for anthracite processing. With input size capability up to 50mm and output fineness adjustable between 30-325 mesh, this system handles the specific challenges of anthracite grinding through several key features:

• Integrated Design: Combined crushing/grinding/classification reduces system complexity and footprint by 50%
• Low Operating Costs: Non-contact grinding design extends wear part life 3x while reducing energy consumption 30-40% compared to ball mill systems
• Intelligent Control: Expert automation system supports remote operation and real-time parameter monitoring
• Environmental Compliance: Full sealed negative pressure operation ensures dust emissions below 20mg/m³

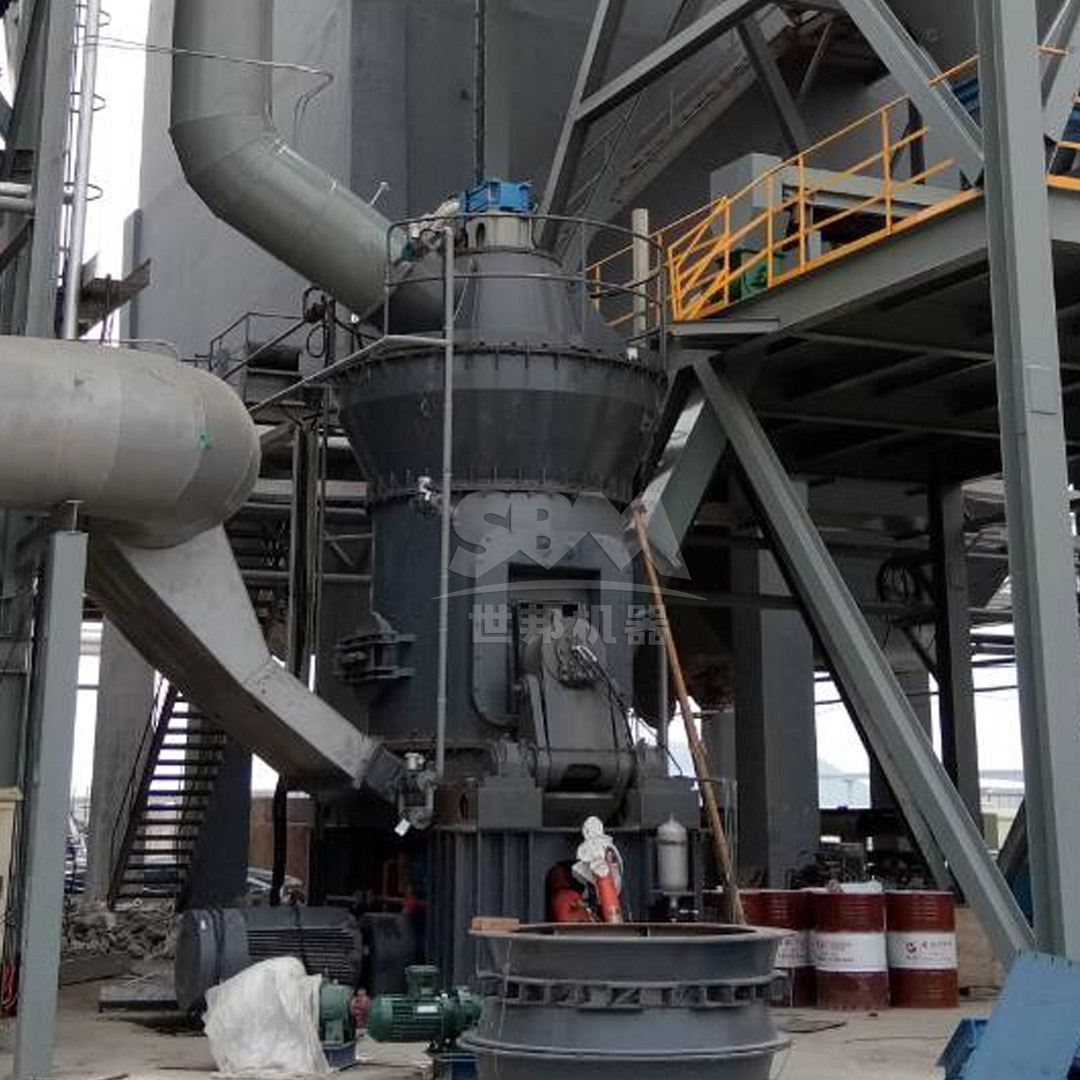

The LM Series operates through a precisely engineered process: the main motor drives the grinding table rotation through a reducer, material enters through the central feed chute and spreads uniformly under centrifugal force. grinding rollers apply compression force to achieve material bed comminution, with qualified fine powder carried by hot air to the classifier while coarse material returns to the grinding table for further processing.

Ultrafine Grinding Applications

For applications requiring extremely fine anthracite powders (325-2500 mesh), our SCM Ultrafine Mill delivers exceptional performance. This system combines high-efficiency grinding with precise classification to achieve D97 ≤ 5μm particle sizes while maintaining operational economy.

Key advantages of the SCM Ultrafine Mill for fine anthracite grinding include:

• High Efficiency: 2x higher capacity than jet mills with 30% reduced energy consumption
• Precision Classification: Vertical turbine classifier ensures accurate particle size cut without coarse powder contamination
• Durable Construction: Special material rollers and grinding rings extend service life multiple times
• Environmental Performance: Pulse dust collection exceeds international standards with noise levels below 75dB

The SCM series processes material through a multi-stage grinding approach: the main motor drives three-layer grinding rings to rotate, material disperses to the grinding track by centrifugal force, undergoes roller compression crushing and progressive layer grinding, with final powder collection accomplished by cyclone collector and pulse dust removal system.

Technical Comparison: Selecting the Right Mill

Choosing between vertical roller mills and ultrafine mills depends on specific application requirements:

Operational Best Practices

Feed Preparation

Proper feed preparation significantly impacts anthracite grinding efficiency. Recommendations include:

• Maintain consistent feed size distribution
• Control moisture content below 8%
• Implement effective metal removal systems
• Utilize pre-crushing to optimal mill feed size

System Optimization

Maximize anthracite grinding performance through:

• Precise control of grinding pressure
• Optimized classifier speed settings
• Regular inspection of wear components
• Systematic monitoring of power consumption

Economic Considerations

The selection of appropriate grinding technology for anthracite significantly impacts project economics. While vertical roller mills require higher initial investment compared to traditional ball mills, their superior energy efficiency and reduced maintenance requirements typically deliver return on investment within 12-24 months of operation.

For ultrafine applications, the SCM series provides economic advantages through:

• Reduced specific energy consumption (kWh/ton)
• Lower wear part replacement frequency
• Reduced system footprint and installation costs
• Minimal environmental compliance expenses

Conclusion

While anthracite coal presents grinding challenges due to its hard, dense nature, modern milling technology provides effective solutions. Vertical roller mills, particularly our LM Series, offer optimal performance for standard fineness requirements with exceptional energy efficiency and operational reliability. For ultrafine applications, the SCM Ultrafine Mill delivers precise particle size control with industry-leading economy.

The key to successful anthracite grinding lies in matching mill technology to specific product requirements while implementing comprehensive operational best practices. With proper system selection and optimization, anthracite coal can be efficiently processed to meet diverse industrial applications while maintaining economic viability.
