How to Transport and Install Large-Scale Grinding Mills Safely and Efficiently

Introduction

Transporting and installing large-scale grinding mills is a complex process that requires meticulous planning, specialized equipment, and strict adherence to safety protocols. As a leading manufacturer with over 30 years of experience in mining machinery, ZENITH provides comprehensive solutions for handling heavy-duty equipment like our XZM Ultrafine Mill and MTW Series Trapezium Mill. This guide outlines best practices to ensure operational efficiency and personnel safety.

Large grinding mill being transported on a flatbed truck

1. Pre-Transport Planning

1.1 Equipment Assessment
  • Dimensional analysis: Measure mill components (e.g., MTW175G with 1900mm磨盘直径) to determine transport vehicle requirements
  • Weight distribution: Our XZM268 model weighs 28 tons – require multi-axle trailers with load balancing
  • Route survey: Identify bridge clearances and turning radii for oversize loads
1.2 Packaging Specifications
  • Waterproof wrapping for electronic components (e.g., MTM160’s 132kW主电机)
  • Custom crating for precision parts like LM-Y series’磨辊总成
  • Vibration sensors for impact monitoring during transit

2. Transportation Procedures

2.1 Heavy Load Handling
  • Use hydraulic axle trailers for mills like GMQY3685 (79m³有效容积)
  • Implement GPS tracking for high-value equipment (e.g., LUM1836 with 355-400kW主机功率)
  • Escort vehicles with warning signs for oversize loads

Technicians assembling grinding mill components on-site

2.2 Special Considerations
  • Climate-controlled transport for electronic systems in MRN摆式磨粉机
  • Anti-corrosion treatment for coastal shipments
  • Real-time tilt monitoring for vertical mills like LM130K

3. Installation Methodology

3.1 Foundation Preparation
  • Reinforced concrete bases for heavy models (e.g., MTW215G at 15-45ton/h处理能力)
  • Laser alignment for磨盘安装 with ≤0.1mm tolerance
  • Vibration isolation pads for noise-sensitive areas
3.2 Mechanical Assembly
  • Step-by-step erection of modular systems like XZM系列超细磨粉机
  • Torque verification for all fasteners (reference MTM100’s 37kW主电机 specs)
  • Lubrication system priming per LM-Y series’稀油润滑系统 requirements

4. Safety Protocols

4.1 Personnel Protection
  • Fall arrest systems for vertical mill assembly
  • Lockout/tagout procedures during electrical connections
  • PPE requirements for handling耐磨衬板 materials
4.2 Equipment Safeguards
  • Barrier guards for rotating components in MTW系列欧版梯形磨粉机
  • Emergency stop systems tested to IEC standards
  • Dust explosion prevention in coal grinding applications

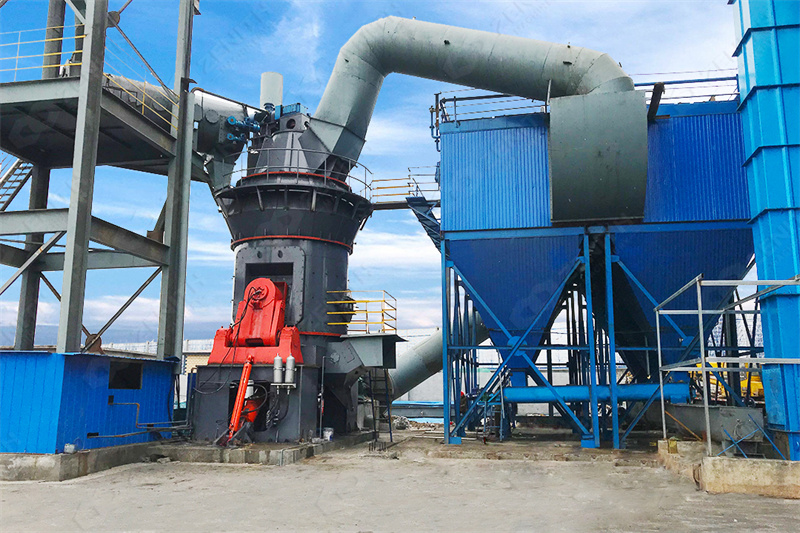

Engineers conducting pre-commissioning safety checks

5. ZENITH Product Solutions

Our XZM Ultrafine Mill (45-5μm) features compact modular design for easier transport:

  • Pre-assembled mainframe reduces on-site work
  • Smart packaging system protects precision分级器 components
  • Detailed installation manuals with 3D diagrams

The MTW Series Trapezium Mill offers:

  • Split-design磨辊总成 for safer handling
  • Pre-wired control panels minimizing field connections
  • Optional containerized transport for remote sites

Conclusion

Proper transport and installation are critical for maximizing the performance and lifespan of grinding mills. ZENITH’s engineered solutions combine advanced equipment design with comprehensive technical support throughout the project lifecycle. Contact our global service network for site-specific planning assistance.
