How to Produce Lithium Slag Steel Slag Composite Powder in Industrial Production
Introduction
The industrial production of composite powders from industrial by-products like lithium slag and steel slag represents a significant advancement in sustainable material processing. These composite powders, when produced to precise specifications, can be valuable additives in cement, concrete, and other construction materials, enhancing properties like strength and durability. This article provides a comprehensive guide to the industrial production process for lithium slag-steel slag composite powder, covering material preparation, grinding technologies, and quality control.
1. Raw Material Preparation and Characterization
The first and most critical step is the preparation and characterization of the raw materials. Lithium slag, a by-product of lithium carbonate production, and steel slag, from steel manufacturing, have varying chemical and physical properties depending on their source.
Key Steps:
- Sampling and Analysis: Conduct X-ray fluorescence (XRF) to determine chemical composition (e.g., CaO, SiO₂, Al₂O₃ content) and X-ray diffraction (XRD) to identify crystalline phases.
- Drying: Both slags often contain moisture and must be dried to a humidity level below 1-2% to ensure efficient grinding. Rotary dryers are typically used for this purpose.
- Pre-crushing: Large chunks of slag must be reduced to a smaller, more uniform size suitable for feeding into fine grinding equipment. Jaw crushers or impact crushers are employed to achieve a feed size of ≤20mm.
- Blending: The lithium and steel slags are precisely blended in a predetermined ratio to achieve the desired chemical and performance characteristics in the final composite powder. Homogenization silos or continuous mixing systems ensure a consistent blend.
2. The Core Process: Fine Grinding and Classification
The heart of the production line is the grinding and classification system. The goal is to reduce the blended slag mix to a very fine powder with a specific and consistent particle size distribution (PSD), often targeting a high Blaine fineness or a specific D97 value (e.g., 5-45μm).

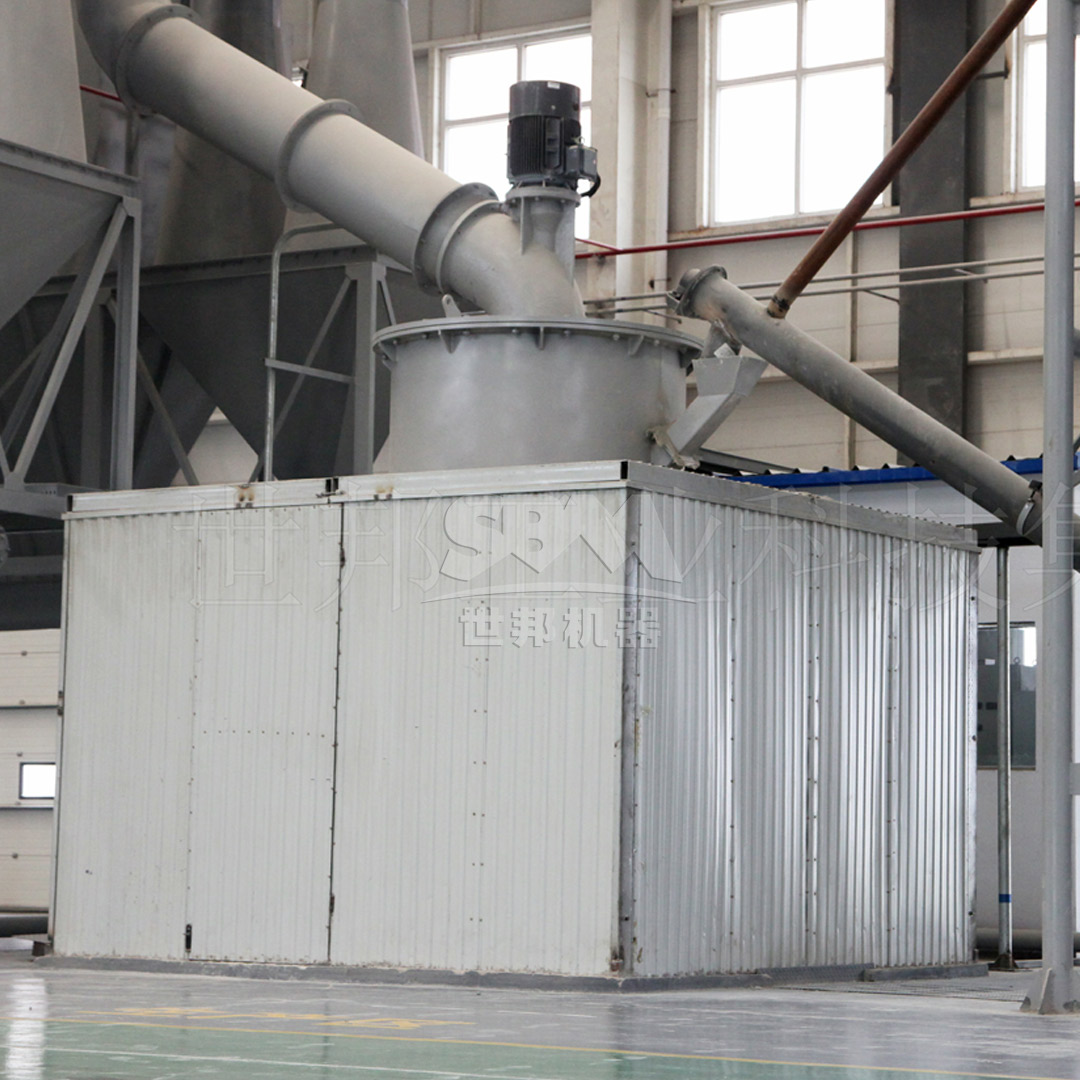

Selecting the right grinding mill is paramount for efficiency, product quality, and profitability. For ultra-fine applications (D97 ≤ 5μm), the SCM Series Ultrafine Mill is an exceptional choice. This mill is engineered for high-performance fine grinding, offering unparalleled efficiency and precision.
Why the SCM Ultrafine Mill is Ideal:
- High Efficiency & Energy Savings: Its innovative design yields a capacity twice that of jet mills while reducing energy consumption by 30%. An intelligent control system provides automatic feedback on成品粒度 (finished product粒度), ensuring consistent quality.
- Superior Classification Accuracy: A vertical turbine classifier achieves precise particle size cuts, guaranteeing a uniform product with no coarse powder contamination.
- Robust Durability: Key components like roller and磨环 (grinding ring) are made from special wear-resistant materials, extending service life multiple times. The bearingless screw grinding chamber ensures stable operation.
- Environmental Compliance: With a pulse dust collector exceeding international standards and a soundproof room design keeping noise below 75dB, it meets modern industrial environmental requirements.

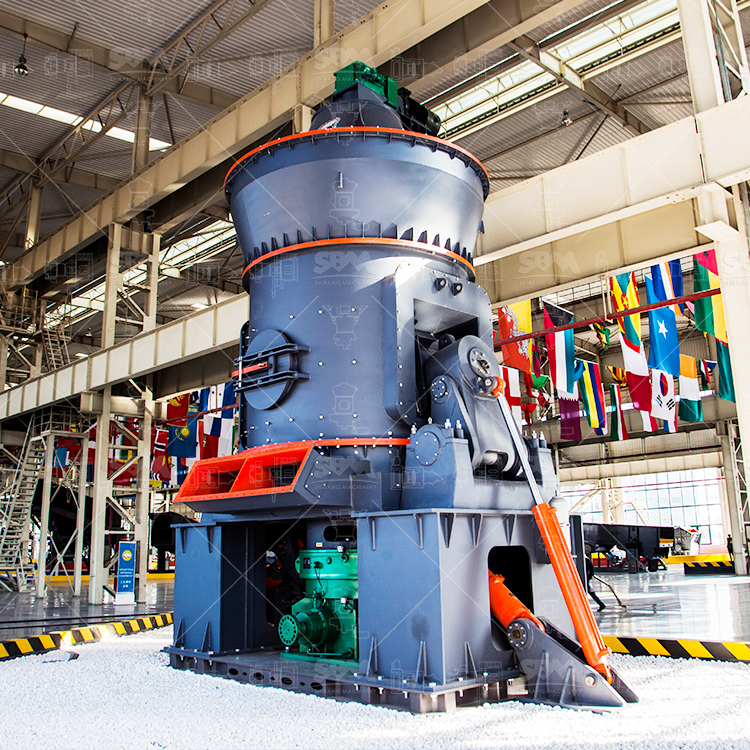

For producers requiring a slightly coarser grind or handling higher capacities for pre-processing, the MTW Series Trapezium Mill is a robust and reliable workhorse. It is perfectly suited for grinding to finenesses between 30-325 mesh (600-45μm).
Advantages of the MTW Series Trapezium Mill:
- Anti-Wear Shovel Design: Combined shovel blades reduce maintenance costs, and a curved design extends磨辊 (grinding roller) life.
- Optimized Airflow: A curved air channel reduces energy loss and increases transmission efficiency.
- High Capacity: Models like the MTW215G can process up to 45 tons per hour, making it suitable for large-scale production lines.
3. Powder Collection and Dedusting
After classification, the fine powder is separated from the air stream. This is typically a two-stage process:
- Cyclone Collector: The primary collector separates the majority of the product powder from the conveying air.
- Pulse Baghouse Dust Collector: This secondary system captures the ultra-fine particles that escape the cyclone, ensuring >99.9% collection efficiency and minimizing environmental dust emissions. The collected powder is then conveyed to the next stage.
4. Conveying, Storage, and Packaging
The finished composite powder is transported using enclosed screw conveyors or pneumatic conveying systems to prevent moisture absorption and dust release. It is stored in large silos before being packaged in bulk tankers, big bags (1-ton bags), or smaller 25-50kg bags for different market needs. Automated packaging systems ensure weight accuracy and speed.
5. Quality Control and Testing
Rigorous quality control is maintained throughout the process. Samples are regularly taken from the final product and tested for:
- Particle Size Distribution (PSD): Using laser diffraction analyzers.
- Specific Surface Area (Blaine Fineness): A key indicator of reactivity.
- Chemical Composition: Ensuring consistency with the target blend.
- Activity Index: Testing the strength contribution when mixed with cement.
Conclusion
The industrial production of lithium slag-steel slag composite powder is a sophisticated process that transforms waste into a valuable resource. Success hinges on understanding raw material properties, employing precise blending, and most importantly, selecting the appropriate grinding technology to achieve the desired product fineness and quality efficiently. Investing in advanced, reliable, and efficient grinding equipment like the SCM Ultrafine Mill or the MTW Series Trapezium Mill is not an operational expense but a strategic investment that pays dividends through lower energy costs, higher output, superior product quality, and reduced maintenance downtime, ensuring a competitive edge in the growing market for sustainable construction materials.
