How to Produce Kaolin by Grinding and Calcining Coal Gangue
Introduction
Coal gangue, a solid waste generated during coal mining and washing, has long been considered an environmental burden. However, with advanced processing technologies, coal gangue can be transformed into high-value kaolin, creating economic benefits while addressing waste management challenges. This comprehensive guide explores the technical process of converting coal gangue into premium kaolin through grinding and calcination, highlighting optimal equipment selection and processing parameters.
Understanding Coal Gangue Composition
Coal gangue primarily consists of clay minerals (kaolinite, illite), quartz, carbonaceous matter, and various trace elements. The kaolinite content typically ranges from 20% to 60%, making it a viable raw material for kaolin production. Successful conversion depends on proper liberation of kaolinite through size reduction and removal of impurities via thermal treatment.
Pre-treatment and Crushing Stage
Raw coal gangue requires initial preparation before fine grinding. The material typically arrives with variable moisture content (8-15%) and sizes up to 300mm. Primary crushing reduces the material to below 50mm, making it suitable for further processing. For operations requiring final product sizes of 0-3mm, our Hammer Mill series offers an efficient solution with high crushing ratios and minimal fines generation.
Fine Grinding Technology
The grinding stage is critical for liberating kaolinite crystals from the gangue matrix. Different grinding approaches yield products with distinct properties suitable for various applications.
Ultra-fine Grinding for High-value Applications

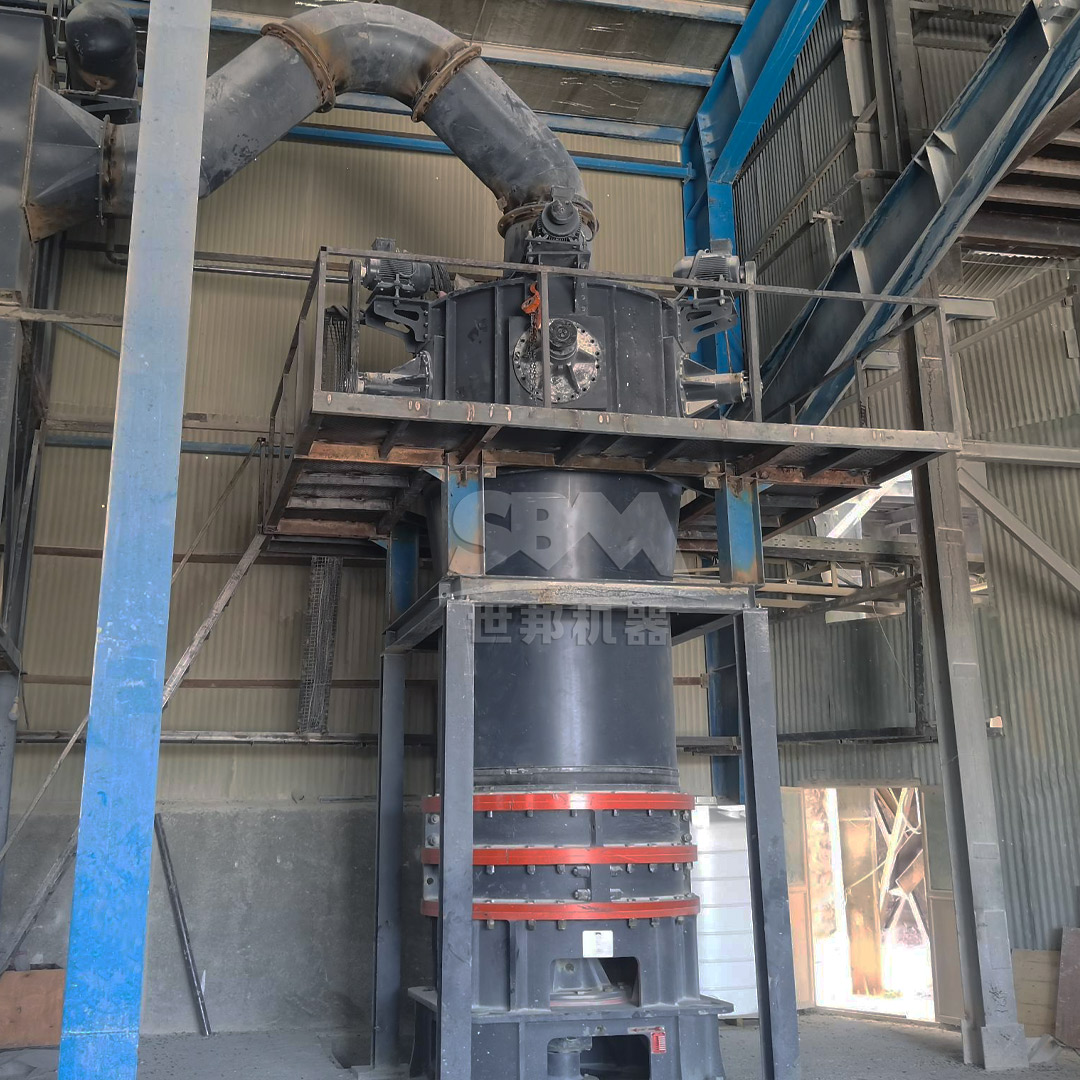

For premium applications requiring particle sizes between 325-2500 mesh (45-5μm), our SCM Ultrafine Mill delivers exceptional performance. This system combines grinding and classification in a single unit, producing kaolin with narrow particle size distribution ideal for paper coating, high-grade ceramics, and specialty polymers.
The SCM series features a unique grinding mechanism where material undergoes multiple compression stages between rollers and grinding rings. The integrated vertical turbine classifier ensures precise cut points, while the pulse dust collection system maintains operational cleanliness. With capacities ranging from 0.5 to 25 tons per hour and energy consumption 30% lower than conventional jet mills, the SCM Ultrafine Mill represents the state-of-the-art in kaolin production technology.
Medium-fine Grinding for General Applications

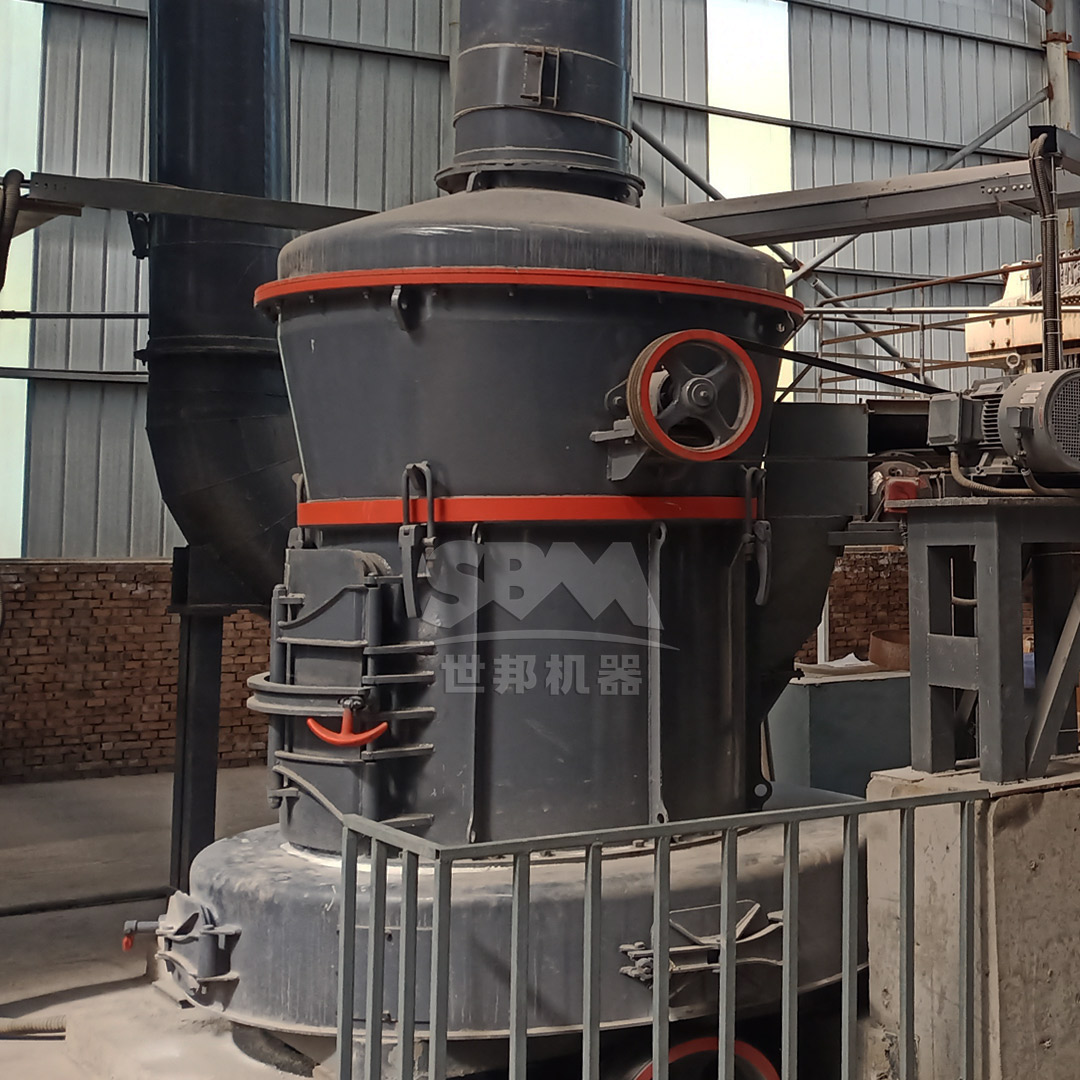

For standard kaolin products targeting the 30-325 mesh (600-45μm) range, our MTW Series Trapezium Mill provides an optimal balance of performance and operating costs. The MTW mill’s curved air channel design minimizes turbulence and pressure loss, while the bevel gear overall transmission ensures smooth operation with 98% efficiency.
Key advantages include wear-resistant combined shovel blades that significantly reduce maintenance costs and a specially designed grinding chamber that extends roller and ring service life. With throughput capacities from 3 to 45 tons per hour, the MTW series accommodates operations of various scales while maintaining consistent product quality.
Calcination Process Optimization
Calcination transforms the physical and chemical properties of kaolin, enhancing whiteness, brightness, and abrasiveness while reducing impurities. The process typically occurs at temperatures between 600°C and 1000°C, depending on the desired product characteristics.
Low-temperature Calcination (600-750°C)
This temperature range produces metakaolin, which maintains some crystalline structure while removing hydroxyl groups. Metakaolin exhibits high reactivity and is valued in pozzolanic applications, particularly in concrete and construction materials.
High-temperature Calcination (950-1050°C)
Complete dehydroxylation occurs in this range, producing amorphous alumina-silica phases. The process also burns off carbonaceous matter, significantly improving product brightness. Calcined kaolin from this process finds applications in plastics, rubber, paints, and premium paper coatings.
Integrated Production Line Configuration
A complete kaolin production line from coal gangue typically includes:
- Raw material storage and pre-homogenization
- Primary and secondary crushing to <20mm
- Drying to reduce moisture to <2%
- Fine grinding using appropriate mill technology
- Classification and particle size control
- Calcination in rotary or vertical kilns
- Final product cooling and packaging
For large-scale operations processing over 100 tons per day, our LM Series Vertical Roller Mill offers significant advantages in energy efficiency and space utilization. The integrated grinding-drying-calcining system reduces overall footprint by 50% while cutting energy consumption by 30-40% compared to traditional ball mill systems.
Quality Control and Product Specifications
Final kaolin quality depends on careful control throughout the process. Key parameters include:
- Particle size distribution: Controlled through mill operation and classification
- Brightness: Optimized through calcination temperature and residence time
- Chemical composition: Monitored through raw material selection and impurity removal
- Morphology: Influenced by grinding technology and intensity
For operations requiring precise control over multiple quality parameters, our grinding equipment with integrated classification systems provides the necessary flexibility to adjust product characteristics according to market requirements.
Economic and Environmental Benefits
Converting coal gangue to kaolin offers substantial advantages:
- Waste utilization: Reduces environmental impact of coal mining
- Value creation: Transforms low-value waste into high-value industrial mineral
- Resource conservation: Decreases demand for natural kaolin deposits
- Energy efficiency: Modern grinding and calcination technologies minimize energy consumption
The selection of appropriate equipment, particularly energy-efficient grinding systems like our SCM Ultrafine Mill and MTW Trapezium Mill, significantly impacts both economic viability and environmental footprint.
Conclusion
The production of kaolin from coal gangue represents a sustainable approach to resource utilization that aligns with circular economy principles. Through proper grinding technology selection and optimized calcination parameters, manufacturers can transform waste material into valuable products serving multiple industries. Continuous innovation in grinding equipment, particularly in energy efficiency and classification precision, continues to enhance the economic attractiveness of this conversion process while minimizing environmental impact.
