How to Grind Metal Silicon: Methods for Producing Silicon Powder

Introduction to Metal Silicon Grinding

Metal silicon, a crucial industrial material with widespread applications in semiconductors, solar panels, aluminum alloys, and chemical industries, requires precise processing to achieve the desired powder form. The grinding process transforms bulk silicon metal into fine powders with specific particle size distributions, essential for various high-tech applications. This article explores the professional methods for producing silicon powder, focusing on mechanical grinding techniques and equipment selection to achieve optimal results in terms of efficiency, particle size control, and product quality.

Key Properties of Metal Silicon Affecting Grinding

Understanding the physical and chemical properties of metal silicon is fundamental to selecting appropriate grinding methods. Silicon possesses a Mohs hardness of approximately 6.5, making it a relatively hard material that requires robust grinding equipment. Its brittle nature means it fractures along crystal planes when subjected to impact or pressure, which can be advantageous for size reduction. However, this brittleness also presents challenges in controlling particle size distribution and preventing over-grinding. The material’s thermal conductivity properties must be considered to manage heat generation during milling, as excessive heat can affect both the equipment and the quality of the final product. Additionally, silicon’s tendency to oxidize requires controlled atmospheres or specific processing conditions for certain applications.

Primary Grinding Methods for Silicon Metal

Jaw Crusher for Primary Crushing

The initial size reduction of silicon metal typically begins with jaw crushers, which break down large silicon lumps into smaller, more manageable pieces (typically 20-50mm). This coarse crushing stage prepares the material for further fine grinding processes. Jaw crushers operate through compressive force between a fixed and a movable jaw, effectively reducing the size of hard materials like silicon with minimal fines production at this stage.

Hammer Mill for Intermediate Grinding

For intermediate grinding stages, hammer mills provide efficient size reduction through impact fracture. Our Hammer Mill series offers excellent performance for silicon processing with input sizes up to 40mm and output fineness ranging down to 0-3mm. The high-speed rotating hammers impact the silicon particles, breaking them through both impact and attrition forces. The optimized cavity design and high manganese steel wear parts ensure stable operation and extended service life when processing abrasive materials like silicon.

Ball Milling for Fine Silicon Powder

Ball mills represent a traditional approach for producing fine silicon powders, operating on the principle of impact and attrition between grinding media (typically steel or ceramic balls) and the silicon particles. The rotating cylinder creates a cascading effect where the balls lift and drop onto the material, gradually reducing its size. Our Ball Mill series offers capacities from 0.65 to 450 tons per hour with output fineness between 0.074-0.8mm. The versatile design supports both dry and wet grinding operations, with various lining plate and grinding media options to optimize for silicon processing while minimizing contamination.

Advanced Grinding Technologies for Ultrafine Silicon Powder

Vertical Roller Mills for Efficient Grinding

Vertical roller mills have revolutionized silicon grinding with their high efficiency and precise particle size control. These systems integrate multiple functions including grinding, drying, classifying, and conveying in a single compact unit. The fundamental principle involves bed compression grinding where silicon particles are crushed between rotating grinding rollers and a stationary grinding table. This method generates less heat compared to traditional ball milling, reducing oxidation risks and improving energy efficiency. The integrated classification system immediately separates particles that have reached the target size, preventing over-grinding and ensuring a narrow particle size distribution.

Ultrafine Grinding with Specialized Mills

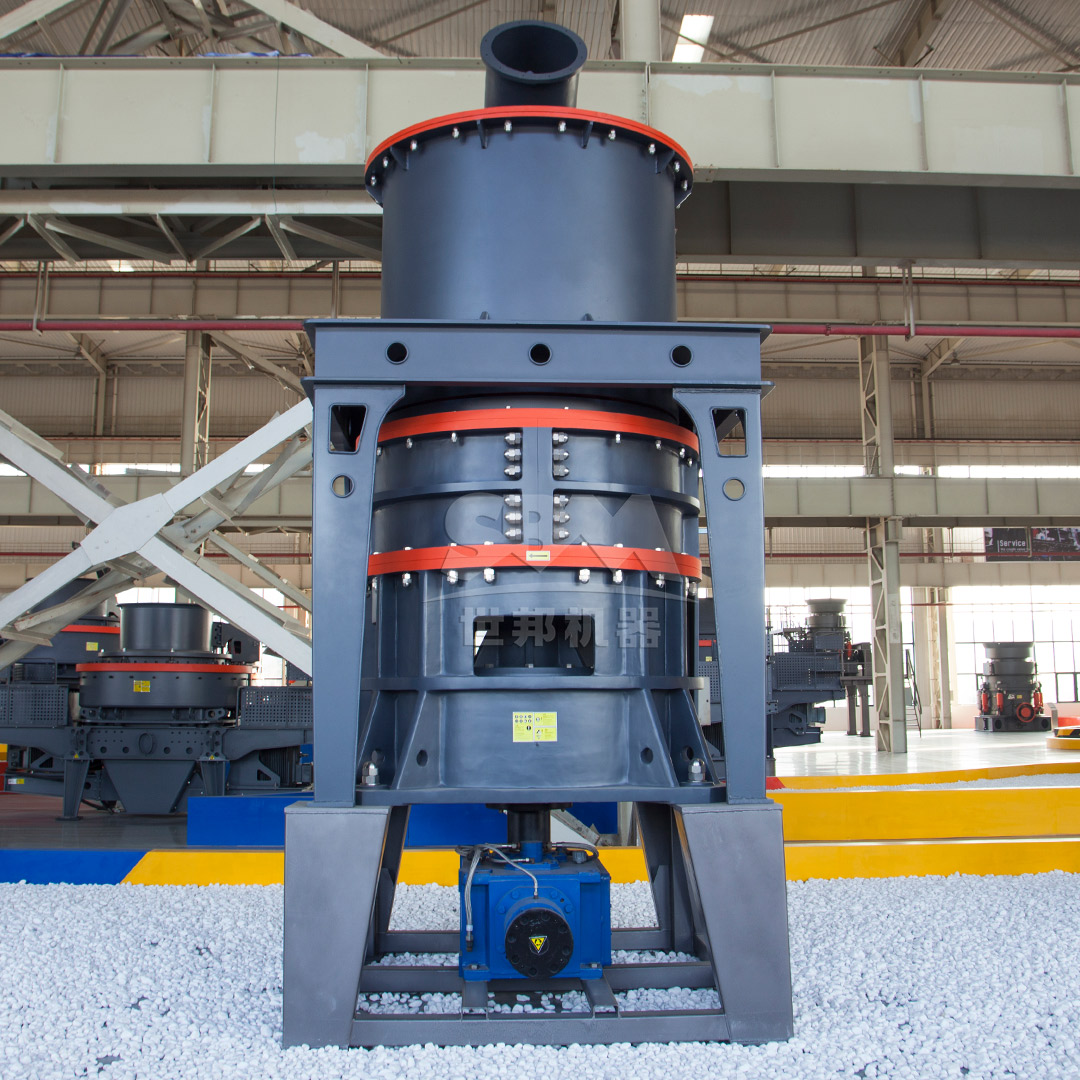

For applications requiring ultrafine silicon powders (typically below 10μm), specialized grinding systems are essential. Our SCM Ultrafine Mill series represents the pinnacle of ultrafine grinding technology, capable of producing silicon powders with fineness between 325-2500 mesh (D97 ≤ 5μm). The mill features a unique three-layer grinding ring design driven by a main motor, where material is dispersed into the grinding path by centrifugal force and progressively refined through roller compression. The vertical turbine classifier ensures precise particle size切割 with no coarse powder mixing, delivering exceptionally uniform silicon powder ideal for high-value applications in electronics and photovoltaic industries.

Selecting the Right Grinding Equipment for Silicon

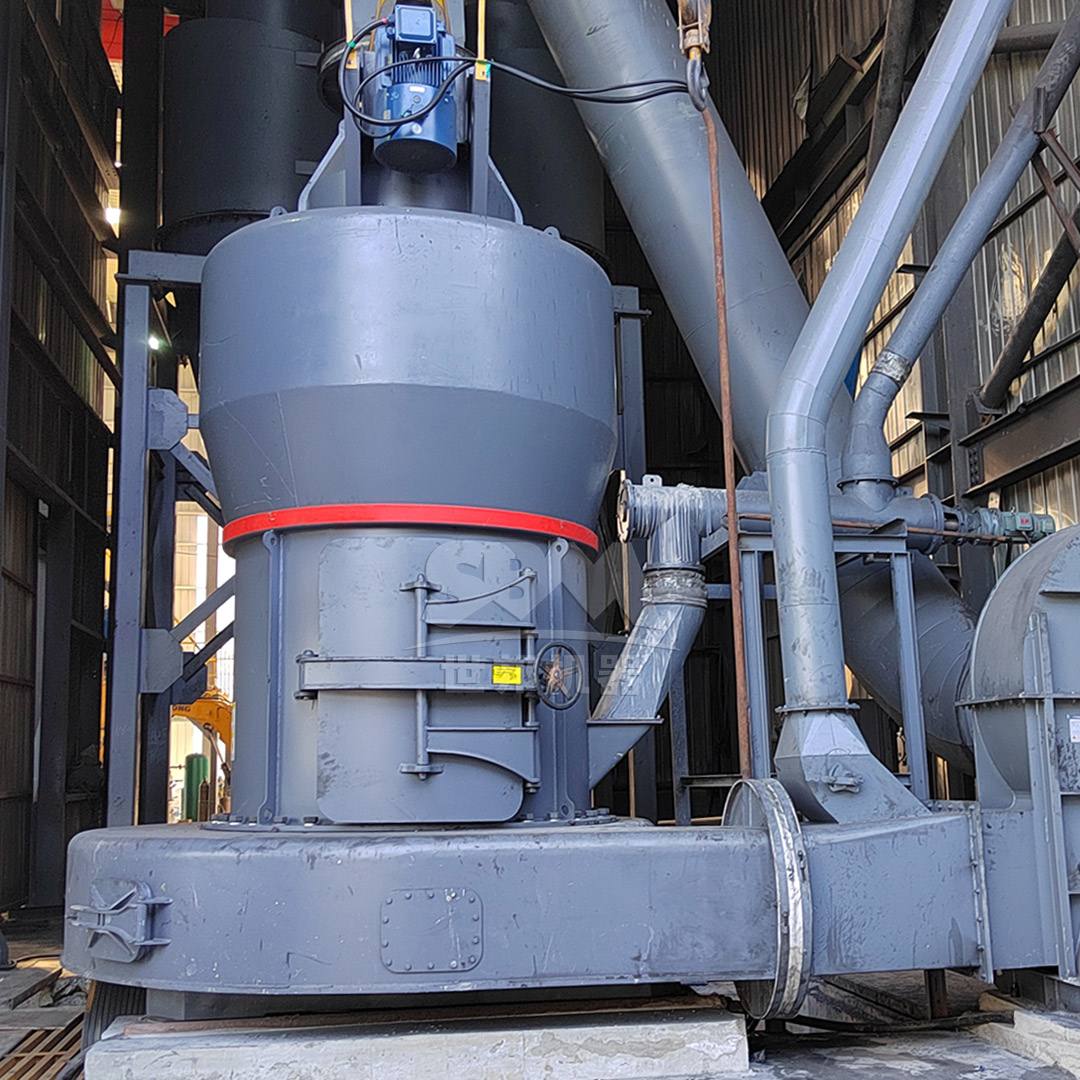

Choosing appropriate grinding equipment for silicon depends on multiple factors including required production capacity, target particle size distribution, energy consumption considerations, and contamination tolerance. For coarse to medium fineness requirements (45-325 mesh), our MTW Series Trapezium Mill offers outstanding performance with processing capacities from 3-45 tons per hour. Its curved air duct design reduces energy loss while the combined shovel blades minimize maintenance costs. The cone gear overall transmission achieves up to 98% transmission efficiency, making it particularly suitable for medium-scale silicon powder production with excellent energy economy.

For ultra-fine applications where particle size control below 5μm is critical, the SCM Ultrafine Mill stands unmatched. With capacity ranging from 0.5-25 tons per hour depending on model, this system delivers exceptional grinding efficiency while consuming 30% less energy compared to jet mills. The intelligent control system automatically monitors and adjusts product fineness, while the special material rollers and grinding rings provide extended service life when processing abrasive silicon material. The environmental benefits including pulse dust collection exceeding international standards and noise levels below 75dB make it an excellent choice for modern manufacturing facilities.

Technical Considerations for Silicon Grinding Operations

Heat Management During Grinding

Effective heat management represents a critical aspect of silicon grinding operations. The combination of silicon’s thermal properties and the energy input during size reduction can generate significant heat, potentially affecting both equipment integrity and product quality. Modern grinding systems incorporate several cooling strategies including water-cooled bearings and shafts, air circulation systems, and in some cases, cryogenic grinding options. The choice of cooling method depends on the specific grinding technology employed and the required final particle characteristics.

Contamination Control

Maintaining purity during silicon grinding presents significant challenges due to the abrasive nature of the material and its application requirements. Equipment design plays a crucial role in minimizing contamination through several approaches: using specialized wear materials with similar composition to silicon, implementing effective sealing systems to prevent lubricant ingress, and designing grinding elements for minimal wear. Additionally, internal classification systems help remove contamination early in the process, while magnetic separation can extract metallic impurities introduced during grinding.

Particle Size Distribution Control

Precise control over particle size distribution represents one of the most important aspects of silicon powder production, directly influencing product performance in final applications. Modern grinding systems achieve this control through integrated classification technology that continuously separates particles based on size. Advanced systems feature adjustable classifier speeds, multiple classification stages, and real-time particle size monitoring. The optimal approach depends on the specific application requirements, with some demanding narrow distributions while others benefit from specifically engineered broad distributions.

Safety and Environmental Considerations

Silicon grinding operations present unique safety and environmental challenges that must be carefully addressed. Silicon dust can be explosive under certain conditions, requiring appropriate explosion protection measures including pressure relief panels, explosion suppression systems, and conductive equipment grounding. Comprehensive dust collection systems are essential not only for product recovery but also for maintaining safe working conditions and meeting environmental emissions standards. Modern grinding plants typically employ multi-stage filtration systems including cyclones, bag filters, and sometimes scrubbers to ensure complete dust control. Noise control represents another important consideration, with equipment manufacturers implementing various attenuation measures to protect workers and meet regulatory requirements.

Conclusion

Producing high-quality silicon powder requires careful selection of grinding methods and equipment based on specific application requirements. From initial crushing through to ultrafine grinding, each stage must be optimized to achieve the desired product characteristics while maintaining operational efficiency and cost-effectiveness. Modern grinding technologies offer sophisticated solutions that address the unique challenges of silicon processing, including its hardness, brittleness, and heat sensitivity. By understanding the available technologies and their capabilities, producers can select the optimal grinding approach for their specific silicon powder requirements, ensuring competitive advantage in this demanding market.
