How to Grind Manganese Dioxide? Introduction of Electrolytic Manganese Flake Grinding Equipment
Introduction to Manganese Dioxide Grinding
Manganese dioxide (MnO₂) is a crucial industrial mineral with extensive applications in batteries, ceramics, water treatment, and chemical manufacturing. The electrolytic manganese flake, a high-purity form of manganese dioxide, requires specialized grinding equipment to achieve the desired particle size distribution for various industrial applications. Proper grinding not only ensures product quality but also optimizes production efficiency and reduces operational costs.
The grinding process for manganese dioxide presents unique challenges due to its abrasive nature and the need for precise particle size control. Different applications demand specific fineness levels, ranging from coarse powders for certain industrial uses to ultra-fine particles for advanced battery technologies. This article provides a comprehensive guide to selecting and operating appropriate grinding equipment for electrolytic manganese flakes.
Characteristics of Electrolytic Manganese Flakes
Electrolytic manganese flakes possess distinct physical and chemical properties that influence the grinding process. Understanding these characteristics is essential for selecting appropriate grinding equipment and optimizing operational parameters.
Physical Properties
Electrolytic manganese flakes typically have a metallic luster and brittle crystalline structure. The raw material size generally ranges from 1-50mm, with thickness varying between 0.5-2mm. The material hardness ranges between 5-6 on the Mohs scale, presenting moderate abrasiveness that requires durable grinding components.
Chemical Considerations
With a typical purity exceeding 99.7%, electrolytic manganese flakes contain minimal impurities. However, the material is sensitive to oxidation during grinding, necessitating controlled atmospheric conditions in some applications. The exothermic nature of manganese oxidation requires adequate cooling systems during intensive grinding operations.
Grinding Equipment Selection Criteria
Selecting the right grinding equipment for manganese dioxide involves careful consideration of multiple factors to ensure optimal performance and cost-effectiveness.
Particle Size Requirements
The target particle size distribution varies significantly based on the final application. Battery-grade manganese dioxide typically requires ultra-fine grinding to 325-2500 mesh (5-45μm), while other industrial applications may tolerate coarser particles in the 30-325 mesh range.
Production Capacity
Required throughput ranges from small-scale laboratory operations (0.5 t/h) to large industrial production lines (up to 250 t/h). The equipment selection must align with production targets while allowing for future scalability.
Energy Efficiency
Grinding operations account for a significant portion of total production costs. Modern grinding equipment incorporates energy-saving technologies that can reduce power consumption by 30-50% compared to conventional systems.
Recommended Grinding Equipment for Manganese Dioxide

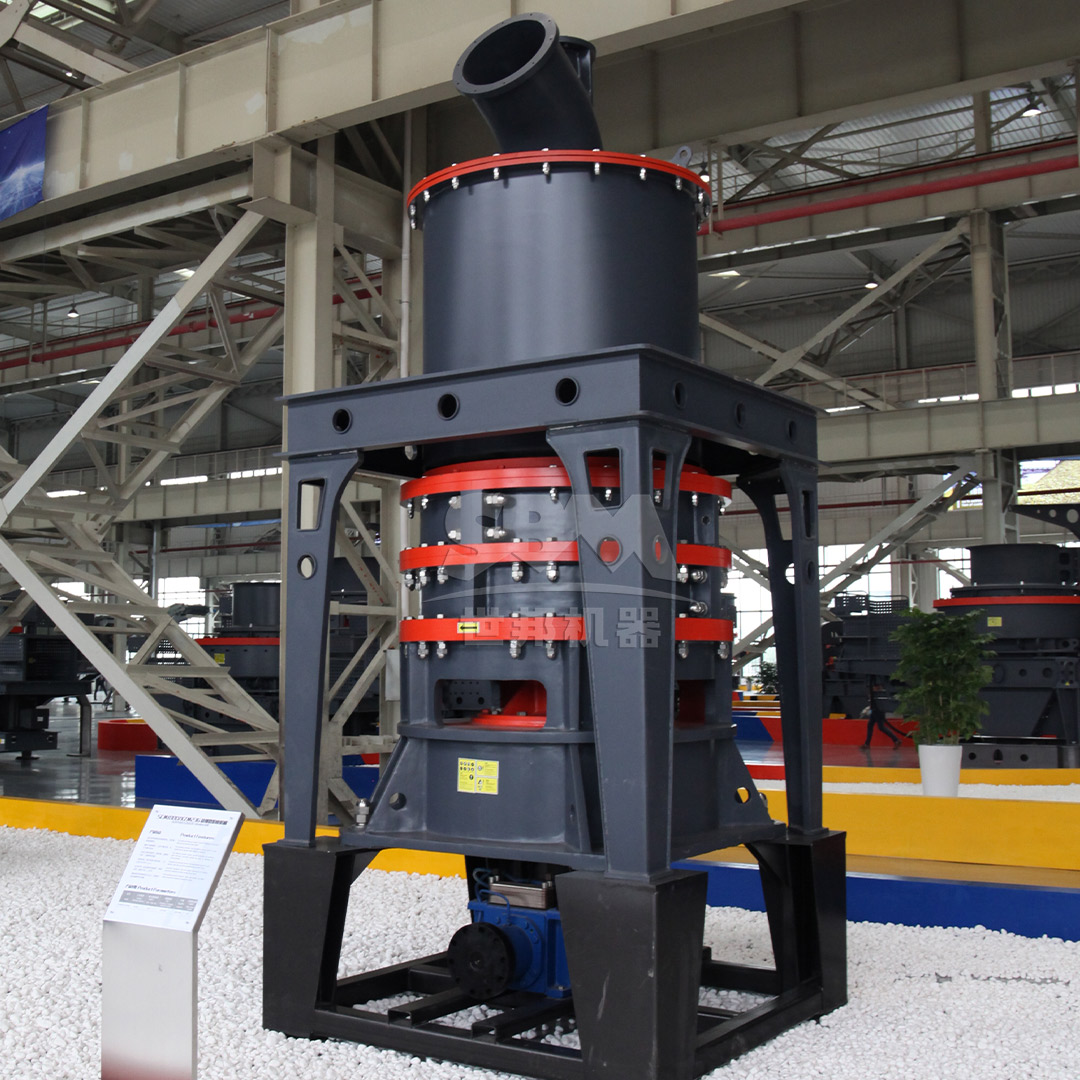

SCM Series Ultrafine Mill for High-Precision Applications
For applications requiring ultra-fine manganese dioxide powder, particularly in battery manufacturing and high-performance ceramics, we strongly recommend our SCM Series Ultrafine Mill. This advanced grinding system delivers exceptional performance for producing powders in the 325-2500 mesh range (D97≤5μm).
The SCM Ultrafine Mill incorporates several technological advantages specifically beneficial for manganese dioxide processing. Its high-precision vertical turbine classifier ensures accurate particle size distribution without coarse powder contamination. The special material roller and grinding ring, designed for abrasive materials, significantly extend component lifespan while maintaining consistent grinding performance.
With capacity ranging from 0.5 to 25 tons per hour depending on model selection, the SCM series accommodates various production scales. The intelligent control system automatically monitors and adjusts operational parameters to maintain consistent product quality, while the comprehensive pulse dust collection system ensures environmental compliance with efficiency exceeding international standards.

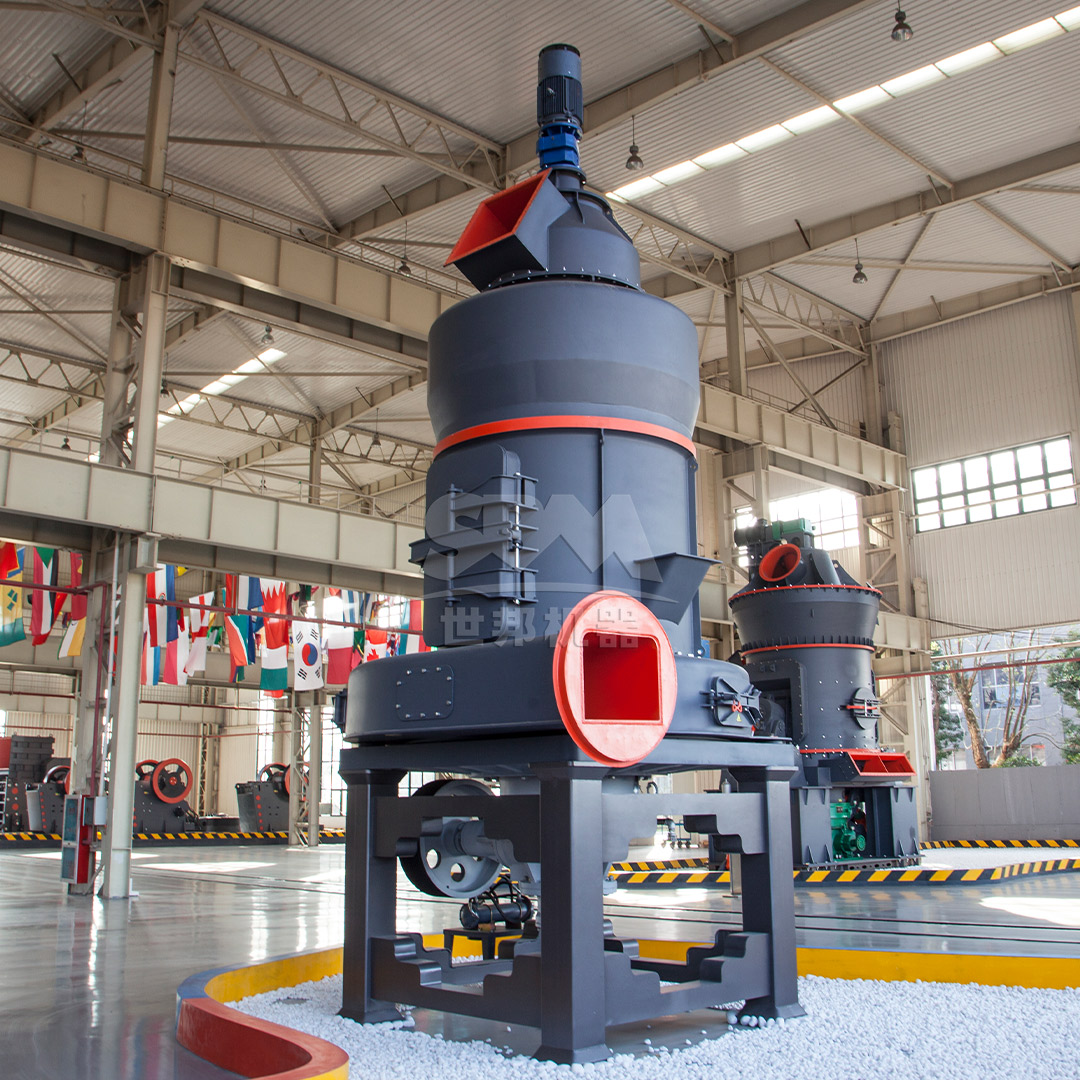

MTW Series Trapezium Mill for Medium-Scale Production
For medium-fine grinding applications with production requirements up to 45 tons per hour, our MTW Series Trapezium Mill offers an optimal balance of performance and efficiency. This robust grinding system processes manganese dioxide flakes with input sizes up to 50mm, delivering output fineness between 30-325 mesh.
The MTW series features several innovative design elements that enhance its suitability for manganese processing. The wear-resistant shovel design incorporates combined shoveling pieces that significantly reduce maintenance costs. The curved air channel optimization minimizes airflow resistance, improving transmission efficiency while reducing energy consumption.
With its integrated conical gear transmission system achieving 98% transmission efficiency, the MTW series demonstrates superior energy performance compared to conventional grinding systems. The wear-resistant volute structure, featuring unobstructed flow design, further enhances air classification efficiency while reducing maintenance requirements by approximately 30%.
Grinding Process Optimization
Pre-Grinding Considerations
Proper preparation of electrolytic manganese flakes before the main grinding process significantly impacts overall efficiency and product quality. For larger flakes exceeding the recommended input size for the selected equipment, preliminary size reduction using jaw crushers or hammer mills may be necessary.
Moisture Control
Maintaining appropriate moisture levels (typically below 2%) is crucial for efficient grinding operations. Excessive moisture can lead to material adhesion, reduced throughput, and inconsistent particle size distribution. Pre-drying systems may be integrated when processing manganese flakes with higher moisture content.
Temperature Management
Manganese dioxide grinding generates significant heat, which can affect material properties and equipment performance. Modern grinding systems incorporate efficient cooling mechanisms, including water-cooled bearing housings and optimized airflow patterns, to maintain operational temperatures within acceptable ranges.
Technical Comparison of Grinding Systems
When selecting grinding equipment for manganese dioxide, understanding the performance characteristics of different systems is essential. The following comparison highlights key parameters for the recommended equipment:
| Parameter | SCM Ultrafine Mill | MTW Trapezium Mill |
|---|---|---|
| Input Size | ≤20mm | ≤50mm |
| Output Fineness | 325-2500 mesh (5-45μm) | 30-325 mesh (45-500μm) |
| Capacity Range | 0.5-25 t/h | 3-45 t/h |
| Energy Consumption | 30% lower than jet mills | High transmission efficiency (98%) |
| Noise Level | ≤75dB | Optimized damping system |
Case Study: SCM1000 Implementation
A recent implementation of our SCM1000 Ultrafine Mill for battery-grade manganese dioxide production demonstrates the equipment’s capabilities in real-world conditions. The system processes 1.0-8.5 tons per hour of electrolytic manganese flakes, achieving consistent product quality with D97 ≤ 5μm.
The installation features integrated cooling systems to manage the exothermic nature of manganese grinding, along with advanced dust collection achieving emissions below 20mg/m³. Operational data shows energy consumption reductions of approximately 35% compared to the previously used jet milling system, with significantly improved product consistency.
Maintenance and Operational Considerations
Wear Part Management
The abrasive nature of manganese dioxide necessitates careful monitoring of wear parts, particularly grinding rolls, rings, and classifier components. The recommended equipment incorporates specially formulated materials that extend service life while maintaining grinding efficiency. Regular inspection schedules and strategic spare part inventory management minimize unexpected downtime.
Dust Collection Systems
Effective dust control is critical in manganese dioxide grinding operations due to material value preservation, environmental compliance, and workplace safety. Modern grinding systems integrate high-efficiency pulse jet bag filters with automated cleaning cycles, maintaining collection efficiency above 99.9% while optimizing compressed air consumption.
Future Trends in Manganese Dioxide Grinding
The evolving requirements for manganese dioxide across various industries continue to drive innovation in grinding technology. Emerging trends include the integration of artificial intelligence for real-time process optimization, advanced ceramic materials for enhanced wear resistance, and modular system designs that facilitate rapid configuration changes for different product specifications.
Conclusion
Selecting appropriate grinding equipment for electrolytic manganese flakes requires careful consideration of material characteristics, production requirements, and final product specifications. The SCM Series Ultrafine Mill and MTW Series Trapezium Mill represent optimal solutions for different segments of the manganese dioxide market, combining advanced technology with proven reliability.
By understanding the specific requirements of your application and leveraging the technical advantages of modern grinding systems, producers can achieve significant improvements in product quality, operational efficiency, and overall cost-effectiveness. Continuous consultation with equipment specialists during the selection and implementation process ensures optimal system configuration for your specific production needs.
