How to Grind Green Anode Blocks for Carbon Plant? – Ball Mill Solution

Introduction to Green Anode Block Grinding

In the carbon plant industry, the preparation of raw materials is a critical process that directly impacts the quality of the final carbon products. Green anode blocks, a primary raw material, require precise grinding to achieve the desired particle size distribution for optimal compaction and baking performance. Traditional grinding methods often face challenges in efficiency, energy consumption, and particle size control. This article explores the ball mill solution for grinding green anode blocks, highlighting its advantages and introducing advanced alternatives for modern carbon plants.

The Importance of Particle Size in Anode Production

The particle size distribution of ground green anode material significantly influences the density, strength, and electrical conductivity of the final baked anodes. Too coarse particles may lead to poor compaction and reduced density, while excessively fine particles can increase binder demand and cause cracking during baking. The ideal grinding process should produce a well-graded mixture with controlled fines content, typically ranging from 0.074mm to 0.8mm for most carbon applications.

Ball Mill Technology for Anode Grinding

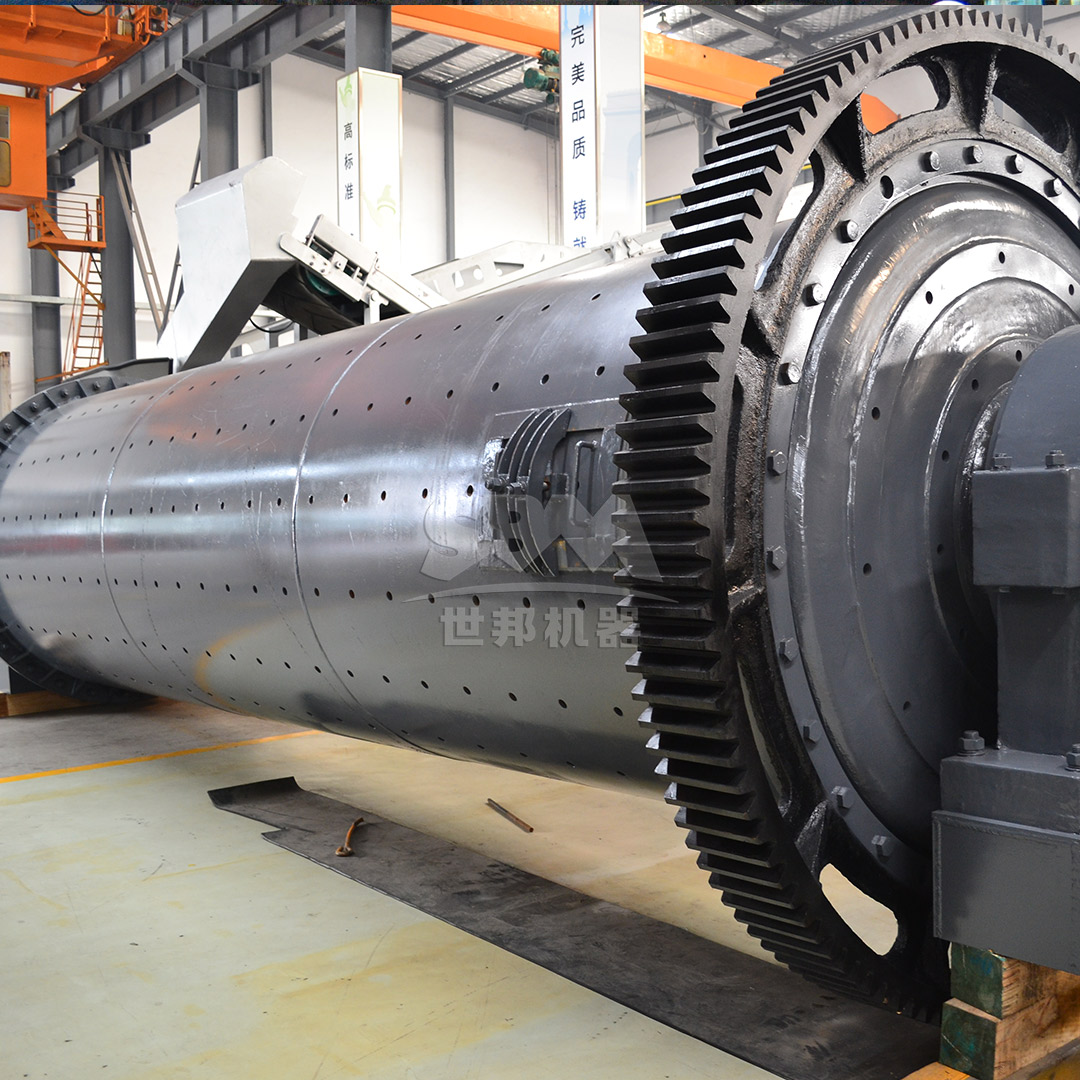

Ball mills have been the workhorse of mineral processing and material grinding operations for over a century. Their simple yet effective design makes them suitable for grinding various materials, including green anode blocks. A typical ball mill consists of a rotating cylindrical shell partially filled with grinding media (usually steel balls). As the mill rotates, the balls cascade and tumble, impacting and abrading the material to reduce its particle size.

Key Advantages of Ball Mills

Ball mills offer several benefits for grinding green anode blocks:

• Versatility: Capable of handling various feed sizes and moisture contents
• Reliability: Proven technology with minimal operational complexities
• Scalability: Available in sizes from laboratory scale to large production units
• Product Control: Adjustable grinding time and media selection for product customization

Limitations of Traditional Ball Mills

Despite their widespread use, traditional ball mills present certain limitations for modern carbon plants:

• High Energy Consumption: Typically require 15-30 kWh/ton of processed material
• Limited Efficiency: Only 1-3% of input energy is actually used for size reduction
• Noise Pollution: Operational noise levels often exceed 100 dB
• Space Requirements
• Maintenance Intensive: Regular replacement of liners and grinding media required

Advanced Grinding Solutions for Carbon Plants

While ball mills remain a viable option, technological advancements have led to the development of more efficient grinding systems specifically designed for materials like green anode blocks. Our company offers specialized grinding equipment that addresses the limitations of traditional ball mills while maintaining product quality.

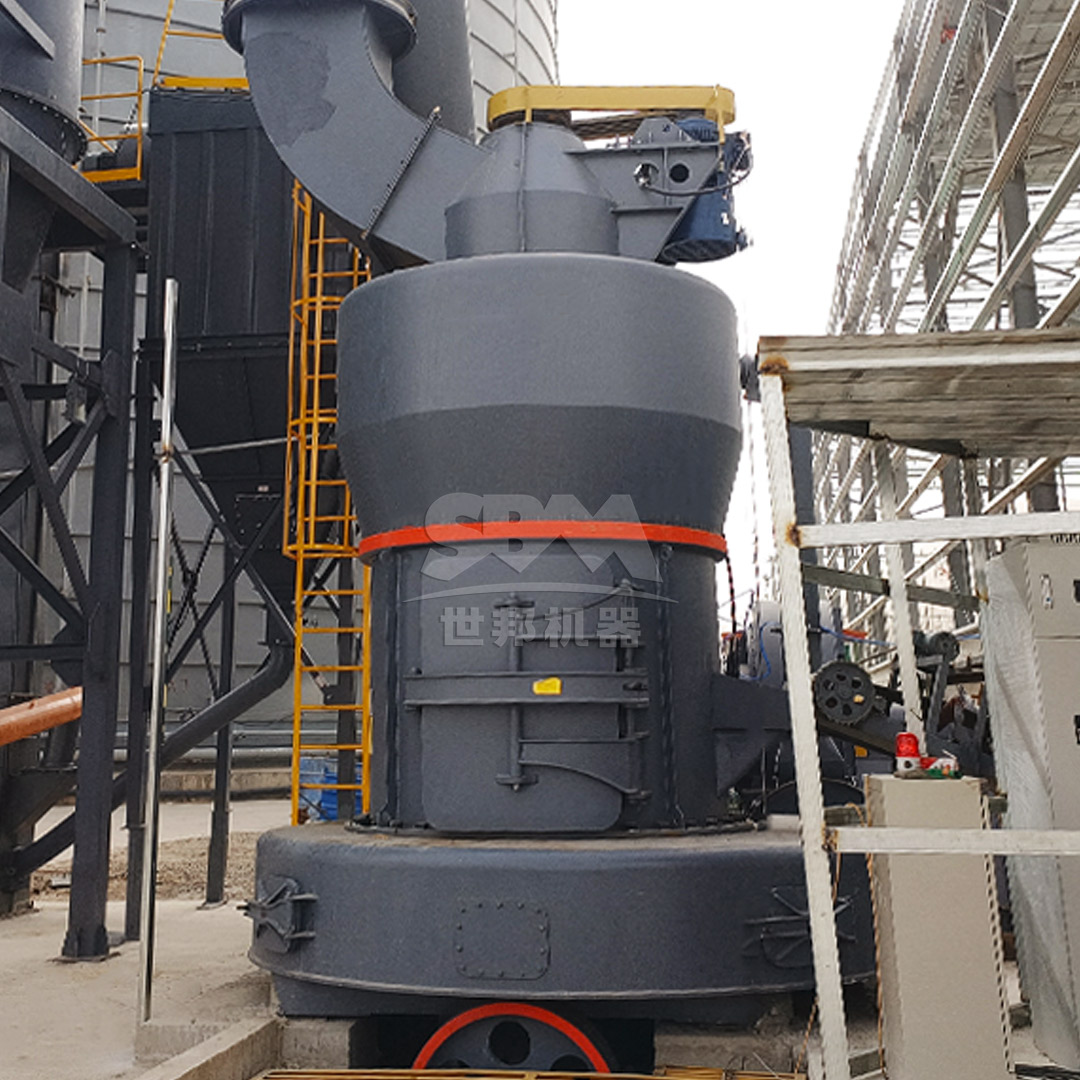

Recommended Solution: MTW Series Trapezium Mill

For carbon plants seeking to optimize their green anode block grinding process, we highly recommend our MTW Series Trapezium Mill. This advanced grinding system offers significant advantages over traditional ball mills:

• Enhanced Efficiency: With output fineness ranging from 30-325 mesh (up to 0.038mm), the MTW mill provides precise control over particle size distribution
• Reduced Energy Consumption: Advanced design features including curved air duct and integral transmission reduce energy usage by up to 30% compared to conventional ball mills
• Wear Resistance: Specially designed wear-resistant shovel blades and grinding rollers extend maintenance intervals and reduce operating costs
• Compact Design: The integrated system requires less space than equivalent capacity ball mills
• Environmental Compliance: Equipped with efficient pulse dust collection systems that meet international emission standards

The MTW Series Trapezium Mill operates on the principle of grinding roller and grinding ring interaction. Material is fed into the grinding chamber where it is crushed between the roller and ring, then classified to ensure consistent product quality. Multiple models are available to match specific production requirements, from the MTW110 with 3-9 ton/h capacity to the high-capacity MTW215G handling 15-45 tons per hour.

Alternative Solution: LM Series Vertical Roller Mill

For carbon plants with large production requirements, our LM Series Vertical Roller Mill presents an excellent alternative. This system offers:

• High Capacity: Processing capabilities from 3-250 tons per hour depending on model selection
• Integrated Operation: Combines crushing, grinding, drying, and classifying in a single unit
• Reduced Footprint: Compact design requires 50% less space than traditional ball mill systems
• Lower Operating Costs: Energy consumption reduced by 30-40% compared to ball mills
• Intelligent Control: Advanced automation systems allow for precise control of grinding parameters

The vertical roller mill operates through a bed crushing principle where material is ground between a rotating table and rollers. The ground material is then transported by air to a classifier where oversize particles are separated and returned for further grinding. This closed-circuit operation ensures consistent product quality with minimal energy expenditure.

Operational Considerations for Green Anode Grinding

When implementing a grinding system for green anode blocks, several factors must be considered:

Material Characteristics

Green anode blocks typically contain a mixture of calcined petroleum coke, recycled anode butts, and coal tar pitch binder. The varying hardness and composition of these components require a grinding system capable of handling heterogeneous materials without excessive wear.

Moisture Content

The presence of binder pitch means that green anode material may have slightly elevated moisture content compared to dry minerals. The grinding system must be able to handle this without clogging or reduced efficiency.

Product Consistency

Consistent particle size distribution is critical for subsequent processing steps. The grinding system must provide stable operation with minimal variation in product quality.

Conclusion

While traditional ball mills continue to serve the carbon industry, advanced grinding technologies like the MTW Series Trapezium Mill and LM Series Vertical Roller Mill offer significant advantages in efficiency, energy consumption, and product quality. These systems represent the future of green anode block preparation, enabling carbon plants to improve their operational economics while maintaining strict quality standards. When selecting a grinding system, consider not only the initial investment but also the long-term operational costs and the critical importance of particle size control in anode production.

Our technical team is available to assist in selecting the optimal grinding solution for your specific application, ensuring that your carbon plant operates at peak efficiency while producing high-quality anode materials.
