How to Grind Electrolytic Aluminum Dross into Fine Powder?

Introduction

Electrolytic aluminum dross is a by-product generated during the aluminum smelting process. It contains metallic aluminum, oxides, salts, and other impurities. Grinding this material into fine powder is essential for recycling metallic aluminum, extracting valuable compounds, or utilizing it in construction materials. However, the process requires specialized equipment due to the abrasive and heterogeneous nature of dross. This article explores the technical aspects of grinding electrolytic aluminum dross into fine powder and recommends suitable machinery for efficient processing.

Characteristics of Electrolytic Aluminum Dross

Aluminum dross varies in composition but typically consists of 40-60% metallic aluminum, along with aluminum oxide, salt fluxes (e.g., NaCl and KCl), and other non-metallic compounds. Its physical properties include high abrasiveness, variable hardness, and potential moisture content. These characteristics demand robust grinding equipment with high wear resistance and precise control over particle size distribution.

Grinding Process Overview

The grinding process typically involves several stages: primary crushing to reduce large chunks, secondary grinding to achieve intermediate fineness, and fine grinding to produce the desired powder. Key considerations include:

• Pre-treatment: Dross may require cooling, drying, or removal of excess salts to optimize grinding efficiency.
• Grinding Mechanism: Impact, compression, and attrition are common mechanisms. For fine powders, combined grinding and classification are crucial.
• Particle Size Requirements: Depending on the application, fineness can range from 30 mesh (0.6 mm) to 2500 mesh (5 μm).

Recommended Equipment for Grinding Aluminum Dross

Selecting the right grinding mill is critical for efficiency, product quality, and operational cost. Based on the properties of aluminum dross, we recommend the following equipment:

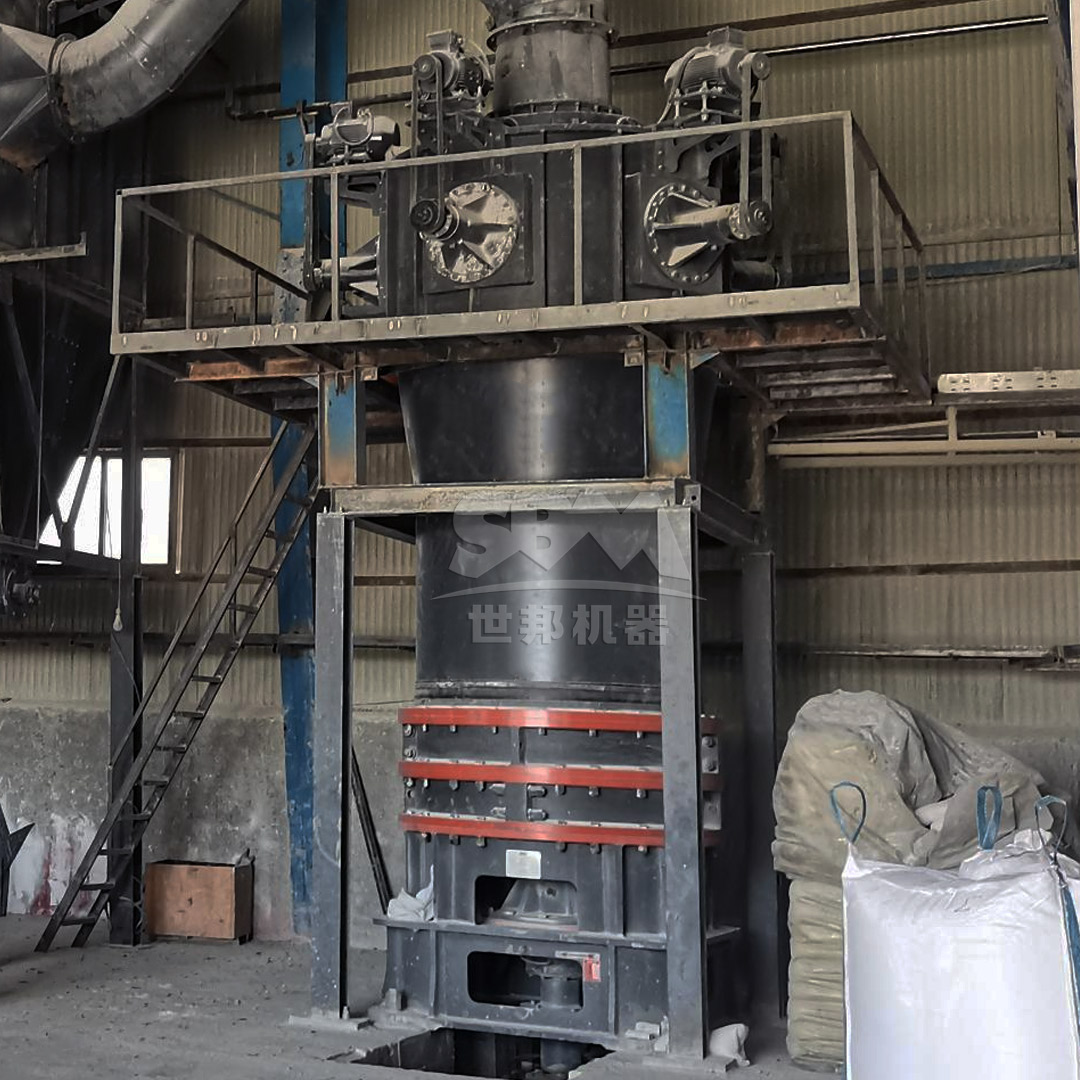

SCM Ultrafine Mill for Fine and Ultra-fine Grinding

For applications requiring fine to ultra-fine powder (e.g., 325-2500 mesh), the SCM Ultrafine Mill is an ideal choice. Its design addresses the challenges of grinding abrasive materials like aluminum dross:

• High Efficiency and Energy Savings: With 30% lower energy consumption compared to jet mills and twice the capacity, it reduces operational costs.
• Precise Classification: The vertical turbine classifier ensures accurate particle size cut-off, eliminating coarse particles and ensuring uniformity.
• Durable Construction: Special material rollers and grinding rings extend service life, while the bearingless screw grinding chamber enhances stability.
• Environmental Compliance: Pulse dust collection exceeds international standards, and noise levels are kept below 75 dB.

The mill operates by driving three-layer grinding rings via a main motor. Material is dispersed into the grinding path by centrifugal force, pressed and crushed by rollers, and finally collected by a cyclone and pulse dust removal system.

For aluminum dross grinding, models like SCM1000 (1.0-8.5 ton/h, 132 kW) or SCM1250 (2.5-14 ton/h, 185 kW) are suitable, balancing capacity and fineness control.

MTW Series Trapezium Mill for Coarse to Fine Grinding

For initial or intermediate grinding stages where feed size is larger (up to 50 mm) and fineness requirements are between 30-325 mesh, the MTW Series Trapezium Mill offers robust performance:

• Wear-Resistant Design: Combined shovel blades reduce maintenance costs, and curved surfaces extend roller life.
• Optimized Airflow: The curved air duct minimizes energy loss and improves transmission efficiency.
• Efficient Transmission: Integrated bevel gear transmission achieves 98% efficiency, saving space and installation costs.
• Durable蜗壳结构: The wear-resistant蜗壳 enhances air classification efficiency and reduces maintenance by 30%.

In this mill, the main motor drives磨辊to revolve around the central axis while rotating themselves, generating centrifugal force. Shovel blades throw material between the grinding ring and rollers for compression-based粉碎, with a classification system controlling product fineness.

Models like MTW175G (9.5-25 ton/h, 160 kW) or MTW215G (15-45 ton/h, 280 kW) are well-suited for handling aluminum dross at higher capacities.

Grinding Process Optimization Tips

To maximize efficiency and product quality when grinding aluminum dross:

1. Feed Preparation: Ensure dross is pre-crushed to ≤20 mm for SCM mills or ≤50 mm for MTW mills to avoid equipment overload.
2. Moisture Control: Dry the dross if moisture content is high to prevent clogging and improve grinding efficiency.
3. Wear Management: Regularly inspect and replace wear parts like rollers and rings, especially given the abrasive nature of dross.
4. Classification Adjustment: Use the mill’s classifier to tailor particle size distribution to specific application needs.

Applications of Ground Aluminum Dross Powder

Fine aluminum dross powder has multiple applications:

• Metal Recovery: Powdered dross can be processed to extract residual metallic aluminum.
• Construction Materials: Used as a filler or additive in cement, ceramics, or refractory products.
• Chemical Industry: Source of alumina or salts for chemical synthesis.

Conclusion

Grinding electrolytic aluminum dross into fine powder requires specialized equipment that combines durability, efficiency, and precise control. The SCM Ultrafine Mill is recommended for ultra-fine grinding needs up to 2500 mesh, while the MTW Series Trapezium Mill is ideal for coarser grinding with high capacity. By selecting the appropriate mill and optimizing the process, producers can achieve high-quality powder for various industrial applications, enhancing recycling efforts and reducing waste.
