How to Extract Vanadium from Stone Coal? Application of Vertical Mill in Vanadium Extraction Process
Introduction to Vanadium Extraction from Stone Coal
Stone coal, also known as carbonaceous shale, represents a significant source of vanadium worldwide. Unlike conventional vanadium-bearing minerals, stone coal contains vanadium in complex organic and inorganic compounds, making its extraction particularly challenging. The vanadium content in stone coal typically ranges from 0.5% to 1.5%, with some deposits containing even higher concentrations. The extraction process involves multiple stages, with mineral processing and grinding playing crucial roles in determining overall recovery efficiency and economic viability.
The traditional approach to vanadium extraction from stone coal involves crushing, grinding, roasting, leaching, and purification. Among these stages, the grinding process significantly impacts the subsequent roasting and leaching efficiency. Proper particle size distribution ensures optimal surface area for chemical reactions while minimizing energy consumption during downstream processes.
The Critical Role of Grinding in Vanadium Extraction
Grinding represents one of the most energy-intensive stages in vanadium extraction from stone coal. The objective is to achieve optimal particle size that maximizes vanadium liberation while minimizing overgrinding, which can lead to increased reagent consumption during leaching and potential vanadium losses. The target particle size typically falls between 45-325 mesh (325-45μm), depending on the specific mineralogy of the stone coal and the subsequent extraction method employed.
Conventional grinding equipment, such as ball mills, has been widely used in the industry. However, these systems often suffer from high energy consumption, significant wear part costs, and limited particle size control. The emergence of vertical roller mill technology has revolutionized this stage, offering substantial improvements in efficiency, control, and operational costs.
Advantages of Vertical Mills in Vanadium Processing
Vertical roller mills offer several distinct advantages for vanadium extraction from stone coal:
- Superior Energy Efficiency: Vertical mills consume 30-50% less energy compared to traditional ball mills, significantly reducing operational costs.
- Precise Particle Size Control: Advanced classification systems enable tight control over product fineness, optimizing subsequent roasting and leaching stages.
- Reduced Footprint: Compact design requires less space than conventional grinding circuits.
- Lower Noise and Dust Emissions: Enclosed systems minimize environmental impact and improve working conditions.
- Flexible Operation: Quick adjustment capabilities allow operators to respond to variations in feed material characteristics.

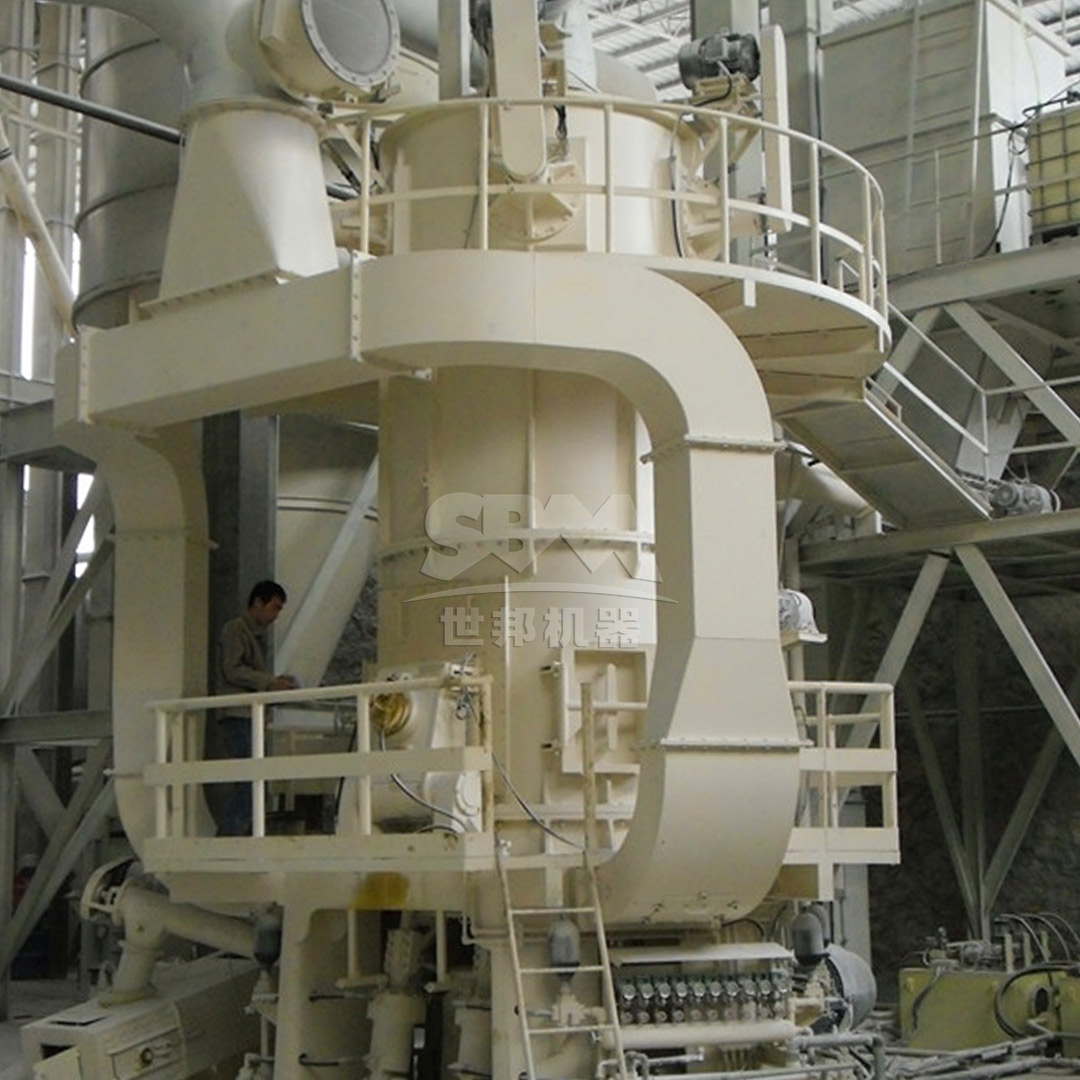

Recommended Equipment: LM Series Vertical Roller Mill
For vanadium extraction applications, we highly recommend our LM Series Vertical Roller Mill. This advanced grinding system has been specifically engineered to handle the challenging characteristics of stone coal while delivering exceptional performance in vanadium processing operations.
Technical Specifications
The LM Series Vertical Roller Mill features:
- Input Size: ≤50mm
- Output Fineness: 30-325 mesh (special models up to 600 mesh)
- Processing Capacity: 3-250 tons/hour (depending on model)
- Power Consumption: 30-40% lower than ball mill systems
Key Advantages for Vanadium Extraction
The LM Series Vertical Roller Mill incorporates several innovative features that make it particularly suitable for vanadium extraction from stone coal:
Integrated Design: The system integrates crushing, grinding, and classification functions in a single unit, reducing footprint by 50% and cutting infrastructure costs by 40%. This compact design is especially valuable in mining operations where space is often limited.
Advanced Wear Protection: Specially designed non-contact grinding elements and wear-resistant materials extend service life by up to 3 times compared to conventional systems. This is particularly important when processing abrasive stone coal, which can rapidly wear conventional grinding media.
Intelligent Control System: The expert-level automatic control system supports remote and local operation切换, with real-time monitoring of operational parameters. This ensures consistent product quality and reduces the need for manual intervention, a critical factor in maintaining optimal vanadium recovery rates.
Environmental Compliance: The fully sealed negative pressure operation ensures dust emissions remain below 20mg/m³, while operational noise is maintained at ≤80dB(A). This helps operations meet increasingly stringent environmental regulations.
Alternative Solution: SCM Ultrafine Mill for Specialized Applications
For operations requiring ultra-fine grinding or processing stone coal with particularly complex mineralogy, our SCM Series Ultrafine Mill presents an excellent alternative. This system is capable of producing powders in the range of 325-2500 mesh (45-5μm), making it suitable for applications where maximum surface area is critical for vanadium liberation.
Technical Highlights
The SCM Ultrafine Mill offers:
- Input Size: ≤20mm
- Output Fineness: 325-2500 mesh (D97≤5μm)
- Processing Capacity: 0.5-25 tons/hour (depending on model)
- Energy Efficiency: 30% lower energy consumption compared to jet mills
Application in Vanadium Extraction
The exceptional fineness control of the SCM Ultrafine Mill makes it particularly valuable when processing stone coal with fine-grained vanadium minerals or when aiming to maximize recovery rates through increased surface area. The high-precision classification system ensures uniform product quality, eliminating coarse particle contamination that could hinder subsequent extraction processes.
Process Integration and Optimization
Successful integration of vertical mill technology into vanadium extraction operations requires careful consideration of the entire process chain. The grinding stage must be optimized in conjunction with roasting parameters, as particle size distribution significantly affects roasting efficiency and vanadium conversion rates.
For most stone coal varieties, target fineness between 100-200 mesh (149-74μm) provides the optimal balance between grinding energy consumption and subsequent process efficiency. However, specific ore characteristics may necessitate adjustments, and the flexibility of vertical mills allows operators to fine-tune these parameters based on actual performance data.
Case Study: Performance Improvement with Vertical Mill Implementation

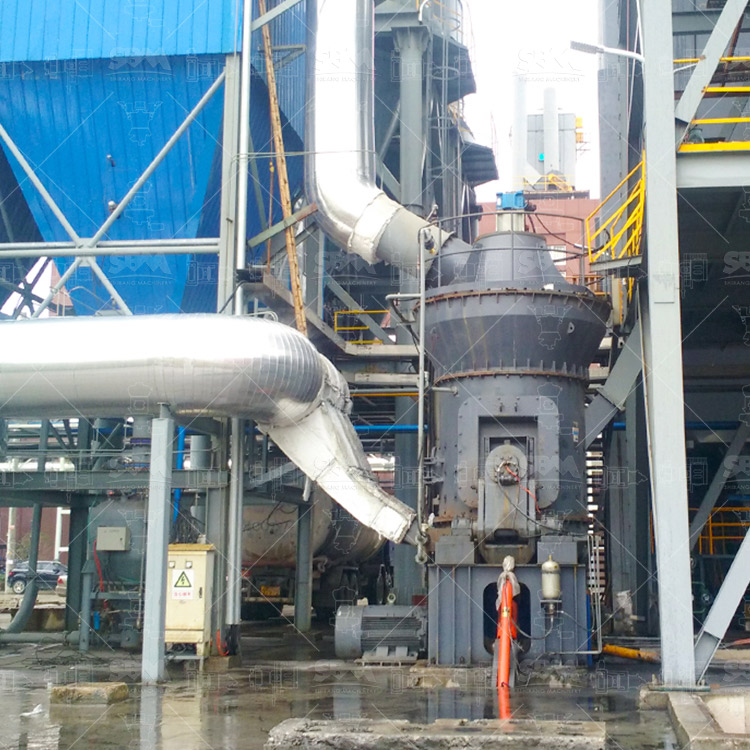

A vanadium extraction plant in China recently replaced their traditional ball mill circuit with an LM220K Vertical Roller Mill. The results demonstrated significant improvements:
- Grinding energy consumption reduced by 38%
- Vanadium recovery increased by 4.2% due to more consistent particle size distribution
- Maintenance costs decreased by 45%
- Overall operating costs reduced by 22%
These improvements highlight the potential benefits of modern vertical mill technology in vanadium extraction operations.
Economic Considerations
The economic benefits of implementing vertical mill technology in vanadium extraction extend beyond simple energy savings. The improved particle size control leads to more efficient roasting and leaching, reducing reagent consumption and increasing overall vanadium recovery. Additionally, the reduced maintenance requirements and longer component life contribute to lower operating costs and increased equipment availability.
When evaluating the economic viability of vertical mill implementation, operators should consider:
- Capital investment versus operational savings
- Potential increases in vanadium recovery
- Reduced consumption of roasting additives and leaching reagents
- Lower environmental compliance costs
- Reduced manpower requirements due to automation
Future Trends and Developments
The application of vertical mill technology in vanadium extraction continues to evolve. Recent developments include:
Advanced Control Systems: Integration of artificial intelligence and machine learning algorithms to optimize grinding parameters in real-time based on feed characteristics and downstream process requirements.
Hybrid Grinding Systems: Combinations of vertical mills with other grinding technologies to further optimize energy consumption and product quality.
Wear-resistant Materials: Development of advanced materials for grinding components that further extend service life when processing abrasive stone coal.
These innovations promise to further enhance the efficiency and economics of vanadium extraction from stone coal, supporting the growing demand for this critical metal in steel production, energy storage, and other high-tech applications.
Conclusion
The extraction of vanadium from stone coal represents a complex process where grinding efficiency plays a crucial role in determining overall economic viability. Vertical roller mill technology, particularly our LM Series Vertical Roller Mill, offers significant advantages over traditional grinding systems, including reduced energy consumption, improved particle size control, and lower operating costs.
For operations requiring ultra-fine grinding, the SCM Ultrafine Mill provides an excellent alternative with exceptional fineness control. Both systems have demonstrated their value in commercial vanadium extraction operations, delivering tangible improvements in recovery rates and operational economics.
As the demand for vanadium continues to grow, driven by its applications in high-strength steel and vanadium redox flow batteries, the optimization of extraction processes through advanced grinding technology will become increasingly important. Vertical mill technology represents a proven solution that can help operators meet these challenges while maintaining competitive operational costs.
