How to Diagnose Abnormal Current in Grinding Mills: A Step-by-Step Guide

Introduction

Abnormal current in grinding mills often indicates underlying mechanical or operational issues that can lead to reduced efficiency, equipment damage, or even catastrophic failure. As a mining machinery manufacturer with over 30 years of experience, ZENITH provides this comprehensive guide to help operators systematically diagnose and resolve current abnormalities in grinding systems.

Schematic diagram of grinding mill components

Step 1: Establish Baseline Parameters

Before diagnosing abnormalities, operators must understand normal operating parameters:

  • Record nameplate current values from motor specifications
  • Document typical current fluctuations during startup and stable operation
  • Establish historical trends for different material hardness levels

Step 2: Analyze Current Patterns

Different abnormal patterns indicate distinct issues:

Current Pattern Potential Causes
Sudden spikes Material overload, bearing seizure, or mechanical blockage
Gradual increase Wear components deterioration or lubrication failure
Erratic fluctuations Uneven feed distribution or voltage instability

Comparison chart of normal vs abnormal current patterns

Step 3: Mechanical Inspection

For mills like our MTW Series Trapezium Mill which features advanced wear-resistant components, conduct these checks:

  1. Verify grinding roller and ring wear (acceptable wear limit: ≤15mm)
  2. Check bearing temperatures (normal range: 40-65°C)
  3. Inspect gear transmission alignment (tolerance: ≤0.05mm/m)
  4. Examine lubrication system flow rates

Step 4: Electrical System Verification

Our XZM Ultrafine Mill with its intelligent control system requires:

  • Phase voltage balance check (imbalance ≤2%)
  • Insulation resistance test (≥1MΩ at 500VDC)
  • Starter contact inspection
  • Variable frequency drive parameter verification

Step 5: Process Parameter Review

Evaluate operational factors that affect current draw:

  • Feed material hardness (Mohs scale comparison)
  • Moisture content variations
  • Particle size distribution changes
  • System airflow rates

Recommended Solutions

For persistent current issues, consider upgrading to ZENITH’s advanced grinding solutions:

1. XZM Ultrafine Mill

With energy consumption 30% lower than conventional mills and intelligent current monitoring, this system automatically adjusts operation to maintain optimal current levels. The vertical turbine classifier ensures stable operation even with variable feed materials.

2. MTW Series Trapezium Mill

Featuring our patented anti-wear shovel design and curved air duct technology, this mill maintains consistent current draw throughout its operational life. The integrated PLC system provides real-time current analysis and predictive maintenance alerts.

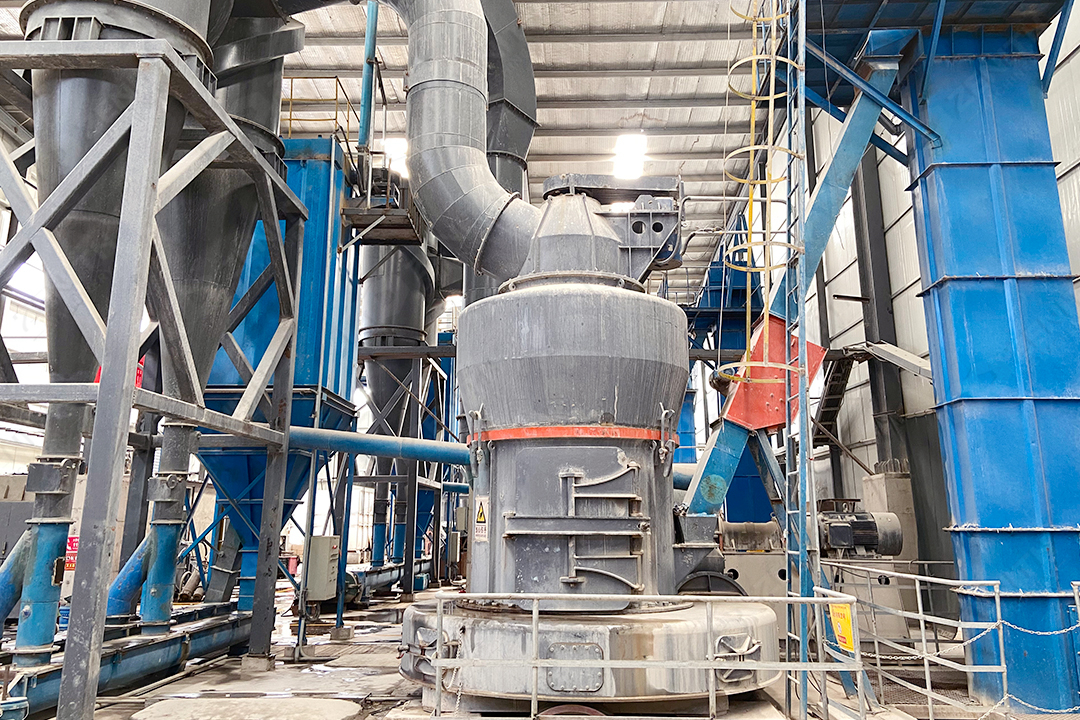

ZENITH grinding mill installation with electrical monitoring systems

Preventive Measures

Implement these best practices to avoid current abnormalities:

  1. Establish regular vibration analysis program
  2. Implement predictive maintenance schedule
  3. Train operators on proper startup/shutdown sequences
  4. Install continuous current monitoring systems

Conclusion

Systematic diagnosis of abnormal current patterns can prevent costly downtime and extend equipment life. ZENITH’s grinding mills incorporate advanced monitoring technologies and durable designs to minimize current-related issues. Our global service network stands ready to assist with comprehensive technical support and maintenance services.
