How to Choose the Right Slag Grinding Mill for Water-Quenched Slag
Introduction to Water-Quenched Slag Grinding
Water-quenched slag, also known as granulated blast furnace slag (GBFS), is a byproduct of the iron-making process that possesses excellent cementitious properties when finely ground. The selection of an appropriate grinding mill is crucial for optimizing the performance, energy efficiency, and economic viability of slag processing operations. This comprehensive guide explores the key factors to consider when choosing the right slag grinding mill for water-quenched slag applications.
Understanding Water-Quenched Slag Characteristics
Water-quenched slag has unique physical and chemical properties that significantly influence grinding mill selection. The rapid quenching process creates amorphous, glassy particles with high potential reactivity. The material typically has a moisture content of 10-15% and requires drying before or during grinding. The Bond Work Index for slag generally ranges between 14-23 kWh/t, indicating moderate grindability. Understanding these characteristics is essential for selecting equipment that can handle the specific challenges of slag grinding, including its abrasive nature and moisture content.
Key Factors in Slag Grinding Mill Selection
Production Capacity Requirements
The required production capacity is one of the primary considerations when selecting a slag grinding mill. Operations range from small-scale plants producing 5-10 tons per hour to large industrial facilities requiring 100+ tons per hour. The mill must be appropriately sized to match both current and anticipated future production needs while maintaining operational efficiency across varying load conditions.
Final Product Fineness Specifications
The target fineness of the ground slag significantly influences mill selection. For use as a cement additive, slag typically requires grinding to a specific surface area of 400-500 m²/kg (Blaine). Some applications may demand even finer products reaching 600-800 m²/kg. The mill must consistently produce the required particle size distribution while maintaining stable operation and minimizing energy consumption.
Energy Efficiency Considerations
Grinding operations account for a substantial portion of total energy consumption in slag processing plants. Modern grinding technologies offer significant improvements in energy efficiency compared to traditional ball mills. When evaluating mills, consider both the specific energy consumption (kWh/t) and the overall system efficiency, including auxiliary equipment such as classifiers, dust collectors, and material handling systems.
Moisture Content and Drying Requirements
Water-quenched slag typically contains 10-15% moisture, which must be addressed during the grinding process. Some mill designs integrate drying capabilities, allowing simultaneous grinding and drying, while others require separate pre-drying systems. The choice depends on the specific moisture content, available heat sources, and overall process economics.
Types of Grinding Mills for Slag Processing
Vertical Roller Mills (VRM)

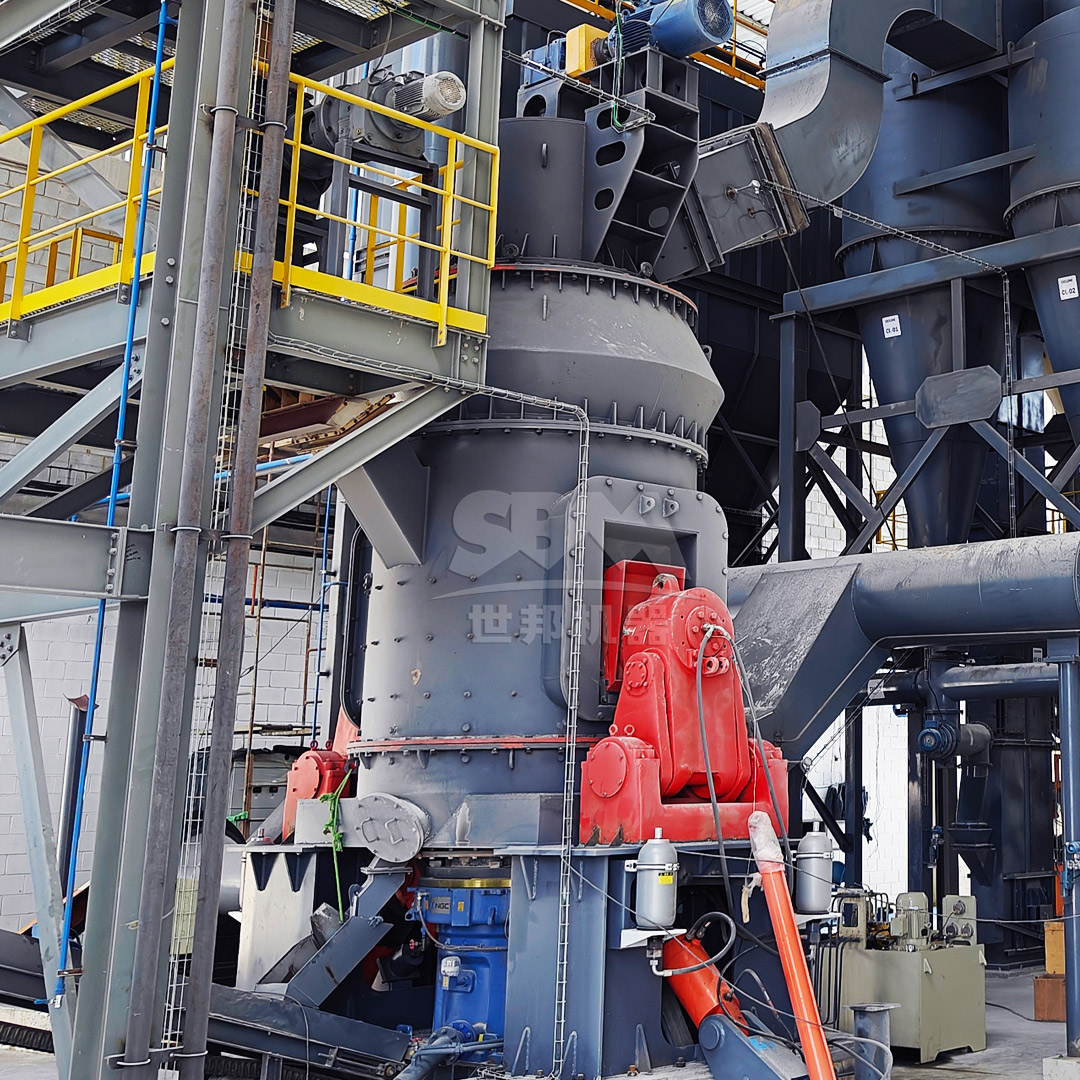

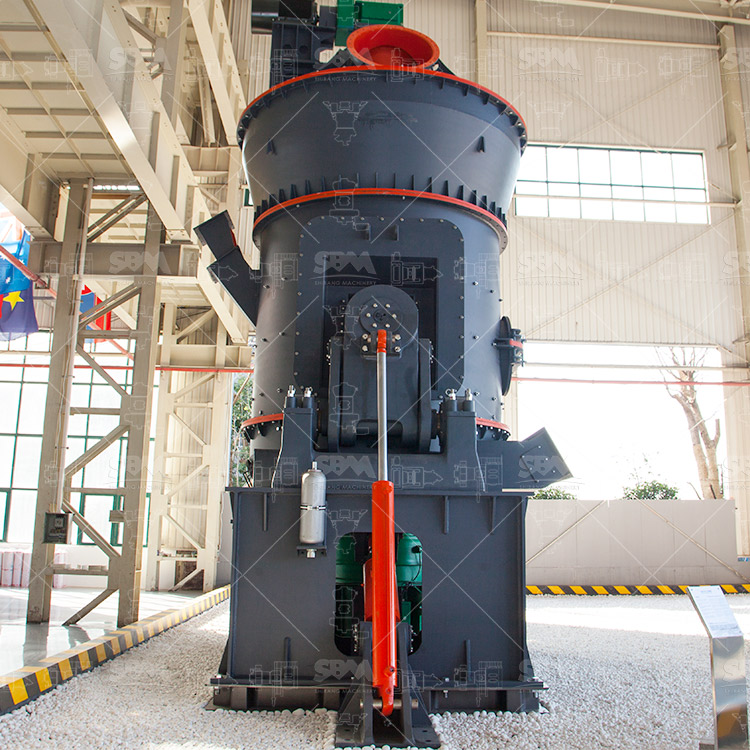

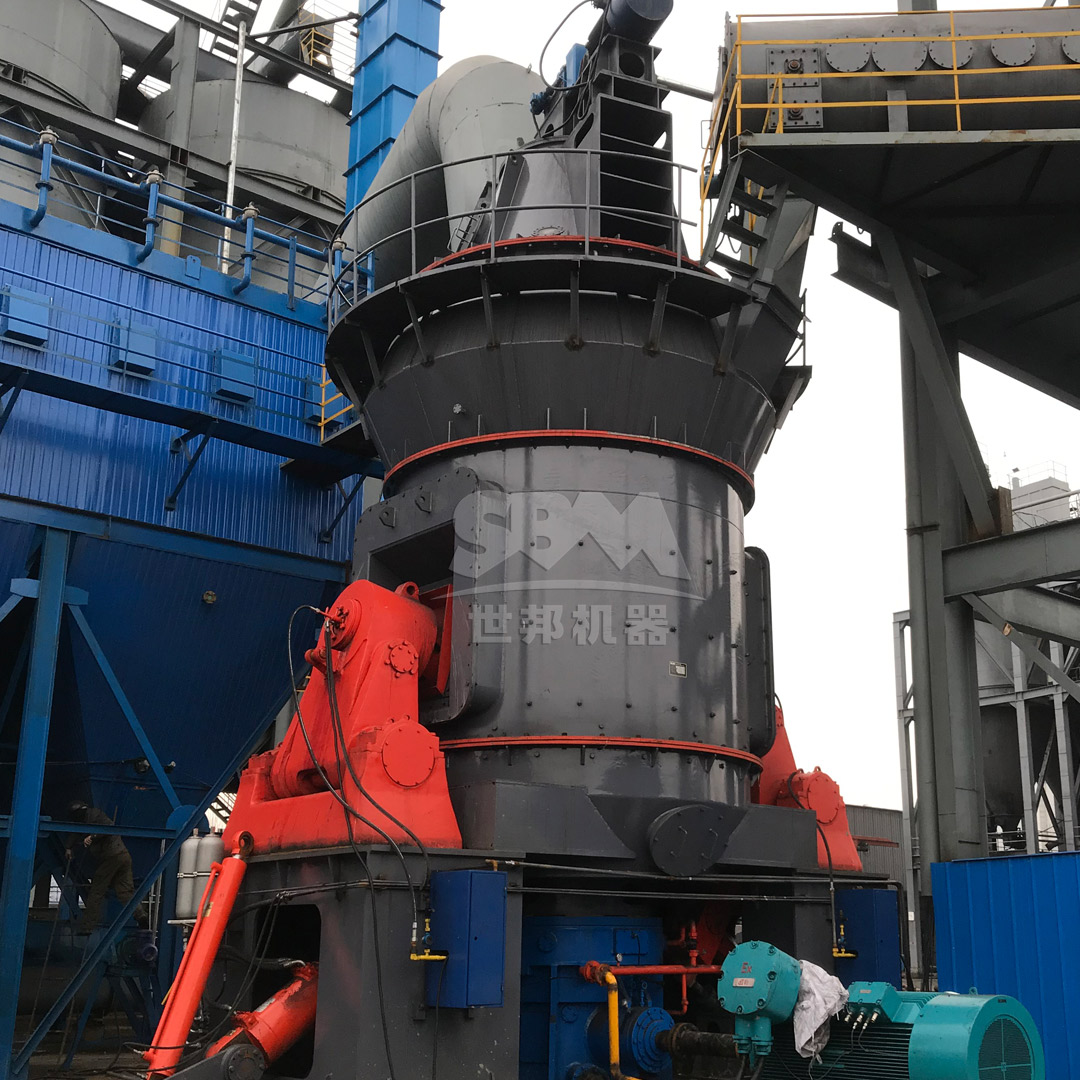

Vertical roller mills have become the preferred solution for large-scale slag grinding operations due to their excellent energy efficiency and drying capabilities. These mills utilize a bed compression principle where material is ground between a rotating table and rollers. The integrated classifier and drying system make VRMs particularly suitable for slag applications.
Our LM Series Vertical Roller Mill represents the state-of-the-art in slag grinding technology. With its集约化设计 (intensive design) that integrates crushing, grinding, and separation functions, it reduces footprint by 50% and can be installed outdoors, cutting infrastructure costs by 40%. The mill features low operating costs with specially designed磨辊与磨盘非接触设计 (non-contact grinding roller and disc design) that extends wear part life by 3 times while reducing energy consumption by 30-40% compared to ball mill systems.
The LM series offers comprehensive models specifically designed for slag applications, including the LM130N with 4-6 ton/hour capacity and the massive LM370N capable of processing 90-110 tons per hour. These specialized slag mills maintain consistent product quality with specific surface area ≥420m²/kg while handling slag moisture content up to 15%.
Ball Mills
Traditional ball mills remain a reliable option for slag grinding, particularly for operations requiring product flexibility or dealing with varying slag qualities. These mills consist of a rotating cylinder filled with grinding media (typically steel balls) that impact and attrition the material. While less energy-efficient than vertical roller mills, ball mills offer simplicity, reliability, and the ability to handle moist materials with appropriate modifications.
Roller Presses
Roller presses utilize high-pressure comminution between two counter-rotating rolls, creating a highly efficient grinding mechanism particularly effective for brittle materials like slag. These systems are often used in combination with ball mills in semi-finish or finish grinding configurations, offering significant energy savings while maintaining product quality.
Technical Comparison of Grinding Technologies
When evaluating different grinding technologies for slag applications, several technical parameters must be considered. Vertical roller mills typically offer specific power consumption of 35-45 kWh/t for producing slag cement with 400 m²/kg Blaine fineness, compared to 45-55 kWh/t for ball mill systems. VRMs also provide better drying capacity, handling moisture contents up to 20% with integrated hot gas generators, while ball mills are generally limited to 5-8% moisture without auxiliary drying systems.
Maintenance requirements also vary significantly between technologies. Vertical roller mills require more sophisticated maintenance procedures but offer longer intervals between major overhauls (typically 8,000-10,000 operating hours). Ball mills have simpler maintenance requirements but may need more frequent attention to liners and grinding media.
Advanced Grinding Solutions for Specialized Applications
Ultra-Fine Grinding Requirements

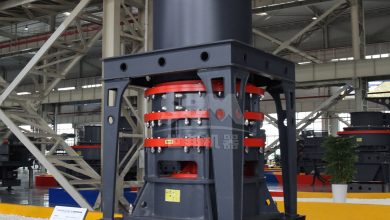

For applications requiring extremely fine slag products, specialized grinding equipment becomes necessary. Our SCM Series Ultrafine Mill provides exceptional performance for producing high-value slag products with fineness ranging from 325 to 2500 mesh (D97 ≤5μm). This mill delivers remarkable efficiency with capacity twice that of jet mills while reducing energy consumption by 30%. The intelligent control system automatically maintains consistent product particle size through real-time feedback mechanisms.
The SCM series features high-precision classification through its vertical turbine classifier, ensuring precise particle size cuts without coarse powder contamination. The durable design incorporates special material rollers and grinding rings that extend service life several times over conventional designs. With models ranging from the SCM800 (0.5-4.5 ton/hour) to the SCM1680 (5.0-25 ton/hour), this mill series accommodates various production requirements while maintaining exceptional product quality.
Integrated Grinding and Classification Systems
Modern slag grinding operations increasingly favor integrated systems that combine grinding, classification, and collection in a single, optimized package. These systems offer improved process control, reduced footprint, and lower installation costs compared to traditional separate-component approaches.
Environmental and Operational Considerations
Dust Collection and Emission Control
Effective dust control is essential in slag grinding operations to protect both equipment and the environment. Modern grinding mills incorporate advanced pulse-jet baghouse filters or electrostatic precipitators that achieve collection efficiencies exceeding 99.9%. Our grinding systems feature pulse dust collection technology that exceeds international standards, ensuring emissions remain below 20 mg/m³.
Noise Control Measures
Grinding operations can generate significant noise, requiring appropriate mitigation measures. Modern mill designs incorporate comprehensive noise control features, including acoustic enclosures, vibration isolation, and optimized mechanical designs. Our equipment maintains noise levels below 75-80 dB(A) through integrated隔音室设计 (soundproof chamber design) and advanced damping technologies.
Water Consumption and Thermal Efficiency
While slag grinding itself doesn’t typically consume significant water, the integrated drying systems in many modern mills require careful thermal management. Optimizing heat recovery and utilization can substantially reduce operating costs and environmental impact.
Economic Analysis and Return on Investment
Selecting the appropriate slag grinding mill requires careful economic analysis considering both capital and operating costs. Vertical roller mills typically command higher initial investment but offer significantly lower operating costs through reduced energy consumption and maintenance requirements. The payback period for premium grinding technology generally ranges from 2-4 years, depending on local energy costs, production volume, and product value.
Additional economic benefits include reduced footprint, lower manpower requirements, and improved product consistency that can command premium pricing in certain markets. Lifecycle cost analysis should consider all these factors when making the final equipment selection.
Future Trends in Slag Grinding Technology
The slag grinding industry continues to evolve with emerging technologies focused on further improving efficiency, reducing environmental impact, and enhancing product quality. Key trends include the development of more sophisticated control systems utilizing artificial intelligence for process optimization, advanced wear materials extending maintenance intervals, and hybrid grinding systems combining multiple technologies for optimal performance across varying operating conditions.
Digitalization and Industry 4.0 concepts are increasingly being applied to slag grinding operations, enabling predictive maintenance, remote monitoring, and automated optimization of grinding parameters based on real-time quality feedback.
Conclusion
Selecting the right grinding mill for water-quenched slag requires careful consideration of multiple technical, operational, and economic factors. The optimal choice depends on specific production requirements, available infrastructure, product specifications, and economic constraints. Vertical roller mills generally offer the best combination of energy efficiency, drying capability, and operational flexibility for most modern slag grinding applications, while specialized technologies like our SCM Ultrafine Mill provide exceptional performance for high-value applications requiring extreme fineness.
By thoroughly evaluating all relevant factors and considering both current needs and future expansion plans, operators can select grinding equipment that delivers optimal performance throughout its operational lifecycle. The continuous advancement in grinding technology promises even greater efficiency and capability in the future, further enhancing the value proposition of slag utilization in construction materials.
