How to Choose the Right Grinding Mill: A Technical Guide for Equipment Selection
Introduction
Selecting the appropriate grinding mill is critical for optimizing production efficiency, reducing operational costs, and achieving desired product fineness. This guide provides a systematic approach to equipment selection based on material properties, capacity requirements, and technological advancements.
1. Key Selection Criteria
1.1 Material Characteristics
- Hardness: Mohs scale determines required grinding pressure
- Moisture content: Wet vs dry grinding system selection
- Abrasiveness: Influences wear-part material selection
1.2 Production Requirements
| Parameter | Considerations |
|---|---|
| Capacity | Hourly throughput (0.5-250t/h) |
| Fineness | Range from 5μm to 3mm |
| Energy efficiency | kW·h/ton metrics |

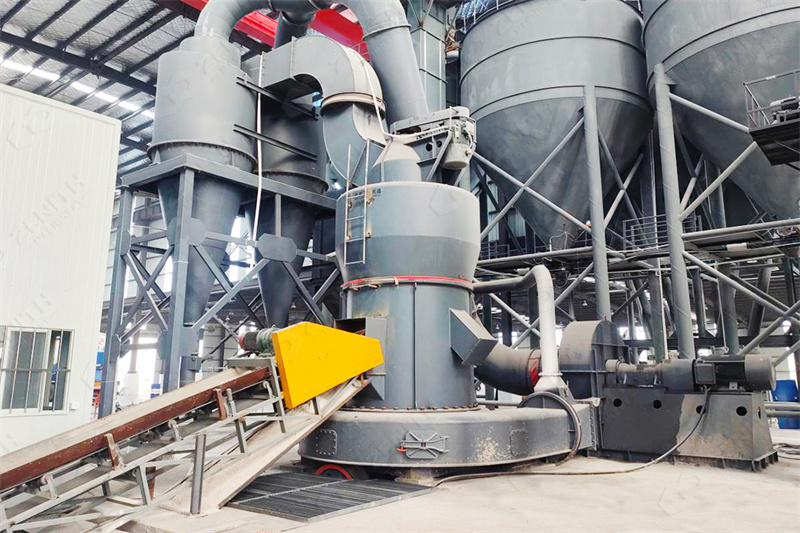

2. Mill Type Comparison

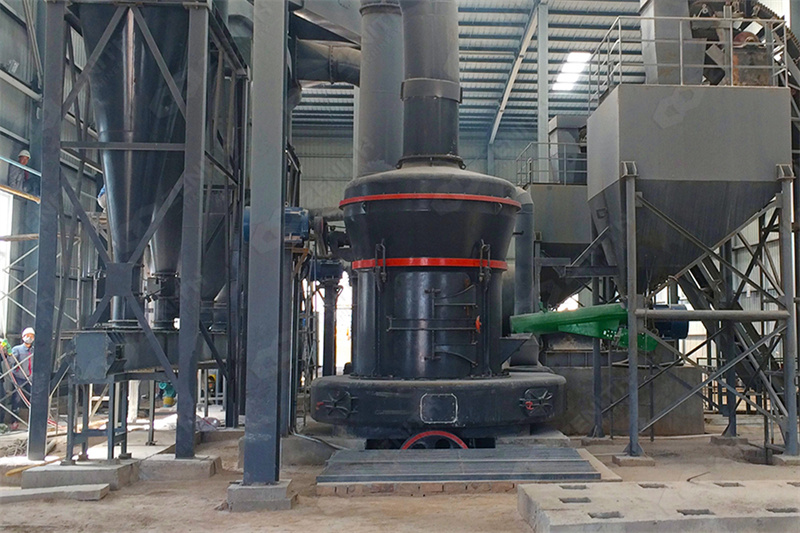

2.1 Ultrafine Grinding (XZM Series)
For applications requiring 5-45μm fineness, ZENITH’s XZM Ultrafine Mill offers exceptional performance:
- Vertical turbine classifier achieves precise particle cut
- 30% energy saving compared to jet mills
- Handles materials up to Mohs 9 hardness
2.2 Medium-fine Grinding (MTW Series)
When processing 45-600μm materials, the MTW Trapezium Mill provides:
- Curved air duct design reduces energy loss
- 98% transmission efficiency with bevel gear
- 30% lower maintenance costs
3. Specialized Solutions
3.1 Large-scale Mineral Processing
For mining operations requiring 50-250t/h capacity, ZENITH’s LM Vertical Roller Mill features:
- 50% footprint reduction vs ball mills
- 40% lower energy consumption
- Automatic control system with remote monitoring
3.2 High-moisture Materials
Our patented hot air circulation system in MTM series mills handles materials with up to 15% moisture content without pre-drying.
4. Selection Workflow
- Conduct material grindability tests
- Determine required D50/D97 values
- Calculate total grinding circuit power
- Evaluate auxiliary equipment requirements
5. Why Choose ZENITH?
With 30+ years of R&D experience and participation in national standard formulation, our grinding mills incorporate:
- State Council-subsidized engineering team
- Global service network across 170+ countries
- ISO-certified manufacturing processes
For ultra-fine applications up to 2500 mesh, the XZM Ultrafine Mill delivers unmatched precision with D97≤5μm capability. Contact our technical team for customized solutions matching your specific requirements.
