How to Choose the Right Coal Grinding Mill Equipment: Key Selection Criteria and Factors
Introduction
Selecting the appropriate coal grinding mill is a critical decision that significantly impacts operational efficiency, product quality, and overall profitability in coal processing operations. The right equipment must align with specific production requirements, material characteristics, and economic considerations. This comprehensive guide explores the key factors and selection criteria essential for choosing the optimal coal grinding mill, with insights into advanced technological solutions available in today’s market.
Understanding Coal Grinding Requirements
Before evaluating specific mill types, operators must thoroughly understand their grinding requirements. Coal properties vary significantly based on geographic origin, formation processes, and intended application. Key considerations include:
Material Characteristics: Hardness, abrasiveness, moisture content, and grindability index (HGI) directly influence mill selection. Softer coals with higher HGI values require less grinding energy, while harder coals necessitate more robust equipment.
Production Capacity: Required throughput rates determine the size and type of grinding system. Operations range from small-scale pilot plants (1-5 t/h) to large industrial facilities exceeding 100 t/h.
Product Fineness: Final application dictates the required particle size distribution. Pulverized coal injection (PCI) for blast furnaces typically requires 80% passing 75 microns, while ultra-fine applications for specialized industries may demand particles below 10 microns.
Key Selection Criteria
1. Technical Performance Parameters
The fundamental technical specifications form the basis for equipment selection:
Feed Size Compatibility: The maximum input size the mill can handle without pre-crushing or with minimal preparatory size reduction. Mills typically accept feed sizes from 20-50mm depending on design.
Output Fineness Range: The ability to produce the required particle size distribution consistently. Advanced mills offer adjustable fineness from coarse (45-600μm) to ultra-fine (5-45μm) ranges.
Capacity Matching: The equipment must meet current production demands while allowing for future expansion. Underutilization increases operational costs, while overloading reduces efficiency and component life.
2. Energy Efficiency Considerations
Grinding operations account for a significant portion of energy consumption in coal processing:
Specific Energy Consumption: Measured in kWh/t, this metric directly impacts operational costs. Modern vertical mills typically consume 30-40% less energy than traditional ball mills.
Power Distribution: Understanding how energy is distributed between main motors, classifiers, fans, and auxiliary systems helps optimize overall efficiency.
Heat Generation and Management: Effective thermal management prevents moisture issues and maintains optimal grinding conditions, particularly important for high-moisture coals.
3. Operational Reliability and Maintenance
Equipment reliability directly affects production continuity and maintenance costs:
Wear Part Durability: The quality and design of grinding elements (rolls, rings, liners) determine maintenance intervals and operating costs. Advanced materials can extend service life by 300-400%.
Maintenance Accessibility:
Design features that facilitate quick component replacement reduce downtime during maintenance operations. Modular designs and hydraulic systems enable faster servicing.
System Integration: Well-integrated systems with proper instrumentation and controls enhance reliability through continuous monitoring and automatic adjustments.
4. Environmental Compliance
Modern grinding operations must meet stringent environmental standards:
Dust Emission Control: Effective containment and collection systems maintain workplace safety and environmental compliance. Pulse jet baghouses typically achieve emissions below 20mg/m³.
Noise Levels: Acoustic enclosures and vibration damping systems reduce noise pollution, with advanced designs achieving levels below 75-80dB.
System Sealing: Complete negative pressure operation prevents dust leakage and maintains clean working conditions.
Advanced Grinding Technologies
Vertical Roller Mills for Coal Grinding
Vertical roller mills (VRMs) have become the preferred solution for modern coal grinding applications due to their superior efficiency and compact design. These systems integrate grinding, drying, classification, and material conveying in a single unit, offering significant advantages over traditional technologies.

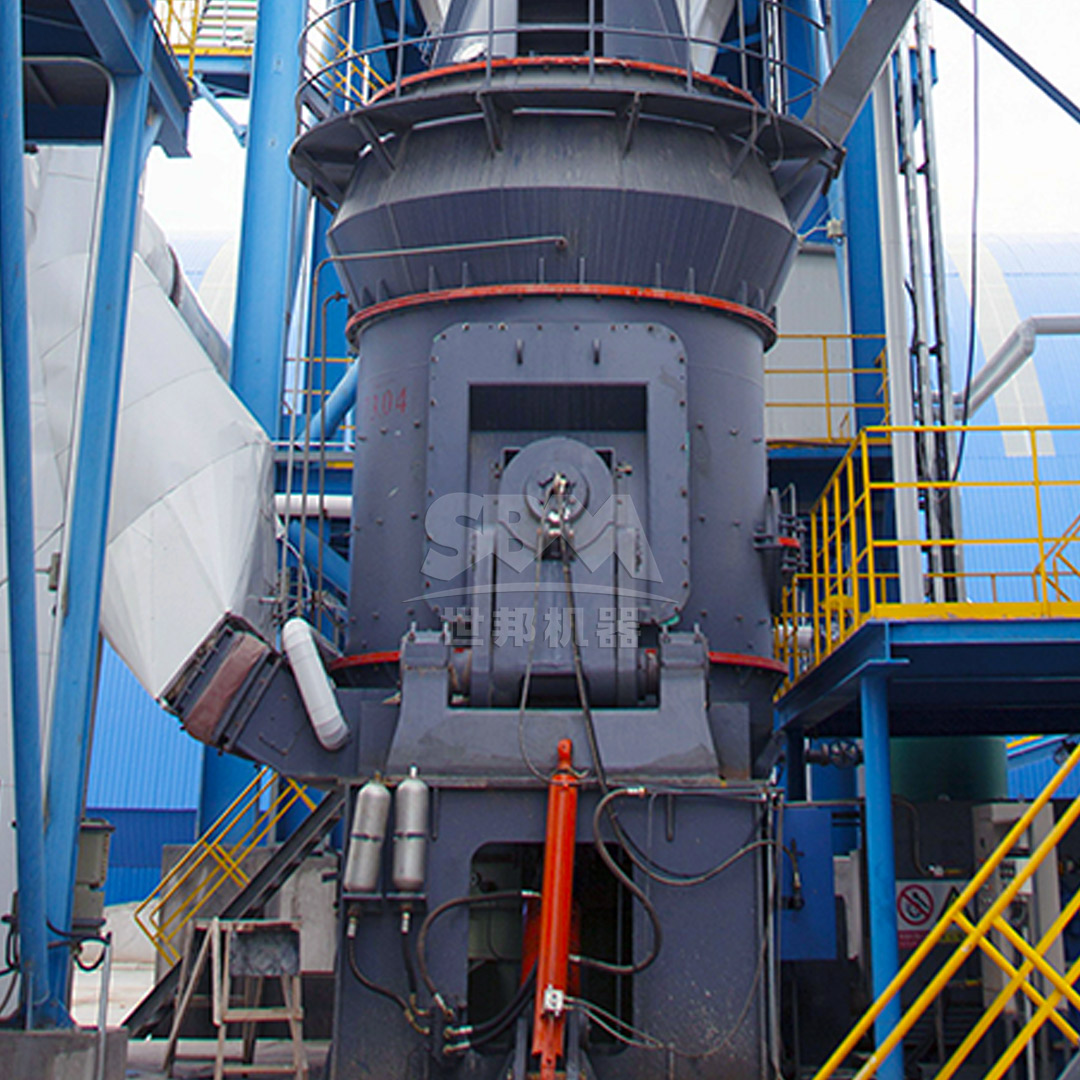

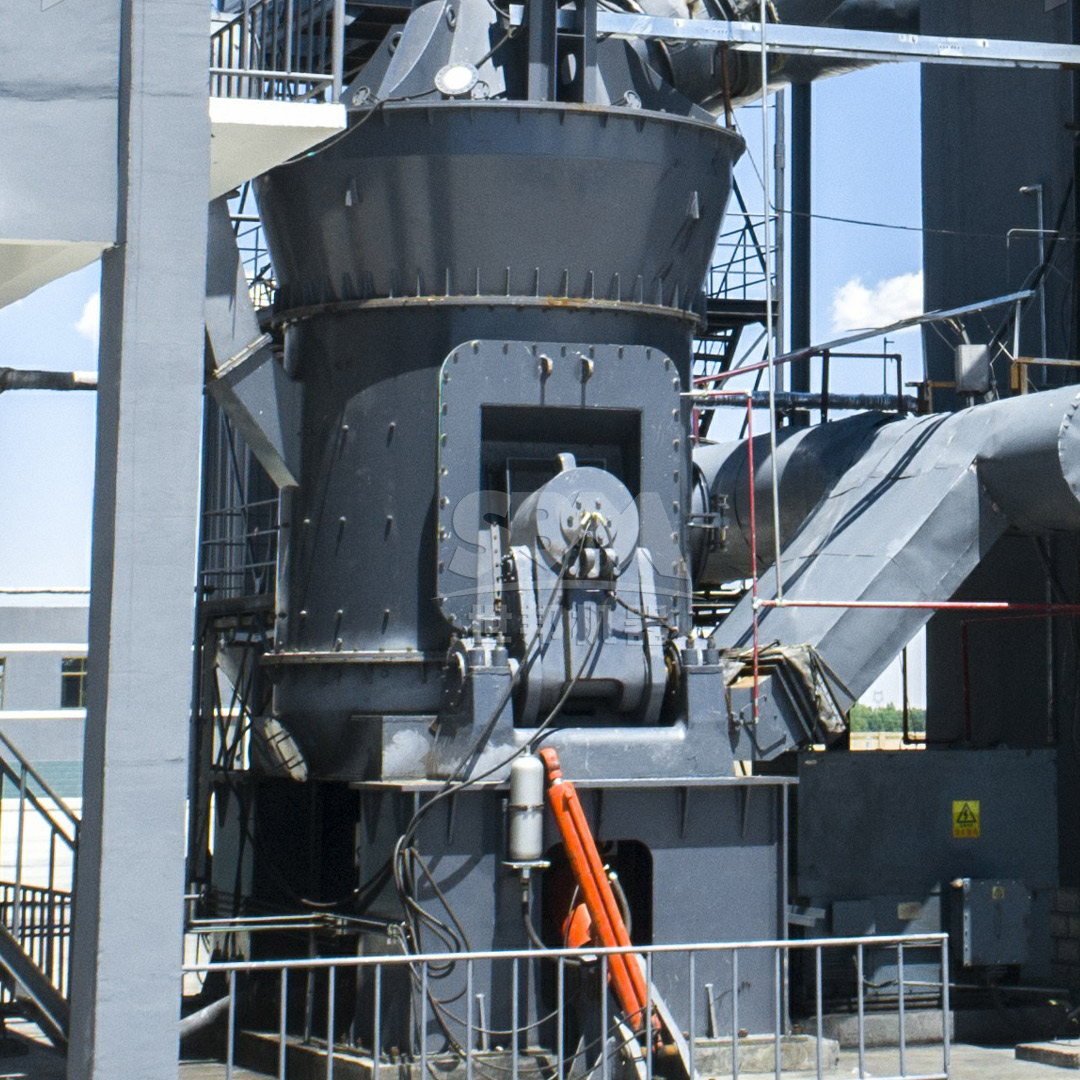

Our LM Series Vertical Roller Mill represents the cutting edge in coal grinding technology. Designed specifically for coal applications, this mill series offers exceptional performance with output fineness adjustable between 5-20% R0.08mm and capacities ranging from 3-90 t/h depending on model selection.
Key advantages include:
• Integrated Design: Combines crushing, grinding, and separation functions, reducing footprint by 50% and civil engineering costs by 40%
• Exceptional Efficiency: Energy consumption 30-40% lower than ball mill systems with identical capacity
• Advanced Control Systems: Expert automatic control with remote monitoring capabilities reduces manual intervention
• Environmental Performance: Full negative pressure operation maintains dust emissions below 20mg/m³ with operating noise ≤80dB(A)

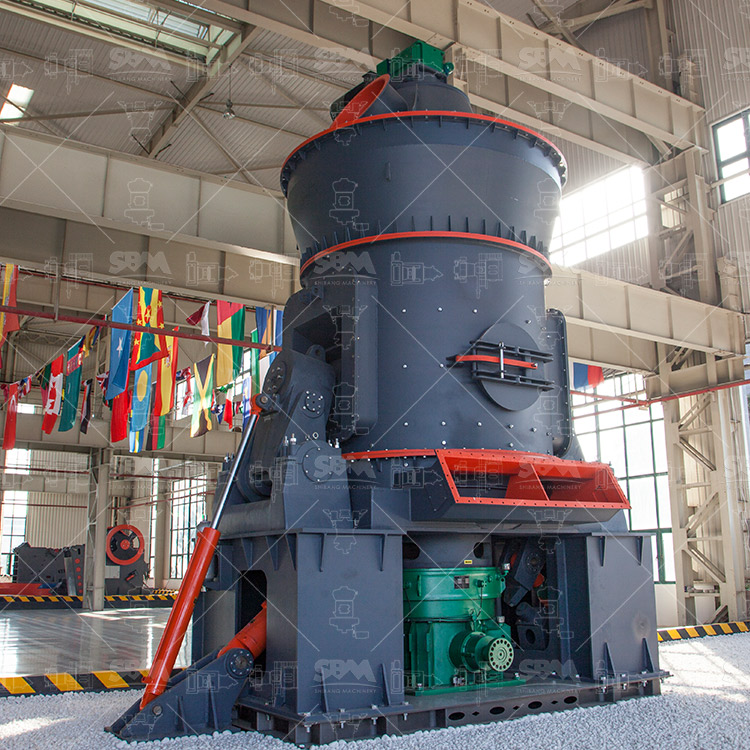

The LM Series operates through a precision grinding process where the main motor drives the grinding table rotation through a reducer. Material enters through the center feed pipe and spreads uniformly under centrifugal force. Hydraulically loaded grinding rollers apply pressure to the material bed, achieving efficient comminution. Qualified fine powder is carried by hot gas to the classifier, while coarse material returns to the grinding table for further processing.
Ultra-Fine Grinding Solutions
For applications requiring exceptionally fine coal powders, specialized ultra-fine grinding equipment delivers superior performance. These systems produce powders in the 5-45μm range (325-2500 mesh) with narrow particle size distribution and excellent uniformity.
Our SCM Ultrafine Mill series sets the standard for ultra-fine coal grinding with output fineness reaching 325-2500 mesh (D97≤5μm). This advanced mill delivers remarkable efficiency with capacity reaching 25 t/h while reducing energy consumption by 30% compared to jet mills.
Technical highlights include:
• High-Precision Classification: Vertical turbine classifier ensures accurate particle size cut-off without coarse powder contamination
• Durable Construction: Special material rollers and grinding rings provide extended service life, while bearing-free screw grinding chamber ensures stable operation
• Environmental Excellence: Pulse dust collection efficiency exceeds international standards with noise levels controlled below 75dB through acoustic chamber design
The SCM series operates through a multi-layer grinding principle where the main motor drives three-layer grinding rings to rotate. Material is dispersed to the grinding track by centrifugal force and undergoes progressive compression grinding through roller pressure. The final product is collected by cyclone collectors and pulse dust removal systems, ensuring complete powder recovery.
Economic Considerations
Capital Investment Analysis
The initial equipment cost must be evaluated against long-term operational benefits:
Equipment Cost Structure: Understanding the complete cost including auxiliary equipment, installation, and commissioning provides a realistic investment picture.
Space Requirements: Compact designs reduce building costs and allow for better facility layout optimization.
Installation Complexity: Pre-assembled modules and simplified installation procedures reduce implementation time and costs.
Operational Cost Optimization
Long-term operational economics often outweigh initial investment considerations:
Energy Consumption: With energy representing 40-60% of total grinding costs, high-efficiency equipment provides rapid return on investment.
Maintenance Costs: Durable components and accessible designs reduce maintenance time and spare part consumption.
Labor Requirements: Automated systems reduce operator dependency and minimize human error.
Lifecycle Cost Assessment
A comprehensive lifecycle analysis should consider:
Component Life Expectancy: Realistic estimates of wear part longevity under specific operating conditions.
Technology Obsolescence: Equipment designed for future upgrades and technology integration.
Residual Value: Quality equipment maintains higher resale value and longer productive life.
Implementation Considerations
System Integration
Successful grinding system implementation requires careful integration with existing operations:
Feed System Compatibility: Proper interface with upstream crushing and handling equipment ensures consistent feed quality and quantity.
Product Handling: Integration with downstream conveying, storage, and utilization systems maintains product quality throughout the process chain.
Control System Integration: Seamless connection with plant-wide control systems enables optimized overall operation.
Operational Training
Proper training ensures optimal equipment utilization:
Operator Training: Comprehensive understanding of operating principles, control parameters, and troubleshooting procedures.
Maintenance Training: Detailed knowledge of maintenance requirements, procedures, and safety protocols.
Technical Support: Access to manufacturer expertise for complex operational challenges and optimization opportunities.
Conclusion
Selecting the right coal grinding mill equipment requires a systematic approach that balances technical requirements, operational efficiency, economic considerations, and environmental compliance. The evolution of grinding technology, particularly through advanced vertical roller mills and ultra-fine grinding systems, offers unprecedented opportunities for efficiency improvement and cost reduction.
Modern equipment like our LM Series Vertical Roller Mill and SCM Ultrafine Mill series represent the pinnacle of grinding technology, combining high efficiency, operational reliability, and environmental performance. These systems deliver specific energy consumption reductions of 30-40%, maintenance cost reductions of 30-50%, and environmental performance that exceeds international standards.
The optimal selection ultimately depends on specific application requirements, but the fundamental principles of matching equipment capability to operational needs, considering total lifecycle costs, and ensuring proper integration and support remain constant. By applying these selection criteria and leveraging advanced grinding technologies, operators can achieve significant improvements in productivity, cost efficiency, and environmental performance in their coal grinding operations.
