How to Choose a Grinding Mill for Needle Coke Production and Industry Applications

Introduction

Needle coke, a premium grade of petroleum coke characterized by its low coefficient of thermal expansion (CTE) and high electrical conductivity, is a critical raw material for the production of ultra-high power graphite electrodes used in electric arc furnaces (EAFs) and lithium-ion battery anodes. The production of high-quality needle coke involves a complex process of delayed coking and subsequent calcination. A crucial, yet often underestimated, step in preparing needle coke for its final applications is the grinding and milling process. The choice of grinding mill directly impacts the product’s particle size distribution (PSD), morphology, and ultimately, the performance of the final graphite electrode or battery component. Selecting the wrong equipment can lead to excessive energy consumption, high wear costs, and an out-of-spec product that fails to meet stringent industry requirements.

This article provides a comprehensive guide to selecting the optimal grinding mill for needle coke production, covering key material characteristics, mill types, selection criteria, and industry-specific applications.

Understanding Needle Coke: Material Characteristics and Grinding Challenges

Before selecting a mill, it is essential to understand the unique properties of needle coke that influence the grinding process:

• Abrasive Nature: Calcined needle coke is an extremely abrasive material. This abrasiveness leads to high wear on grinding components, making the durability and wear resistance of the mill a primary concern.
• Desired Particle Size Distribution (PSD): For electrode production, a controlled and often bimodal PSD is required to achieve optimal packing density. Fines (ultra-fine particles) are necessary for binding, while coarser particles provide structural integrity. Battery applications often require a very fine and consistent single-mode distribution.
• Product Purity: Contamination from grinding media (e.g., metal wear from balls or rollers) must be minimized as it can adversely affect the electrical and thermal properties of the final product.
• Thermal Sensitivity: While calcined coke is thermally stable, excessive heat generation during grinding should be avoided to prevent any potential oxidation or changes in material structure.

Types of Grinding Mills and Their Suitability for Needle Coke

Various mill types are employed in the size reduction of carbon materials. Their applicability to needle coke varies based on the desired final fineness and production capacity.

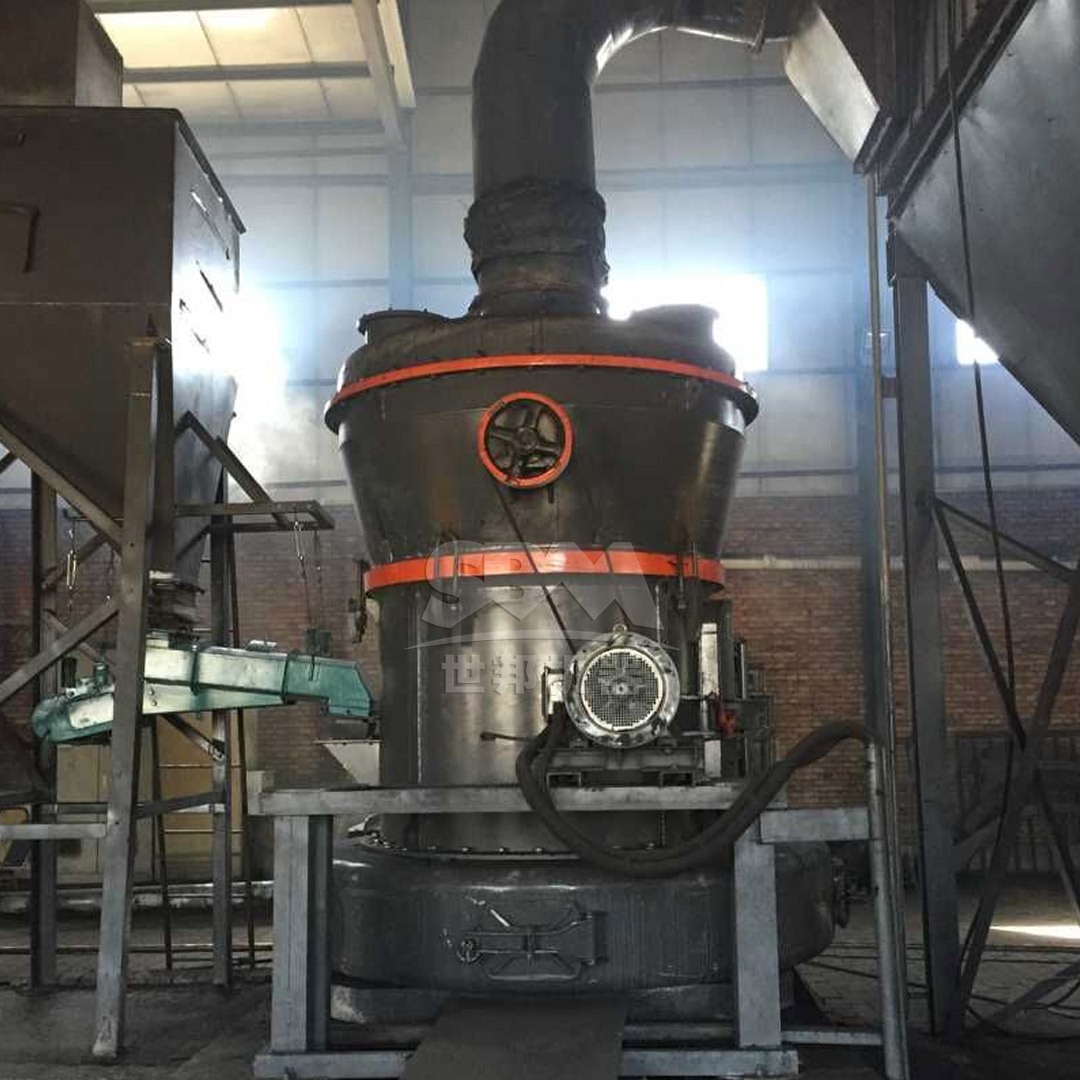

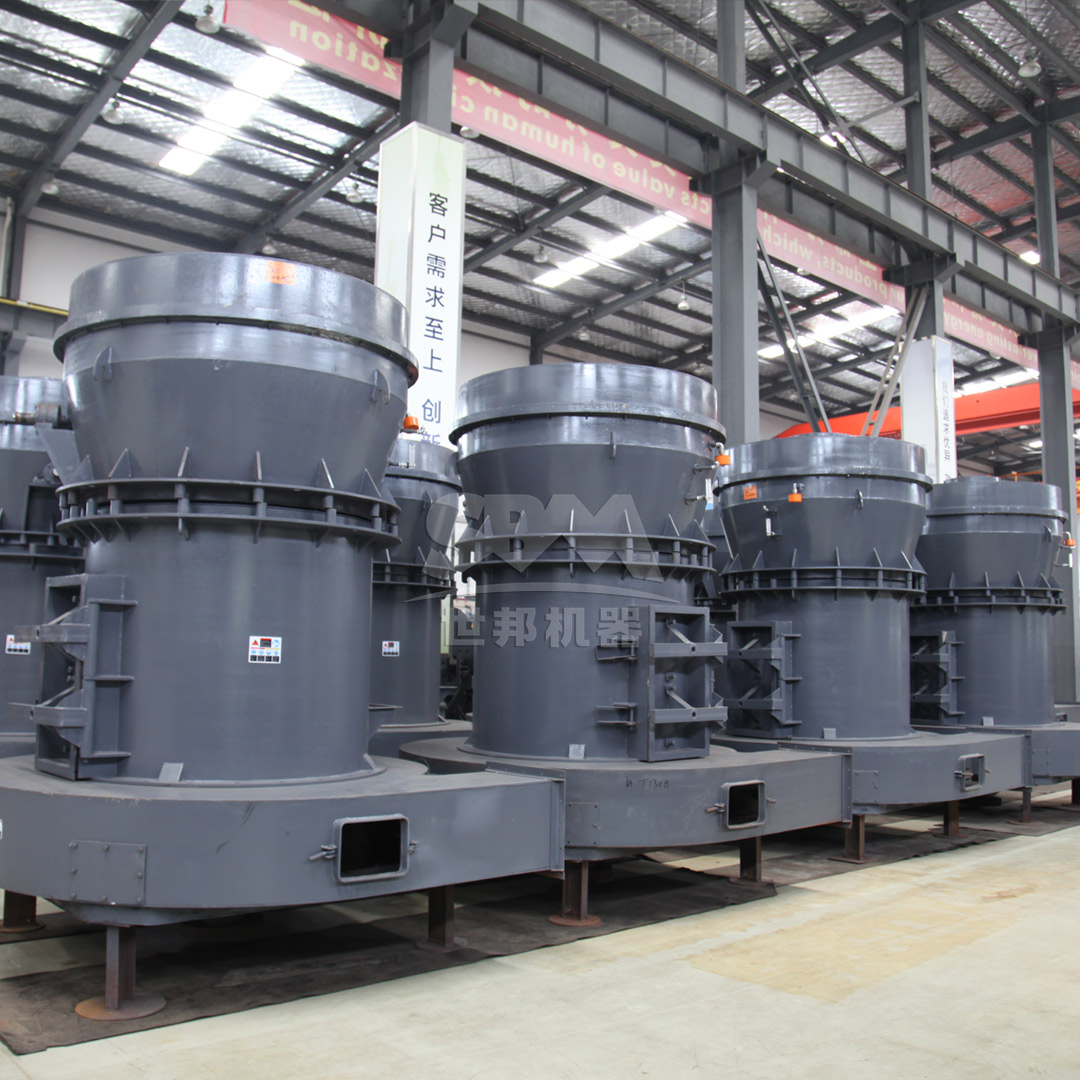

1. Raymond Mill (Roller Mill)

Raymond mills, or roller mills, use spring-loaded rollers to crush materials against a stationary ring. They are a common choice for coarse to medium-fine grinding.

• Output Range: Typically 30-325 mesh (600-45μm).
• Suitability for Needle Coke: Well-suited for primary or secondary crushing of calcined needle coke to a medium fineness, often as a pre-grinding step before finer milling. Modern versions offer improved efficiency and durability.

2. Ball Mill

Ball mills consist of a rotating cylinder filled with grinding media (e.g., steel balls). Size reduction occurs through impact and attrition as the balls cascade.

• Output Range: 0.074-0.8mm (200-20 mesh).
• Suitability for Needle Coke: Can produce a wide range of sizes but are generally less efficient for hard, abrasive materials like needle coke. High wear of balls and liners leads to iron contamination, which is often unacceptable for high-purity applications. They may be used where extreme fineness is not the primary goal and some contamination is tolerable.

3. Vertical Roller Mill (VRM)

VRMs are increasingly popular in various industries. Material is ground between a rotating table and rollers under external pressure.

• Output Range: Typically 30-325 mesh (600-45μm), with special designs going finer.
• Suitability for Needle Coke: Offers good energy efficiency and drying capabilities if needed. However, wear on the table and rollers can be significant with highly abrasive coke, leading to high maintenance costs unless specifically designed for such applications.

4. Jet Mill (Fluidized Bed Jet Mill)

Jet mills use high-speed jets of compressed air or gas to create particle-on-particle impact grinding, with no moving parts contacting the material.

• Output Range: Can achieve 1-10μm (d97) with a very narrow PSD.
• Suitability for Needle Coke: Excellent for achieving ultra-fine sizes with no risk of metallic contamination. Ideal for high-value battery anode materials. The main drawbacks are high energy consumption (compressed air) and lower overall capacity compared to mechanical mills.

Key Selection Criteria for a Needle Coke Grinding Mill

When evaluating mills, consider the following factors:

1. Target Fineness (PSD): Define the required top size and PSD (D50, D97). Ultra-fine applications (<10μm) point towards jet mills or advanced ultra-fine roller mills.
2. Production Capacity (TPH): Match the mill’s throughput to your plant’s requirements. Large-scale electrode production requires high-capacity mills.
3. Energy Efficiency (kWh/t): Operating cost is a major factor. Compare the specific energy consumption of different mill technologies for your target fineness.
4. Wear and Maintenance Costs: For abrasive coke, the lifetime of wear parts (rollers, rings, liners) and the ease of their replacement are critical for operational expenditure (OPEX).
5. Contamination Control: Ensure the mill’s design minimizes the introduction of foreign material, especially iron. Ceramic or special alloy linings may be necessary.
6. System Integration and Footprint: Consider the entire system, including feeding, grinding, classification, and product collection. The mill’s physical size must fit within available space.

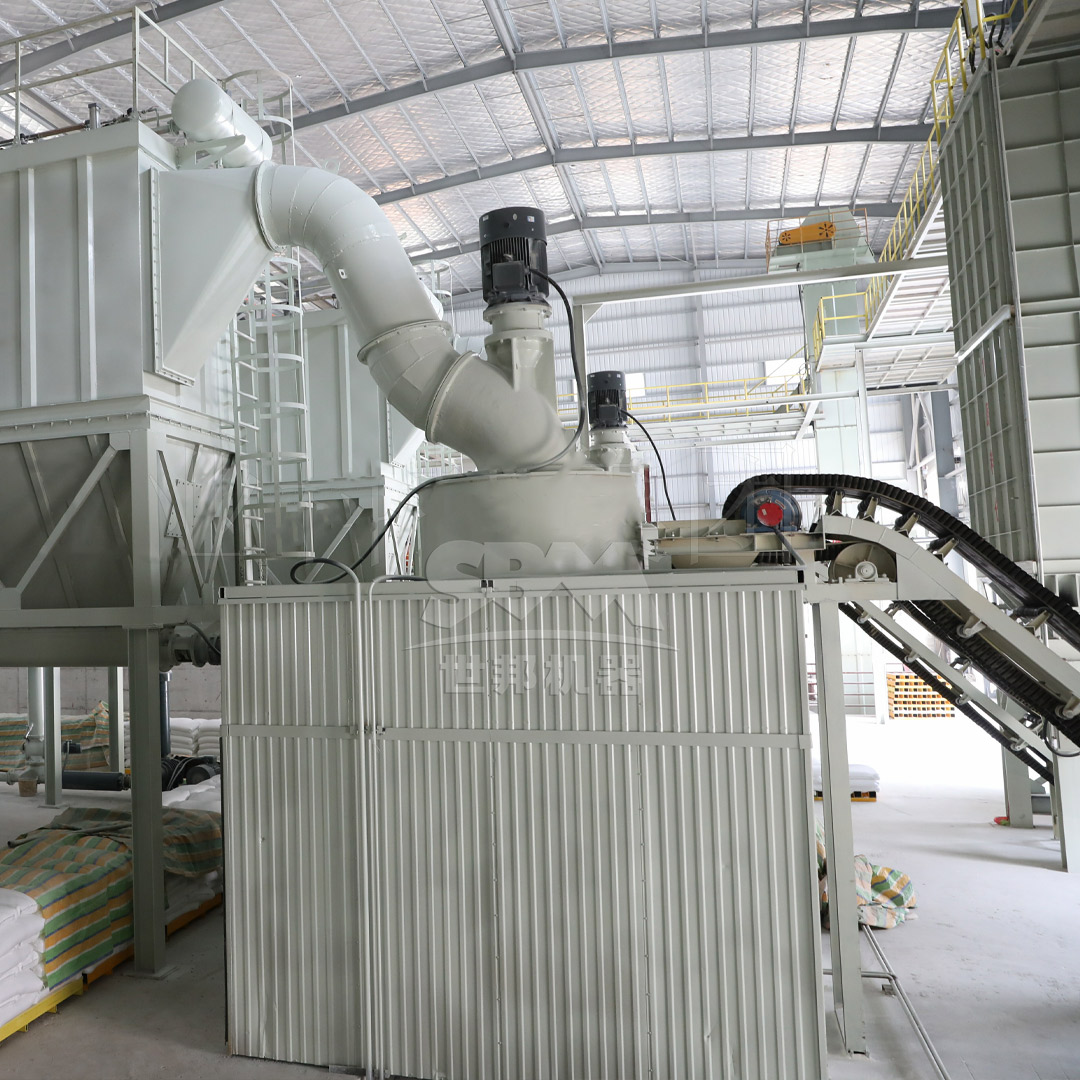

Recommended Solution: SCM Series Ultrafine Mill

For needle coke applications requiring a fine to ultra-fine product (particularly relevant for lithium-ion battery anode materials), the SCM Series Ultrafine Mill presents an optimal solution that balances high efficiency, precision, and durability.

This mill is engineered to overcome the challenges of grinding hard and abrasive materials like needle coke:

• Superior Fineness Control: With an output range of 325-2500 mesh (45-5μm, D97), it can easily meet the stringent fineness requirements for advanced battery applications. Its vertical turbine classifier ensures precise particle size切割 and a uniform product with no coarse powder contamination.
• Exceptional Durability: The grinding rollers and ring are manufactured from special wear-resistant materials, significantly extending their service life and reducing maintenance downtime and costs associated with abrasive needle coke.
• High Efficiency & Low Energy Consumption: Its innovative grinding principle offers capacity twice that of a jet mill while reducing energy consumption by up to 30%, directly lowering operating costs.
• Environmental Compliance: The fully sealed grinding chamber and efficient pulse dust collector ensure dust emissions are kept well below international standards, protecting the workplace and the environment. Noise levels are also kept low (≤75dB).

For a high-capacity production line focused on needle coke for electrodes, the MTW Series Trapezium Mill is another excellent option. It handles larger feed sizes (up to 50mm) and offers robust construction with features like combined wear-resistant shovels and a curved air duct for reduced energy loss, providing reliable performance for coarse to medium-fine grinding stages.

Industry Applications: From Electrodes to Batteries

The chosen grinding technology directly enables key industry applications:

• Graphite Electrodes for EAFs: The binder pitch requires fine coke powder to create a homogeneous paste. A consistent PSD from a reliable mill ensures high density and strength in the extruded electrode, leading to better performance and longevity in the furnace.
• Lithium-Ion Battery Anodes: Needle coke is a cost-effective alternative to synthetic graphite. Here, ultra-fine grinding (often to D50 ~15-20μm) is crucial to create the specific surface area and morphology needed for efficient lithium intercalation. The purity ensured by a contamination-free mill like the SCM series is paramount for battery cycle life and safety.
• Specialty Carbons and Additives: Ground needle coke is also used in other applications like friction materials, conductive fillers, and aerospace composites, where its specific properties are valued.

Conclusion

Selecting the right grinding mill is not a one-size-fits-all decision for needle coke production. It requires a careful analysis of the target product specifications, production volume, and total operating cost. While traditional mills like Raymond and Ball mills have their place, the demanding requirements of modern applications, especially in the battery sector, are driving the adoption of more advanced, efficient, and durable technologies like the SCM Ultrafine Mill. By investing in the correct grinding technology, producers can ensure they deliver a high-quality needle coke product that meets the precise needs of the electrode and battery industries, maximizing both product performance and operational profitability.
