How to Choose a Grinding Mill for 200 Mesh Calcined Petroleum Coke Powder
Introduction to Calcined Petroleum Coke Grinding Requirements
Calcined Petroleum Coke (CPC) is a critical material in various industrial applications, particularly in aluminum smelting, steel production, and carbon product manufacturing. Achieving the optimal particle size distribution of 200 mesh (approximately 74 microns) is essential for maximizing material performance in these applications. The grinding process must balance efficiency, particle size control, energy consumption, and operational costs to deliver consistent, high-quality CPC powder.
The selection of an appropriate grinding mill depends on multiple factors including raw material characteristics, production capacity requirements, energy efficiency considerations, and the specific application of the final product. This comprehensive guide examines the key considerations and available technologies for producing 200 mesh CPC powder, with particular focus on matching mill capabilities to production requirements.
Key Factors in Mill Selection for CPC Grinding
Material Characteristics and Feed Size
Calcined petroleum coke presents unique challenges in grinding operations due to its abrasive nature, variable hardness, and potential for dust explosion hazards. The raw CPC typically arrives in chunks ranging from 50mm to 200mm, requiring preliminary crushing before fine grinding. Understanding the material’s work index, moisture content, and abrasiveness is crucial for selecting appropriate mill components and wear materials.
The feed size after primary crushing generally falls between 10-35mm, which must be compatible with the mill’s intake specifications. Mills with larger feed openings reduce the need for extensive pre-processing, while those with smaller maximum feed sizes may require additional crushing stages, increasing overall system complexity and cost.
Production Capacity Requirements
Determining the required throughput is fundamental to mill selection. Production needs for CPC grinding vary significantly based on application – from small-scale specialty carbon products requiring 1-5 tons per hour to large aluminum smelters needing 20+ tons per hour. The mill must not only meet current production targets but also allow for future expansion without requiring complete system replacement.
When evaluating capacity specifications, consider that manufacturers typically provide ranges rather than fixed values. The actual throughput depends on multiple factors including material hardness, feed size distribution, and desired product fineness. For 200 mesh CPC powder, practical operating capacity often falls in the mid-range of published specifications.
Energy Efficiency Considerations
Grinding operations account for a significant portion of energy consumption in CPC processing plants. With rising energy costs and increasing environmental regulations, selecting an energy-efficient mill has both economic and sustainability implications. Modern grinding technologies can reduce specific energy consumption by 30-50% compared to traditional approaches.
Key efficiency factors include the grinding mechanism (compression, impact, or attrition), motor efficiency, airflow resistance, and ancillary equipment power requirements. Systems with integrated classifiers often provide better overall efficiency despite higher initial capital investment.
Particle Size Distribution and Shape Requirements
While the target size for many CPC applications is 200 mesh, the complete particle size distribution significantly impacts material performance. A narrow distribution with minimal oversize and undersize particles is typically desirable. Some applications may require specific particle shapes – for example, rounded particles for improved flow characteristics or angular particles for better compaction in carbon anodes.
The grinding technology directly influences both particle size distribution and shape. Impact-based mills tend to produce more rounded particles with wider distributions, while compression grinding typically yields more angular particles with tighter distributions. Classifier efficiency plays a critical role in achieving the target specifications.
Grinding Mill Technologies for 200 Mesh CPC
Vertical Roller Mills (VRM)
Vertical roller mills have gained significant popularity in CPC grinding applications due to their excellent energy efficiency and ability to handle moderately abrasive materials. These mills utilize multiple grinding rollers that compress and shear material against a rotating grinding table. The ground material is then transported by airflow to an integrated classifier for size separation.
For 200 mesh CPC production, VRMs offer several advantages including low specific energy consumption (typically 20-35 kWh/t), compact footprint, and the ability to handle variations in feed moisture. The grinding mechanism produces a relatively narrow particle size distribution with good sphericity, which benefits many CPC applications.

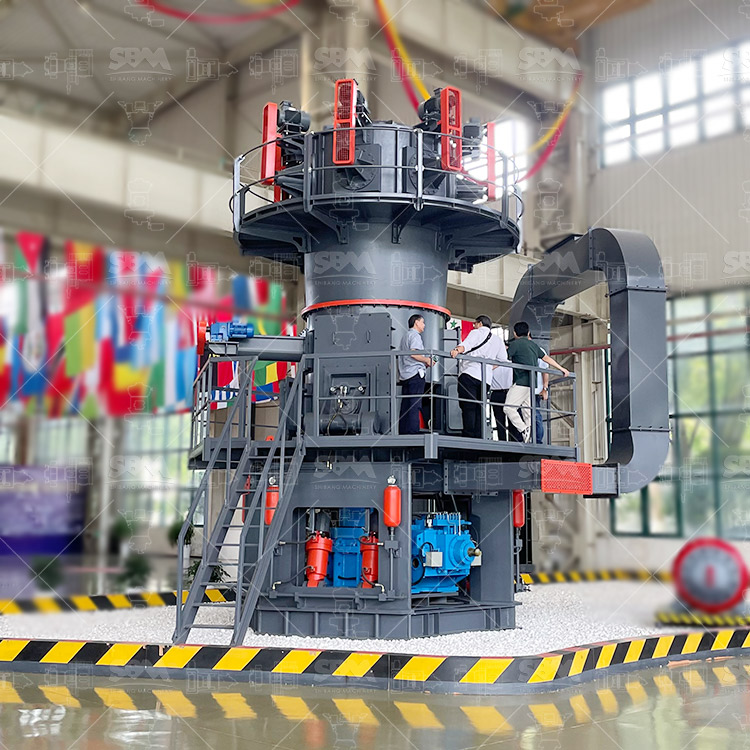

Our LM Series Vertical Roller Mill represents an optimal solution for medium to high capacity CPC grinding operations. With output fineness ranging from 30-325 mesh (special models to 600 mesh) and capacity from 3-250 tons per hour depending on configuration, this mill series offers exceptional flexibility. The integrated intelligent control system ensures consistent product quality while minimizing operator intervention. The concentrated design reduces footprint by 50% compared to traditional grinding systems, and the low operating costs make it particularly suitable for large-scale CPC production facilities.
Ultrafine Grinding Mills
For operations requiring precise control at 200 mesh and the flexibility to produce even finer products, ultrafine grinding mills provide an excellent solution. These mills typically combine mechanical grinding with highly efficient air classification to achieve tight particle size distributions. The grinding mechanism often involves multiple grinding rings and rollers arranged in a vertical configuration.
Ultrafine mills are particularly suitable for specialty CPC applications where consistent quality and the option to produce multiple product grades are important. The ability to easily adjust product fineness without mechanical modifications provides operational flexibility that can be valuable in multi-product facilities.
The SCM Series Ultrafine Mill stands out for CPC applications requiring precise control in the 200 mesh range and beyond. With output fineness adjustable from 325-2500 mesh (D97≤5μm) and capacity ranging from 0.5-25 tons per hour, this mill delivers exceptional performance for both specialized and high-volume applications. The vertical turbine classifier ensures precise particle size cuts without coarse powder contamination, while the special material rollers and grinding rings provide extended service life when processing abrasive CPC. Energy efficiency is significantly improved compared to jet mills, with approximately 30% lower energy consumption and double the capacity of similar-sized airflow mills.
Trapezium Mills

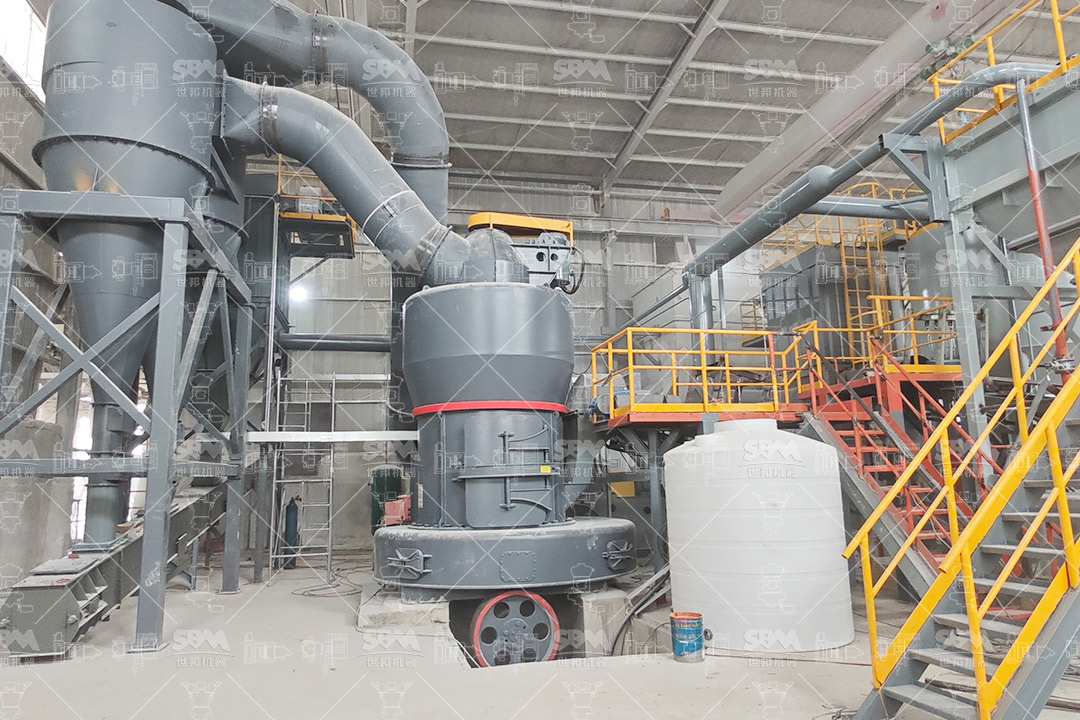

Trapezium mills represent a mature technology that has been successfully applied to CPC grinding for decades. These medium-speed mills utilize a unique grinding chamber design with multiple grinding rollers suspended in a rotating frame. The curved grinding path and centrifugal classification principle provide stable operation and consistent product quality.
For 200 mesh CPC production, trapezium mills offer robust performance with relatively low maintenance requirements. The technology is well-understood with extensive operational history in various mineral processing applications. Modern trapezium mills incorporate improvements in wear protection, classification efficiency, and energy recovery that enhance their competitiveness.
Our MTW Series Trapezium Mill incorporates several advanced features that make it particularly suitable for CPC grinding. The curved air channel design reduces flow resistance and improves transmission efficiency, while the cone gear integral transmission achieves 98% transmission efficiency. With capacity from 3-45 tons per hour and output fineness from 30-325 mesh, this mill series provides reliable performance for medium to large CPC processing operations. The wear-resistant volute structure and reduced maintenance requirements contribute to lower operating costs over the equipment lifecycle.
Ball Mills
Ball mills represent the traditional approach to CPC grinding and continue to be used in many existing facilities. These rotating cylinders containing grinding media (typically steel balls) reduce particle size through a combination of impact and attrition. While less energy-efficient than modern alternatives, ball mills offer simplicity, reliability, and the ability to handle variations in feed material.
For 200 mesh CPC production, ball mills can be configured in either open or closed circuit arrangements. Closed circuit systems with external classifiers generally provide better control over product fineness and higher overall efficiency. The wet grinding option available with ball mills can be advantageous for certain specialty CPC applications where dust control is challenging.
The main disadvantages of ball mills for CPC grinding include higher specific energy consumption (typically 35-50 kWh/t), larger footprint, and greater wear on grinding media. However, their ability to handle moist materials and relatively low sensitivity to feed size variations maintains their relevance in specific applications.
Comparative Analysis of Mill Technologies
Technical Performance Comparison
When evaluating grinding technologies for 200 mesh CPC production, several technical factors must be considered. Energy efficiency typically favors vertical roller mills and ultrafine mills, with specific energy consumption 20-40% lower than traditional technologies. Particle size control is generally superior in mills with integrated high-efficiency classifiers, such as the SCM and MTW series.
Wear resistance varies significantly between technologies and depends heavily on material selection. CPC’s abrasive nature necessitates careful consideration of wear part materials and replacement intervals. Modern mills often incorporate specialized alloys and ceramic composites in high-wear areas to extend service life.
Operational flexibility – the ability to adjust product fineness and handle variations in feed characteristics – is another critical consideration. Mills with external classifiers and adjustable grinding pressure typically offer greater flexibility than fixed-configuration systems.
Economic Considerations
The total cost of ownership for CPC grinding equipment includes capital investment, energy consumption, maintenance, and operational labor. While vertical roller mills and ultrafine mills typically command higher initial investment, their superior energy efficiency and lower maintenance requirements often result in lower lifecycle costs, particularly for continuous operation.
For operations with variable production requirements or multiple product specifications, the flexibility premium of advanced mills may justify their higher capital cost. Conversely, for single-product, high-availability operations with stable feed characteristics, simpler technologies may offer better economic returns.
Maintenance costs vary significantly between technologies. Mills with multiple grinding elements and complex classifier systems typically require more sophisticated maintenance procedures but may offer longer intervals between major overhauls. Availability of spare parts and technical support should be factored into the economic analysis.
Case Study: Optimizing 200 Mesh CPC Production
A major aluminum producer was experiencing challenges with their existing ball mill circuit for CPC grinding. The system consumed excessive energy, produced inconsistent product quality, and required frequent maintenance. After comprehensive technical and economic evaluation, the company selected our LM Series Vertical Roller Mill as a replacement.
The implementation resulted in a 32% reduction in specific energy consumption, from 42 kWh/t to 28.5 kWh/t. Product consistency improved significantly, with the percentage of material within the target 200 mesh range increasing from 78% to 94%. Maintenance costs decreased by approximately 40% due to reduced wear part consumption and longer service intervals.
The project achieved payback in less than 18 months through energy savings, increased production availability, and reduced maintenance requirements. This case demonstrates the potential benefits of selecting appropriate grinding technology for CPC applications.
Operational Best Practices for CPC Grinding Mills
Feed Preparation and System Integration
Proper feed preparation is essential for optimal mill performance in CPC grinding applications. The feed material should be consistently sized with minimal oversize particles that could cause grinding element damage. Effective dedusting at feed points prevents material loss and reduces environmental emissions.
System integration extends beyond the mill itself to include feed systems, product collection, and material handling. Properly designed pneumatic conveying systems can transport ground CPC while providing additional cooling, which is particularly important for mills operating at high capacity. Integration with storage and packaging systems should ensure minimal product degradation and contamination.
Maintenance and Wear Management
The abrasive nature of CPC necessitates proactive maintenance strategies focused on wear management. Regular inspection of grinding elements, classifier components, and wear liners allows for planned maintenance rather than emergency shutdowns. Implementing a wear monitoring program using thickness measurements and digital documentation extends component life and optimizes replacement timing.
Inventory management of critical spare parts reduces downtime when replacements are necessary. For operations with multiple grinding lines, standardization of wear components across equipment can simplify spare parts management and reduce inventory costs.
Process Optimization and Quality Control
Continuous process optimization is key to maximizing grinding efficiency and product quality. Monitoring key parameters including mill power consumption, differential pressure, product fineness, and throughput allows operators to identify performance trends and implement corrective actions before product quality is compromised.
Modern control systems with automated feedback loops can maintain consistent operation despite variations in feed characteristics. Statistical process control techniques applied to product quality data help identify opportunities for improvement and ensure consistent compliance with customer specifications.
Future Trends in CPC Grinding Technology
The evolution of grinding technology for calcined petroleum coke continues with several emerging trends. Digitalization and Industry 4.0 concepts are being applied to grinding operations through advanced process control, predictive maintenance, and remote monitoring capabilities. These technologies improve operational efficiency while reducing manpower requirements.
Sustainability considerations are driving development of grinding systems with lower carbon footprints through improved energy efficiency, reduced consumable consumption, and integration with renewable energy sources. Equipment manufacturers are also focusing on circular economy principles, designing mills with higher recycled material content and improved recyclability at end-of-life.
Hybrid grinding systems that combine multiple size reduction mechanisms in a single machine offer potential for further efficiency improvements. These systems may integrate impact, compression, and attrition grinding principles to optimize energy utilization for specific material characteristics.
Conclusion
Selecting the appropriate grinding mill for 200 mesh calcined petroleum coke requires careful consideration of multiple technical and economic factors. The optimal choice depends on specific production requirements, feed characteristics, and operational constraints. Vertical roller mills and ultrafine grinding mills generally offer the best combination of energy efficiency, product quality control, and operational flexibility for modern CPC processing facilities.
Our SCM Series Ultrafine Mill and LM Series Vertical Roller Mill represent advanced solutions tailored to the specific challenges of CPC grinding. With their robust construction, energy-efficient operation, and precise particle size control, these mills deliver exceptional performance across a wide range of production scenarios. By partnering with an experienced equipment supplier and implementing best practices in operation and maintenance, CPC producers can achieve significant improvements in productivity, product quality, and overall cost efficiency.
The grinding technology selection decision should be based on comprehensive technical and economic analysis rather than initial equipment cost alone. Considering the total cost of ownership, including energy, maintenance, and operational factors, typically reveals the superior value proposition of advanced grinding technologies for CPC applications.
