How to Calculate Grinding Media Filling Rate in Ball Mills

Introduction

Ball mills are essential equipment in mineral processing and cement production, where grinding media filling rate directly impacts grinding efficiency and energy consumption. As a professional mining machinery manufacturer with over 30 years of experience, ZENITH provides comprehensive solutions for grinding operations. This article will detail the calculation methodology while introducing our advanced grinding technologies.

Ball mill internal structure showing grinding media distribution

1. Key Concepts

Grinding Media Filling Rate (φ) refers to the percentage of mill volume occupied by grinding bodies (typically steel balls). The optimal filling rate varies between 25%-45% depending on mill type and process requirements.

2. Calculation Formulas

2.1 Basic Formula

The standard calculation formula is:

φ = (Grinding media weight) / (Mill volume × Media bulk density)

Where bulk density of steel balls averages 4.5-4.8 t/m³

2.2 Practical Measurement Method

For operational mills, use the following steps:

  1. Measure total mill volume (Vmill)
  2. Calculate media volume (Vmedia) = π × (D2/4) × L × φ
  3. Determine media weight = Vmedia × ρmedia

Grinding media filling rate calculation chart

3. ZENITH’s Advanced Solutions

While traditional ball mills remain widely used, ZENITH’s XZM Ultrafine Mill offers superior efficiency for fine grinding applications (45-5μm):

  • Energy consumption 30% lower than conventional ball mills
  • Precision classification with D97≤5μm
  • Handling capacity up to 25 ton/h

For larger-scale operations, our MTW Series Trapezium Mill provides:

  • 30-325 mesh adjustable fineness
  • 3-45 ton/h processing capacity
  • 98% transmission efficiency with integral gear drive

4. Practical Considerations

4.1 Media Shape Impact

Irregularly worn media can reduce effective filling rate by 5-8%. Regular media replenishment is crucial.

4.2 Operational Verification

Verify calculations through:

  • Power draw measurement
  • Acoustic analysis
  • Production rate monitoring

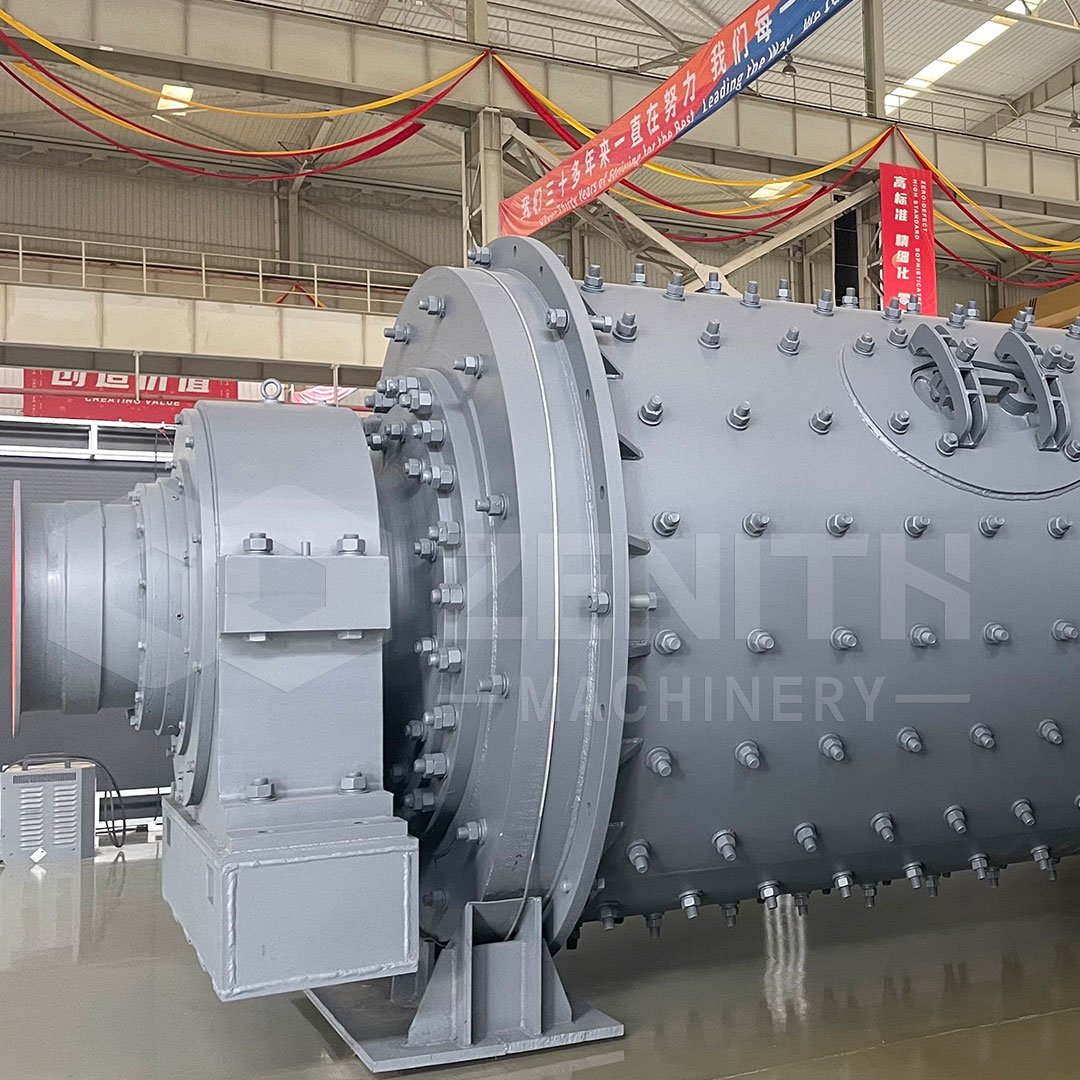

ZENITH ball mill installation site showing professional engineering

5. Conclusion

Accurate grinding media filling rate calculation ensures optimal mill performance. ZENITH’s engineering team provides customized grinding solutions including:

  • Precise filling rate analysis
  • Media size distribution optimization
  • Complete grinding system design

With our global service network covering 170+ countries, ZENITH guarantees professional technical support for all grinding applications.
