How much electricity does a 1750 Raymond mill production line consume? Analysis of 1750 Raymond mill power configuration
Introduction
Understanding the electricity consumption of a 1750 Raymond mill production line is crucial for operational cost management and equipment selection. The power configuration of such milling systems directly impacts production efficiency, energy costs, and overall profitability. This comprehensive analysis examines the electrical requirements of a typical 1750 Raymond mill setup, explores factors affecting power consumption, and provides insights into optimizing energy usage while maintaining production quality.
Understanding the 1750 Raymond Mill System

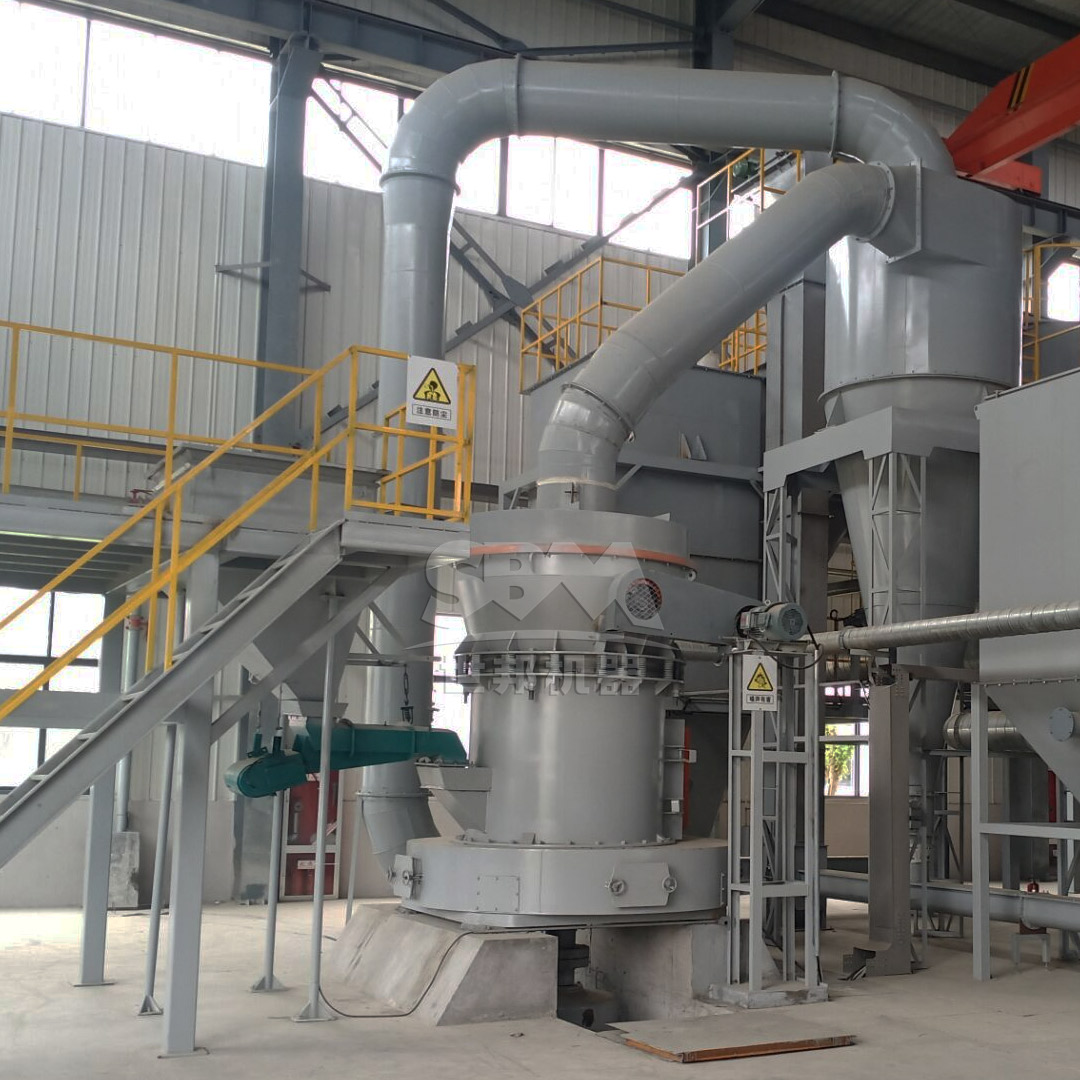

The 1750 Raymond mill represents a mid-to-large scale grinding solution designed for processing various minerals and industrial materials. This mill type typically features a grinding ring diameter of approximately 1750mm and incorporates multiple grinding rollers that apply centrifugal force against the grinding ring to pulverize materials. The complete production line consists of several interconnected components, each contributing to the overall power consumption profile.

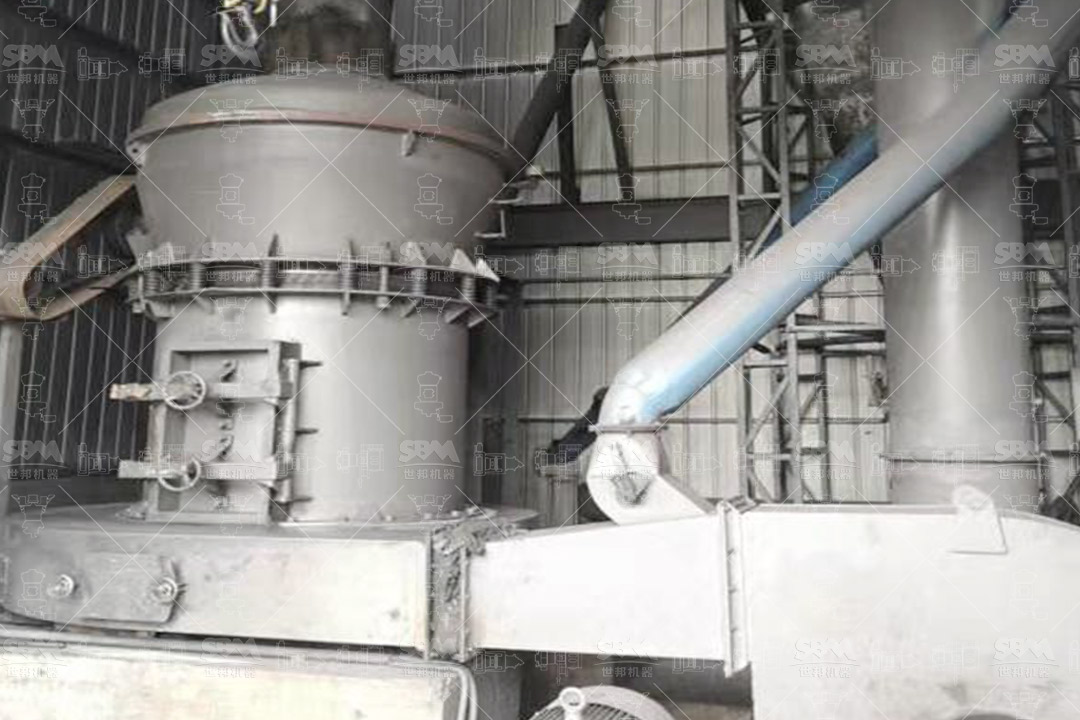

A standard 1750 Raymond mill production line includes the main grinding unit, classifier system, feeding equipment, dust collection system, and auxiliary components. The main motor drives the central shaft and grinding rollers, while separate motors power the classifier, feeder, and dust collector. Understanding how these components interact and their individual power requirements is essential for accurate electricity consumption analysis.
Power Configuration Breakdown
Main Motor Power Requirements
The primary power consumer in a 1750 Raymond mill system is the main grinding motor. For a standard 1750 model, the main motor typically ranges between 132-160kW, depending on the specific design and intended application. This motor drives the grinding mechanism through a reduction gearbox, providing the necessary torque for material comminution. The power draw fluctuates based on material hardness, feed rate, and desired fineness, with harder materials and finer outputs requiring more energy.
Classifier System Power Consumption
The classifier system, responsible for separating properly ground particles from coarse material, typically consumes 18.5-22kW in a 1750 Raymond mill setup. This system ensures product consistency by controlling particle size distribution. Advanced classifier designs with variable frequency drives can optimize power usage by adjusting rotational speed according to production requirements, potentially reducing energy consumption during operation with less demanding specifications.
Auxiliary Equipment Power Needs
Beyond the main grinding and classification units, several auxiliary components contribute significantly to total electricity consumption:
- Feeding system: 3-5.5kW for consistent material supply
- Dust collection system: 55-75kW for environmental control and product recovery
- Elevators and conveyors: 7.5-15kW for material handling
- Cooling systems: 5.5-11kW for temperature management
- Control systems: 2-4kW for automation and monitoring
Total Electricity Consumption Analysis
The total connected power for a complete 1750 Raymond mill production line typically ranges from 225-285kW, with actual operating consumption varying based on multiple factors. Under normal operating conditions, the system draws approximately 180-230kWh during production, translating to significant energy costs over continuous operation.
To calculate specific electricity consumption per ton of processed material, consider this formula: Specific Energy Consumption (kWh/ton) = Total Power Consumption (kWh) / Production Rate (ton/h). For a 1750 Raymond mill processing medium-hard materials at 12-18 tons per hour, specific energy consumption typically falls between 12-18kWh per ton, though this varies significantly with material characteristics and product specifications.
Factors Influencing Power Consumption
Material Characteristics
The physical and chemical properties of processed materials substantially impact power requirements. Harder minerals like quartz and feldspar require more grinding energy than softer materials like limestone and gypsum. Material moisture content also affects energy usage, with higher moisture levels potentially increasing power consumption due to additional drying requirements and reduced grinding efficiency.
Product Fineness Requirements
Finer product specifications demand significantly more energy due to the increased work required for particle size reduction. Producing 200-mesh powder may consume 20-30% less power than 325-mesh powder from the same material. The relationship between fineness and energy consumption is generally exponential rather than linear, making careful specification selection crucial for energy optimization.
Operational Parameters
Several operational factors influence electricity consumption:
- Feed rate consistency: Fluctuating feed rates cause inefficient motor loading
- Grinding pressure optimization: Proper roller pressure settings balance production quality and energy use
- Classifier speed adjustment: Matching classifier speed to product requirements prevents over-grinding
- System maintenance: Worn components increase friction and power requirements
Energy Optimization Strategies
Process Control Improvements
Implementing advanced process control systems can reduce electricity consumption by 8-15% through optimized operational parameters. Automated systems continuously adjust feed rates, grinding pressure, and classifier speed based on real-time performance data, maintaining optimal efficiency across varying conditions. These systems also provide early detection of inefficiencies, allowing prompt corrective action before significant energy waste occurs.
Equipment Modernization
Retrofitting older 1750 Raymond mills with modern high-efficiency motors, variable frequency drives, and improved classifier designs can reduce power consumption by 15-25%. High-efficiency motors typically operate at 95% efficiency or higher compared to 85-90% for standard motors, significantly reducing energy losses. Variable frequency drives allow motors to operate at optimal speeds rather than fixed rates, matching power input to actual process requirements.
Modern Alternatives: Advanced Grinding Solutions

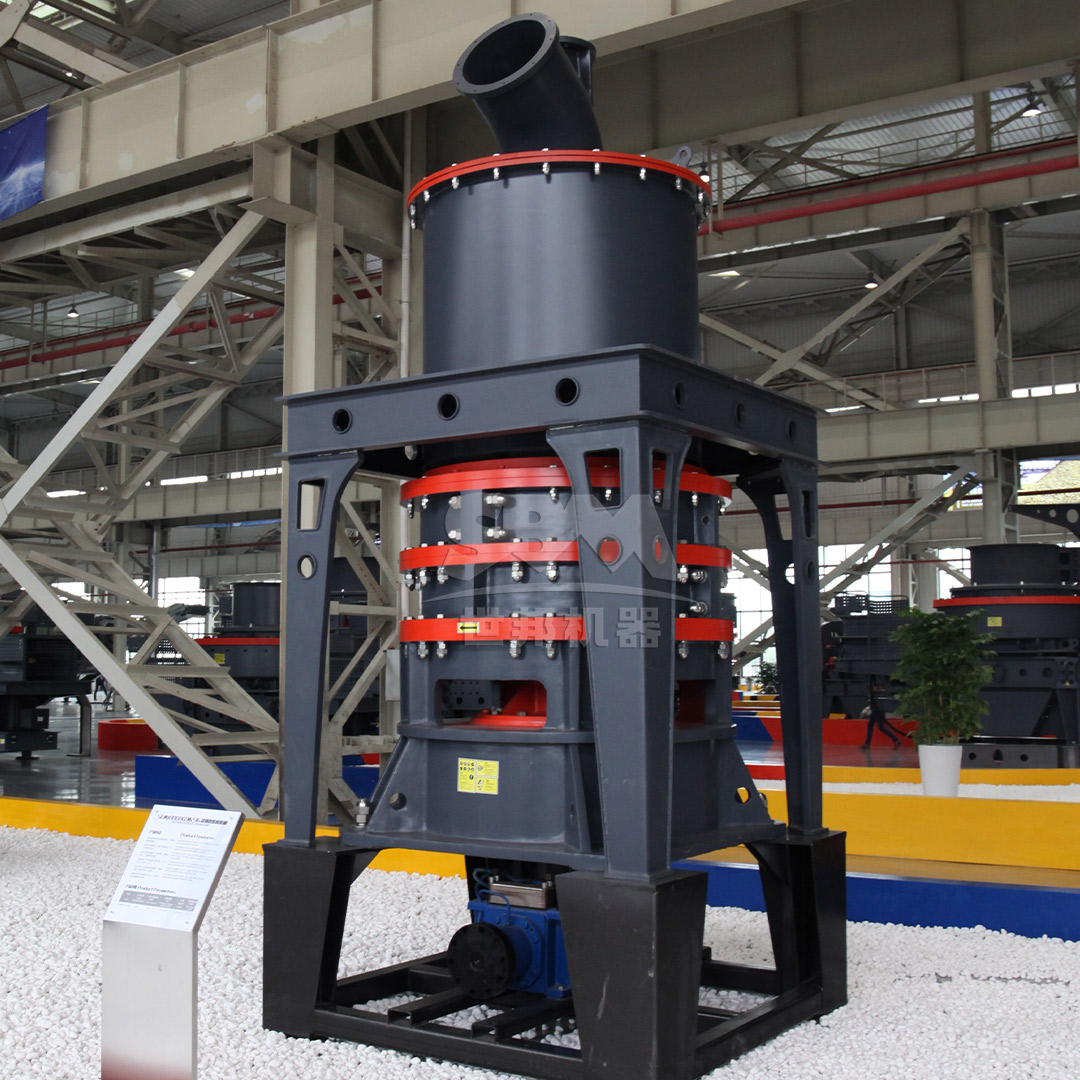

While 1750 Raymond mills serve many applications effectively, modern grinding technologies often provide superior energy efficiency for specific requirements. Our SCM Ultrafine Mill represents a significant advancement in grinding technology, offering exceptional energy efficiency for ultrafine applications.
The SCM series achieves remarkable energy savings through several innovative features. With capacity doubling that of jet mills while reducing energy consumption by 30%, these mills represent the forefront of efficient fine grinding technology. The intelligent control system automatically adjusts operational parameters based on real-time feedback of product particle size, ensuring optimal energy usage throughout production cycles.
For operations requiring different fineness specifications, our MTW Series Trapezium Mill offers excellent efficiency in the 30-325 mesh range. The innovative curved air channel design reduces airflow resistance, decreasing fan power requirements by approximately 15% compared to conventional designs. The integrated cone gear transmission operates at 98% efficiency, significantly reducing power losses in the drive system.
Comparative Energy Analysis
When comparing the 1750 Raymond mill to modern alternatives, energy performance varies significantly based on application requirements:
| Mill Type | Specific Energy Consumption (kWh/ton) | Optimal Fineness Range | Relative Efficiency |
|---|---|---|---|
| 1750 Raymond Mill | 12-18 | 80-325 mesh | Base Reference |
| SCM Ultrafine Mill | 18-25 | 325-2500 mesh | 30% better than jet mills |
| MTW Trapezium Mill | 10-15 | 30-325 mesh | 15-20% better than conventional mills |
This comparison demonstrates that equipment selection should align with specific production requirements, as each mill type offers advantages in different applications. The 1750 Raymond mill remains competitive for general-purpose grinding, while specialized applications may benefit from technologies optimized for specific fineness ranges.
Economic Considerations
The electricity consumption of a 1750 Raymond mill represents a substantial portion of operating costs, typically accounting for 40-60% of total production expenses. With industrial electricity rates varying by region, annual energy costs for continuous operation can range from $80,000 to $150,000 depending on local tariffs and operational patterns.
Investment in energy-efficient technologies should be evaluated based on payback period calculations. Modernization projects that reduce energy consumption by 15% typically achieve payback within 12-24 months through electricity cost savings, in addition to benefits from improved reliability and reduced maintenance requirements.
Conclusion
The electricity consumption of a 1750 Raymond mill production line represents a significant operational expense that merits careful analysis and management. With total connected power typically between 225-285kW and specific energy consumption of 12-18kWh per ton for medium-hard materials, optimization opportunities exist across equipment selection, operational practices, and modernization investments.
Understanding the power distribution across mill components and the factors influencing consumption enables informed decisions that balance production requirements with energy efficiency. As grinding technology continues advancing, newer solutions like our SCM Ultrafine Mill and MTW Series Trapezium Mill offer compelling alternatives for specific applications where their specialized designs deliver superior energy performance.
Ultimately, the most energy-efficient approach combines appropriate equipment selection with optimized operational practices and regular maintenance, ensuring that grinding operations remain economically viable in an increasingly energy-conscious industrial landscape.
