How Much Does an Industrial Gypsum Powder Production Line Cost?

Introduction

Establishing an industrial gypsum powder production line represents a significant investment for construction materials manufacturers. The total cost varies dramatically based on production capacity, final product specifications, and the specific equipment configuration selected. This comprehensive guide examines the key cost factors and provides detailed insights into equipment selection to help you make an informed investment decision.

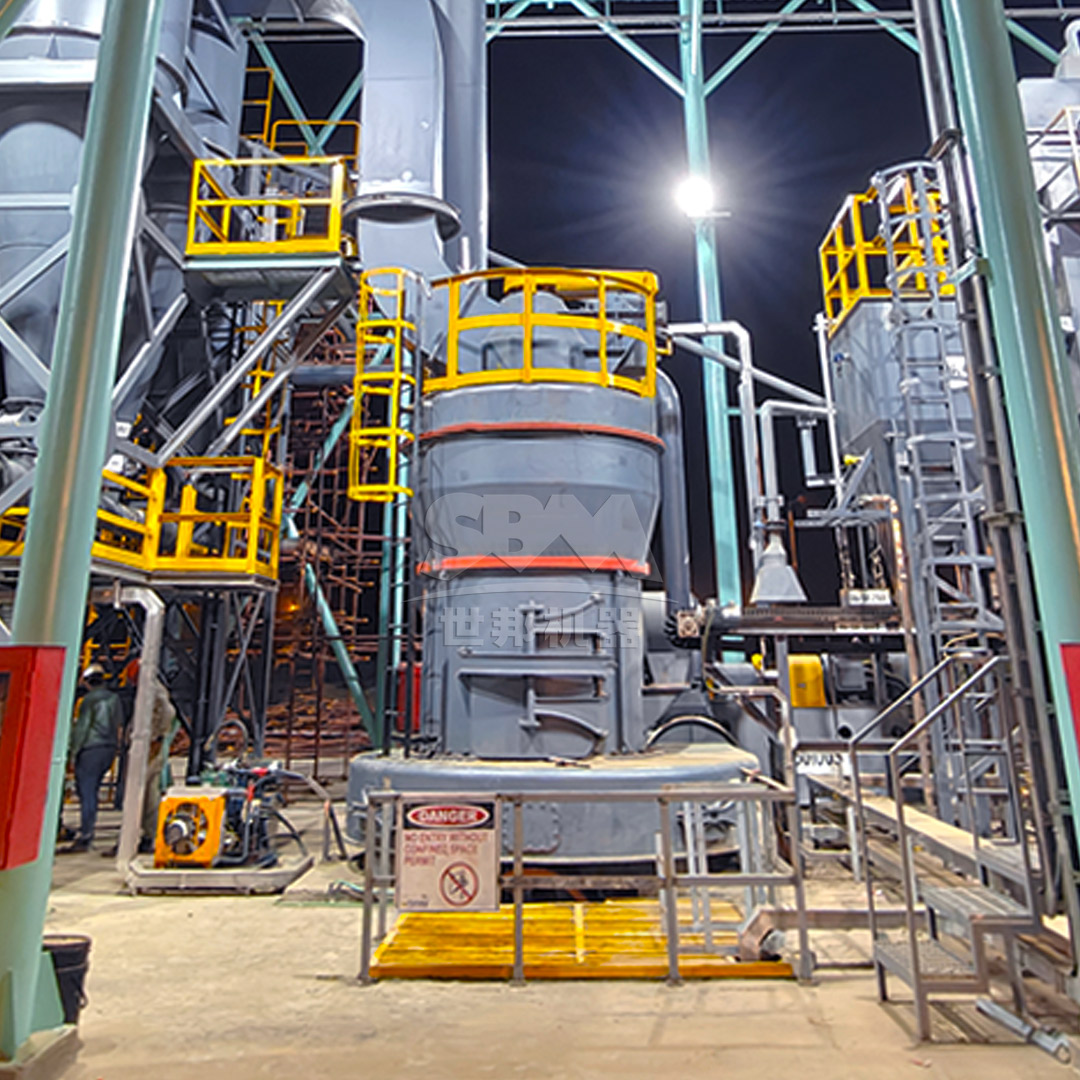

Key Components of a Gypsum Powder Production Line

A complete gypsum powder production system consists of multiple interconnected components, each contributing to the overall cost structure. Understanding these elements is essential for accurate budgeting.

Raw Material Preparation System

The initial stage involves crushing and pre-processing raw gypsum materials. This typically includes:

• Primary crushing equipment (jaw crushers or hammer mills)
• Raw material storage and feeding systems
• Pre-homogenization and blending facilities
• Material conveying equipment

The choice of crushing equipment depends on the initial size and hardness of the raw gypsum. For gypsum with initial sizes up to 40mm, a hammer mill offers an efficient solution with output sizes of 0-3mm, ideal for subsequent grinding processes.

Grinding and Milling System

The grinding system represents the core of your production line and typically accounts for the largest portion of your equipment investment. The selection of grinding equipment depends on your target product specifications and production capacity requirements.

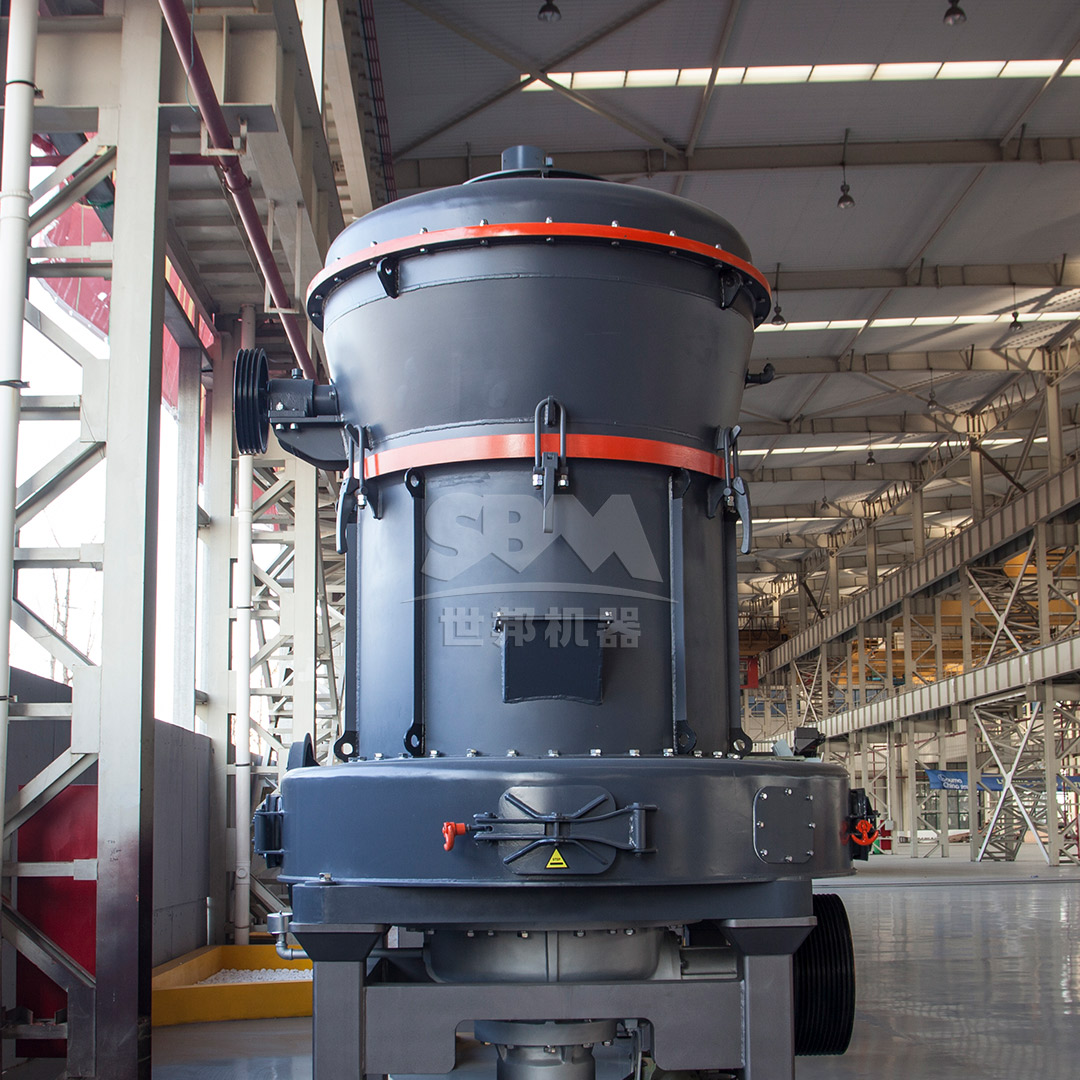

For standard construction-grade gypsum powder (typically 100-325 mesh), the MTW Series Trapezium Mill offers an excellent balance of performance and cost-effectiveness. With an output fineness range of 30-325 mesh (up to 0.038mm) and capacity ranging from 3-45 tons per hour depending on model selection, this equipment provides:

• Advanced anti-wear shovel design with combined blades to reduce maintenance costs
• Curved air duct optimization to minimize energy loss and improve transmission efficiency
• Integrated bevel gear transmission with up to 98% efficiency
• Wear-resistant volute structure with non-clogging design

The MTW Series operates through a sophisticated process where the main motor drives the grinding roller to revolve around the central axis while rotating itself to generate centrifugal force. The shovel blade throws materials between the grinding ring and roller to form a material layer, achieving efficient crushing through extrusion, with a precision classification system controlling the final particle size.

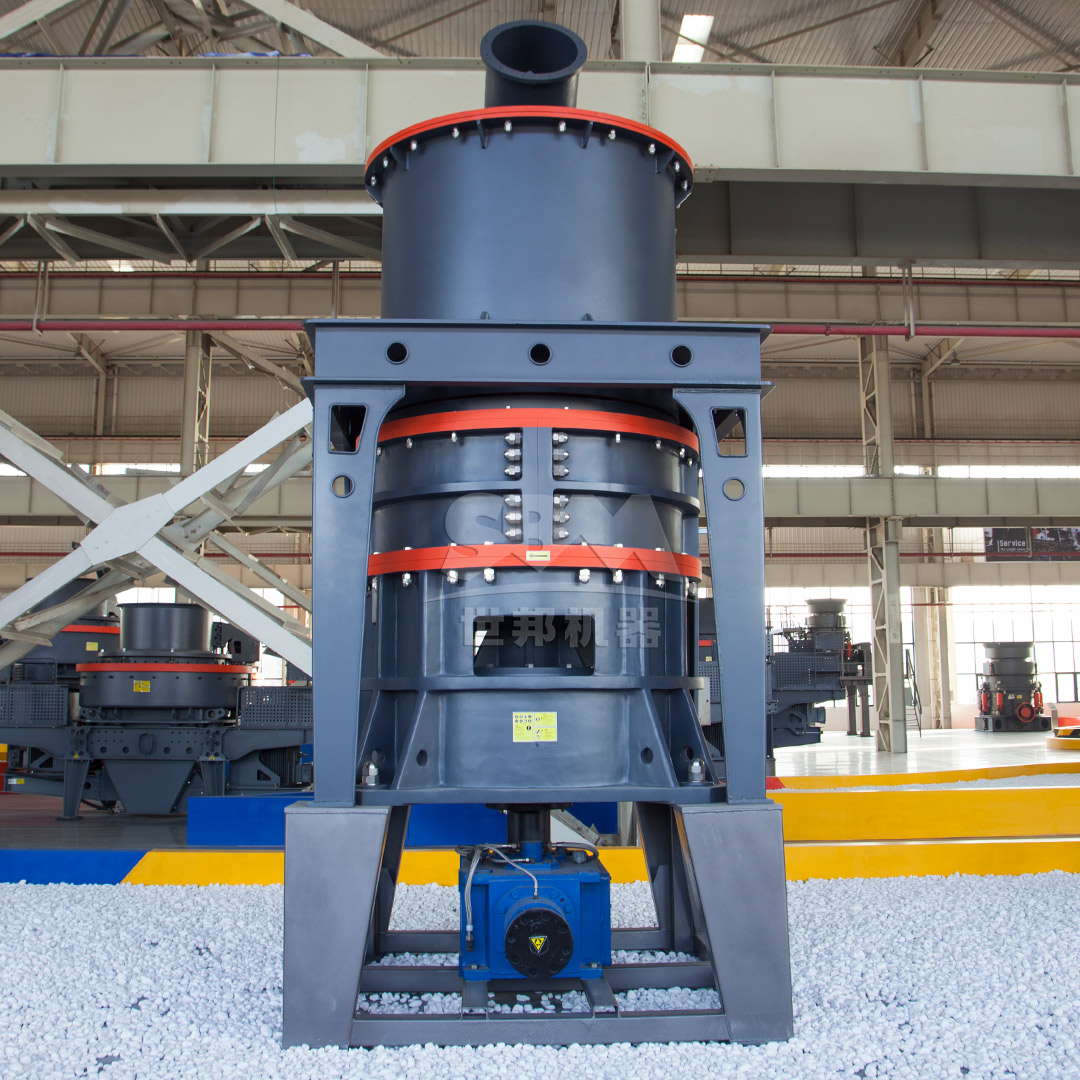

For ultra-fine gypsum powder applications (325-2500 mesh), the SCM Ultrafine Mill represents the optimal choice. This advanced grinding system delivers:

• Output fineness: 325-2500 mesh (D97≤5μm)
• Processing capacity: 0.5-25 tons per hour
• Energy consumption reduced by 30% compared to jet mills
• Precision classification with vertical turbine classifier
• Special material roller and grinding ring with extended service life
• Pulse dust collection efficiency exceeding international standards

The SCM Ultrafine Mill operates through a multi-layer grinding principle, where the main motor drives three layers of grinding rings to rotate, with materials dispersed to the grinding path by centrifugal force, gradually ground by roller pressure, and finally collected by cyclone collector and pulse dust removal system.

Calcination System

The calcination process transforms gypsum dihydrate (CaSO₄·2H₂O) to hemihydrate (CaSO₄·½H₂O) through controlled heating. System options include:

• Rotary kilns for large-scale continuous production
• Flash calcifiers for rapid processing
• Kettle calciners for batch processing
• Integrated grinding-calcining systems

Dust Collection and Environmental Control

Modern gypsum production requires comprehensive dust control systems, typically including:

• Baghouse filters or electrostatic precipitators
• Ductwork and ventilation systems
• Noise reduction equipment
• Emission monitoring systems

Cost Breakdown Analysis

Understanding the distribution of costs across different components helps in effective budget allocation and identifying potential savings.

Equipment Costs (40-60% of Total Investment)

The grinding system typically represents the largest equipment expense. For reference:

• MTW Series Trapezium Mill: $150,000 – $800,000 (depending on model)
• SCM Ultrafine Mill: $200,000 – $1,200,000 (depending on model)
• Auxiliary equipment (crushers, conveyors, dust collectors): $100,000 – $500,000

Installation and Commissioning (15-25% of Equipment Cost)

These costs include:

• Foundation construction and civil works
• Equipment assembly and alignment
• Electrical and control system integration
• Initial startup and optimization

Infrastructure and Civil Works (20-30% of Total Investment)

Infrastructure requirements include:

• Production building or shelter
• Raw material and product storage facilities
• Utility connections (power, water, compressed air)
• Roads and material handling areas

Operating Costs (Ongoing Expenses)

Beyond the initial investment, consider these recurring costs:

• Power consumption: $15-30 per ton of product
• Wear parts and maintenance: $5-15 per ton
• Labor: 3-8 operators per shift
• Raw materials: Varies by source and quality

Equipment Selection Guide

Choosing the right grinding equipment is critical for operational efficiency and product quality. Here’s a detailed comparison of our recommended solutions for gypsum processing:

MTW Series Trapezium Mill for Standard Applications

For most construction gypsum applications requiring 30-325 mesh products, the MTW Series offers outstanding value. Key advantages include:

• High capacity ranging from 3-45 tons per hour
• Robust construction with combination shovels reducing maintenance frequency
• Energy-efficient operation with curved air duct design
• Integrated bevel gear transmission requiring minimal space

Available models include:

• MTW110: 3-9 TPH capacity, 55kW main motor
• MTW138Z: 6-17 TPH capacity, 90kW main motor
• MTW175G: 9.5-25 TPH capacity, 160kW main motor
• MTW215G: 15-45 TPH capacity, 280kW main motor

SCM Ultrafine Mill for High-Value Applications

For specialized applications requiring ultra-fine gypsum powders (325-2500 mesh), the SCM Ultrafine Mill delivers unparalleled performance:

• Precision classification ensuring uniform particle size distribution
• Energy consumption 30% lower than conventional jet mills
• Advanced dust collection system with noise levels below 75dB
• Durable construction with special material rollers and grinding rings

Available models include:

• SCM800: 0.5-4.5 TPH capacity, 75kW main motor
• SCM1000: 1.0-8.5 TPH capacity, 132kW main motor
• SCM1250: 2.5-14 TPH capacity, 185kW main motor
• SCM1680: 5.0-25 TPH capacity, 315kW main motor

Total Investment Range

Based on typical configurations, here are estimated total investment ranges for complete gypsum powder production lines:

• Small-scale (5-10 TPH): $500,000 – $1,200,000
• Medium-scale (15-30 TPH): $1,500,000 – $3,000,000
• Large-scale (40-60 TPH): $3,500,000 – $6,000,000
• Ultra-fine specialty lines: Add 30-50% to above estimates

Return on Investment Considerations

When evaluating the cost of a gypsum powder production line, consider these ROI factors:

Production Efficiency

Modern equipment like the MTW Series and SCM Ultrafine Mill significantly reduce operating costs through:

• Lower energy consumption per ton of product
• Reduced maintenance requirements and downtime
• Higher product quality commanding premium prices
• Automated operation reducing labor costs

Market Positioning

Investing in advanced technology enables:

• Access to higher-value market segments
• Competitive advantage through superior product quality
• Flexibility to serve multiple market applications
• Stronger customer relationships through consistent quality

Conclusion

The cost of an industrial gypsum powder production line represents a significant but manageable investment when properly planned. By carefully selecting equipment matched to your specific production requirements and market objectives, you can optimize both initial investment and long-term operational costs. Our MTW Series Trapezium Mill and SCM Ultrafine Mill offer industry-leading performance for their respective applications, providing reliable, efficient solutions for gypsum powder production across the quality and capacity spectrum.

For detailed specifications and customized proposals based on your specific requirements, contact our technical team for a comprehensive consultation and equipment recommendation tailored to your operational needs and budget parameters.
