How Much Does a Graphite Grinding Mill Machine Cost?
Introduction to Graphite Grinding Requirements
Graphite, with its unique layered structure and exceptional properties, requires specialized grinding equipment to achieve the precise particle sizes needed for various industrial applications. From lithium-ion battery anodes to refractory materials and lubricants, the quality of graphite powder directly impacts final product performance. When considering the investment in a graphite grinding mill, understanding the factors that influence cost is crucial for making an informed decision that balances performance, efficiency, and budget.
The cost of graphite grinding equipment varies significantly based on multiple factors, including production capacity, final product fineness, energy efficiency, and technological sophistication. This comprehensive guide explores the key considerations and price ranges for different types of graphite grinding mills, helping you select the optimal solution for your specific requirements.
Key Factors Affecting Graphite Grinding Mill Costs
Production Capacity Requirements
The processing capacity of a grinding mill represents one of the most significant cost determinants. Small-scale laboratory units capable of processing 0.5-2 tons per hour typically range from $20,000 to $80,000, while industrial-scale systems with capacities exceeding 20 tons per hour can cost $200,000 to over $1 million. The relationship between capacity and cost isn’t linear—higher capacity systems often provide better value per ton of processing capability due to economies of scale in their design and manufacturing.
Final Product Fineness Specifications
Graphite applications demand specific particle size distributions, with requirements ranging from coarse powders (45-325 mesh) for traditional applications to ultrafine powders (325-2500 mesh) for advanced technologies like conductive coatings and battery materials. Achieving finer particle sizes requires more sophisticated grinding mechanisms and precision classification systems, significantly increasing equipment costs. Mills capable of producing D97 ≤ 5μm powders typically cost 30-60% more than standard fine grinding equipment.
Energy Efficiency and Operating Costs
While initial purchase price is important, the total cost of ownership must consider operational expenses, particularly energy consumption. Advanced grinding technologies can reduce energy requirements by 30-50% compared to conventional systems, representing substantial savings over the equipment’s operational lifetime. Modern mills incorporate intelligent control systems that optimize grinding parameters in real-time, further enhancing efficiency and reducing operating costs.
Material Construction and Durability
Graphite’s abrasive nature necessitates wear-resistant construction materials in grinding components. Mills featuring specialized alloy grinding rollers, ceramic-lined chambers, and hardened wear parts command premium prices but deliver significantly longer service life and reduced maintenance requirements. The initial investment in durable construction typically pays dividends through reduced downtime and replacement part costs.
Types of Graphite Grinding Mills and Their Cost Ranges
Ultrafine Grinding Mills for High-Value Applications
For applications requiring the finest graphite powders, ultrafine grinding mills represent the premium segment of grinding technology. These systems incorporate advanced classification systems, precision grinding mechanisms, and sophisticated control systems to achieve particle sizes down to 5μm (D97) and below.

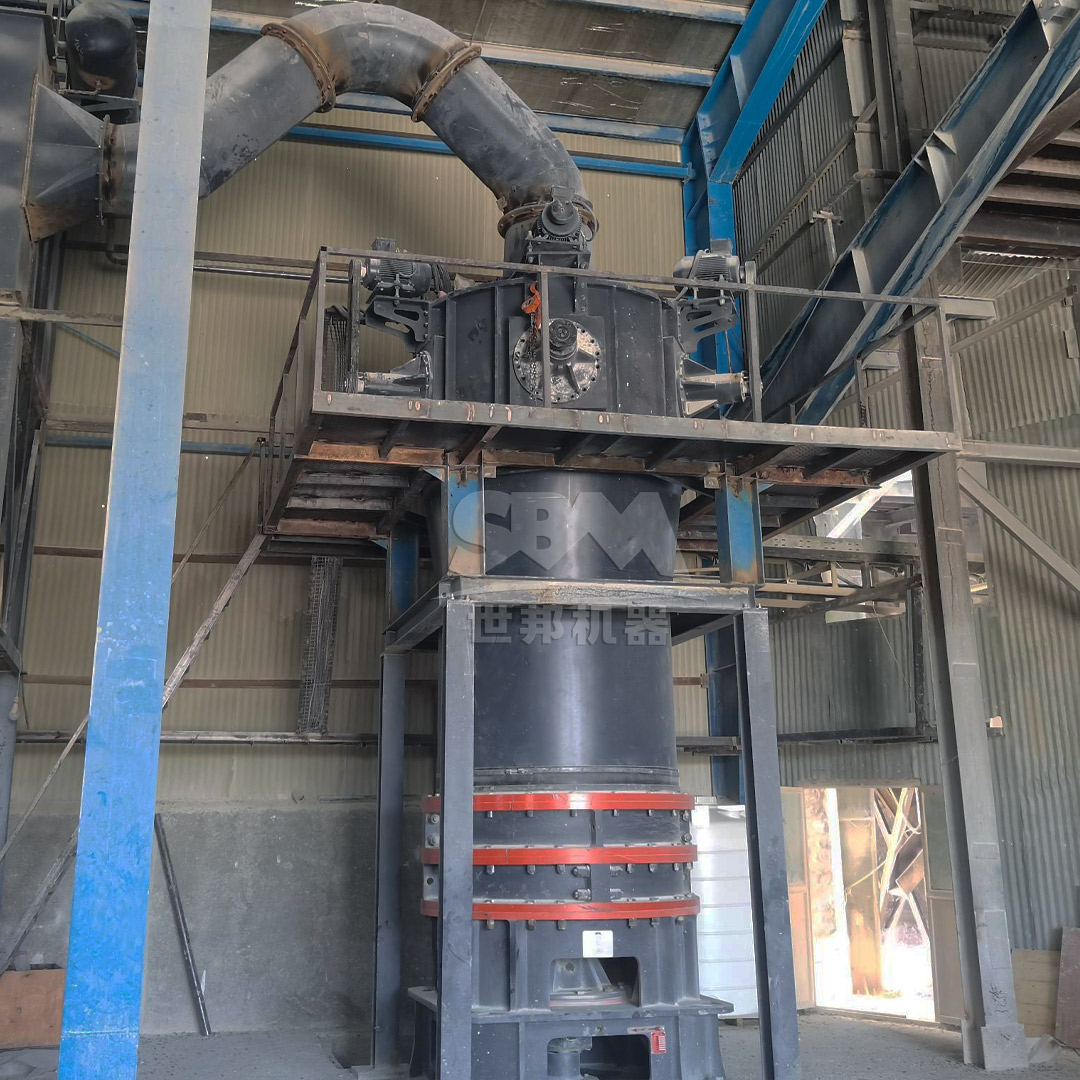

Our SCM Ultrafine Mill series stands out in this category, specifically engineered for processing graphite to ultrafine specifications. With output fineness ranging from 325 to 2500 mesh (D97 ≤ 5μm) and capacity from 0.5 to 25 tons per hour depending on model, this equipment delivers exceptional performance for high-value graphite applications. The SCM series achieves 30% lower energy consumption compared to conventional jet mills while doubling production capacity, providing both operational savings and enhanced throughput.
The technological advantages of the SCM Ultrafine Mill include:
- High-efficiency grinding system with vertical turbine classifiers for precise particle size control
- Advanced wear protection with special material rollers and grinding rings that extend service life
- Intelligent control systems with automatic feedback for consistent product quality
- Environmental compliance with pulse dust collection efficiency exceeding international standards and noise levels below 75dB
Pricing for the SCM series ranges from approximately $85,000 for the SCM800 model (0.5-4.5 tph capacity) to over $350,000 for the high-capacity SCM1680 model (5.0-25 tph capacity), with intermediate models available to match specific production requirements.
Vertical Roller Mills for Medium-scale Production
Vertical roller mills offer an excellent balance of performance, efficiency, and cost for medium to large-scale graphite grinding operations. These systems utilize a bed grinding principle where material is compressed between grinding rollers and a rotating table, providing efficient size reduction with relatively low energy consumption.
Our LM Series Vertical Roller Mill represents this category with output fineness from 30-325 mesh (special models to 600 mesh) and impressive capacity ranging from 3 to 250 tons per hour. The compact design reduces footprint requirements by 50% compared to traditional grinding systems, while the non-contact grinding roller design extends wear part life up to three times conventional systems.
Key features of the LM Series include:
- Integrated system design combining crushing, grinding, and separation functions
- Energy efficiency with 30-40% lower consumption compared to ball mill systems
- Intelligent control with expert automatic control systems supporting remote operation
- Environmental performance with full sealed negative pressure operation and dust emissions below 20mg/m³
The LM Series pricing ranges from approximately $120,000 for the LM130K model to over $1.2 million for the high-capacity LM370N slag grinding specialist model, with various configurations available to match specific graphite processing requirements.
Trapezium Mills for Cost-Effective Grinding Solutions
For operations requiring reliable performance at competitive pricing, trapezium mills provide an excellent solution for graphite grinding to medium fineness specifications. These mills utilize a rotating grinding roller assembly that applies centrifugal force to compress material against a stationary grinding ring.

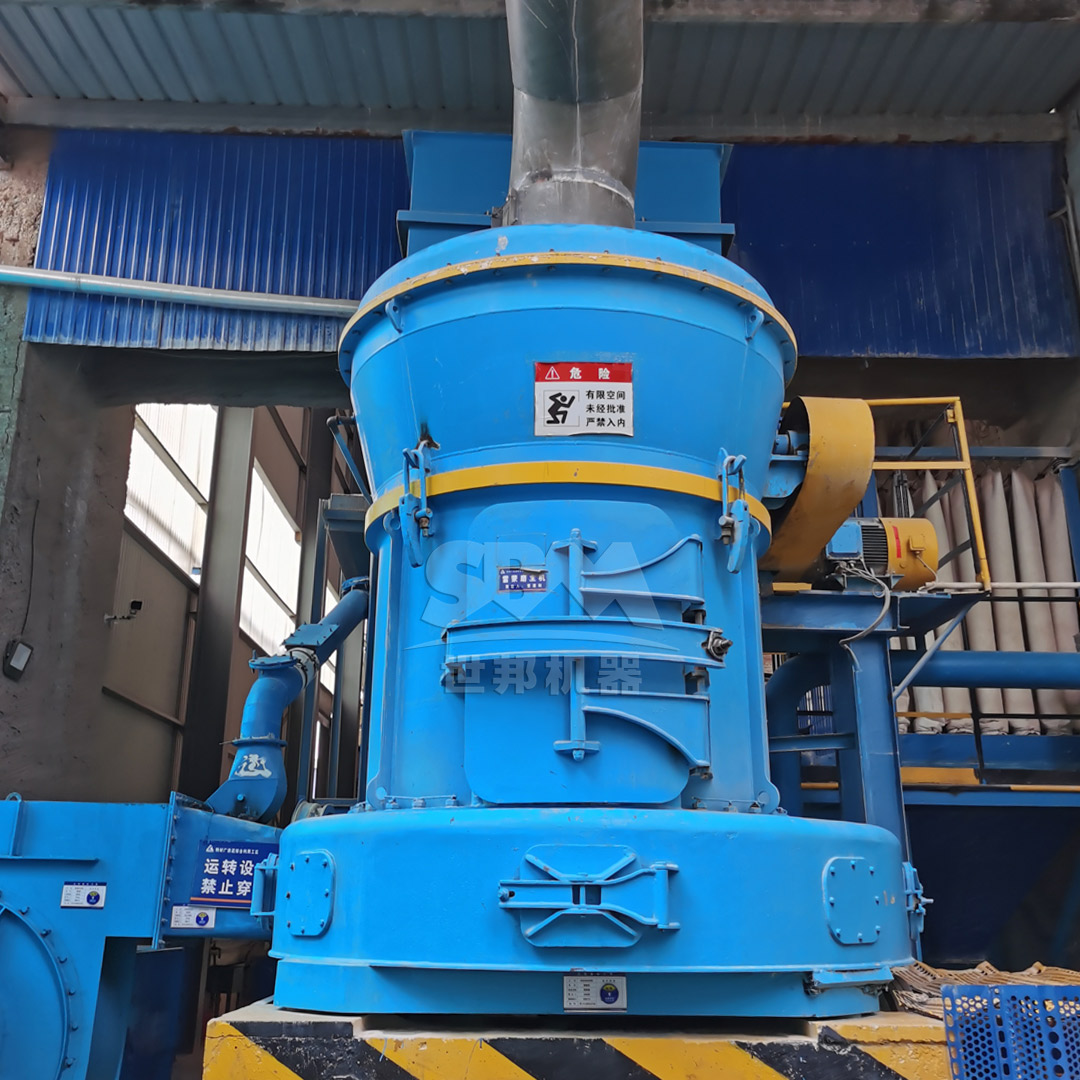

Our MTW Series Trapezium Mill offers output fineness from 30-325 mesh (down to 0.038mm) with capacity from 3 to 45 tons per hour. The innovative design features combined shovel blades that reduce maintenance costs and curved air channels that minimize energy loss during material transport.
Notable advantages of the MTW Series include:
- Anti-wear shovel design with combined blades for reduced maintenance
- Optimized air flow path with curved design to reduce energy consumption
- Integrated bevel gear transmission with 98% transmission efficiency
- Durable wear-resistant volute structure with maintenance costs 30% lower than conventional designs
The MTW Series is priced from approximately $65,000 for the MTW110 model to around $280,000 for the high-capacity MRN218 model, offering excellent value for medium-scale graphite grinding operations.
Additional Cost Considerations Beyond Equipment Purchase
Installation and Foundation Requirements
The total project cost must account for installation expenses, which can represent 15-30% of the equipment purchase price. Factors influencing installation costs include foundation requirements, material handling systems integration, electrical connections, and dust collection system implementation. Vertical mills typically offer installation advantages with their compact footprint and potential for outdoor installation, reducing civil engineering costs.
Maintenance and Spare Parts Inventory
Regular maintenance is essential for optimal grinding performance and longevity. Budgeting should include preventive maintenance schedules, wear part replacement (grinding elements, classifiers, liners), and potential component upgrades. Advanced mills with durable construction and intelligent monitoring systems can significantly reduce maintenance costs and unexpected downtime.
Operational Expenses and Energy Consumption
Beyond the initial investment, operational costs represent a significant portion of the total cost of ownership. Energy-efficient mills may command premium prices but deliver substantial savings through reduced power consumption. Additional operational expenses include labor, consumables, filter replacement, and compliance with environmental regulations.
Selecting the Right Graphite Grinding Mill for Your Application
Choosing the appropriate grinding technology requires careful analysis of your specific requirements:
For ultrafine graphite powders (D97 ≤ 5μm) used in advanced applications like conductive coatings or battery materials, the SCM Ultrafine Mill series provides the precise particle control and consistent quality required, with pricing typically between $85,000 and $350,000 depending on capacity requirements.
For medium to large-scale production of fine graphite powders (30-325 mesh), the LM Series Vertical Roller Mill offers an excellent balance of performance and efficiency, with pricing ranging from $120,000 to over $1 million based on capacity and configuration.
For cost-sensitive operations requiring reliable performance at competitive pricing, the MTW Series Trapezium Mill delivers consistent results with pricing from $65,000 to $280,000.
Conclusion: Balancing Performance and Investment
The cost of graphite grinding equipment represents a significant investment, but selecting the appropriate technology for your specific requirements ensures optimal return through operational efficiency, product quality, and reduced total cost of ownership. While initial purchase price is an important consideration, the long-term operational costs, maintenance requirements, and final product value must be factored into the decision-making process.
Our comprehensive range of graphite grinding solutions, from the high-precision SCM Ultrafine Mill to the cost-effective MTW Series Trapezium Mill, ensures that we can provide the ideal technology match for your production requirements and budget constraints. We recommend consulting with our technical specialists to analyze your specific graphite grinding needs and identify the optimal solution that delivers the best value for your investment.
