How is Calcined Kaolin Processed into Powder with a Grinding Mill? A Comprehensive Production Workflow Analysis

Introduction to Calcined Kaolin Processing

Calcined kaolin, also known as metakaolin, is a highly valued industrial mineral produced by heating natural kaolin clay to high temperatures (typically between 650°C and 1050°C). This thermal treatment process removes water molecules from the kaolinite structure, resulting in improved brightness, opacity, and abrasion resistance. The calcined material must then be ground into fine powder to achieve the desired particle size distribution for various applications in paper, paint, plastics, rubber, and ceramics industries.

The transformation of calcined kaolin from coarse chunks to fine powder requires specialized grinding equipment and a carefully controlled production workflow. This article provides a comprehensive examination of how calcined kaolin is processed into powder using modern grinding mills, with detailed analysis of the production workflow and equipment selection criteria.

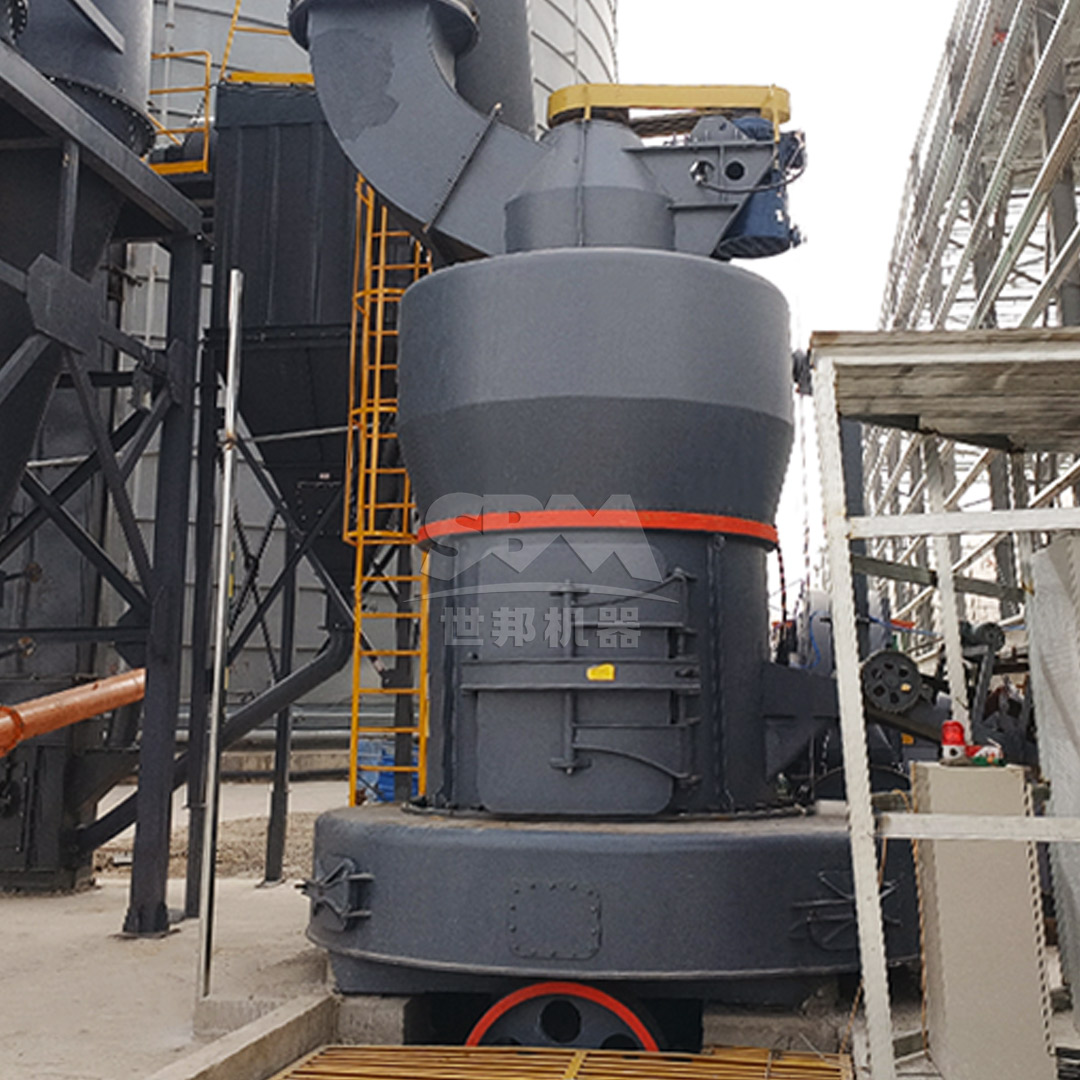

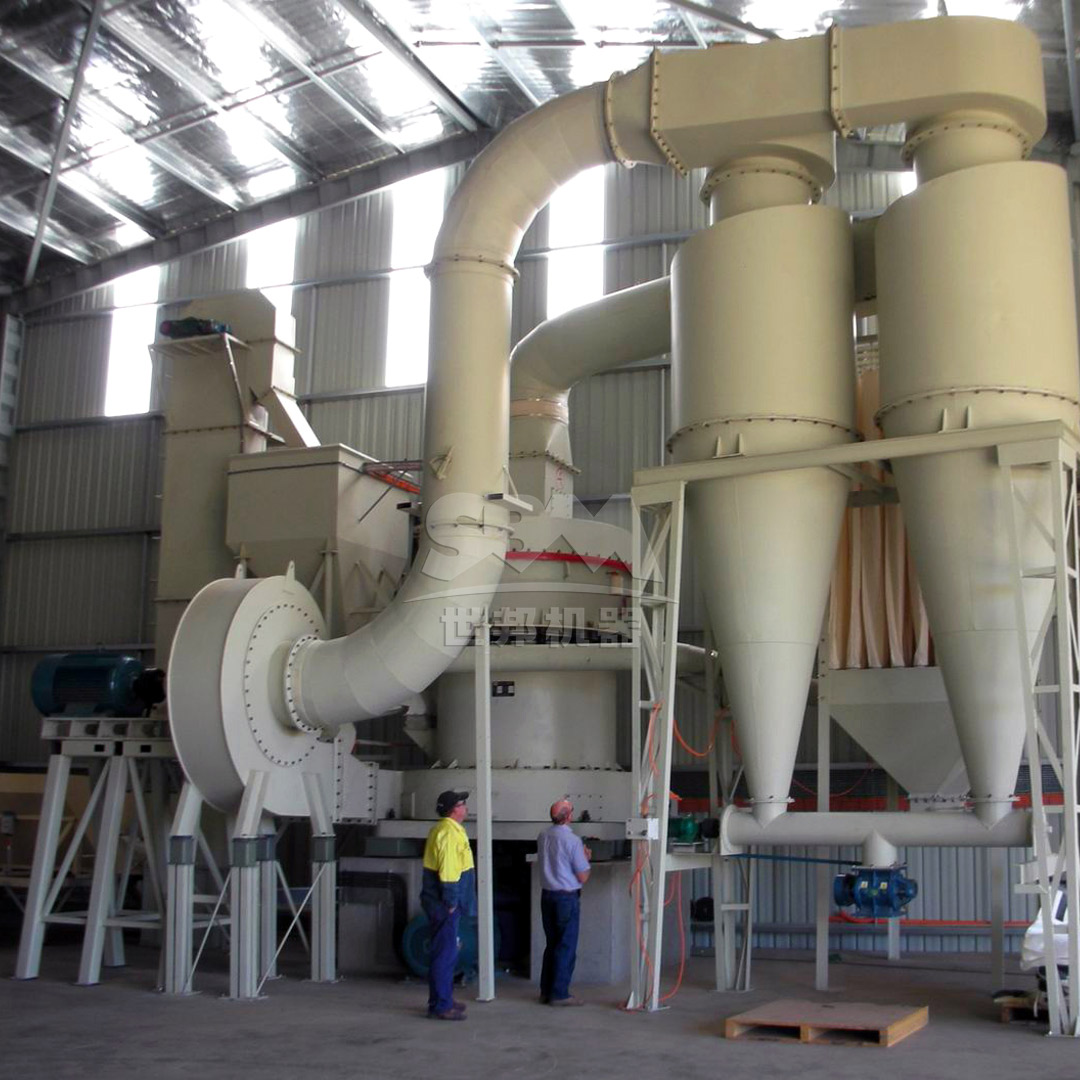

Calcined kaolin powder production line with grinding equipment

Raw Material Preparation and Pre-Treatment

Calcined Kaolin Feedstock Characteristics

Before entering the grinding circuit, calcined kaolin exhibits specific physical properties that influence the milling process. The material typically has a Mohs hardness of 2-3.5 and a bulk density ranging from 400-600 kg/m³. The initial particle size after calcination can vary from coarse lumps (up to 50mm) to finer aggregates, depending on the calcination method and equipment used.

The moisture content of calcined kaolin is critically low (typically less than 1%) due to the dehydration during calcination. This characteristic makes the material relatively easy to grind but also creates challenges with dust generation and static electricity buildup during processing.

Pre-Crushing and Screening

Large lumps of calcined kaolin require preliminary size reduction before fine grinding. Jaw crushers or hammer mills are commonly employed for this primary crushing stage. The target after pre-crushing is typically a maximum particle size of 20-30mm, which is suitable for feeding into most grinding mills.

Screening equipment, such as vibrating screens or rotary sieves, separates the crushed material into appropriate size fractions. Oversized particles are returned to the crusher, while properly sized material proceeds to the grinding circuit. This pre-treatment ensures consistent feed size to the grinding mill, which is crucial for maintaining stable operation and achieving the desired product quality.

Grinding Mill Selection for Calcined Kaolin

Key Considerations in Mill Selection

Selecting the appropriate grinding mill for calcined kaolin depends on several factors:

Target Particle Size Distribution: Different applications require specific fineness levels, from coarse grades (45-100μm) to superfine products (1-10μm)
Production Capacity Requirements: Ranging from small-scale batches (0.5-2 ton/h) to high-volume continuous production (20-50 ton/h)
Product Contamination Tolerance: Some applications require minimal iron contamination, influencing mill material selection
Energy Efficiency Targets: Grinding can account for 60-70% of total energy consumption in mineral processing
Capital and Operating Costs: Balancing initial investment with long-term operational expenses

Detailed Production Workflow

Stage 1: Material Feeding and Conveying

The production workflow begins with controlled feeding of pre-crushed calcined kaolin into the grinding mill. Electromagnetic vibrating feeders or screw conveyors provide consistent material flow to the mill inlet. Modern systems incorporate weighing devices and level sensors to maintain optimal feed rates, preventing mill overload or starvation that could impact product quality and equipment performance.

Dust containment is critical at this stage due to the fine, dry nature of calcined kaolin. Enclosed conveying systems with appropriate dust extraction points minimize material loss and maintain clean operating conditions. The feeding system typically includes metal detection and removal equipment to protect the grinding elements from damage.

Stage 2: Grinding and Classification

Within the grinding chamber, calcined kaolin undergoes size reduction through a combination of compression, impact, and attrition forces. The specific mechanism depends on the mill type:

In roller mills (such as the MTW Series), material is ground between rotating rollers and a stationary grinding ring
In ultrafine mills (such as the SCM Series), multiple grinding rings and rollers create a layered grinding effect with progressively finer reduction

Simultaneously, an integrated classification system separates particles based on size. Centrifugal classifiers or dynamic separators use airflow and mechanical forces to direct fine particles toward the collection system while returning coarse material to the grinding zone. This closed-circuit operation ensures efficient energy utilization and tight control over the final product fineness.

Stage 3: Product Collection and Dedusting

After classification, the fine calcined kaolin powder is transported by air to collection equipment. Cyclone separators provide primary collection, recovering 80-90% of the product through centrifugal action. The remaining fines, along with the transport air, proceed to baghouse filters or cartridge collectors for final dedusting.

Modern pulse-jet dust collectors achieve filtration efficiencies exceeding 99.9%, ensuring minimal product loss and compliance with environmental regulations. The clean air is typically exhausted to atmosphere or recirculated within the system to conserve thermal energy in heated grinding applications.

Stage 4: Product Conveying and Storage

The collected calcined kaolin powder is conveyed to storage silos using mechanical or pneumatic systems. Mechanical conveyors (screw, belt, or bucket elevators) are preferred for short distances, while dense-phase pneumatic conveyors offer advantages for longer distances and multiple discharge points.

Storage silos are designed with appropriate features to prevent material compaction and facilitate smooth discharge, including fluidizing bottoms, vibrating dischargers, or aeration systems. Level indicators and inventory management systems provide real-time information on product quantities. The entire conveying and storage system maintains sealed conditions to prevent moisture absorption and contamination.

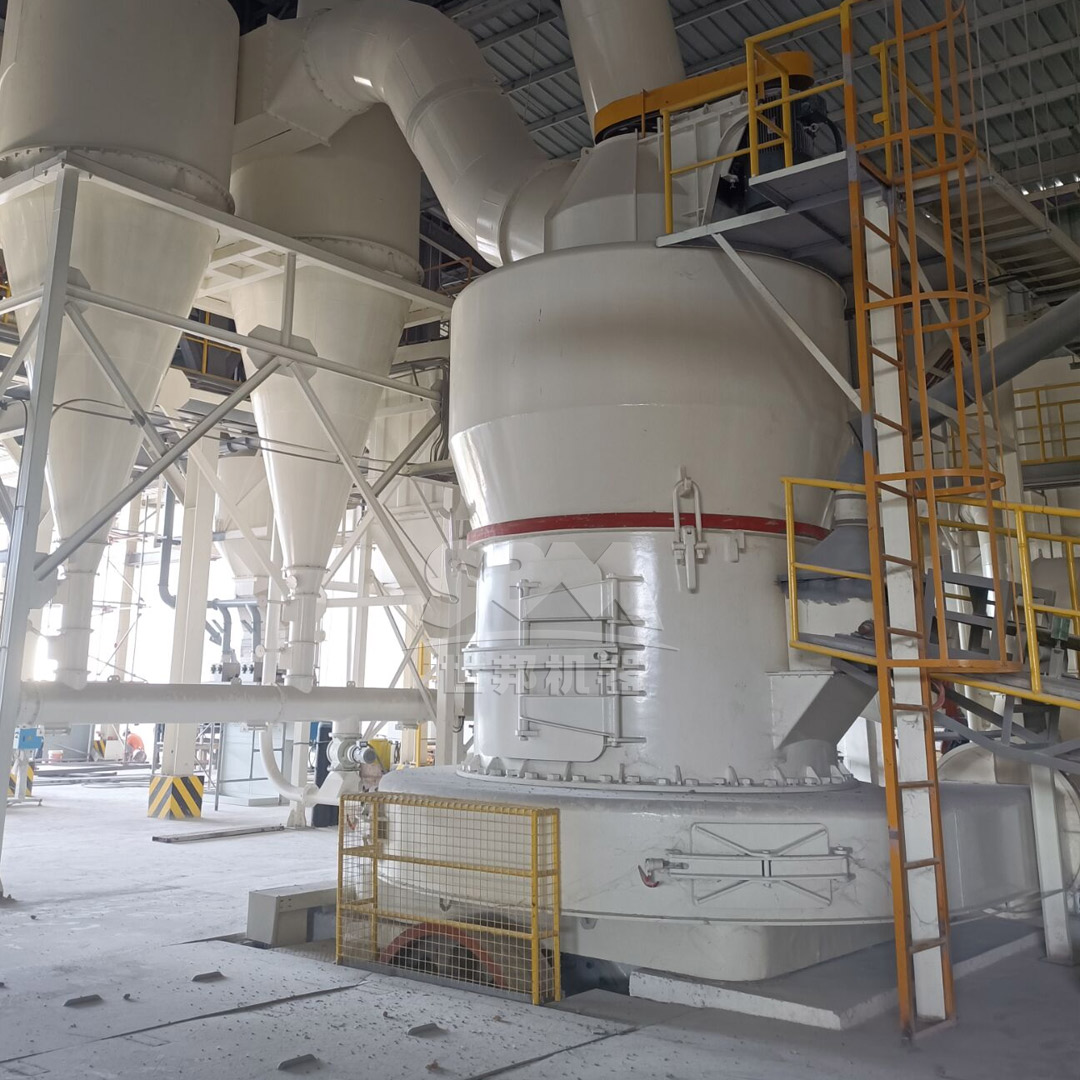

Powder collection and dedusting system for calcined kaolin processing

Quality Control and Process Optimization

Particle Size Analysis and Control

Maintaining consistent particle size distribution is critical for calcined kaolin product quality. Modern grinding plants incorporate online particle size analyzers that provide real-time feedback to the mill control system. These instruments use laser diffraction or dynamic light scattering principles to measure particle size continuously, allowing automatic adjustment of mill parameters to maintain product specifications.

For quality assurance, laboratory analysis complements online measurements. Standard testing includes sieve analysis for coarser grades and laser particle size analysis for finer products. Additional tests for specific surface area (BET method) and particle morphology (SEM imaging) provide comprehensive characterization of the ground product.

Process Parameter Optimization

Key operating parameters that influence grinding efficiency and product quality include:

Mill feed rate: Optimized to maintain stable grinding bed depth
Classifier speed: Adjusted to control product fineness
Grinding pressure: Regulated in spring-loaded or hydraulic systems
Airflow rate: Balanced to ensure proper material transport and classification
System temperature: Controlled to prevent moisture condensation and manage product properties

Advanced control systems use model-based predictive control algorithms to optimize these parameters simultaneously, maximizing production rate while minimizing specific energy consumption and maintaining product quality within tight specifications.

Technical Features of Advanced Grinding Systems

SCM Ultrafine Mill Technology

The SCM Series Ultrafine Mill incorporates several innovative features specifically beneficial for calcined kaolin processing:

Multi-layer grinding mechanism: Three grinding rings with progressively finer clearances enable stepwise size reduction with high efficiency
Vertical turbine classifier: Provides precise cut-point control and eliminates coarse particle contamination in the final product
Special wear materials: Hardfaced grinding elements with tungsten carbide or ceramic coatings extend service life when processing abrasive materials
Intelligent control system: Automatically adjusts operational parameters based on product fineness feedback

These technical advantages make the SCM Series particularly suitable for producing high-value superfine calcined kaolin products with D97 values as fine as 5μm (2500 mesh). The mill’s energy-efficient design reduces operating costs while maintaining consistent product quality.

MTW Trapezium Mill Advantages

The MTW Series Trapezium Mill offers distinct benefits for general-purpose calcined kaolin grinding:

Curved air duct design: Minimizes airflow resistance and reduces energy consumption by 15-20% compared to conventional designs

Bevel gear integral transmission: Provides smooth operation with 98% transmission efficiency and reduced maintenance requirements

Wear-resistant grinding elements: Special alloy materials extend component life in abrasive applications

Flexible configuration options: Supports various collector configurations and ancillary equipment to match specific plant requirements

With production capacities up to 45 tons per hour and the ability to produce products from 30-325 mesh, the MTW Series represents an optimal solution for high-volume calcined kaolin powder production.

Environmental Considerations and Safety

Dust Control and Emission Management

Calcined kaolin processing presents significant dust control challenges due to the fine, dry nature of the material. Modern grinding plants employ comprehensive dust containment and collection strategies:

Total enclosure of transfer points with appropriate dust extraction
High-efficiency baghouse filters with pulse-jet cleaning systems
Secondary local exhaust ventilation at maintenance access points
Continuous emission monitoring systems to ensure regulatory compliance

Advanced filter media, including membrane-coated bags or cartridges, provide filtration efficiencies exceeding 99.99% for submicron particles. Automated filter cleaning systems maintain low system pressure drop while minimizing compressed air consumption.

Noise Control Measures

Grinding mills generate significant noise from mechanical components and airflow. Modern equipment incorporates multiple noise reduction features:

Acoustic enclosures with sound-absorbing insulation
Vibration isolation mounts to prevent structure-borne noise transmission
Low-noise fan designs with optimized blade profiles
Acoustic lagging on ducts and piping

These measures typically reduce noise levels to 75-80 dB(A) at operating positions, ensuring compliance with occupational health and safety regulations.

Conclusion

The processing of calcined kaolin into powder using grinding mills involves a sophisticated production workflow that balances product quality, operational efficiency, and economic considerations. From initial raw material preparation through final product collection, each stage requires careful design and control to achieve optimal results.

Modern grinding technologies, such as the SCM Ultrafine Mill for superfine applications and the MTW Trapezium Mill for general-purpose grinding, provide advanced solutions that deliver consistent product quality with reduced energy consumption and operating costs. The selection of appropriate grinding equipment, combined with optimized process parameters and comprehensive quality control, enables producers to meet the exacting specifications of diverse industrial applications while maintaining competitive operation.

As market demands for finer particle sizes and tighter specifications continue to evolve, ongoing advancements in grinding technology and process control will further enhance the efficiency and capabilities of calcined kaolin powder production systems.
