How Fine Can Calcite Grinding Mill Produce and What Is the Output Capacity?

Introduction to Calcite Grinding Technology

Calcite, a naturally occurring calcium carbonate mineral, is one of the most widely used industrial minerals globally. Its applications span across plastics, paints, rubber, paper, pharmaceuticals, and construction materials. The value and performance of calcite in these applications are heavily dependent on two critical parameters: the fineness of the ground powder and the production capacity of the grinding system. Understanding the relationship between these factors is essential for optimizing industrial processes and achieving economic efficiency.

The grinding fineness determines the chemical reactivity, brightness, opacity, and reinforcement properties of calcite in composite materials. Meanwhile, the output capacity directly impacts production costs and operational scalability. Modern calcite grinding technology has evolved significantly to meet the demanding requirements of various industries, offering solutions that range from coarse grinding to ultra-fine processing with precise control over particle size distribution.

Understanding Grinding Fineness: From Microns to Mesh Sizes

In mineral processing, fineness is typically measured in microns (μm) or mesh sizes. A micron represents one-millionth of a meter, while mesh size refers to the number of openings per linear inch in a screen. The relationship between these units is inverse – higher mesh numbers correspond to smaller particle sizes.

For calcite processing, different applications require specific fineness ranges:

• Coarse grinding (45-150μm or 100-325 mesh): Suitable for animal feed, agricultural lime, and construction materials
• Medium fine grinding (10-45μm or 325-1250 mesh): Used in plastics, rubber, and paints as fillers
• Ultra-fine grinding (5-10μm or 1250-2500 mesh): Essential for high-grade paper, pharmaceuticals, and specialty chemicals
• Superfine grinding (<5μm or >2500 mesh): Required for high-performance composites and advanced materials

The D97 parameter, which indicates that 97% of the particles are smaller than the specified size, is commonly used to define product fineness in industrial specifications. Achieving consistent D97 values requires advanced grinding and classification technologies.

Factors Affecting Calcite Grinding Capacity

The output capacity of calcite grinding systems is influenced by multiple interconnected factors:

Raw Material Characteristics: The hardness, moisture content, and feed size of the raw calcite significantly impact grinding efficiency. Softer calcite with lower moisture content typically allows for higher throughput rates. The Mohs hardness of pure calcite is 3, making it relatively soft compared to other minerals, but impurities can increase grinding resistance.

Target Fineness: There is an inverse relationship between fineness and capacity. As the required particle size decreases, the grinding capacity typically reduces due to increased energy requirements for size reduction and more intensive classification processes. Producing ultra-fine calcite (D97 ≤ 5μm) may reduce capacity by 30-60% compared to medium-fine grinding.

Grinding Technology: The selection of grinding equipment dramatically affects both fineness capabilities and production rates. Different mill types employ distinct size reduction mechanisms – impact, compression, attrition, or a combination – each with unique capacity-fineness profiles.

System Configuration: Auxiliary equipment including feeding systems, classifiers, collectors, and dust control units must be properly matched to the grinding mill to optimize overall system performance. Inadequate classification can lead to overgrinding, reducing effective capacity.

Advanced Grinding Solutions for Calcite Processing

SCM Ultrafine Mill: Precision in Ultra-Fine Grinding

For applications requiring the finest calcite powders, the SCM Ultrafine Mill represents the pinnacle of grinding technology. This advanced system can produce calcite powder with fineness ranging from 325 to 2500 mesh (D97 ≤ 5μm), meeting the most stringent requirements of high-value applications.

The SCM series achieves this exceptional fineness through its innovative design featuring a vertical turbine classification system that ensures precise particle size control without coarse powder contamination. The grinding mechanism utilizes multiple grinding rings and rollers arranged in a unique configuration that enables progressive size reduction through several grinding zones.

With capacity ranging from 0.5 to 25 tons per hour depending on the model, the SCM Ultrafine Mill offers remarkable flexibility for various production scales. The SCM1680 model, with its 315kW main motor, delivers the highest capacity in the series at 5.0-25 tons per hour while maintaining consistent ultra-fine output.

Key advantages of the SCM Ultrafine Mill for calcite processing include:

• Superior Energy Efficiency: 30% lower energy consumption compared to jet mills with twice the capacity
• Exceptional Product Quality: Narrow particle size distribution with no coarse particles
• Enhanced Durability: Special material rollers and grinding rings with significantly extended service life
• Environmental Compliance: Pulse dust collection exceeding international standards with noise levels below 75dB

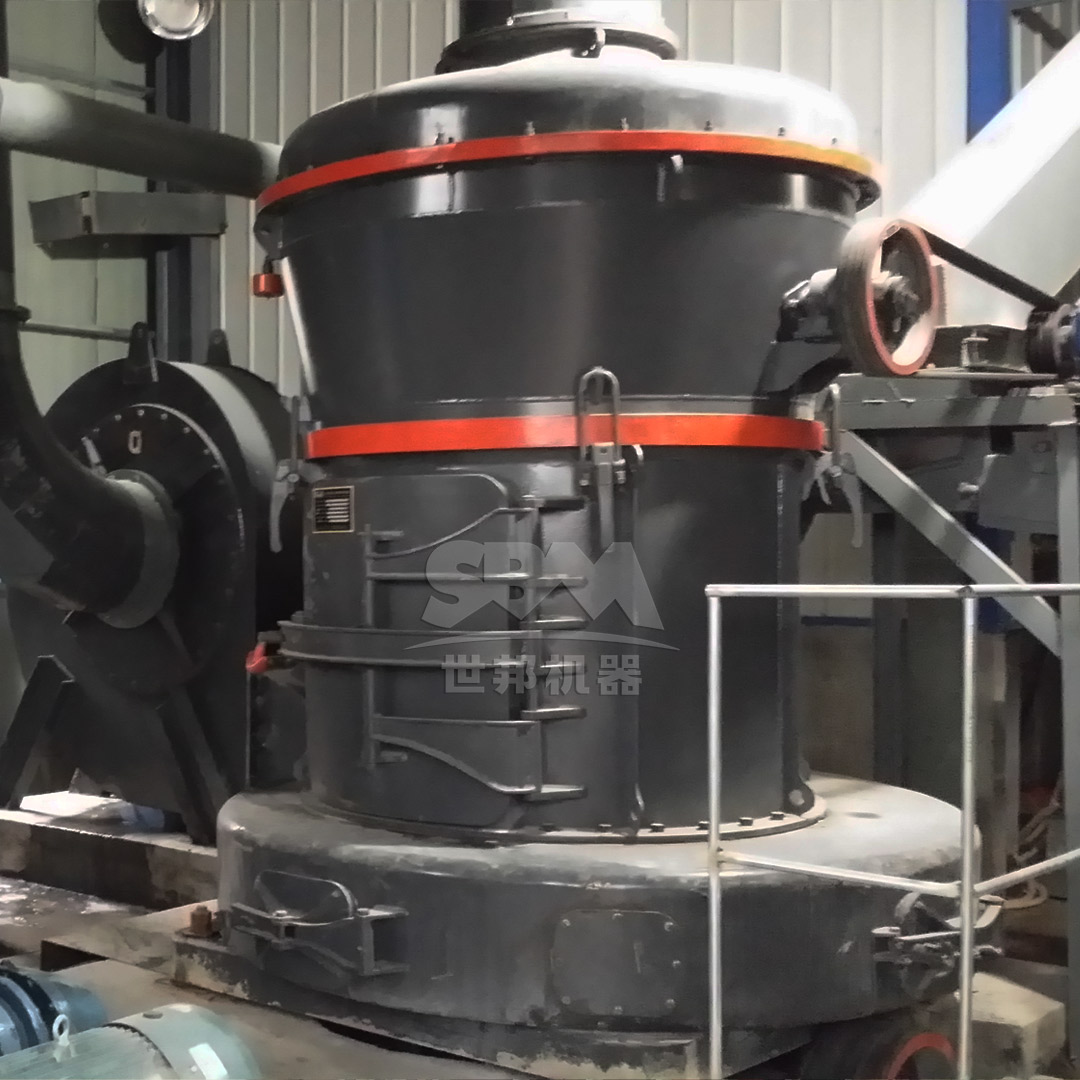

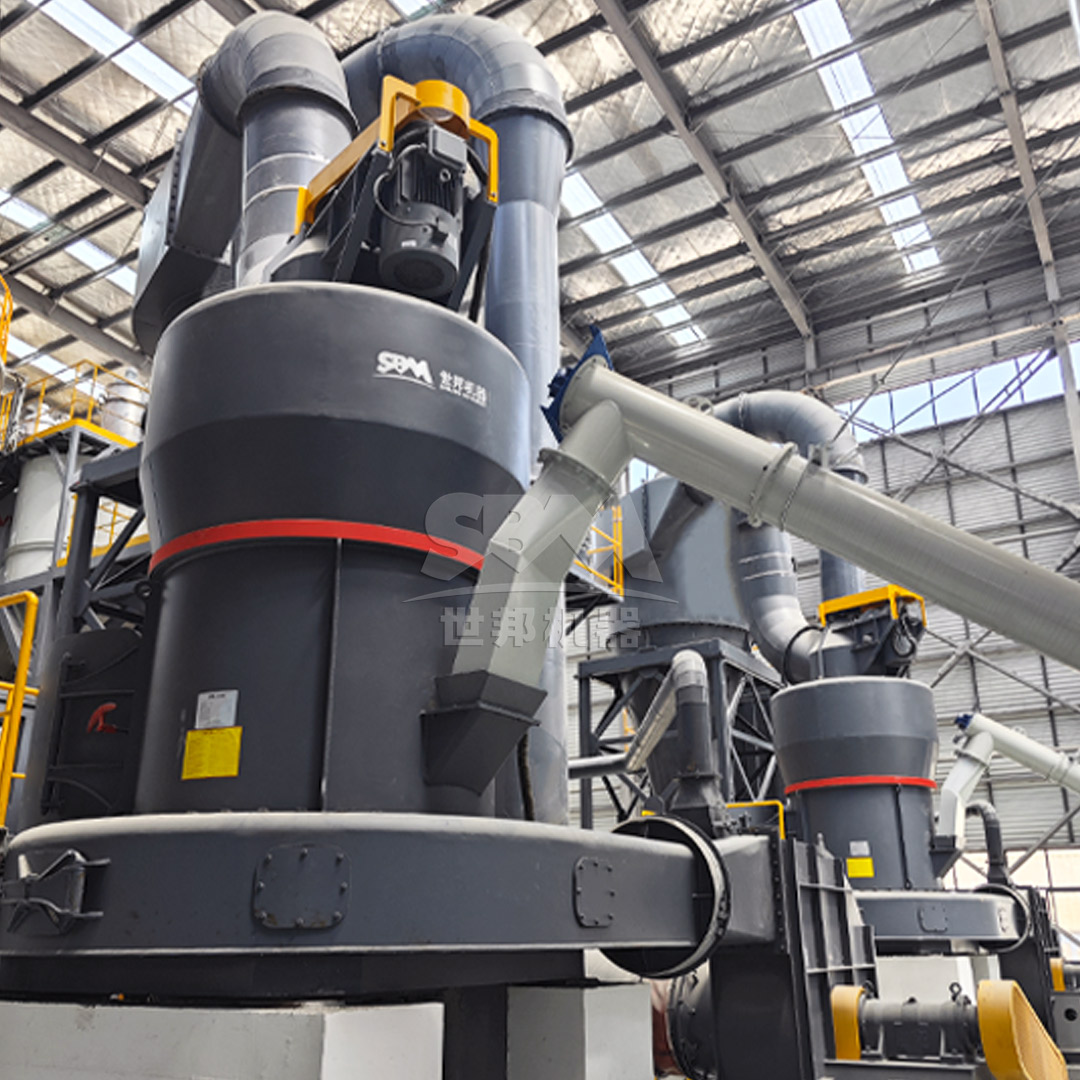

MTW Series Trapezium Mill: High-Capacity Solution

For large-scale calcite production requiring fine to medium-fine powders, the MTW Series Trapezium Mill offers an optimal balance between fineness control and high throughput. With an output fineness range of 30-325 mesh (up to 0.038mm) and capacities from 3 to 45 tons per hour, this robust grinding solution serves industries with substantial raw material processing needs.

The MTW series incorporates several technological innovations that enhance its performance in calcite grinding applications. The curved air duct design minimizes airflow resistance and energy loss, while the wear-resistant volute structure improves classification efficiency. The integrated gear transmission system achieves remarkable 98% transmission efficiency, reducing power consumption and installation costs.

For large-scale operations, the MTW215G model stands out with its impressive 15-45 tons per hour capacity, powered by a 280kW main motor. This makes it ideal for mining operations and industrial mineral plants processing significant volumes of calcite.

Notable features of the MTW Series Trapezium Mill include:

• Advanced Wear Protection: Combined shovel blades and curved design extend component lifespan
• Optimized Airflow: Specially designed air channel reduces energy consumption
• Space-Efficient Design: Compact integrated transmission system saves installation space
• Reduced Maintenance: 30% lower maintenance costs compared to conventional mills

Selecting the Right Grinding Solution

Choosing the appropriate calcite grinding system requires careful consideration of multiple factors:

Production Requirements: Match equipment capacity to your production volume needs while allowing for future expansion. Consider both current and projected requirements to avoid under or over-investment.

Product Specifications: Select technology that can consistently achieve your target fineness and particle size distribution. For specialized applications requiring extremely narrow particle distributions, advanced classification systems are essential.

Operational Costs: Evaluate the total cost of ownership, including energy consumption, maintenance requirements, and wear part replacement costs. More efficient systems may have higher initial costs but deliver significant savings over their operational lifespan.

Space Constraints: Consider the physical footprint of the grinding system and auxiliary equipment. Vertical mills typically offer space savings compared to traditional horizontal designs.

Environmental Considerations: Ensure the selected system meets local emissions and noise regulations. Modern grinding systems incorporate advanced dust collection and noise reduction technologies.

Conclusion: Maximizing Calcite Value Through Advanced Grinding

The fineness and production capacity of ground calcite are not just technical specifications – they directly determine the economic value and application potential of this versatile mineral. Modern grinding technologies like the SCM Ultrafine Mill and MTW Series Trapezium Mill have transformed calcite processing, enabling producers to precisely control product characteristics while optimizing production efficiency.

By understanding the capabilities of different grinding systems and carefully matching them to specific application requirements, calcite processors can maximize their return on investment while meeting the evolving demands of various industries. The continued advancement in grinding technology promises even greater precision, efficiency, and sustainability in calcite processing, opening new opportunities for this essential industrial mineral.

Whether your operation requires ultra-fine powders for high-value applications or high-volume production of standard grades, today’s grinding solutions offer unprecedented control over both fineness and capacity, ensuring that calcite continues to play its vital role across diverse industrial sectors.
