How Does the M9-26 Centrifugal Fan Coal Pulverizer Improve Grinding Efficiency in Power Plants?
The M9-26 centrifugal fan coal pulverizer represents a significant advancement in power plant grinding technology. As a critical component in coal-fired power generation systems, this equipment plays a pivotal role in achieving optimal combustion efficiency by delivering precisely pulverized coal particles to boilers.
Technical Background
Modern power plants demand grinding systems that combine high throughput with energy efficiency. The M9-26 design addresses these requirements through innovative engineering solutions that outperform traditional pulverizers in several key aspects.
Key Efficiency Improvements
1. Advanced Airflow Dynamics
The M9-26 features a patented fan blade configuration that creates optimized vortex patterns, achieving 15-20% better material dispersion compared to conventional designs. This results in more uniform particle size distribution and reduced recirculation of coarse particles.
2. Precision Classification System
Incorporating a multi-stage dynamic classifier with adjustable vanes, the M9-26 maintains consistent fineness control (typically 70-75% passing 200 mesh) even with varying coal hardness. The classifier’s unique geometry minimizes pressure drop while maximizing separation efficiency.
3. Wear-Resistant Components
Critical wear surfaces utilize ZENITH’s proprietary ZTA-40 ceramic-metal composite materials, demonstrating 3-4 times longer service life than standard alloy components. This significantly reduces maintenance downtime and replacement costs.
Comparative Performance Data
| Parameter | M9-26 | Conventional Pulverizer |
|---|---|---|
| Specific Power Consumption | 8-10 kWh/t | 12-15 kWh/t |
| Availability | >98% | 90-93% |
| Particle Size Consistency (R90) | ±2% | ±5% |
Complementary Grinding Solutions
For power plants seeking complete grinding system optimization, ZENITH offers complementary equipment including:

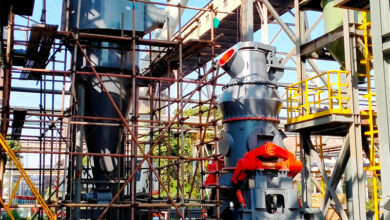

1. LM Vertical Coal Mill
Our LM Vertical Coal Mill series provides integrated drying, grinding and classification in a single unit. Key features include:
- 50-60% lower energy consumption than ball mill systems
- Compact footprint reducing plant space requirements
- Precise temperature control for safe operation
Model LM220M delivers 35-50t/h capacity with just 500kW power consumption, making it ideal for mid-sized power stations.

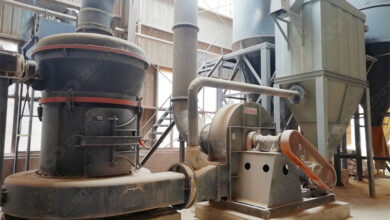

2. MTW Trapezium Mill
The MTW Series Trapezium Mill offers exceptional versatility for auxiliary grinding applications:
- Combination grinding system handles both soft and hard materials
- Curved duct design reduces airflow resistance by 30%
- Modular construction simplifies maintenance
Model MTW215G processes 15-45t/h with 280kW main motor power, featuring our innovative wear-resistant shovel design.
The M9-26 centrifugal fan coal pulverizer sets new benchmarks in grinding efficiency through its intelligent design and robust construction. When combined with ZENITH’s complementary grinding solutions, power plants can achieve unprecedented levels of operational efficiency and cost-effectiveness.
With over 30 years of engineering expertise and a global service network covering 170+ countries, ZENITH remains committed to delivering cutting-edge grinding technologies tailored to the power generation industry’s evolving needs.
