How Does a 250 Mesh Raymond Mill Improve the Filtration Speed of Activated Carbon?

Introduction

Activated carbon is a critical material in numerous industrial applications, from water purification and air filtration to gold recovery and pharmaceutical processing. Its efficacy is heavily dependent on its physical properties, particularly its particle size distribution and surface area. Achieving the optimal particle size is paramount for maximizing filtration speed and adsorption capacity. This article delves into the pivotal role that a 250 mesh (approximately 60 microns) Raymond mill plays in enhancing the performance of activated carbon, with a specific focus on filtration efficiency. We will also explore advanced milling solutions that surpass traditional Raymond mill capabilities.

The Critical Link Between Particle Size and Filtration Speed

Filtration is a process where a fluid passes through a porous medium, trapping suspended particles. In the context of activated carbon, the carbon bed itself is the filter medium. The speed and efficiency of this process are governed by several factors:

• Surface Area: Smaller particles have a vastly larger cumulative surface area per unit mass. This increased surface area provides more active sites for the adsorption of contaminants, allowing the filter to capture impurities more effectively and for a longer duration before becoming saturated.
• Packed Bed Density: A consistent, fine powder can be packed into a denser bed with smaller interstitial spaces between particles. This creates a more intricate path for the fluid, increasing the probability of contact between contaminants and carbon surfaces, thereby improving filtration efficiency.
• Flow Dynamics: There is a fundamental trade-off. Extremely fine particles can create a very dense bed that might restrict flow and increase pressure drop across the filter. The ideal particle size distribution achieves maximum surface area and density without causing unacceptable flow resistance. A 250 mesh grind often represents this sweet spot for many pressure-based filtration systems.

Grinding activated carbon to a uniform 250 mesh fineness directly optimizes these factors, leading to a faster initial flow rate in many systems and a significantly higher overall contaminant loading capacity before the filter requires replacement or regeneration.

Beyond the Traditional Raymond Mill: The Need for Precision

While the term “Raymond Mill” is often used generically for pendulum roller mills, traditional designs have limitations when processing hard, abrasive materials like activated carbon to a consistent, fine powder. Challenges include:

• Inconsistent Grind: Achieving a tight, uniform particle distribution around 250 mesh can be difficult.
• Wear and Tear: The abrasive nature of carbon accelerates wear on grinding components, leading to maintenance downtime and product contamination.
• Energy Inefficiency: Older mill designs may consume more power to achieve the desired fineness.

Modern milling technology has evolved to address these exact challenges, offering superior performance, reliability, and control.

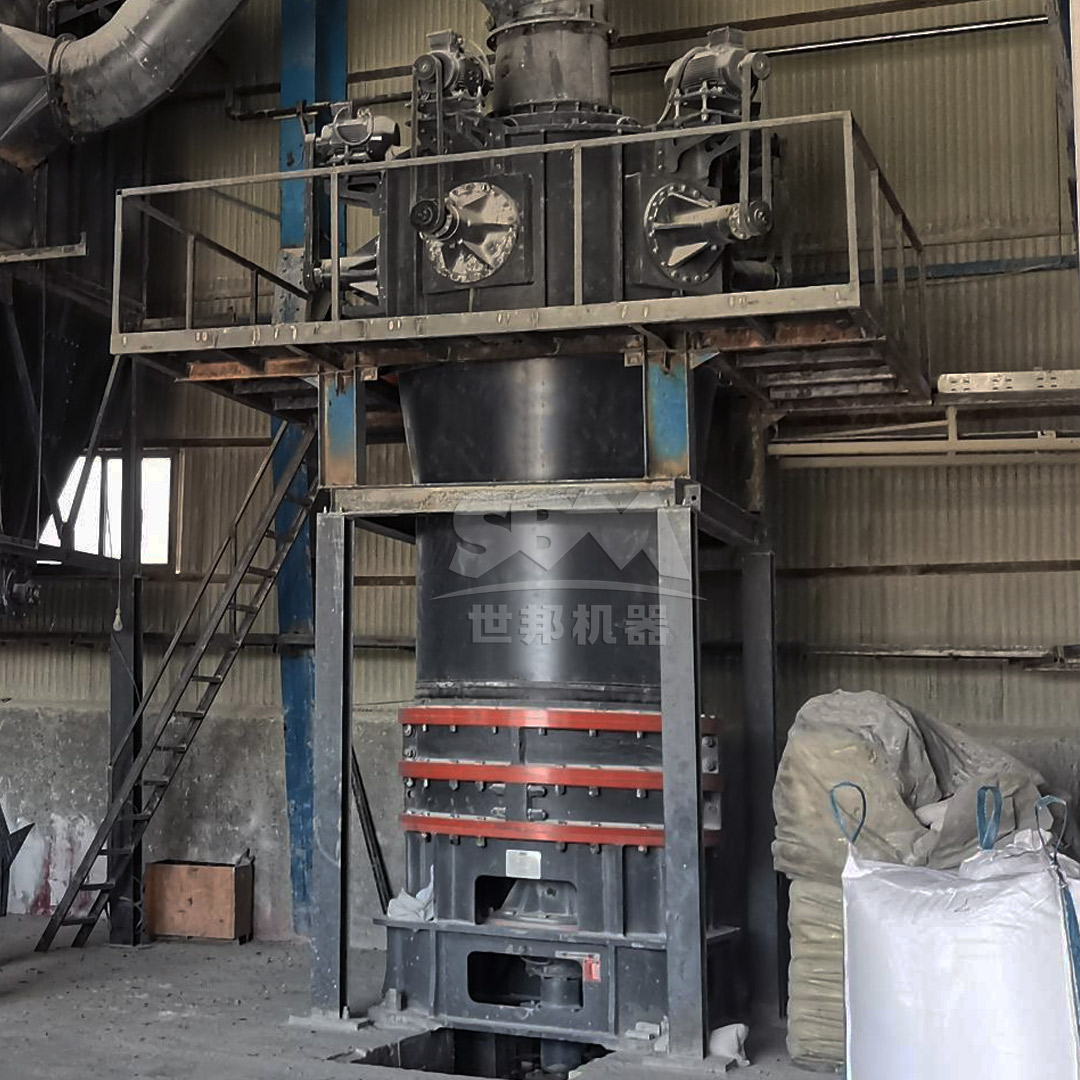

Recommended Solution: SCM Ultrafine Mill for Superior Performance

For producers seeking to maximize the quality and efficiency of their activated carbon production, our SCM Series Ultrafine Mill represents a significant technological leap over traditional milling equipment.

This mill is engineered to produce powders in the range of 325-2500 mesh (45-5μm), making the 250 mesh (approx. 60μm) target effortlessly achievable with exceptional consistency. Its technological advantages directly benefit activated carbon processing:

• High-Precision Classification: The integrated vertical turbine classifier ensures an incredibly sharp particle size cut. This means no oversized grains are present in the final product to cause channeling in the filter bed, and no excessive fines are created that could impede flow. This results in a perfectly optimized product for filtration speed.
• Exceptional Durability: Activated carbon is highly abrasive. The SCM Mill’s grinding rollers and ring are manufactured from special wear-resistant materials, extending service life by multiples compared to standard parts and protecting the product from metallic contamination.
• High Efficiency & Energy Savings: Its advanced grinding principle achieves higher output with lower energy consumption—up to 30% less than jet mills of comparable capacity. This drastically reduces the operating cost per ton of processed carbon.
• Intelligent Control: The automated control system continuously monitors and adjusts operational parameters to maintain a stable and precise product fineness (D97), ensuring every batch of activated carbon meets the exact 250 mesh specification.

With models like the SCM1000 (1.0-8.5 ton/h capacity, 132kW power) or the larger SCM1680 (5.0-25 ton/h capacity, 315kW power), our SCM Ultrafine Mill can be tailored to fit any production requirement, from pilot plants to large-scale industrial operations.

Complementary Equipment: The MTW Series Trapezium Mill

For applications where the primary requirement is high-volume processing in the 30-325 mesh range (0.045-0.6mm), including the production of coarser activated carbon products, our MTW Series Trapezium Mill is an ideal and robust solution.

Key features that make it suitable for activated carbon include:

• Anti-Wear Shovel Design: Its unique curved shovel design and combination wear parts reduce maintenance costs and prolong lifespan when handling abrasive carbon feed.
• Advanced Drive System: The efficient bevel gear overall transmission provides high torque and stable operation, ensuring consistent grinding performance.
• High Capacity: Models like the MTW215G offer massive throughput capacities of up to 45 tons per hour, making it perfect for large-scale water treatment or air filter manufacturing facilities.

For many operations, using an MTW Series mill for initial size reduction followed by an SCM Series mill for final precision grinding creates the most efficient and cost-effective processing line.

Conclusion

Grinding activated carbon to a consistent 250 mesh fineness is not a mere processing step; it is a critical determinant of the material’s performance in filtration applications. By optimizing surface area, bed density, and flow dynamics, the right particle size directly translates to faster filtration speeds and higher adsorption capacities.

Moving beyond the limitations of traditional mills, advanced grinding technology like our SCM Series Ultrafine Mill provides the precision, durability, and efficiency required to produce premium-grade activated carbon powder. Investing in the right milling equipment is an investment in the performance and value of your final product, ensuring it meets the demanding standards of modern filtration industries.
