High-Efficiency Grinding of 600 Mesh Ultrafine Magnetite Powder with Large-Scale Mill

Introduction

The demand for ultrafine magnetite powder (600 mesh and finer) has surged across various industries, including mineral processing, advanced materials, and precision manufacturing. Achieving consistent, high-volume production of such fine powders presents significant technical challenges, particularly in terms of energy efficiency, particle size distribution control, and equipment durability. This article explores the critical aspects of large-scale grinding of ultrafine magnetite powder and presents advanced milling solutions designed to meet these industrial demands.

Challenges in Ultrafine Magnetite Grinding

Magnetite (Fe₃O₄), with its inherent magnetic properties and moderate hardness (Mohs 5.5-6.5), requires specialized grinding approaches. The primary challenges include:

• Energy Consumption: The fine grinding process is inherently energy-intensive, with a significant portion of energy converted to heat rather than size reduction.
• Particle Agglomeration: Ultrafine particles tend to agglomerate due to surface forces, counteracting the grinding effort.
• Equipment Wear: The abrasive nature of magnetite accelerates wear on grinding media and mill components.
• Heat Generation: Excessive heat can alter the magnetic properties of magnetite and degrade classifiers and seals.
• Consistent Size Distribution: Maintaining a tight particle size distribution (PSD) at D97 ≤ 5μm (approx. 600 mesh) requires precise classification integrated with grinding.

Technological Solutions for High-Efficiency Grinding

Modern large-scale mills address these challenges through innovative engineering and intelligent system design.

1. Advanced Grinding Mechanics

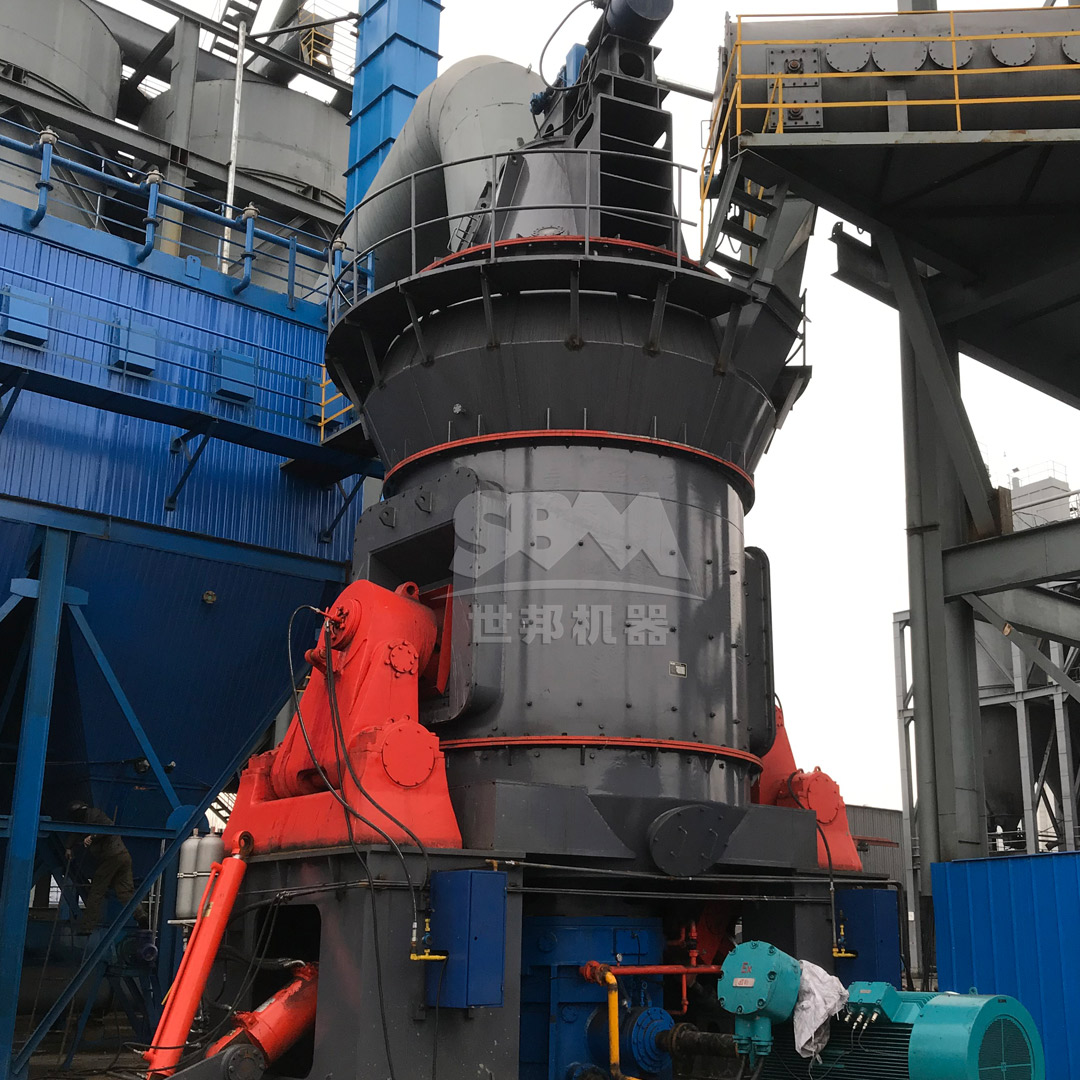

Traditional ball mills are often inefficient for ultrafine grinding due to high energy loss and heat generation. Contemporary solutions employ bed compression grinding and shear-based attrition, which apply forces more effectively to particle size reduction. Large-scale vertical roller mills and enhanced pendulum mills utilize multiple grinding rollers working against a rotating track or ring, creating a particle-bed where inter-particle comminution enhances efficiency and reduces metal-to-metal wear.

2. Precision Air Classification

Integrated, high-efficiency classifiers are paramount for achieving 600 mesh fineness. Vertical turbine classifiers with adjustable rotor speeds allow for real-time control over the cut point. The latest designs feature multiple concentric rotors to achieve sharper separations, ensuring no oversized particles contaminate the final product. This eliminates the need for external classification circuits, reducing footprint and energy consumption.

3. Wear Mitigation Strategies

For abrasive materials like magnetite, component longevity is critical for operational economy. Solutions include:

• High-Chromium Alloys and Ceramic Composites for grinding rollers and tracks, offering 3-4 times the service life of standard materials.
• Modular Design: Quick-replacement roller assemblies minimize downtime during maintenance.
• Lubrication Systems: Centralized, automated grease or oil lubrication systems protect bearings and gears from abrasive dust.

4. System Intelligence and Automation

Modern mills are equipped with PLC-based control systems that monitor key parameters such as motor load, pressure differential, bearing temperature, and classifier speed. These systems can automatically adjust feed rates and grinding force to maintain optimum productivity and target fineness, even with variations in feed material.

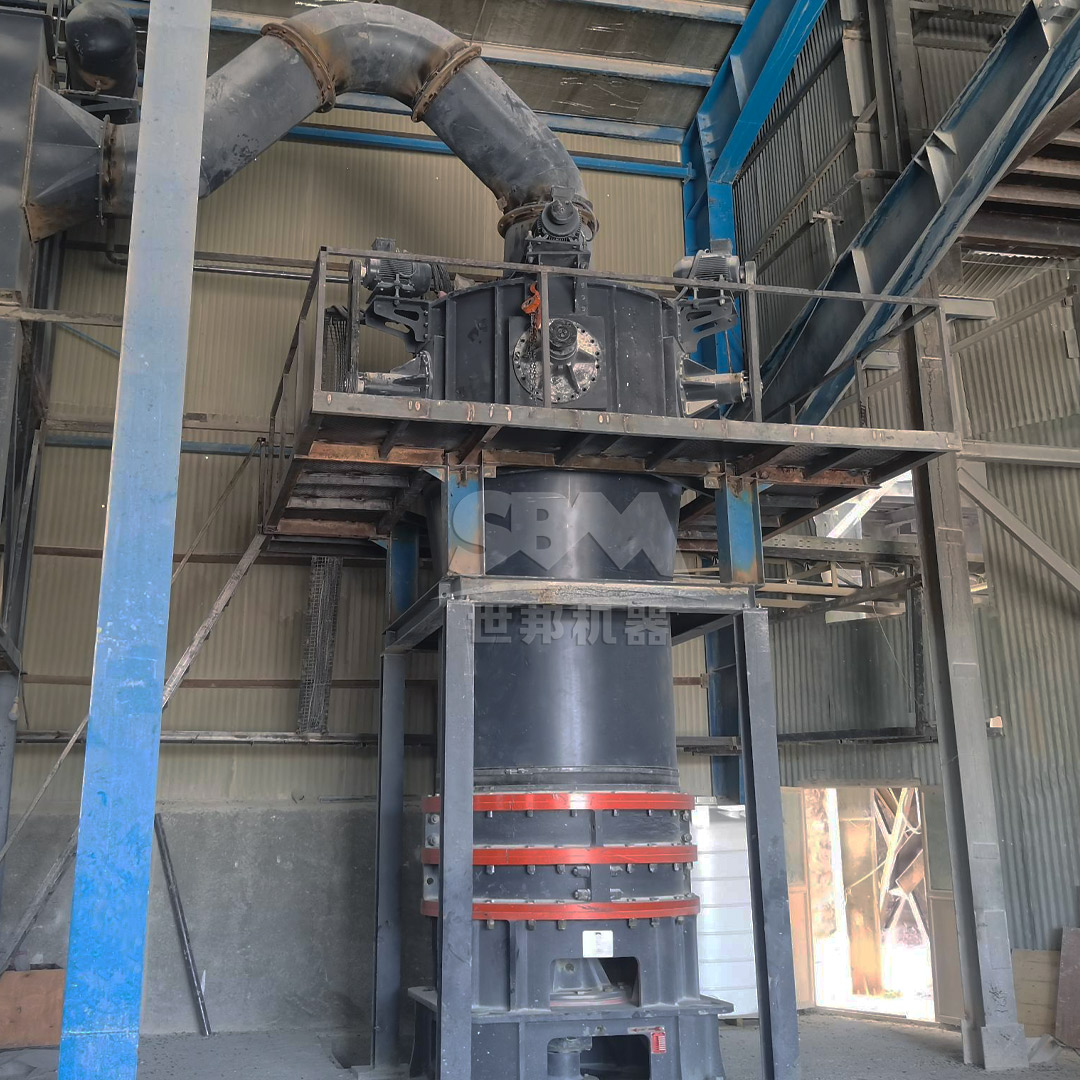

Recommended Solution: SCM Ultrafine Mill for Premium Fineness

For producers targeting high-value markets requiring consistent 600 mesh magnetite powder (D97 ≤ 5μm), our SCM Series Ultrafine Mill represents an ideal solution. This mill is engineered specifically for the most demanding ultrafine grinding applications.

Key Advantages for Magnetite Grinding:

• Superior Fineness Control: Achieves output fineness between 325-2500 mesh (45-5μm), effortlessly meeting the 600 mesh target with a narrow PSD.
• High Efficiency & Energy Savings: Its optimized grinding mechanism consumes up to 30% less energy compared to jet mills of similar capacity, significantly reducing operating costs.
• Exceptional Durability: The grinding rollers and ring are manufactured from special wear-resistant alloys, proven to withstand the abrasiveness of iron ores, drastically reducing maintenance frequency and cost.
• Integrated Precision Classification: The built-in vertical turbine classifier ensures precise particle size cuts with no coarse powder contamination, guaranteeing product quality batch after batch.
• Environmental Compliance: The pulse dust collector system ensures dust emissions are well below international standards, while the soundproof housing maintains noise levels below 75 dB.

Model Recommendation: For large-scale production of ultrafine magnetite, the SCM1680 model is highly recommended. With a handling capacity of 5.0-25 tons per hour and powered by a 315kW main motor, it is capable of supporting major production lines while delivering unparalleled product quality.

Alternative Solution: MTW Series Trapezium Mill for High-Capacity Applications

For operations that may require a slightly broader output range or where initial feed size is larger, our MTW Series Trapezium Mill offers a robust and high-capacity alternative. It is perfectly suited for producing magnetite powder in the 30-325 mesh range and can be tuned for efficient operation.

Key Advantages:

• Large Handling Capacity: With models processing up to 45 tons/hour, it is designed for high-volume output.
• Advanced Drive System: The innovative conical gear overall transmission achieves 98% efficiency, providing smooth operation and high torque.
• Reduced Maintenance: The wear-resistant volute structure and curved shovel blade design extend service intervals and lower overall operating costs.

Conclusion

The successful large-scale production of 600 mesh ultrafine magnetite powder hinges on selecting grinding technology that prioritizes energy efficiency, precision classification, and operational durability. Moving beyond traditional milling methods to advanced, integrated systems is key to achieving a competitive edge. Our SCM Ultrafine Mill stands out as a premier choice for producers seeking the highest levels of fineness and product quality, while the MTW Series Trapezium Mill provides an excellent solution for high-capacity requirements. By leveraging these advanced technologies, producers can meet stringent market specifications while optimizing their operational expenditure and maintaining environmentally responsible production standards.
