Gasification Slag Applications: Expert Guide by Slag Grinding Mill Manufacturer
Introduction to Gasification Slag
Gasification slag, a byproduct of coal gasification processes, has emerged as a valuable resource in various industrial applications. This dark, granular material possesses unique chemical and physical properties that make it suitable for construction, cement production, and environmental remediation. With proper processing and grinding, gasification slag can be transformed into high-value products that contribute to sustainable industrial practices.
The utilization of gasification slag not only reduces environmental impact by minimizing waste but also creates economic opportunities for industries that can effectively process and apply this material. The key to unlocking its potential lies in advanced grinding technology that can achieve the precise particle size distribution required for different applications.
Chemical Composition and Properties
Gasification slag typically contains silica (SiO₂), alumina (Al₂O₃), calcium oxide (CaO), and iron oxide (Fe₂O₃) as primary components. The exact composition varies depending on the coal source and gasification conditions. This complex mineral structure gives gasification slag its pozzolanic properties, making it an excellent supplementary cementitious material when finely ground.
The physical characteristics of gasification slag include:
- High hardness and abrasiveness
- Variable particle size in raw form
- Glass-like structure with amorphous phases
- Specific gravity ranging from 2.3 to 2.9
- Low moisture content in processed form
Industrial Applications of Processed Gasification Slag
Construction and Building Materials
Finely ground gasification slag serves as an excellent partial replacement for Portland cement in concrete mixtures. When processed to the appropriate fineness (typically 400-500 m²/kg Blaine), it reacts with calcium hydroxide to form additional cementitious compounds, enhancing concrete durability and reducing permeability. This application significantly lowers the carbon footprint of construction projects while maintaining structural integrity.
Additional construction applications include:
- Lightweight aggregate production
- Mortar and plaster formulations
- Soil stabilization agents
- Asphalt filler and modifier
Environmental Remediation
The porous structure and chemical composition of processed gasification slag make it effective for environmental applications. Its high surface area and reactive sites enable it to adsorb heavy metals and other contaminants from wastewater and soil. When ground to specific particle sizes, it can be used in filtration systems and as a component in permeable reactive barriers.
Agricultural Applications
Processed gasification slag finds use in agriculture as a soil conditioner and pH regulator. The calcium and magnesium compounds present in the material can help neutralize acidic soils, while the silica content strengthens plant cell walls, improving resistance to pests and diseases. The material must be ground to a consistent fineness to ensure uniform distribution and effectiveness.
Grinding Technology for Gasification Slag Processing
The transformation of raw gasification slag into valuable products requires specialized grinding equipment capable of handling its abrasive nature while achieving precise particle size distributions. Different applications demand specific fineness levels, from coarse aggregates to ultra-fine powders.
Key Considerations in Slag Grinding
Successful processing of gasification slag requires attention to several critical factors:
- Abrasion resistance: Equipment components must withstand the highly abrasive nature of slag particles
- Energy efficiency: Grinding processes should minimize power consumption while maximizing output
- Particle size control: Precise classification systems are essential for product consistency
- Dust management: Effective collection systems prevent material loss and environmental contamination
Recommended Grinding Solutions
SCM Ultrafine Mill for High-Value Applications
For applications requiring ultra-fine gasification slag powders (325-2500 mesh), our SCM Ultrafine Mill delivers exceptional performance. This advanced grinding system combines high efficiency with precise particle size control, making it ideal for producing slag powders for high-performance concrete and specialized industrial applications.
The SCM series offers several distinct advantages for gasification slag processing:
- Superior energy efficiency: With 30% lower energy consumption compared to conventional jet mills and double the capacity, the SCM series significantly reduces operating costs
- High-precision classification: The vertical turbine classifier ensures precise particle size cuts with no coarse powder contamination
- Enhanced durability: Specially formulated materials for rollers and grinding rings extend service life multiple times over standard components
- Environmental compliance: Advanced pulse dust collection exceeds international standards while noise levels remain below 75dB
With models ranging from the SCM800 (0.5-4.5 ton/h capacity) to the SCM1680 (5.0-25 ton/h capacity), operations of all scales can find an appropriate solution for their gasification slag processing needs.

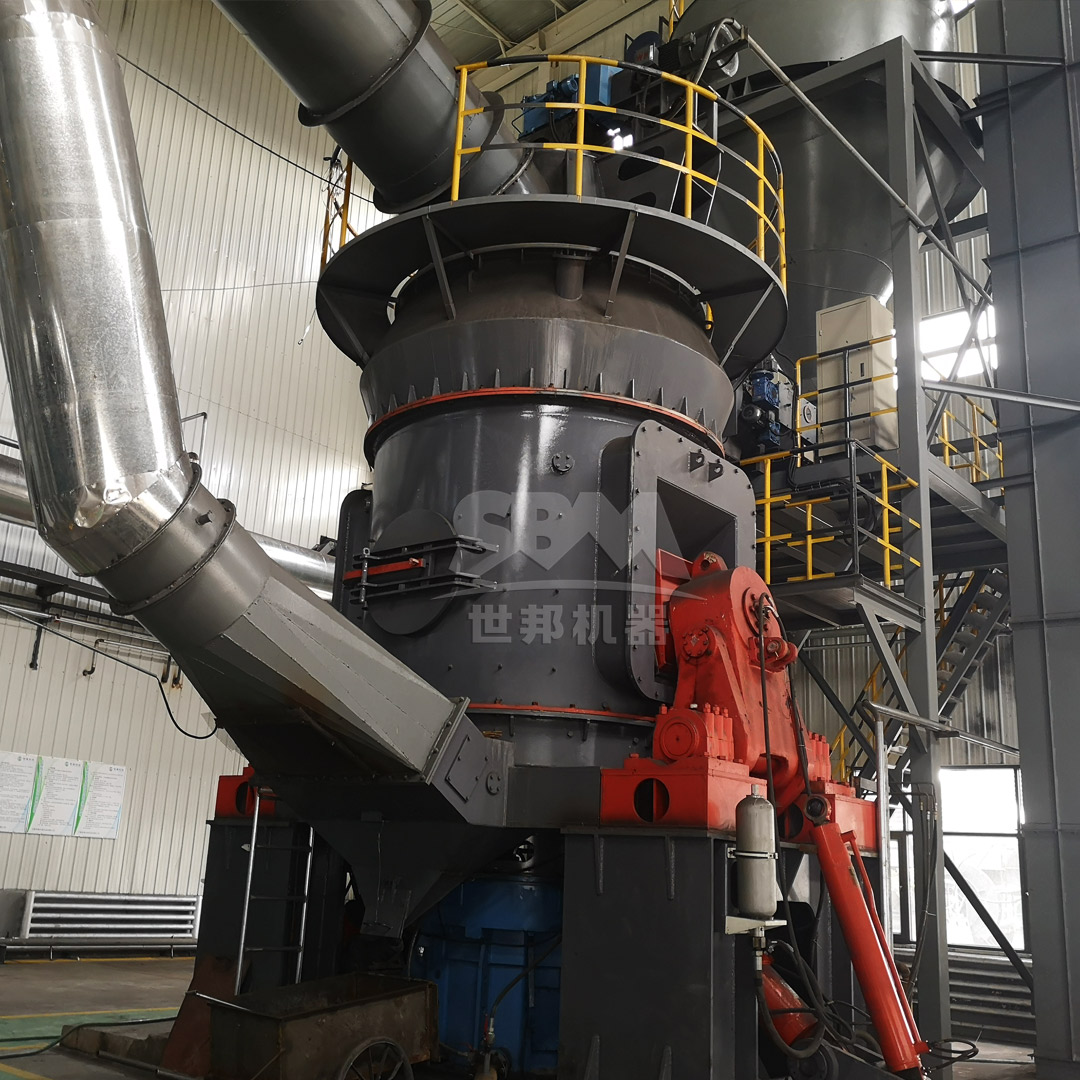

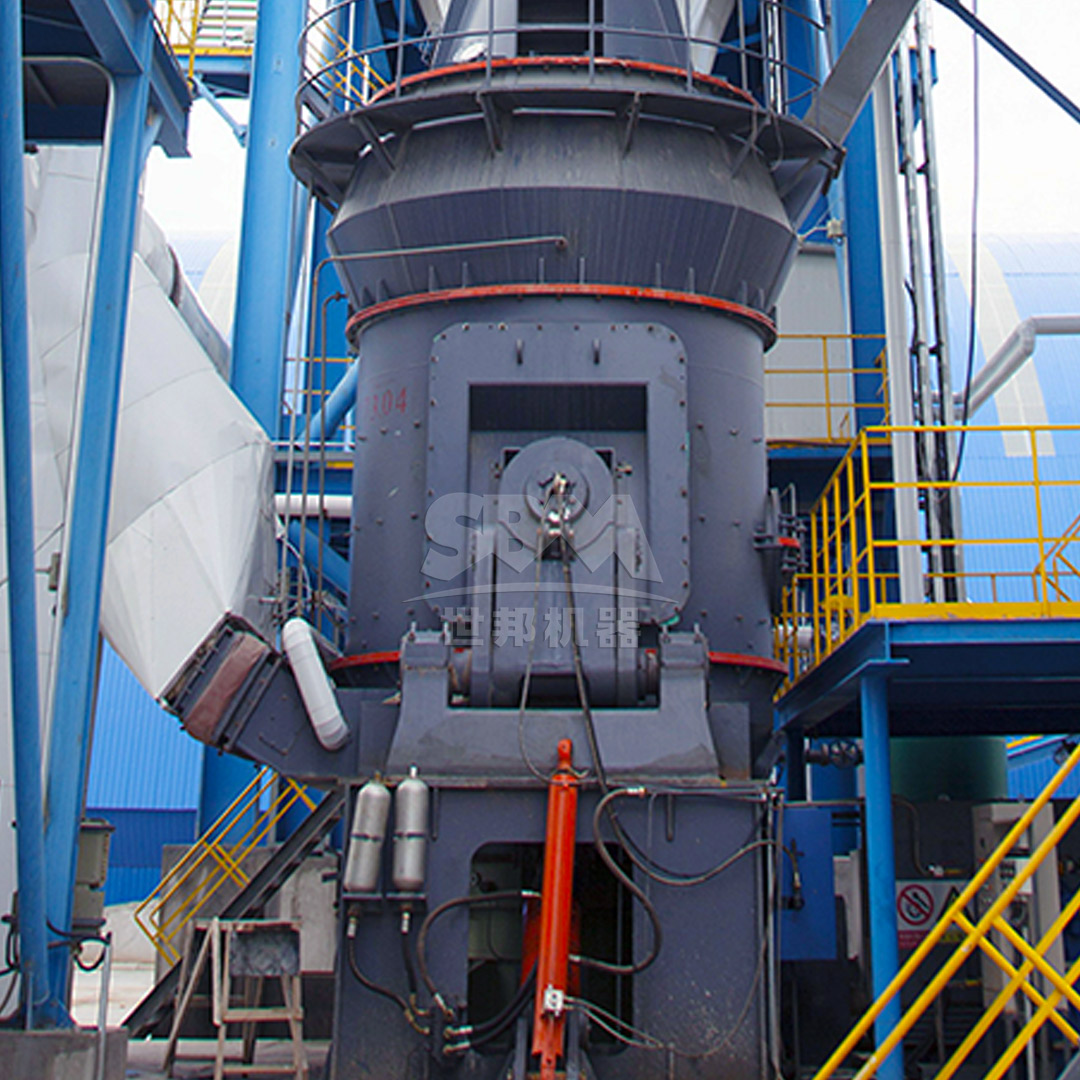

LM Vertical Roller Mill for Large-Scale Production
For high-volume processing of gasification slag, our LM Vertical Roller Mill series provides an optimal solution. These mills feature compact design, low operating costs, and intelligent control systems that make them ideal for large-scale slag processing operations.
Key benefits of the LM series for gasification slag include:
- Integrated system design: Combining crushing, grinding, and separation functions in a single unit reduces footprint by 50%
- Reduced operating costs: Non-contact design between rollers and grinding table extends wear part life by 3 times while reducing energy consumption by 30-40% compared to ball mill systems
- Advanced automation: Expert control systems support remote operation and real-time monitoring of process parameters
- Environmental performance: Fully sealed negative pressure operation ensures dust emissions remain below 20mg/m³
The LM series includes specialized slag mill models (LM130N to LM370N) specifically engineered for gasification slag processing, with capacities ranging from 4-6 ton/h to 90-110 ton/h.
Optimizing Grinding Parameters for Gasification Slag
Successful processing of gasification slag requires careful adjustment of grinding parameters based on the specific characteristics of the feedstock and the desired end product. Key considerations include:
| Parameter | Coarse Applications | Fine Applications | Ultra-Fine Applications |
|---|---|---|---|
| Target Fineness | 30-100 mesh | 100-400 mesh | 400-2500 mesh |
| Recommended Equipment | MTW Series, MTM Series | LM Vertical Mill | SCM Ultrafine Mill |
| Moisture Content | <5% | <3% | <1% |
| Specific Surface Area | 200-300 m²/kg | 300-450 m²/kg | 450-800 m²/kg |
Quality Control and Testing
Consistent product quality is essential for successful gasification slag applications. Implementing rigorous quality control measures ensures that processed slag meets the specifications required for different end uses. Key quality parameters include:
- Particle size distribution (laser diffraction analysis)
- Specific surface area (Blaine or BET methods)
- Chemical composition (XRF analysis)
- Pozzolanic activity index (ASTM C311)
- Moisture content
Regular testing throughout the grinding process allows for adjustments to maintain product consistency and optimize grinding efficiency.
Economic and Environmental Benefits
The processing and utilization of gasification slag offer significant economic and environmental advantages:
Economic Benefits
- Reduced raw material costs through byproduct utilization
- Lower energy consumption compared to virgin material production
- Creation of new revenue streams from waste materials
- Extended equipment life through proper grinding system selection
Environmental Benefits
- Reduced landfill requirements for industrial byproducts
- Lower carbon emissions compared to conventional materials
- Conservation of natural resources
- Improved sustainability profile for industrial operations
Future Trends in Gasification Slag Utilization
The market for processed gasification slag continues to evolve, with several emerging trends shaping future applications:
- Advanced construction materials: Development of high-performance composites incorporating ultrafine slag powders
- Carbon capture applications: Research into using slag-based materials for CO₂ sequestration
- Circular economy initiatives: Increased integration of slag processing into industrial symbiosis networks
- Smart grinding systems: Implementation of AI and IoT technologies for optimized grinding operations
Conclusion
Gasification slag represents a significant opportunity for industries seeking to enhance sustainability while maintaining product performance. With proper processing using advanced grinding equipment like our SCM Ultrafine Mill and LM Vertical Roller Mill series, this industrial byproduct can be transformed into valuable materials for construction, environmental, and agricultural applications.
The selection of appropriate grinding technology is critical to achieving the desired product characteristics while maintaining economic viability. By understanding the properties of gasification slag and matching them with the right processing equipment, operators can maximize both economic returns and environmental benefits.
As technology continues to advance, we anticipate even more efficient and versatile grinding solutions that will further expand the applications for processed gasification slag, contributing to a more sustainable industrial future.
