From Broken to Beautiful: The Process of Turning Crushed Glass into New Sheet Glass

Introduction: The Circular Economy of Glass

The transformation of waste glass into pristine sheet glass represents one of the most compelling examples of circular economy principles in modern manufacturing. This sophisticated process not only diverts millions of tons of material from landfills annually but also significantly reduces energy consumption compared to virgin glass production. The journey from broken fragments to flawless sheets involves precise engineering, advanced technology, and meticulous quality control at every stage.

The Critical First Step: Glass Cullet Preparation

Before recycled glass can re-enter the manufacturing stream, it must undergo rigorous preparation. Collected glass arrives at recycling facilities contaminated with labels, caps, ceramics, and other non-glass materials. The initial sorting process employs advanced optical scanners, magnets, and air classifiers to remove impurities. What remains is glass cullet—broken glass fragments of varying sizes and colors.

The quality of the final sheet glass is directly dependent on the purity and consistency of the cullet. Even microscopic contaminants can create defects in the finished product, making the grinding and purification stages critically important.

The Grinding Challenge: Achieving Optimal Particle Size

Glass recycling presents unique grinding challenges. Unlike many materials, glass is brittle yet abrasive, requiring equipment that can reduce particle size without introducing metallic contamination. The ideal cullet for sheet glass production requires a controlled particle size distribution that ensures uniform melting behavior in the furnace.

Traditional grinding methods often struggle with the dual requirements of precision and efficiency. Either the equipment cannot achieve the necessary fineness, or it consumes excessive energy, undermining the environmental benefits of recycling. This is where advanced grinding technology becomes essential.

Precision Grinding: The Heart of Quality Recycling

For sheet glass manufacturing, the cullet must be ground to a specific fineness that promotes homogeneous melting. Particles that are too large may not melt completely, creating seeds and stones in the final product. Particles that are too fine can cause excessive foaming in the furnace and increase energy consumption.

The optimal particle size range for recycled glass in sheet production typically falls between 30-325 mesh (600-45μm). Achieving this consistently requires grinding equipment with precise control over the final product specifications.

Recommended Equipment: MTW Series Trapezium Mill

For the critical grinding stage in glass recycling operations, the MTW Series Trapezium Mill offers an ideal solution. With an output fineness range of 30-325 mesh (0.038mm) and handling capacity of 3-45 tons per hour, this equipment matches the precise requirements of glass cullet preparation.

The MTW mill’s technological advantages make it particularly suitable for glass recycling applications:

• Anti-wear shovel blade design with combined shovel slices reduces maintenance costs when processing abrasive glass materials
• Curved air channel optimization minimizes energy loss and improves transmission efficiency
• Integrated conical gear transmission achieves 98% transmission efficiency with compact installation footprint
• Wear-resistant volute structure with non-blocking design enhances air classification efficiency

In operation, the main motor drives the grinding roller to revolve around the central axis while rotating itself to generate centrifugal force. The shovel blade throws materials between the grinding ring and roller to form a material layer, achieving efficient crushing through extrusion, with the classification system precisely controlling the final particle size.

For larger-scale operations, the MTW215G model offers processing capacity of 15-45 tons per hour with 280kW main motor power, handling input sizes up to 50mm—perfect for processing mixed glass cullet of various sizes.

The Science of Glass Reformulation

Once properly ground, the glass cullet enters the reformulation phase. Different colors of glass have distinct chemical compositions—clear glass contains fewer impurities while green and brown glasses contain specific metal oxides for coloration. For sheet glass production, color separation is crucial since mixed-color cullet produces an undesirable greenish tint in clear glass applications.

Advanced optical sorting systems can separate glass by color with remarkable accuracy. The sorted cullet is then blended with raw materials—silica sand, soda ash, and limestone—in precise proportions. The typical sheet glass batch contains 20-50% recycled content, though some manufacturers achieve up to 90% cullet content in certain products.

Chemical Consistency and Quality Control

The chemical composition of the reformulated glass must meet exacting standards. Even slight variations can affect the glass’s thermal expansion coefficient, viscosity at working temperatures, and final mechanical properties. Sophisticated laboratory analysis ensures each batch meets specifications before proceeding to melting.

The Melting Process: From Powder to Molten Glass

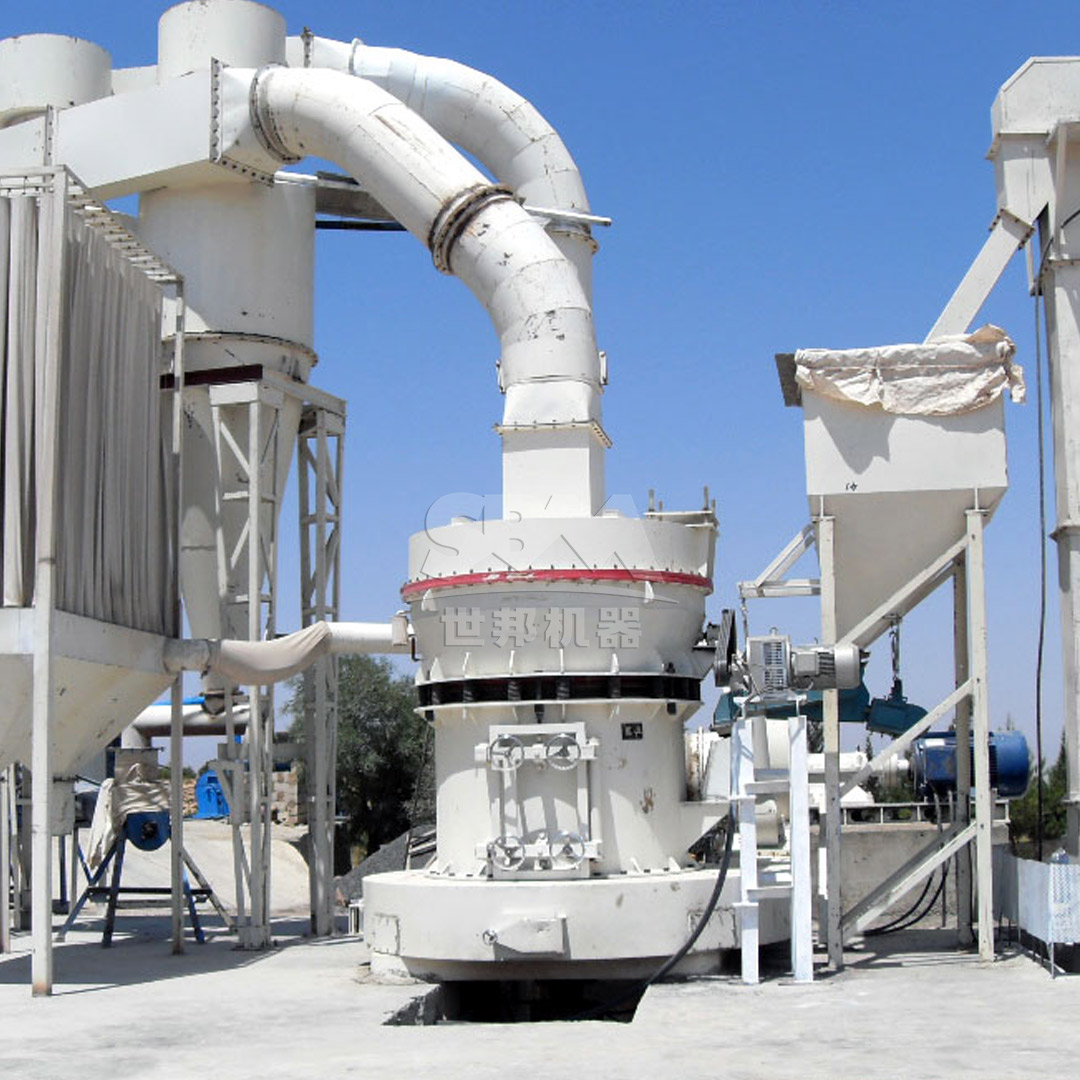

The blended batch enters regenerative furnaces that reach temperatures of approximately 1700°C (3090°F). These massive structures, often the size of a small house, operate continuously for 10-15 years between rebuilds. The use of cullet significantly reduces energy requirements since melting recycled glass consumes approximately 30% less energy than melting raw materials.

As the batch melts, it undergoes refining—a process where gases escape and the glass becomes homogeneous. The quality of the ground cullet directly impacts this stage: properly sized particles melt uniformly while oversized particles may persist as unmelted defects.

Sheet Glass Formation: Float Glass Technology

The modern method for producing sheet glass is the float glass process, invented by Sir Alastair Pilkington in the 1950s. In this ingenious method, molten glass flows onto a bath of molten tin, where it spreads out to form a perfectly flat surface. The tin bath is maintained in a controlled atmosphere to prevent oxidation.

As the glass ribbon moves through the tin bath, its thickness is precisely controlled by the speed of extraction and the amount of glass fed onto the bath. The glass cools gradually as it travels, transitioning from a viscous liquid to a solid sheet while maintaining exceptional flatness and parallel surfaces.

The Role of Cullet Quality in Float Glass Production

The quality of the recycled cullet profoundly impacts the float process. Impurities or inconsistent particle size can cause defects such as:

• Seeds: tiny gas bubbles that weaken the glass
• Stones: unmelted particles that create stress points
• Cords: streaks of glass with different composition or viscosity
• Tin pick-up: contamination from the tin bath affecting surface quality

This underscores why the initial grinding stage is so critical to the entire recycling-to-sheet-glass process.

Annealing: Relieving Internal Stresses

After forming, the glass undergoes annealing—a carefully controlled cooling process that relieves internal stresses. The glass ribbon passes through a lehr (annealing oven) where the temperature is gradually reduced according to a specific time-temperature profile. Proper annealing ensures the glass will not develop spontaneous fractures and will have consistent mechanical properties throughout.

Recycled glass may have different thermal characteristics than virgin glass, requiring slight adjustments to the annealing schedule. Modern computer-controlled systems automatically optimize these parameters based on the batch composition.

Cutting, Inspection, and Finishing

The continuous ribbon of glass emerges from the annealing lehr to be cut into manageable sheets. Automated cutting systems score the glass surface with diamond wheels, after which mechanical breakers separate the panels. The glass then undergoes rigorous inspection using laser scanners and automated vision systems to detect any defects.

For recycled-content sheet glass, additional inspection may be necessary to ensure that the incorporation of cullet hasn’t introduced any visual or structural imperfections. Glass that meets quality standards may undergo further processing—tempering, laminating, coating, or other treatments—before being shipped to customers.

Ultra-Fine Applications: When Standard Grinding Isn’t Enough

For specialized glass recycling applications requiring exceptional fineness—such as glass powder for reflective paints, fine glass filters, or advanced composite materials—standard grinding may be insufficient. These applications demand particle sizes in the ultrafine range, typically 325-2500 mesh (45-5μm).

Recommended Equipment: SCM Ultrafine Mill

For these demanding applications, the SCM Ultrafine Mill provides the necessary precision. Capable of achieving output fineness of 325-2500 mesh (D97≤5μm) with processing capacity of 0.5-25 tons per hour, this equipment represents the cutting edge of fine grinding technology.

The SCM series offers distinct advantages for specialized glass recycling:

• High-efficiency and energy saving: Double the capacity of jet mills with 30% lower energy consumption
• High-precision classification: Vertical turbine classifier ensures precise particle size distribution without coarse powder contamination
• Durable design: Special material rollers and grinding rings extend service life multiple times
• Environmental and low-noise operation: Pulse dust collection exceeds international standards with noise levels ≤75dB

The working principle involves a main motor driving a three-layer grinding ring to rotate. Material is dispersed to the grinding path by centrifugal force, progressively crushed by roller pressure, and finally collected by a cyclone collector and pulse dust removal system.

For research institutions and specialty manufacturers working with ultra-fine glass powders, the SCM800 model offers processing capacity of 0.5-4.5 tons per hour with 75kW main motor power, providing laboratory-scale precision with production-level throughput.

Environmental and Economic Benefits

The transformation of crushed glass into new sheet glass delivers substantial environmental advantages:

• Energy savings: Every 10% of cullet in the batch reduces energy consumption by 2-3%
• Raw material conservation: Each ton of cullet replaces 1.2 tons of virgin raw materials
• Emissions reduction: Carbon dioxide emissions decrease by approximately 300kg for every ton of cullet used
• Landfill diversion: Glass recycling prevents millions of tons of material from occupying landfill space

Economically, glass recycling creates local jobs in collection, processing, and manufacturing while reducing raw material costs for glass producers. The availability of high-quality recycled sheet glass also supports green building initiatives and sustainable product design.

Future Directions in Glass Recycling Technology

The future of glass recycling points toward even greater efficiency and higher cullet utilization rates. Emerging technologies include:

• Advanced sorting systems with improved color separation capabilities
• Intelligent grinding systems that automatically adjust parameters based on input material characteristics
• Novel furnace designs optimized for high-cullet batches
• Chemical treatments to remove difficult contaminants from mixed-color cullet

As these technologies mature, we can anticipate sheet glass products with even higher recycled content while maintaining—or improving—optical and mechanical properties.

Conclusion: Closing the Loop with Precision

The journey from broken glass to beautiful sheet glass exemplifies how technological innovation enables true circular economy solutions. What was once considered waste becomes valuable raw material through processes that grow increasingly sophisticated and efficient.

Central to this transformation is precision grinding technology that prepares cullet for its second life. Equipment like the MTW Series Trapezium Mill for standard applications and the SCM Ultrafine Mill for specialized needs provide the critical link between waste glass and high-quality sheet products.

As manufacturing continues to embrace sustainable practices, the process of turning crushed glass into new sheet glass will undoubtedly evolve, offering even greater environmental benefits while producing materials of exceptional quality and beauty. The broken becomes beautiful through a combination of engineering excellence, environmental commitment, and technological innovation.
