Fluorite Superfine Grinding: Why Choose Guilin Ultra-fine Ring Roller Mill?

Introduction to Fluorite Grinding Challenges

Fluorite, also known as fluorspar, is a crucial industrial mineral with applications spanning metallurgy, ceramics, chemicals, and optics. The processing of fluorite into superfine powders presents unique challenges due to its variable hardness, crystal structure, and the stringent quality requirements for end-use applications. Traditional grinding methods often fall short in achieving the necessary particle size distribution, purity, and production efficiency demanded by modern industries.

The quest for optimal fluorite grinding solutions has led to the development of advanced milling technologies that can handle the material’s specific characteristics while maintaining economic viability. Among these technologies, ring roller mills have emerged as particularly suitable for fluorite processing, offering a combination of precision, efficiency, and reliability that sets them apart from conventional grinding systems.

Technical Requirements for Fluorite Superfine Grinding

Particle Size Distribution Control

Superfine fluorite powders require precise control over particle size distribution, typically ranging from 325 to 2500 mesh (5-45μm). The D97 parameter, representing the particle size below which 97% of the material falls, is particularly critical for applications such as optical fluorite and high-purity chemical production. Achieving this narrow distribution while maintaining production efficiency demands advanced classification systems integrated with the grinding mechanism.

Contamination Prevention

Fluorite applications often demand exceptionally low levels of iron and other metallic contaminants. Traditional grinding media can introduce unacceptable levels of impurities through wear and tear. The ideal grinding system must minimize metal-to-metal contact and employ wear-resistant materials that maintain purity standards throughout the equipment’s operational life.

Energy Efficiency Considerations

With energy costs representing a significant portion of mineral processing expenses, modern fluorite grinding systems must optimize power consumption while maintaining output quality. Advanced milling technologies can reduce specific energy consumption by 30-50% compared to conventional systems, making them economically viable for large-scale production.

Guilin Ultra-fine Ring Roller Mill: Technical Superiority

Advanced Grinding Mechanism

The Guilin Ultra-fine Ring Roller Mill employs a sophisticated multi-layer grinding principle that sets it apart from conventional milling systems. Through the coordinated action of multiple grinding rollers and specially designed grinding rings, the mill achieves unprecedented efficiency in particle size reduction. The unique curvature of the grinding elements creates optimal pressure distribution across the material bed, ensuring uniform comminution with minimal energy waste.

What distinguishes this technology is its ability to maintain consistent grinding performance across varying feed conditions. The system automatically adjusts to changes in material characteristics, ensuring stable operation and product quality regardless of fluctuations in feed size, moisture content, or hardness variations commonly encountered in fluorite processing.

Precision Classification System

At the heart of the Guilin mill’s performance is its integrated vertical turbine classifier, which represents a significant advancement in particle separation technology. Unlike conventional classifiers that struggle with fine cuts, this system employs multiple rotor stages with independently adjustable speeds, enabling precise control over the cut point from 325 to 2500 mesh.

The classifier’s aerodynamic design minimizes turbulence and ensures sharp separation, effectively eliminating coarse particle contamination in the final product. This capability is particularly crucial for fluorite applications where even minor deviations from target specifications can render the product unsuitable for high-value applications.

SCM Ultrafine Mill: Optimal Solution for Fluorite Processing

Among Guilin’s comprehensive product range, the SCM Ultrafine Mill stands out as particularly well-suited for fluorite superfine grinding applications. This advanced milling system combines decades of engineering expertise with cutting-edge technological innovations to deliver unmatched performance in mineral processing.

Technical Specifications and Capabilities

The SCM series handles feed materials up to 20mm in size and produces powders ranging from 325 to 2500 mesh (D97 ≤ 5μm), with production capacities from 0.5 to 25 tons per hour depending on the specific model. This wide operational range makes it suitable for both pilot-scale testing and full-scale industrial production.

Key models in the SCM series include the SCM800 with 75kW main motor power and 0.5-4.5 ton/h capacity, progressing to the industrial-scale SCM1680 equipped with a 315kW main motor and capable of processing 5.0-25 tons per hour. This scalability ensures that operations of any size can find an appropriately sized solution within the product family.

Performance Advantages for Fluorite

The SCM Ultrafine Mill demonstrates remarkable efficiency in fluorite processing, achieving production rates approximately double those of jet mills while reducing energy consumption by 30%. This exceptional performance stems from the mill’s optimized grinding geometry and advanced material flow management, which minimize energy losses and maximize size reduction efficiency.

For fluorite producers, the mill’s ability to maintain consistent product quality while processing material with variable characteristics translates to reduced quality control costs and higher product yields. The intelligent control system automatically monitors and adjusts operational parameters in response to changing conditions, ensuring that target specifications are maintained throughout production runs.

Comparative Analysis: Guilin Mills vs. Conventional Grinding Systems

Energy Efficiency Benchmarking

When compared to traditional ball mills and Raymond mills, Guilin’s ring roller technology demonstrates superior energy utilization. Specific energy consumption for achieving D97 = 5μm in fluorite grinding is typically 30-40% lower than conventional systems. This efficiency advantage becomes increasingly significant at finer grind sizes, where conventional mills experience exponential increases in energy requirements.

Product Quality Comparison

The narrow particle size distribution achieved by Guilin mills represents a substantial improvement over conventional systems. Where traditional mills might produce broad distributions requiring additional classification steps, the integrated approach of the ring roller mill delivers directly usable product with minimal oversize or undersize fractions. This quality advantage is particularly valuable in high-value fluorite applications where consistency directly impacts performance.

Operational Cost Analysis

Beyond energy savings, Guilin mills offer substantial reductions in maintenance and wear costs. The use of special alloy materials in high-wear components extends service life by 3-5 times compared to conventional mills. The innovative bearing-free screw design in the grinding chamber eliminates a common failure point in traditional systems, further enhancing reliability and reducing downtime.

MTW Series Trapezium Mill: Versatile Solution for Coarser Fluorite Applications

For operations requiring slightly coarser fluorite powders in the 30-325 mesh range, the MTW Series Trapezium Mill presents an excellent alternative. This robust milling system combines European engineering principles with practical operational enhancements to deliver reliable performance in demanding mineral processing environments.

Technical Features and Benefits

The MTW series accepts feed materials up to 50mm in size and produces powders from 30-325 mesh (up to 0.038mm), with capacities ranging from 3 to 45 tons per hour. Key technological advantages include wear-resistant shovel design with combined blades that significantly reduce maintenance costs, curved air channel optimization that minimizes energy losses and improves transmission efficiency, and integral bevel gear transmission achieving 98% efficiency while saving space and installation costs.

Available models span from the compact MTW110 with 55kW main motor and 3-9 ton/h capacity to the industrial-scale MTW215G equipped with 280kW main motor and capable of processing 15-45 tons per hour. This comprehensive range ensures appropriate sizing for various production requirements.

Application Flexibility

The MTW mill’s robust construction and flexible configuration options make it suitable for operations processing multiple mineral types or those with varying product requirements. The system can be readily adjusted to accommodate changes in feed characteristics or product specifications, providing valuable operational flexibility in dynamic market conditions.

Environmental and Operational Safety Features

Advanced Dust Collection Systems

Guilin mills incorporate pulse-jet dust collectors that exceed international environmental standards, capturing over 99.9% of particulate matter. This comprehensive dust management is crucial in fluorite processing, where fine particles can present both environmental and workplace safety concerns. The fully enclosed negative-pressure operation ensures no dust leakage during normal operation, creating a cleaner and safer working environment.

Noise Control Technology

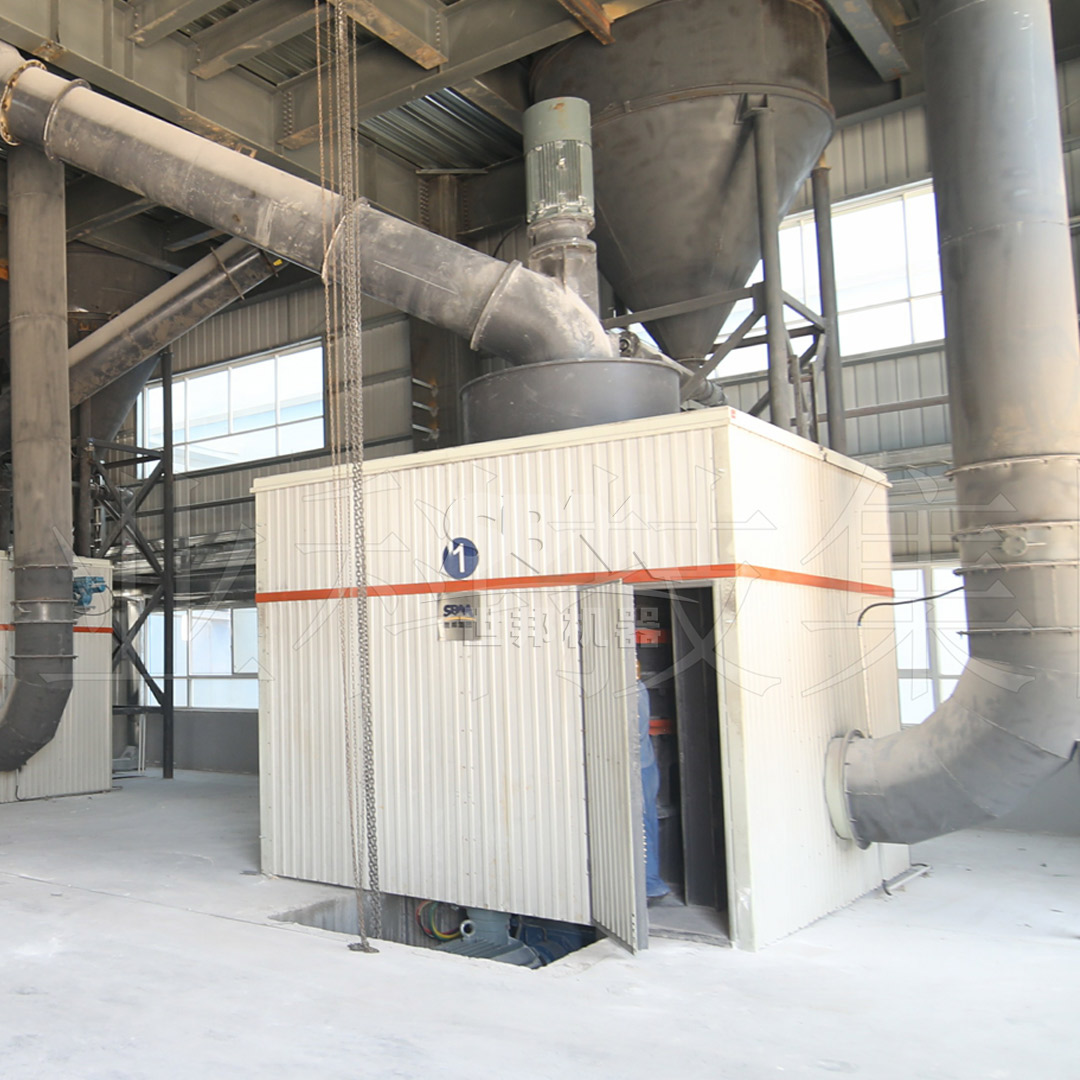

With operational noise levels maintained below 75dB, Guilin mills provide significant improvements in workplace comfort compared to conventional milling equipment. This is achieved through integrated sound insulation chambers, vibration damping systems, and precision engineering that minimizes mechanical noise generation. The reduced noise footprint also simplifies facility planning and compliance with workplace safety regulations.

Case Studies and Practical Applications

Metallurgical Grade Fluorite Production

In multiple metallurgical fluorite operations, the implementation of Guilin SCM series mills has resulted in 40-50% reductions in specific energy consumption while improving product consistency. The ability to precisely control particle size distribution has enabled producers to optimize flotation performance and acid consumption in downstream processes, leading to overall improvements in process economics.

Optical and Ceramic Grade Applications

For high-purity applications requiring exceptional particle size control, Guilin mills have demonstrated the capability to consistently produce fluorite powders with D100 < 10μm, meeting the stringent requirements of optical and advanced ceramic manufacturers. The minimal iron contamination achieved through careful material selection in wear parts has been particularly valued in these sensitive applications.

Conclusion: Strategic Advantages for Fluorite Processors

The selection of grinding technology represents one of the most significant decisions in fluorite processing operations, with far-reaching implications for product quality, operational costs, and environmental compliance. Guilin’s ultra-fine ring roller mill technology, particularly exemplified by the SCM and MTW series, provides a comprehensive solution that addresses the multifaceted challenges of modern fluorite processing.

Through their combination of precision grinding, advanced classification, energy efficiency, and operational reliability, these milling systems enable producers to achieve new levels of performance and profitability. The technology’s scalability ensures that operations of all sizes can benefit from these advancements, while the robust design and comprehensive support infrastructure guarantee long-term operational success.

For fluorite processors seeking to enhance their competitive position in increasingly demanding markets, investment in advanced grinding technology represents not merely an operational improvement but a strategic imperative. Guilin’s proven track record in mineral processing applications provides the confidence that this technology will deliver sustainable value throughout the equipment’s operational life.
