Energy-Saving Retrofit Solutions for Grinding Mill Production Lines

Introduction

In today’s mining and mineral processing industries, energy efficiency has become a critical factor in operational sustainability. Grinding mill production lines typically account for over 50% of a plant’s total energy consumption. This article explores comprehensive retrofit solutions to optimize energy usage while maintaining production capacity, with special focus on ZENITH’s innovative grinding technologies.

The Energy Challenge in Grinding Operations

Traditional grinding systems often suffer from:

  • Excessive power consumption (50-70 kWh/ton)
  • Low material utilization rates (60-75%)
  • High wear part replacement frequency
  • Inefficient classification systems

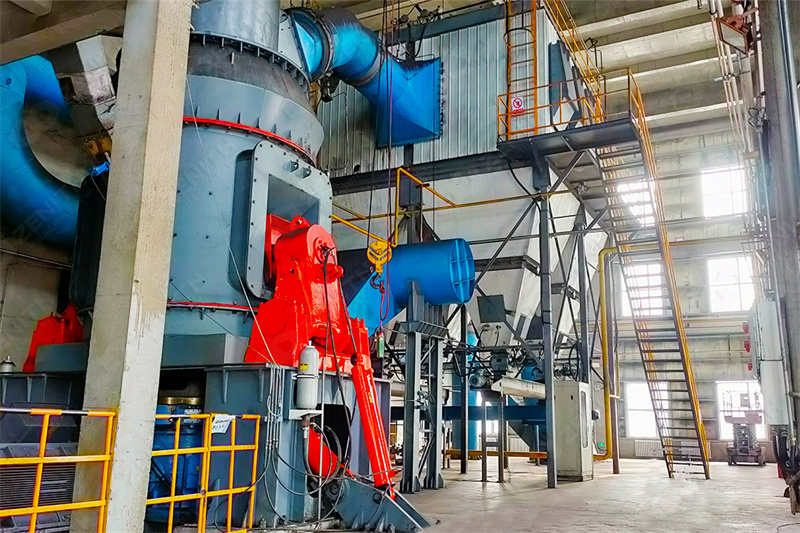

Traditional grinding mill production line with visible energy inefficiencies

Core Retrofit Strategies

1. Equipment Modernization

Upgrading to advanced mill designs can yield 30-50% energy savings:

ZENITH XZM Ultrafine Mill Solution

Our XZM Ultrafine Mill series represents a breakthrough in energy-efficient grinding technology:

  • 30% lower energy consumption compared to conventional mills
  • Precision classification system eliminates over-grinding
  • Smart control system automatically adjusts to feed variations
  • Output fineness adjustable between 325-2500 mesh (45-5μm)
XZM Series Performance Comparison
Model Capacity (t/h) Power (kW) Energy Saving
XZM221 0.5-4.5 75 32%
XZM244 2.5-14 185 35%
XZM268 5.0-25 315 38%

2. Process Optimization

Implementing system-level improvements:

  • Pre-crushing circuits to reduce feed size
  • Advanced air classification systems
  • Heat recovery from grinding processes
  • Automated control systems for optimal load distribution

Diagram showing optimized grinding mill circuit with energy recovery systems

Case Study: MTW Series Trapezium Mill Retrofit

A recent project upgrading to ZENITH’s MTW215G Trapezium Mill demonstrated:

  • 45% reduction in specific energy consumption (from 52 to 28.6 kWh/ton)
  • Throughput increased from 32 to 45 t/h
  • Wear part lifespan extended by 2.8x
  • Noise levels reduced to 75dB

Key Features of MTW Series:

  • Conical gear transmission (98% efficiency)
  • Curved air duct design reduces turbulence losses
  • Modular wear parts for quick replacement
  • Integrated pulse dust collector

Implementation Roadmap

  1. Energy Audit: Baseline measurement of current consumption
  2. System Analysis: Identify key inefficiency points
  3. Solution Design: Customized retrofit package
  4. Installation: Minimized downtime implementation
  5. Performance Validation: Post-retrofit measurements

Step-by-step grinding mill retrofit implementation process

Conclusion

Modern energy-saving retrofit solutions can transform grinding operations, delivering both economic and environmental benefits. ZENITH’s grinding technologies, including the XZM Ultrafine Mill and MTW Trapezium Mill series, provide proven solutions with rapid ROI. Our engineering team stands ready to assist with customized retrofit planning and implementation worldwide.

With over 30 years of experience and a presence in 170+ countries, ZENITH combines innovative technology with practical operational knowledge to deliver sustainable grinding solutions.
