Energy-saving Dry Process Powder Preparation Technology for Building Ceramics: A Comprehensive Analysis
Introduction
The building ceramics industry is undergoing a significant transformation driven by the need for sustainable manufacturing practices. Dry process powder preparation technology has emerged as a critical innovation, offering substantial energy savings, reduced environmental impact, and improved product quality compared to traditional wet methods. This comprehensive analysis explores the technological advancements, benefits, and applications of dry process powder preparation, with a focus on its role in the building ceramics sector.
The Shift to Dry Process Technology
Traditional wet process grinding methods in building ceramics production have long been associated with high energy consumption, water usage, and environmental challenges. The drying stage alone accounts for approximately 30-40% of total energy consumption in ceramic tile production. Dry process technology eliminates this energy-intensive drying step, offering immediate energy savings of 20-30% while reducing water consumption to zero.
The fundamental principle of dry grinding involves the mechanical reduction of raw materials to the required fineness without the addition of water. This process requires sophisticated equipment capable of handling various raw materials while maintaining precise control over particle size distribution – a critical factor in ceramic body formulation.
Key Technological Components
Advanced Grinding Systems
Modern dry grinding systems incorporate several innovative technologies that enhance efficiency and product quality. These include high-efficiency classifiers, precision grinding mechanisms, and intelligent control systems that optimize performance based on material characteristics and desired output specifications.
The heart of any dry process system is the grinding mill, which must balance several competing requirements: energy efficiency, production capacity, particle size control, and operational reliability. Different mill designs offer varying advantages depending on the specific application and material properties.
Classification Technology
Precise classification is essential for achieving the required particle size distribution in ceramic powders. Modern classifiers use advanced aerodynamic principles and variable speed controls to achieve cut points ranging from coarse (45μm) to ultra-fine (5μm) with remarkable accuracy. This precision ensures optimal packing density in ceramic bodies, which directly affects product strength, dimensional stability, and surface quality.
Energy Efficiency Considerations
Energy consumption in grinding operations follows Rittinger’s law, which states that the energy required is proportional to the new surface area created. Dry process systems optimize this relationship through several mechanisms:
Advanced mill designs minimize energy losses through improved mechanical efficiency, reduced friction, and optimized airflow patterns. Many modern systems recover and reuse energy from the grinding process, particularly through heat exchange systems that preheat incoming air or raw materials.
Intelligent control systems continuously monitor and adjust operational parameters to maintain optimal efficiency under varying conditions. These systems can detect changes in material characteristics and automatically compensate to maintain consistent product quality while minimizing energy consumption.
Product Spotlight: SCM Ultrafine Mill
Among the advanced equipment available for dry process powder preparation, our SCM Series Ultrafine Mill stands out for its exceptional performance in building ceramics applications. This mill represents the cutting edge of dry grinding technology, specifically designed to meet the demanding requirements of modern ceramic production.
The SCM Ultrafine Mill operates with an input size of ≤20mm and produces output fineness ranging from 325-2500 mesh (D97≤5μm), with processing capacities from 0.5-25 tons per hour depending on the specific model. Its technological advantages make it particularly suitable for preparing ceramic body compositions and glaze materials where ultra-fine particles and narrow size distributions are critical.
Key technical advantages include:
High Efficiency and Energy Savings: The SCM mill achieves approximately 30% lower energy consumption compared to conventional jet mills while delivering twice the production capacity. This is made possible through optimized grinding mechanics and intelligent control systems that automatically adjust operational parameters based on real-time feedback of product fineness.
Precision Classification: The integrated vertical turbine classifier enables precise particle size切割 with no coarse powder contamination, ensuring uniform product quality essential for consistent ceramic performance.
Durable Design: Specially manufactured roller and ring materials provide extended service life, while the innovative bearing-free screw grinding chamber ensures stable operation and reduced maintenance requirements.
Environmental Performance: With pulse dust collection efficiency exceeding international standards and noise levels below 75dB, the SCM mill meets the most stringent environmental regulations while maintaining operator comfort.
Technical Specifications and Applications
The SCM series includes multiple models to suit different production requirements:
• SCM800: 0.5-4.5 ton/h capacity, 75kW main motor
• SCM900: 0.8-6.5 ton/h capacity, 90kW main motor
• SCM1000: 1.0-8.5 ton/h capacity, 132kW main motor
• SCM1250: 2.5-14 ton/h capacity, 185kW main motor
• SCM1680: 5.0-25 ton/h capacity, 315kW main motor
In building ceramics applications, the SCM Ultrafine Mill excels in preparing body compositions for porcelain tiles, where ultra-fine particles (typically D90 < 10μm) are required to achieve high density and strength through liquid-phase sintering. The mill’s ability to produce narrow particle size distributions also makes it ideal for preparing engobe and glaze materials, where consistency and reproducibility are critical for surface quality and decorative effects.

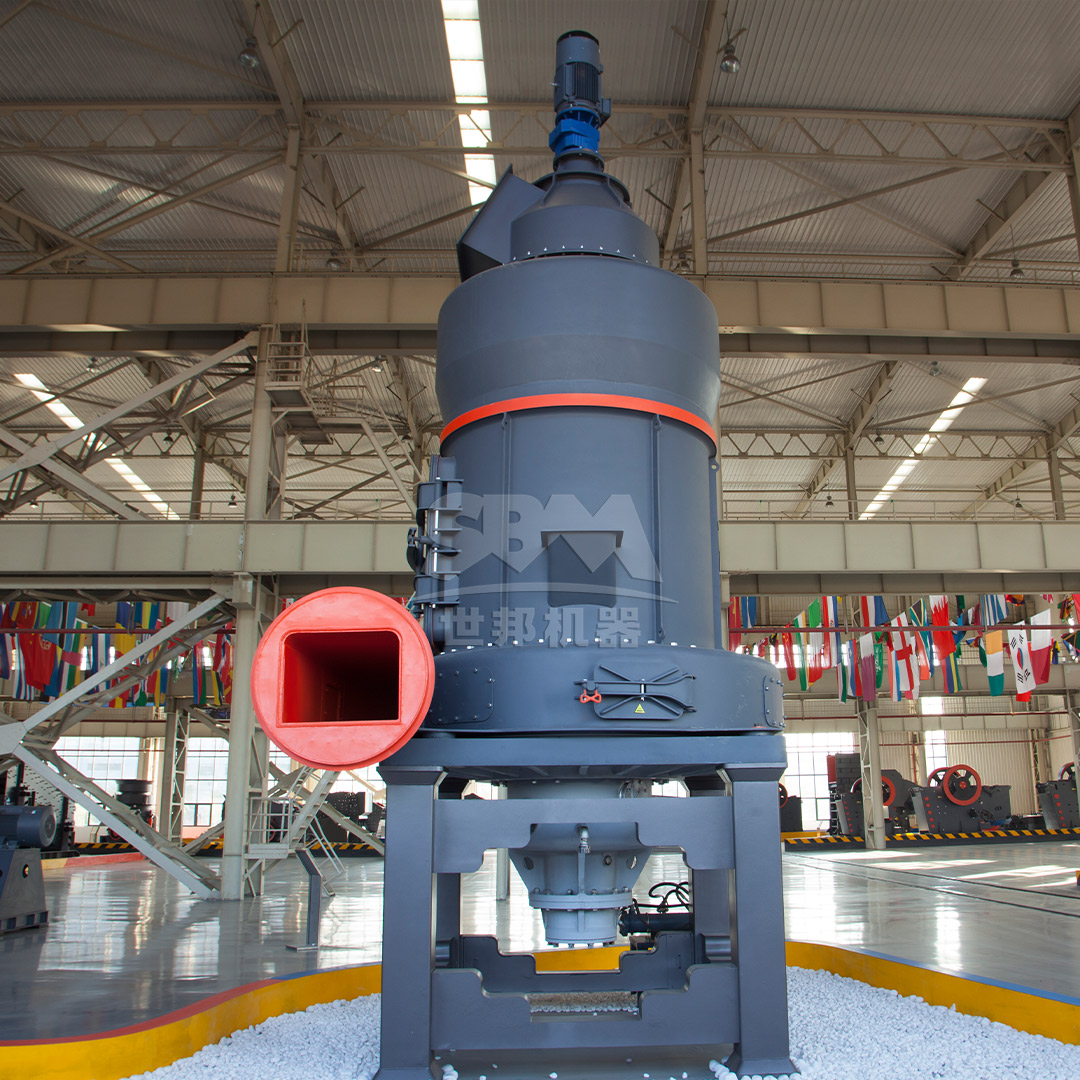

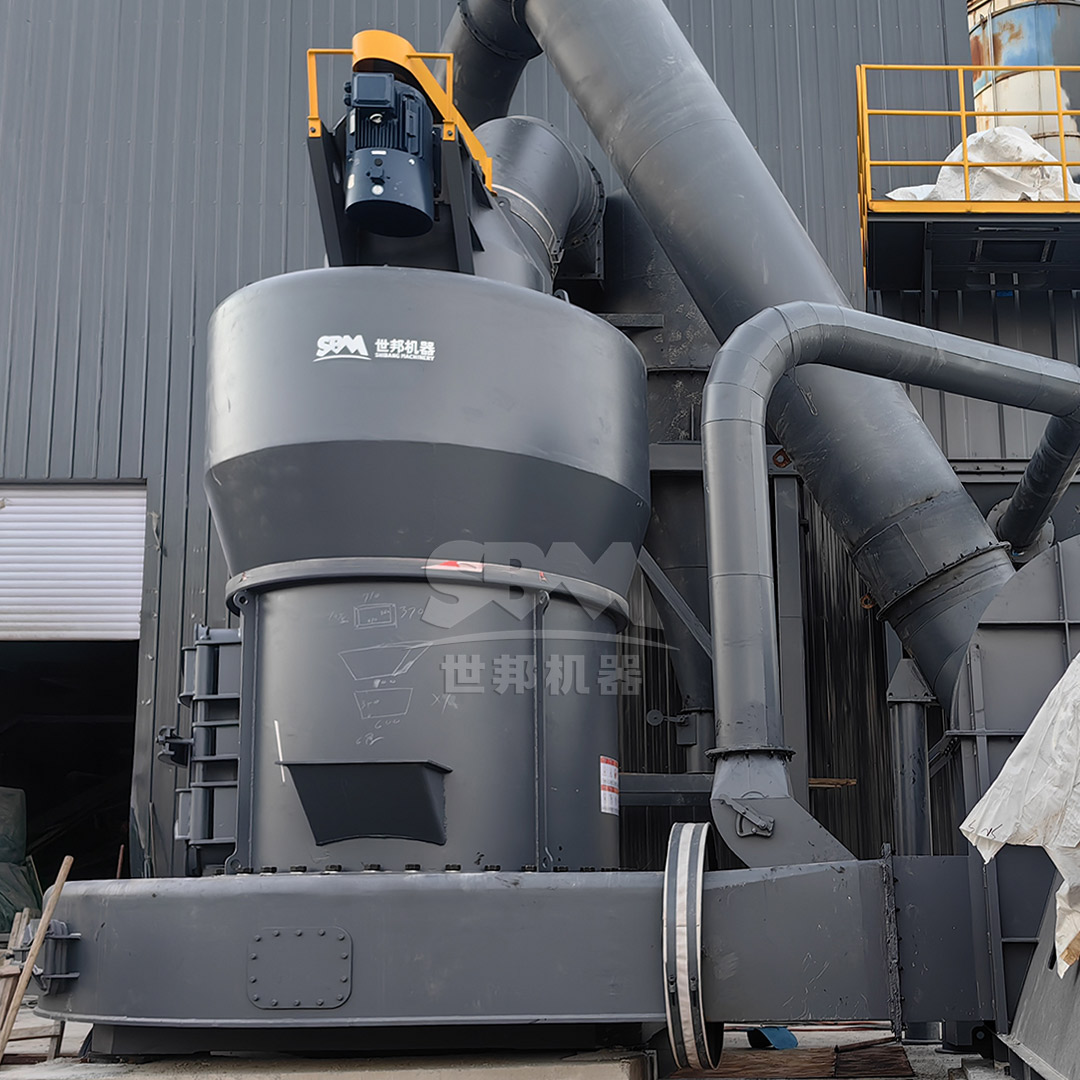

Product Spotlight: MTW Series Trapezium Mill
For applications requiring slightly coarser grinding or higher capacity production, our MTW Series Trapezium Mill offers an excellent solution. This advanced mill handles input sizes up to 50mm and produces output fineness from 30-325 mesh (up to 0.038mm), with processing capacities ranging from 3-45 tons per hour.
The MTW mill incorporates several innovative features that enhance its performance in ceramic applications:
Anti-wear Shovel Design: The combination shovel blade system reduces maintenance costs while the curved design extends roller service life, particularly important when processing abrasive ceramic raw materials.
Optimized Air Flow Path: The弧形风道design minimizes energy losses in air transportation while high-strength protective plates extend the life of critical components.
Integrated Gear Drive: The conical gear transmission system achieves 98% transmission efficiency while saving space and reducing installation costs.
Wear-resistant Volute Structure: The obstruction-free design improves air classification efficiency while reducing maintenance costs by approximately 30%.
Quality Implications for Building Ceramics
The transition to dry process powder preparation has significant implications for product quality in building ceramics. Properly implemented dry grinding systems can produce powders with superior characteristics compared to wet-processed materials:
Dry-processed powders typically exhibit more uniform particle size distributions, which translates to improved packing density in pressed ceramic bodies. This uniformity reduces firing shrinkage variations and improves dimensional stability – critical factors in modern large-format tile production.
The absence of water in the grinding process eliminates the need for drying and prevents the dissolution and re-precipitation of soluble salts that can cause efflorescence and other surface defects in fired products.
Modern dry grinding systems offer exceptional control over particle morphology, allowing producers to optimize particle shape for specific forming processes. Angular particles may be preferred for dry pressing, while more rounded particles might benefit extrusion processes.
Environmental and Economic Benefits
The adoption of energy-saving dry process technology offers substantial environmental and economic advantages:
Dry process systems typically reduce energy consumption by 20-40% compared to equivalent wet processes, primarily through the elimination of slurry drying. This reduction translates to lower production costs and reduced greenhouse gas emissions.
By eliminating water usage in grinding operations, dry process technology addresses water scarcity concerns and eliminates the need for wastewater treatment facilities. Modern systems also incorporate advanced dust collection technology, typically achieving collection efficiencies exceeding 99.9% and ensuring emissions comply with the most stringent environmental standards.
While the initial investment in advanced dry grinding equipment may be higher than conventional systems, the combination of energy savings, reduced water costs, lower maintenance requirements, and improved product quality typically delivers return on investment within 2-3 years for most ceramic producers.
Future Trends and Developments
The evolution of dry process powder preparation technology continues with several emerging trends:
Integration of artificial intelligence and machine learning algorithms for predictive maintenance and optimization of grinding parameters based on real-time material characterization.
Development of hybrid systems that combine multiple grinding principles to achieve specific particle characteristics while further reducing energy consumption.
Increased focus on circular economy principles, with systems designed to incorporate recycled materials and industrial by-products into ceramic body compositions.
Advancements in instrumentation and control technology enabling real-time monitoring of particle size distribution and automatic adjustment of operational parameters to maintain consistent product quality.
Conclusion
Energy-saving dry process powder preparation technology represents a significant advancement in building ceramics manufacturing, offering substantial benefits in terms of energy efficiency, environmental performance, and product quality. The development of advanced grinding equipment, such as our SCM Ultrafine Mill and MTW Trapezium Mill, has enabled ceramic producers to achieve new levels of performance while reducing their environmental footprint.
As the industry continues to evolve toward more sustainable manufacturing practices, dry process technology will play an increasingly important role. The ongoing development of even more efficient and versatile grinding systems promises to further enhance the economic and environmental benefits of this approach while enabling new possibilities in ceramic product design and performance.
For building ceramics producers considering the transition to dry process technology, careful evaluation of equipment capabilities, material characteristics, and specific product requirements is essential. With proper implementation, energy-saving dry process powder preparation can deliver significant competitive advantages while contributing to a more sustainable future for the ceramics industry.
