Electrolyte Grinding Mill System for Recycling Aluminum Electrolysis Crust Blocks
Introduction
The aluminum industry generates significant amounts of solid waste during electrolysis, primarily in the form of spent crust blocks. These crust blocks contain valuable components like cryolite, aluminum fluoride, and alumina that can be recovered and reused in the production process. Efficient recycling of these materials not only reduces environmental impact but also offers substantial economic benefits through resource recovery. The key to successful recycling lies in the grinding and separation process, where specialized mill systems play a critical role in liberating and recovering valuable components from the crust matrix.
Aluminum electrolysis crust blocks are characterized by their complex composition, varying hardness, and often abrasive nature. Traditional crushing and grinding equipment often proves inadequate for processing this material efficiently, leading to high wear rates, inconsistent particle size distribution, and poor separation efficiency. This has created a growing demand for specialized grinding systems specifically designed to handle the unique challenges presented by aluminum electrolysis crust recycling.
Characteristics of Aluminum Electrolysis Crust Blocks
Spent crust blocks from aluminum electrolysis present several distinctive characteristics that influence the selection and design of grinding equipment. These blocks typically consist of a mixture of frozen electrolyte, undissolved alumina, and various fluoride salts that have solidified on the surface of the electrolytic bath. The material exhibits moderate to high hardness, with Mohs hardness typically ranging from 4 to 6, and contains abrasive components that can accelerate wear on conventional grinding equipment.
The chemical composition varies depending on the specific electrolysis process and bath chemistry, but generally includes cryolite (Na3AlF6), aluminum fluoride (AlF3), calcium fluoride (CaF2), and alumina (Al2O3). The presence of fluoride compounds introduces additional considerations for equipment selection, as these materials can be corrosive under certain conditions and require appropriate material compatibility in the grinding system.
Particle size reduction requirements for effective recycling typically target a fineness range between 200 and 500 mesh (74-25 microns) to ensure adequate liberation of valuable components while maintaining reasonable processing costs. The grinding system must be capable of handling feed materials with sizes up to 50mm while producing a consistent, narrow particle size distribution that facilitates subsequent separation processes.
Technical Requirements for Electrolyte Grinding Systems
Grinding systems for aluminum electrolysis crust recycling must meet several critical technical requirements to ensure efficient operation and economic viability. The primary objective is to achieve effective size reduction while minimizing energy consumption, wear costs, and environmental impact. Key technical considerations include the ability to handle abrasive materials, precise control over particle size distribution, high availability and reliability, and integration with downstream separation processes.
Energy efficiency is particularly important given the energy-intensive nature of size reduction operations. Modern grinding systems should incorporate features that maximize the proportion of energy directed toward particle breakage rather than being dissipated as heat, vibration, or noise. Additionally, the system must be designed to minimize contamination from grinding media wear, as introduced impurities can negatively impact the quality of recycled materials and their suitability for reuse in the electrolysis process.
Environmental considerations include effective dust collection, noise control, and containment of potentially hazardous materials. The grinding system should operate under negative pressure to prevent fugitive emissions and incorporate high-efficiency dust collection equipment. Noise levels should be controlled to meet workplace safety standards, typically below 85 dB(A) at operator positions.
Recommended Grinding Equipment for Electrolyte Crust Processing
MTW Series Trapezium Mill for Primary and Secondary Grinding
For processing aluminum electrolysis crust blocks, the MTW Series Trapezium Mill represents an optimal solution for primary and secondary grinding applications. This mill combines robust construction with advanced technological features specifically suited to the challenges of electrolyte crust processing. With an input size capability of ≤50mm and output fineness adjustable from 30-325 mesh (600-45μm), the MTW mill covers the essential size reduction range required for effective liberation of valuable components from the crust matrix.
The technical advantages of the MTW Series make it particularly suitable for electrolyte crust processing. The wear-resistant shovel blade design significantly reduces maintenance costs when processing abrasive crust materials. The curved air channel optimization minimizes energy losses during material transport, while the integral transmission of bevel gear achieves remarkable 98% transmission efficiency. The wear-resistant volute structure further enhances operational reliability and reduces maintenance requirements by approximately 30% compared to conventional designs.
For aluminum electrolysis crust recycling operations, we specifically recommend the MTW215G model, which offers a processing capacity of 15-45 tons per hour with a main motor power of 280kW. This model provides the ideal balance between processing capacity and energy efficiency for medium to large-scale recycling operations. The integrated powder classifier with a 55kW motor ensures precise control over product fineness, which is critical for optimizing downstream separation efficiency.
SCM Ultrafine Mill for Fine Grinding Applications
For applications requiring ultrafine grinding of specific electrolyte components, the SCM Ultrafine Mill delivers exceptional performance with output fineness ranging from 325 to 2500 mesh (45-5μm). This mill is particularly valuable for processing separated cryolite or alumina fractions that require further size reduction to enhance dissolution characteristics or meet specific product specifications.
The SCM series incorporates several technological advantages that benefit electrolyte processing operations. Its high-efficiency design provides approximately twice the capacity of jet mills while reducing energy consumption by 30%. The vertical turbine classifier ensures precise particle size cuts without coarse powder contamination, producing consistently uniform product quality. Special material roller and grinding ring compositions extend service life significantly when processing abrasive crust materials.
For electrolyte crust recycling applications, we recommend the SCM1250 model, which offers processing capacity of 2.5-14 tons per hour with a main motor power of 185kW. The intelligent control system with automatic feedback on product particle size ensures consistent operation and product quality. Environmental performance is enhanced through pulse dust collection efficiency that exceeds international standards and noise levels controlled to ≤75dB through integrated acoustic enclosure design.
System Configuration and Process Flow

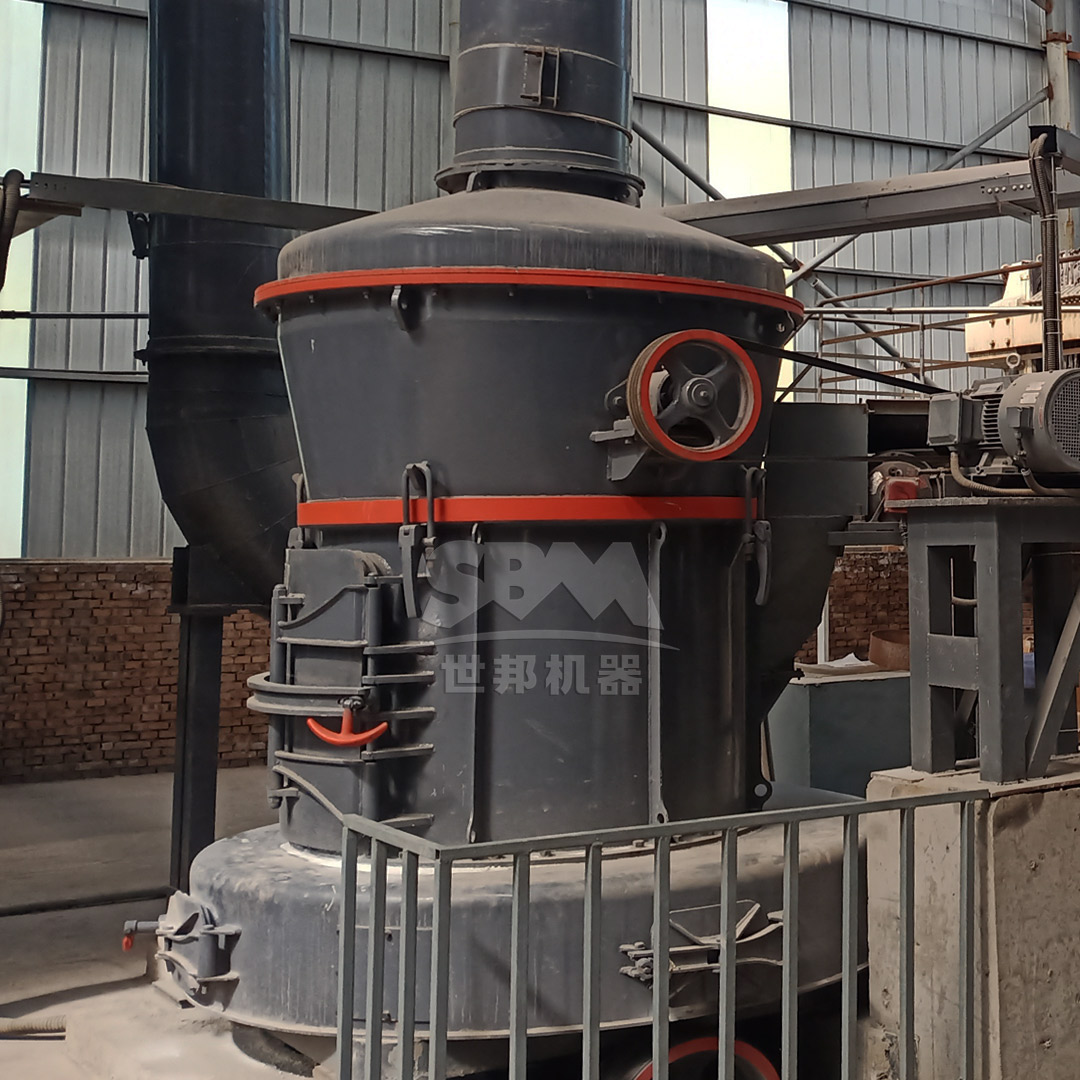

A complete electrolyte grinding system for aluminum electrolysis crust blocks typically includes several key components arranged in an integrated process flow. The system begins with primary crushing equipment to reduce the crust blocks to a size suitable for feeding into the main grinding mill. Jaw crushers or hammer mills are commonly employed for this initial size reduction stage, producing material with a maximum size of 50mm or less.
The crushed material then enters the main grinding circuit, which typically consists of the MTW Series Trapezium Mill configured in closed circuit with a high-efficiency classifier. This arrangement ensures that material is ground to the target fineness before proceeding to downstream separation processes. The grinding circuit may include pre-drying capabilities if the crust blocks contain significant moisture, though spent crust typically has low moisture content from the high-temperature electrolysis environment.
Following the grinding stage, the powdered material enters separation systems, which may include air classifiers, screens, or specific gravity separators depending on the composition of the crust and the targeted recovery products. The ground material typically proceeds to flotation or electrostatic separation processes to recover valuable fluoride components and alumina. The grinding system is integrated with comprehensive dust collection equipment to capture and contain fine particles, with collected material typically returned to the process stream.
Operational Considerations and Best Practices
Successful operation of electrolyte grinding systems for aluminum electrolysis crust recycling requires attention to several operational considerations and implementation of industry best practices. Proper feed preparation is essential, including removal of metallic contaminants and oversize material that could damage the grinding equipment. Consistent feed rate control helps maintain stable operation and consistent product quality.
Wear management represents a critical aspect of operation, given the abrasive nature of crust materials. Regular inspection and scheduled replacement of wear components such as grinding rolls, rings, and classifier parts prevent unexpected downtime and maintain processing efficiency. Implementation of predictive maintenance techniques, including vibration analysis and wear monitoring, can significantly extend component life and reduce operating costs.
Process optimization should focus on achieving the target particle size distribution with minimum energy consumption. This typically involves balancing classifier speed, grinding pressure, and feed rate to find the optimal operating point. For electrolyte crust processing, the target fineness should be aligned with the requirements of downstream separation processes, avoiding both insufficient liberation from under-grinding and excessive energy consumption from over-grinding.
Economic and Environmental Benefits
The implementation of specialized grinding systems for aluminum electrolysis crust recycling delivers significant economic and environmental benefits. From an economic perspective, the recovery of valuable fluoride compounds and alumina represents direct cost savings by reducing the consumption of virgin materials in the electrolysis process. Modern, efficient grinding equipment further enhances economics through reduced energy consumption, lower maintenance costs, and higher availability compared to conventional crushing approaches.
Environmental benefits include reduced waste generation, decreased demand for primary raw materials, and lower overall energy consumption compared to producing equivalent materials from virgin sources. Properly designed grinding systems with integrated dust collection prevent emissions of fine particles and fluoride-containing dust, protecting both worker health and the surrounding environment. The recycling process also avoids the environmental impacts associated with disposal of spent crust in landfills, including potential leaching of fluoride compounds.
Lifecycle cost analysis typically demonstrates favorable economics for crust recycling operations, with payback periods for equipment investment often ranging from 12 to 36 months depending on scale and specific circumstances. The economic viability continues to improve as raw material costs increase and environmental regulations governing waste disposal become more stringent.
Conclusion
Specialized grinding systems represent a critical enabling technology for the economic recycling of aluminum electrolysis crust blocks. The unique characteristics of spent crust materials demand grinding equipment specifically designed to handle abrasive components while providing precise control over particle size distribution. The MTW Series Trapezium Mill and SCM Ultrafine Mill offer complementary capabilities that address the full range of size reduction requirements in crust recycling operations, from primary grinding to ultrafine applications.
Implementation of optimized grinding systems enables aluminum producers to transform waste liability into valuable resource recovery, simultaneously improving economic performance and reducing environmental impact. As the aluminum industry continues to focus on sustainability and circular economy principles, advanced grinding technology will play an increasingly important role in maximizing resource efficiency and minimizing waste generation throughout the production lifecycle.
