Customized Coal Pulverizing System for Power Plants: Design & Solutions

Introduction

Modern power plants demand highly efficient coal pulverizing systems to ensure optimal combustion efficiency and environmental compliance. This article explores advanced design methodologies and tailored solutions for coal pulverization, with a focus on cutting-edge equipment selection and system integration.

Key Requirements for Coal Pulverization

Effective coal pulverization systems must address three critical factors:

  1. Precision Particle Size Control: Consistent fineness (typically 70-90% passing 200 mesh) for complete combustion
  2. System Reliability: Continuous operation with minimal downtime
  3. Energy Efficiency: Reduced specific power consumption per ton of processed coal

Diagram of coal pulverization process in power plants

System Design Considerations

1. Material Characteristics Analysis

Successful system design begins with comprehensive coal analysis:

  • Hardness (HGI index measurement)
  • Moisture content (surface vs. inherent moisture)
  • Ash fusion characteristics
  • Grindability test results

2. Equipment Selection Matrix

Our technical evaluation recommends two superior solutions for different capacity requirements:

Solution A: LM Series Vertical Roller Mill

For medium to large power plants (15-250t/h capacity):

  • Integrated drying/pulverizing system reduces pre-processing
  • Energy savings up to 40% compared to ball mills
  • Compact footprint reduces construction costs

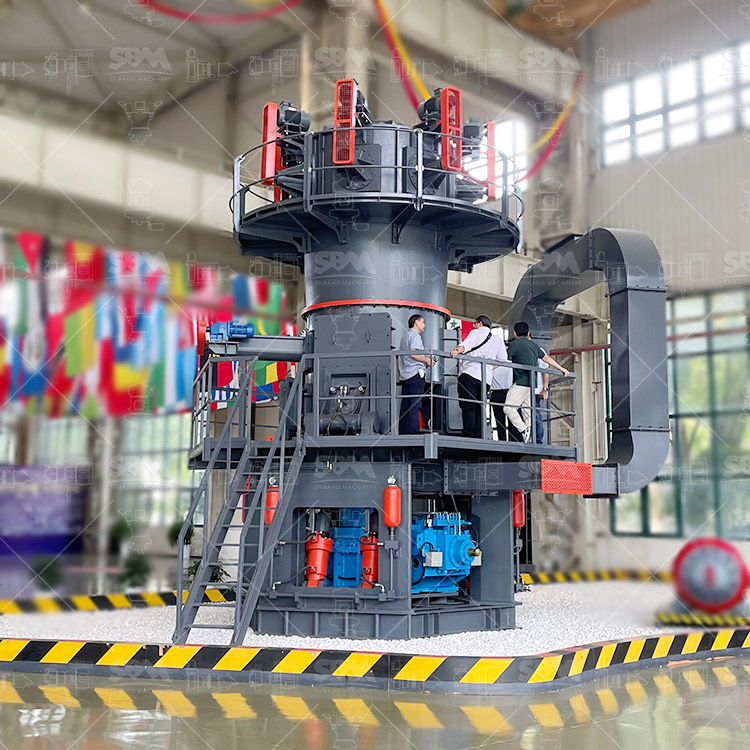

LM series vertical roller mill for coal pulverization

Solution B: MTW Series Trapezium Mill

For small to medium power plants (3-45t/h capacity):

  • Proven reliability with curved duct design
  • Low maintenance costs with combined wear plates
  • 98% transmission efficiency through integral gear drive

Featured Product: MTW Series Trapezium Mill

Our MTW Series Trapezium Mill represents the next evolution in coal pulverizing technology with these exceptional features:

Model Capacity (t/h) Main Motor Power Feed Size Fineness
MTW110 3-9 55kW <30mm 10-325 mesh
MTW175G 9.5-25 160kW <40mm 10-325 mesh
MTW215G 15-45 280kW <50mm 10-325 mesh

Technical Advantages

  • Anti-wear shovel blade design: Curved surface extends service life by 30%
  • Optimized air duct: Reduces energy loss with high-strength protection plates
  • Integrated gear drive: 98% transmission efficiency with compact installation
  • Wear-resistant volute structure: 30% lower maintenance costs

System Integration Solutions

1. Complete Process Flow

  1. Raw coal feeding with automatic metering
  2. Primary crushing (when necessary)
  3. Drying & pulverizing in main mill
  4. Particle size classification
  5. Pneumatic conveying to burners

Complete coal pulverizing system layout

2. Advanced Control Systems

Our customized solutions incorporate:

  • Online particle size monitoring
  • Mill load optimization algorithms
  • Predictive maintenance protocols
  • Remote diagnostic capabilities

Conclusion

Selecting the proper coal pulverizing system requires careful analysis of plant requirements and coal characteristics. Our MTW Series Trapezium Mill and LM Vertical Roller Mills provide flexible, high-efficiency solutions for power plants of all sizes. With advanced design features and intelligent control systems, these mills deliver the reliability and performance needed for modern power generation.

For specific application recommendations or technical specifications, please contact our engineering team for a customized solution analysis.
