Complete Guide: What Equipment is Included in a Full Ore Grinding Production Line?

Introduction to Ore Grinding Production Lines

An efficient ore grinding production line is a complex system comprising multiple interconnected components working in harmony to transform raw mineral ores into finely ground powders suitable for various industrial applications. The selection and configuration of equipment depend on factors such as ore characteristics, required product fineness, production capacity, and operational costs. This comprehensive guide explores the essential equipment that constitutes a complete ore grinding production line, from primary crushing to final powder collection.

Primary Crushing Equipment

The first stage in any mineral processing operation involves reducing the size of mined ore to a manageable dimension for subsequent grinding processes. Primary crushers handle large rocks, typically reducing them to particles smaller than 200mm.

Jaw Crushers: These robust machines use compressive force to break down large ore pieces between a fixed and moving jaw plate. They’re ideal for hard and abrasive materials and can handle feed sizes up to 1500mm, producing output ranging from 150-300mm.

Gyratory Crushers: Similar to jaw crushers in application, gyratory crushers feature a conical head that gyrates within a concave bowl. They offer higher capacity and are often used in high-tonnage mining operations.

Impact Crushers: Utilizing impact rather than compression, these crushers are suitable for less abrasive materials and can produce more cubical products, which is beneficial for downstream processing.

Secondary and Tertiary Crushing

After primary crushing, secondary and sometimes tertiary crushing stages further reduce ore size to optimize grinding efficiency. Smaller feed material to grinding mills significantly improves energy efficiency and throughput.

Cone Crushers: These crushers operate by compressing material between a rotating mantle and stationary concave. They provide excellent reduction ratios and produce uniform particle shapes, making them ideal for preparing feed for grinding circuits.

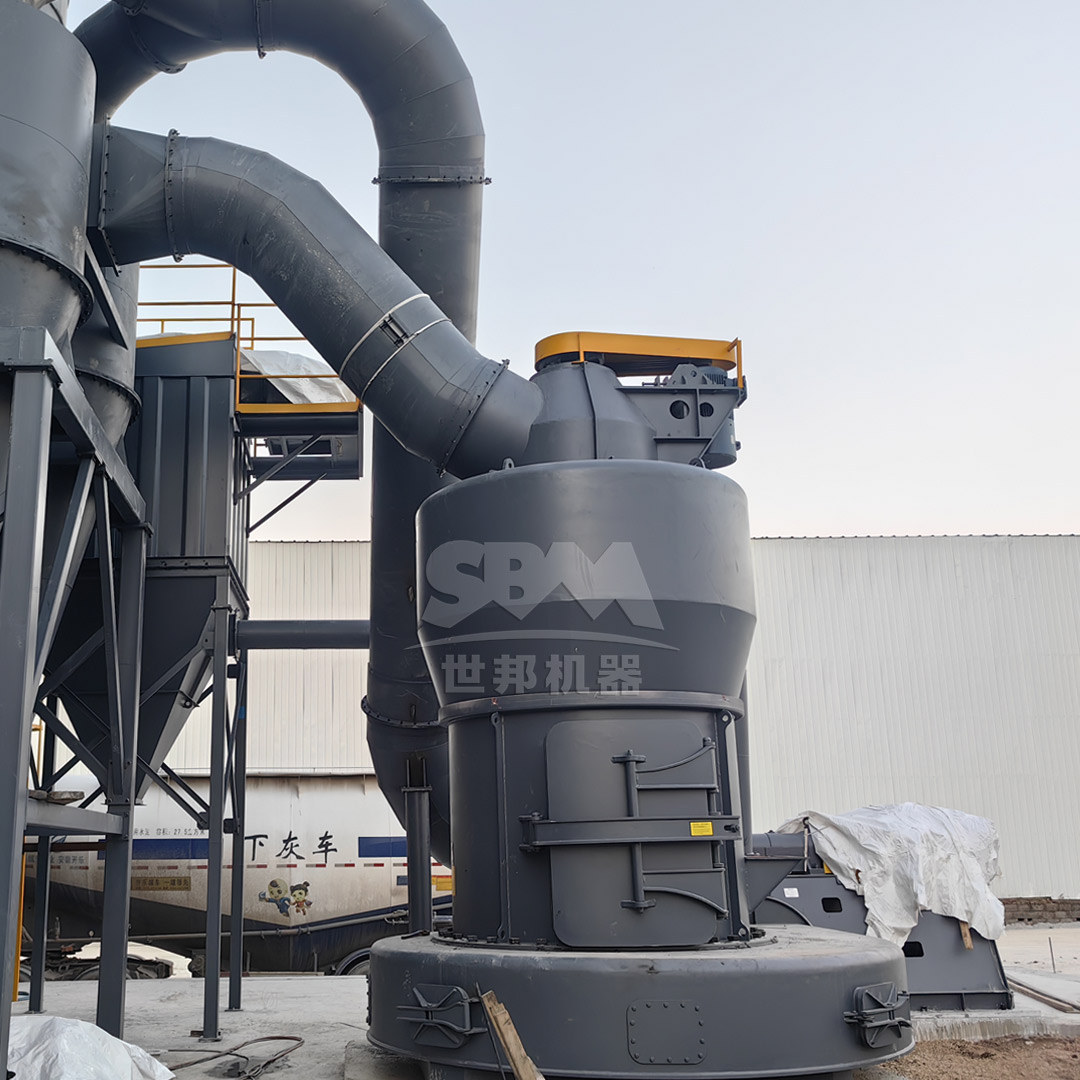

Hammer Mills: For specific applications requiring very fine crushing before grinding, hammer mills offer an effective solution. Our Hammer Mill series features optimized cavity design and high manganese steel wear parts that deliver high capacity with a compact footprint. With feed sizes up to 40mm and product fineness as fine as 0-3mm, these machines provide excellent preparation for ultra-fine grinding processes.

Grinding Mills: The Heart of the Production Line

Grinding mills represent the core of any ore processing line, where the actual size reduction to the required fineness occurs. Different mill types suit various applications based on ore hardness, required product size, and capacity needs.

Ball Mills

These traditional grinding machines consist of a rotating cylinder filled with grinding media (typically steel balls). As the mill rotates, the balls cascade and impact the ore, resulting in comminution through both impact and attrition. Ball mills handle feed sizes up to 25mm and produce products in the range of 0.074-0.8mm. They’re available in both dry and wet configurations, with capacities ranging from 0.65 to 450 tons per hour depending on size.

Vertical Roller Mills

Vertical roller mills have gained significant popularity in mineral processing due to their higher energy efficiency compared to traditional ball mills. These mills utilize cylindrical rollers that press against a rotating grinding table, crushing the material through compression.

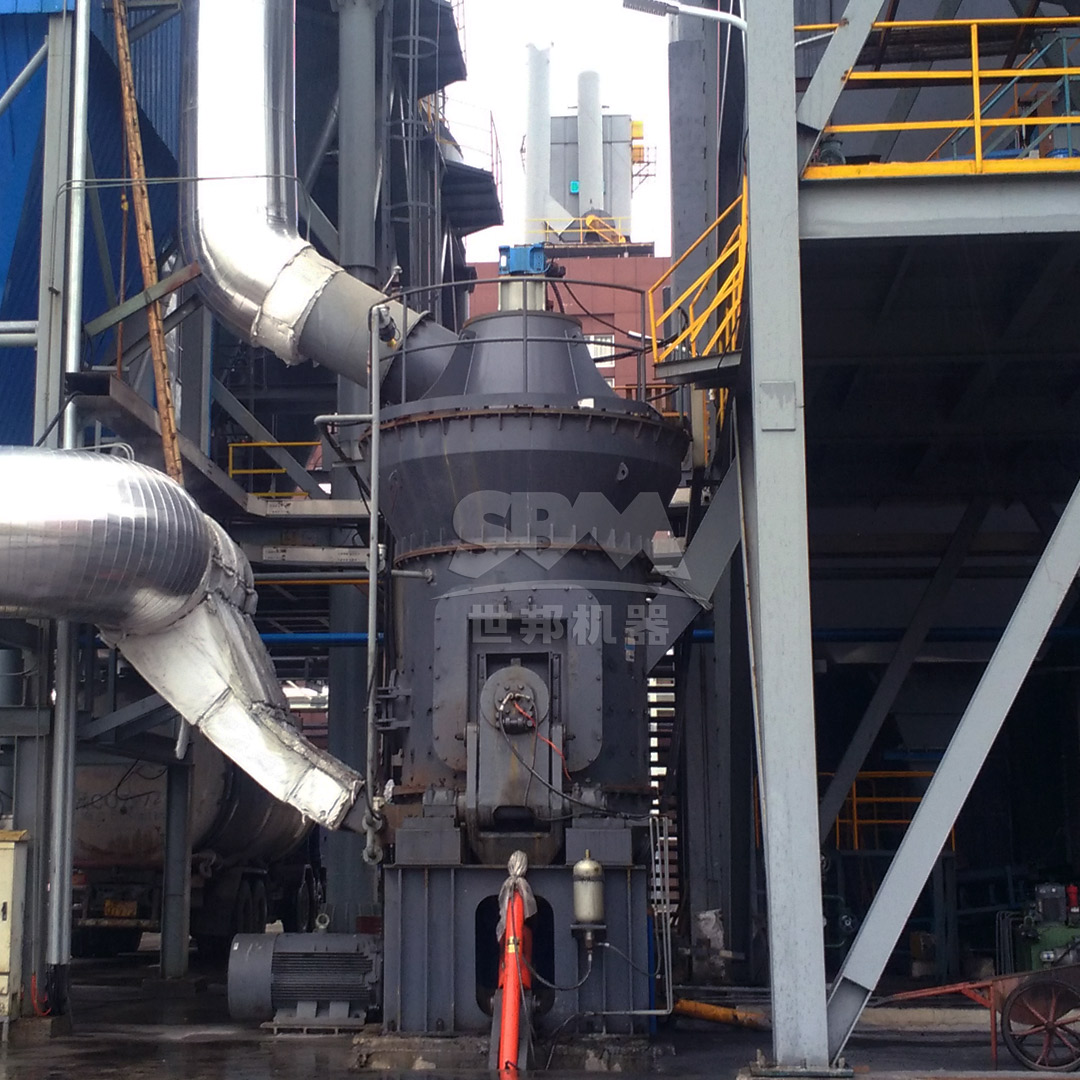

Our LM Series Vertical Roller Mills represent the pinnacle of grinding technology with their integrated design that combines crushing, grinding, drying, and classifying in a single unit. These mills handle feed sizes up to 50mm and produce products ranging from 30-325 mesh (special models up to 600 mesh), with impressive capacities from 3-250 tons per hour depending on the specific application.

The key advantages of our LM Series include:

• Space-saving design: Integrated system reduces footprint by 50% compared to traditional systems
• Significant energy savings: 30-40% lower energy consumption versus ball mill systems
• Advanced control systems: Expert automation with remote operation capabilities
• Environmental compliance: Full negative pressure operation with dust emissions below 20mg/m³

Ultra-Fine Grinding Mills

For applications requiring extremely fine products, specialized mills are necessary. Our SCM Ultrafine Mill series delivers exceptional performance in the fine and ultra-fine grinding range, handling feed sizes up to 20mm and producing products with fineness between 325-2500 mesh (D97≤5μm). With capacities ranging from 0.5-25 tons per hour across different models, these mills incorporate advanced features including:

• High-efficiency classification: Vertical turbine classifiers ensure precise particle size cuts without coarse powder contamination
• Energy-saving operation: Twice the capacity of jet mills with 30% lower energy consumption
• Durable construction: Special material rollers and grinding rings significantly extend service life
• Environmental performance: Pulse dust collection exceeding international standards with noise levels below 75dB

Classification and Separation Equipment

Classification is crucial for ensuring the final product meets specifications and for improving grinding circuit efficiency by returning oversize material for further reduction.

Air Classifiers: These units separate particles based on size, shape, and density using aerodynamic forces. Modern classifiers offer high precision and can be integrated directly with grinding mills in closed-circuit operations.

Hydrocyclones: In wet grinding circuits, hydrocyclones use centrifugal force to separate particles, with finer material reporting to the overflow and coarser particles to the underflow.

Screens: Vibrating screens provide mechanical separation based on particle size and are often used for coarser separations or dewatering applications.

Material Handling and Feeding Systems

Efficient material transport between processing stages is essential for optimal plant performance. A complete grinding line includes:

Feeders: These regulate the flow of material into crushers and mills. Common types include vibrating feeders, apron feeders, and belt feeders, selected based on material characteristics and flow requirements.

Conveyors: Belt conveyors transport material between processing stages, with designs varying based on distance, elevation change, and material characteristics.

Elevators: Bucket elevators provide vertical transport of materials, essential for feeding materials to elevated equipment such as mills and classifiers.

Dust Collection and Environmental Control

Modern mineral processing operations must address environmental concerns, particularly dust emissions. Effective dust control systems include:

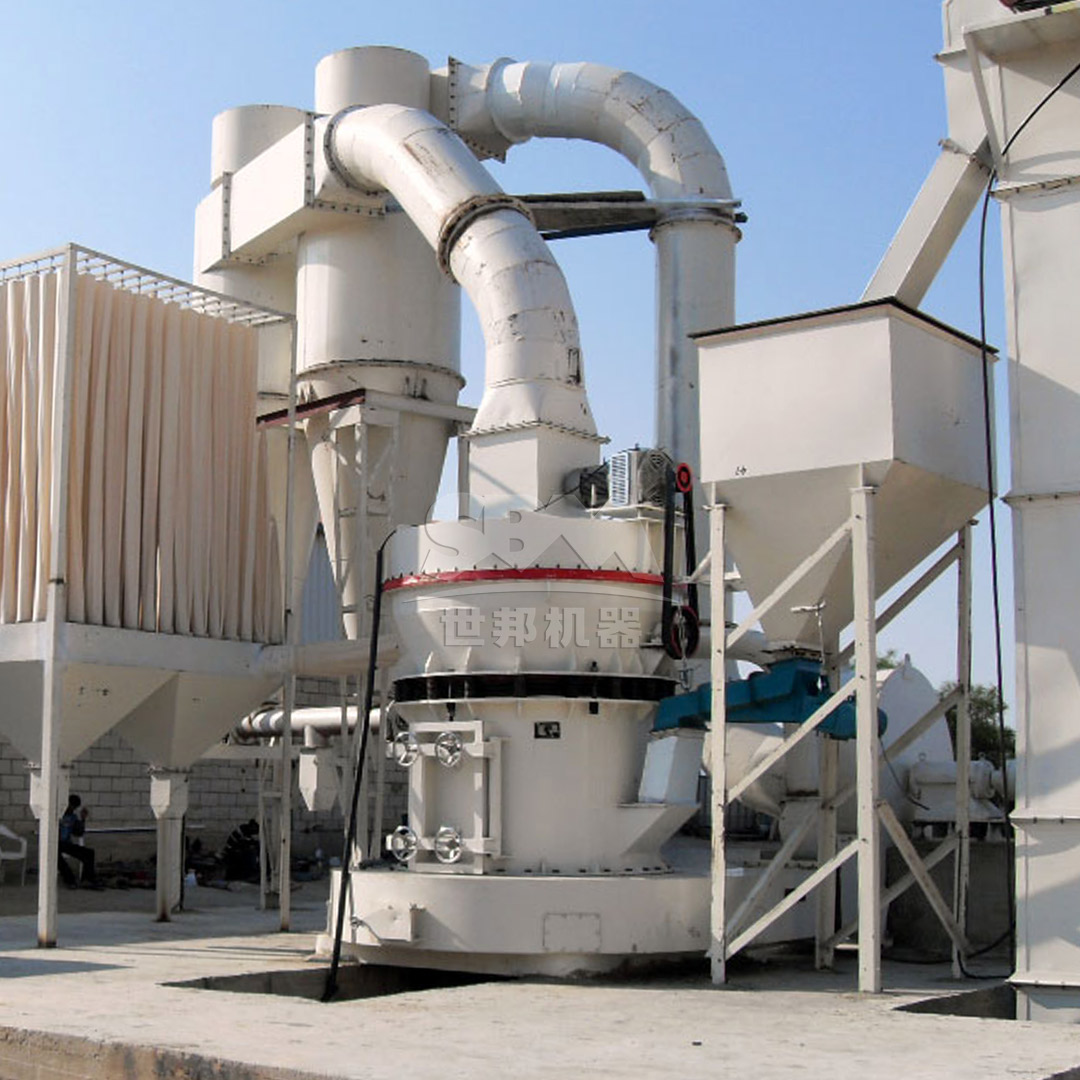

Baghouse Filters: These fabric filter systems capture dust particles from process air streams, with cleaning mechanisms to maintain efficiency. Modern pulse-jet designs offer high collection efficiency exceeding 99.9%.

Cyclone Collectors: As primary collectors, cyclones remove larger particles from air streams, reducing the load on downstream filtration equipment.

Wet Scrubbers: For applications with high moisture content or specific chemical characteristics, wet scrubbers can effectively control emissions.

Auxiliary Systems

Beyond the core processing equipment, several auxiliary systems are essential for reliable operation:

Electrical Systems: Proper motor control, variable frequency drives, and power distribution are critical for efficient operation and energy management.

Instrumentation and Control: Modern grinding plants employ sophisticated control systems that monitor and optimize process parameters, including particle size analyzers, flow meters, and pressure sensors.

Lubrication Systems: Automated lubrication ensures proper equipment function and extends component life, particularly for bearings and gears in high-wear applications.

Selecting the Right Equipment Configuration

Choosing the optimal equipment combination depends on multiple factors:

Ore Characteristics: Hardness, abrasiveness, moisture content, and feed size distribution significantly influence equipment selection.

Product Requirements: The required fineness, particle size distribution, and production rate dictate the grinding and classification approach.

Economic Considerations: Capital costs, operating expenses, maintenance requirements, and energy consumption must be balanced to achieve the most economical solution.

Space Constraints: Plant layout and available space may influence equipment selection, with vertical mills often offering advantages in compact installations.

Conclusion

A complete ore grinding production line represents a significant investment that requires careful planning and equipment selection. From primary crushing through final classification, each component must be properly sized and matched to create an efficient, reliable system. Modern trends favor integrated solutions like our LM Series Vertical Roller Mills that combine multiple functions in single units, reducing footprint while improving energy efficiency and operational control.

When planning a new grinding line or upgrading existing facilities, consider not only the initial capital investment but also long-term operating costs, maintenance requirements, and flexibility to process varying feed materials. With the right equipment selection and system design, mineral processors can achieve optimal performance while meeting increasingly stringent environmental and economic requirements.
